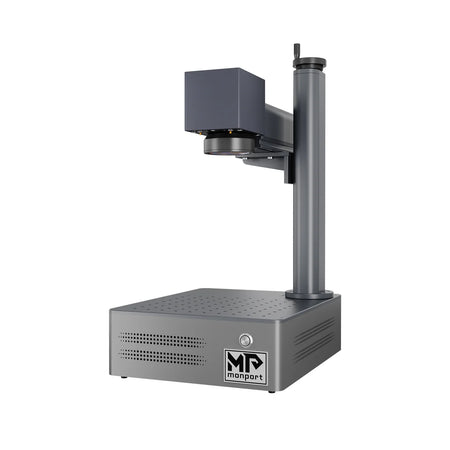

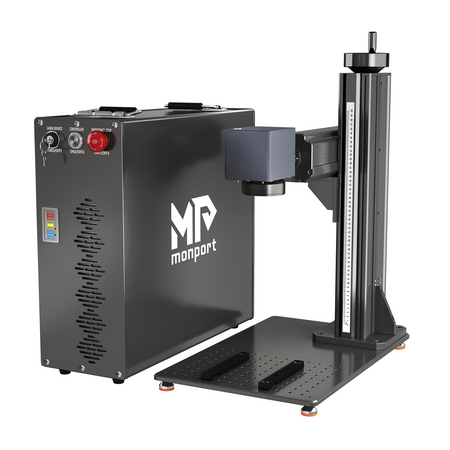

| Series | GM20 | GM30 | GM50 | GM30 MOPA | GM60 MOPA |
| Product Dimensions | 370 x 300 x 550mm | ||||
| Wavelength | 1064nm | ||||
| Laser Power | 20W | 30W | 50W | 30W | 60W |
| Frequency Range | 29~60kHz | 30~60kHz | 45~170kHz | 1-4000kHz | |
| Pulse Width | 80-120 ns Unadjustable (Fixed pulse width) |
90-110 ns Unadjustable (Fixed pulse width) |
2-500 ns | ||
| Rated voltage | 220V | ||||
| Engraving Area | 4.3 x 4.3 in.（110x110mm） | 5.9 x 5.9 in.（150x150mm） | 6.9 x 6.9 in.（175x175mm） | ||

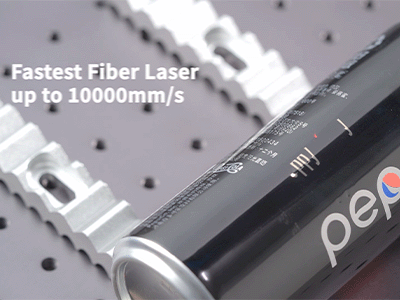

| Max. Engraving Speed | 10000mm/s（393.7 ips） | ||||
| Compatible Operating Systems | Windows / macOS | ||||
| Compatible Software | BslAppSimple Lightburn |
||||
| Max. Marking Depth on a Single Pass(depend on materials) |
0.002in. (0.04mm) |
0.003in. (0.08mm) |
0.004in. (0.1mm) |
0.003in. (0.08mm) |
0.004in. (0.1mm) |
| Max Z.height (Field Lens to Workbench) |
350mm | ||||
| Color Engraving | NO | YES | |||
| Engraving accuracy | 0.01mm | ||||
| Positioning Accuracy | ±0.1 µm | ||||
| Beam Quality M2 | ＜1.5 | ||||
| Beam Diameter | 6-8 mm | 7±0.5mm | |||
| Maximum Pulse Energy | 0.78 mJ | 1.1 mJ | 0.8 mJ | 2 mJ | |
| Expected Service Life | 100000 hr. | ||||
| Galvanometer Thread size | M68 | ||||
| Cooling Type | Air Cooling | ||||
| Focus mode | Manual focus | ||||
| Field lens dimension | M85 | ||||
| Warranty | 2-year （1 year for laser source) |
||||
| Laser Type | Q-switched fiber laser | MOPA Fiber Laser | |||
| Electric Lifting | NO | ||||
| Rotation Axis Function | YES | ||||
| Foot Pedal Function | External foot pedal | ||||
| Product Color | Grey | ||||
| Materials Suitable for Engraving | Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc | ||||
| Data Transmission | USB Cable | ||||
| Package Dimension | 545*390*350mm | ||||
| Gross Weight | 16.5kg | 17kg | 16kg | 17kg | |
