45-60 delivery daysSold out
Monport UK

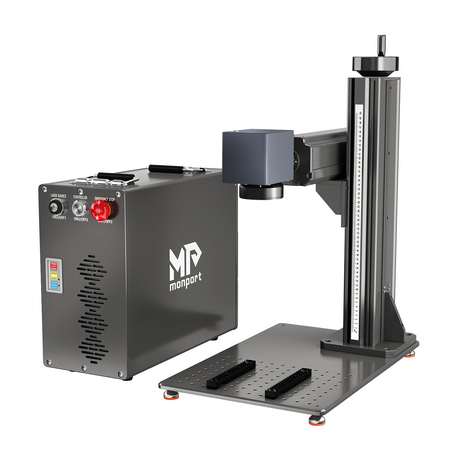

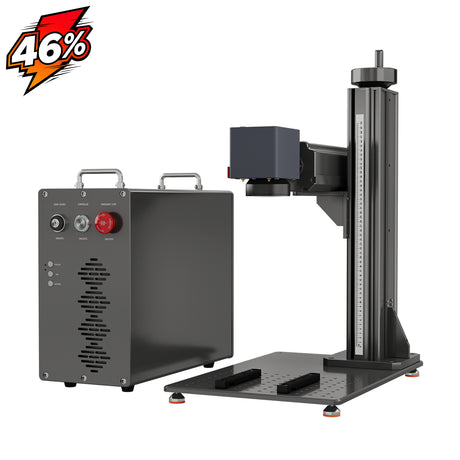

Monport GT 30W Split Fiber Laser Engraver & Marking Machine With AutoFocus (5.9” x 5.9”)
Sale price From £2,399.99 Regular price £3,699.99Unit price /Unavailable -
-
3-7 delivery daysUp to £2,400.00 off
Monport UK

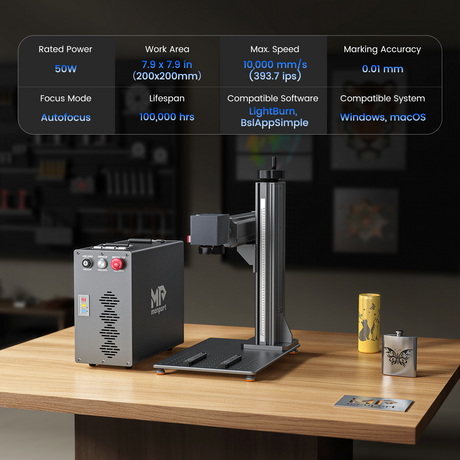

Monport GT 50W Split Fiber Laser Engraver & Marking Machine With AutoFocus (7.9" x 7.9")
Sale price From £2,599.99 Regular price £4,999.99Unit price /Unavailable -
-
3-7 delivery daysUp to £2,400.00 off
Monport UK

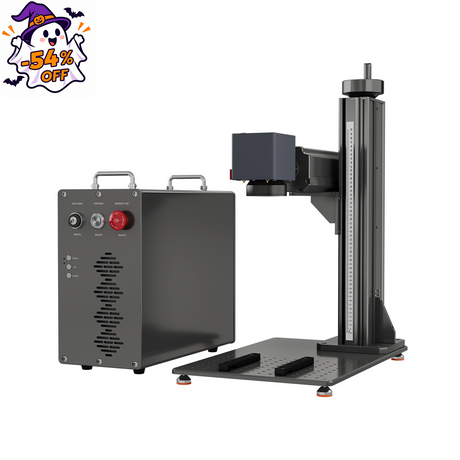

Monport GT 30W Split MOPA Fiber Laser Engraver & Color Marking Machine With AutoFocus
Sale price From £3,299.99 Regular price £5,699.99Unit price /Unavailable -
-
3-7 delivery daysUp to £3,000.00 off
Monport UK

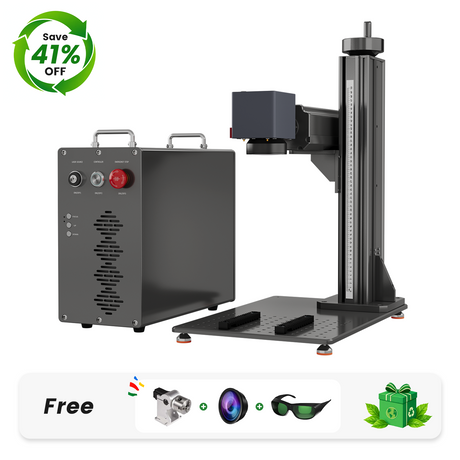

Monport GT 60W Split MOPA Fiber Laser Engraver & Color Marking Machine With AutoFocus
Sale price From £3,299.99 Regular price £6,299.99Unit price /Unavailable -
-
3-7 delivery daysUp to £4,800.00 off
Monport UK
Monport GT 80W Split MOPA Fiber Laser Engraver & Color Marking Machine With AutoFocus
Sale price From £3,499.99 Regular price £8,299.99Unit price /Unavailable -
-
3-7 delivery daysUp to £5,300.00 off
Monport UK
Monport GT 100W Split MOPA Fiber Laser Engraver & Color Marking Machine With AutoFocus
Sale price From £4,099.99 Regular price £9,399.99Unit price /Unavailable -
-
45-60 delivery daysSold out
Monport UK
Monport GT 200W Split MOPA Fiber Laser Engraver & Color Marking Machine With AutoFocus
Sale price From £6,499.99 Regular price £12,199.99Unit price /Unavailable -
-
50W takes 40-60 delivery daysUp to £2,400.00 off
Monport UK
Monport GT 30W/50W Split Fiber Laser Engraver & Marking Machine With AutoFocus
Sale price From £2,399.99 Regular price £3,699.99Unit price /Unavailable -
-
60W/100W expected to ship around July 10.Up to £5,300.00 off
Monport UK
Monport GT 30W/60W/80W/100W Split MOPA Fiber Laser Engraver & Color Marking Machine With AutoFocus
Sale price From £2,999.99 Regular price £5,699.99Unit price /Unavailable -
GT Series Specifications Comparison
| Specification | GT30 | GT50 | GT30 MOPA | GT60 MOPA | GT80 MOPA | GT100 MOPA | GT200 MOPA |
|---|---|---|---|---|---|---|---|
| General | |||||||
| Product Dimensions | 45 × 21 × 39.5 cm 35 × 55 × 69.5 cm |
52 × 21 × 51.5 cm 35 × 55 × 69.5 cm |
|||||
| Product Weight | 34 kg | 35.5 kg | 34.5 kg | 36 kg | 36.5 kg | 37.5 kg | 53 kg |
| Product Color | Dark Gray | ||||||
| Rated Voltage | 220V | ||||||
| Cooling Type | Air Cooling | ||||||

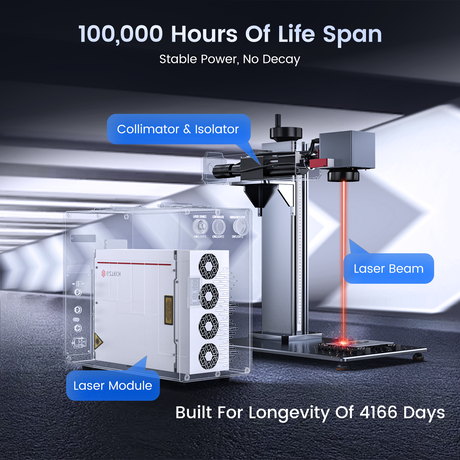

| Expected Service Life | 100,000 hr | ||||||
| Warranty | 2 Years (1 Year for the Laser Source) | ||||||
| Laser Source | |||||||
| Laser Power | 30 W | 50 W | 30 W | 60 W | 80 W | 100 W | 200 W |
| Laser Type | Q-Switched Fiber Laser | MOPA Fiber Laser | |||||
| Wavelength | 1064 nm | ||||||
| Frequency Range | 30–60 kHz | 20–80 kHz | 1–3000 kHz | ||||
| Pulse Width | 80–120 ns Fixed |
100–140 ns Fixed |
2–500 ns | ||||
| Beam Quality (M2) | <1.5 | <1.8 | <1.5 | <1.8 | |||
| Beam Diameter | 6–8 mm | 7 ± 1 mm | |||||
| Maximum Pulse Energy | 0.75 mJ | 1.25 mJ @ 40 kHz | 0.8 mJ | 1.5 mJ | |||
| Marking Performance | |||||||

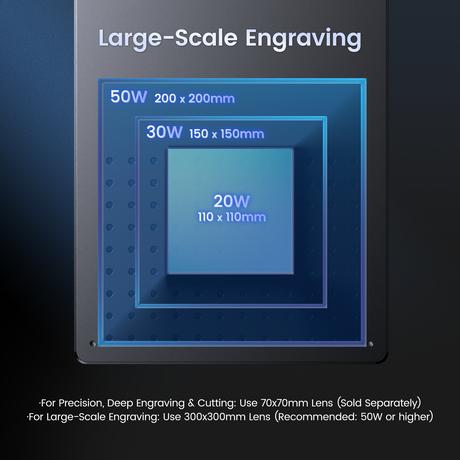

| Field Lens / Engraving Area | 5.9 × 5.9 in (150 × 150 mm) |
7.9 × 7.9 in (200 × 200 mm) |
6.9 × 6.9 in (175 × 175 mm) |
6.9 × 6.9 in (175 × 175 mm), Quartz |
|||
| Maximum Engraving Speed | 10,000 mm/s (393.7 ips) | 22,000 mm/s (866.1 ips) | |||||
| Maximum Marking Depth per Pass | 0.003 in (0.08 mm) | 0.004 in (0.10 mm) | 0.003 in (0.08 mm) | 0.004 in (0.10 mm) | 0.005 in (0.13 mm) | 0.006 in (0.15 mm) | 0.008 in (0.20 mm) |
| Maximum Z Height (Lens to Workbench) |
550 mm | ||||||

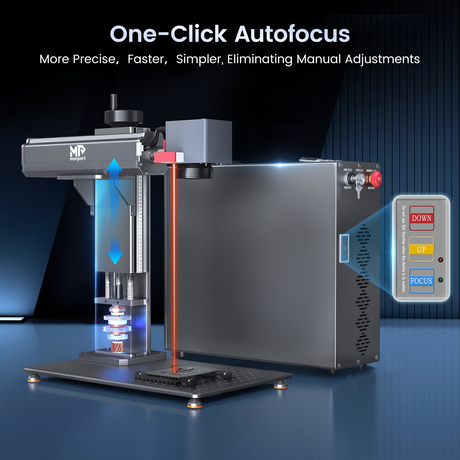

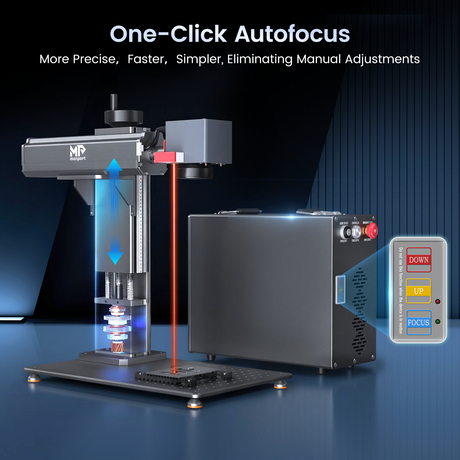

| Focus Mode | Autofocus | ||||||
| Color Engraving | No | Yes | |||||

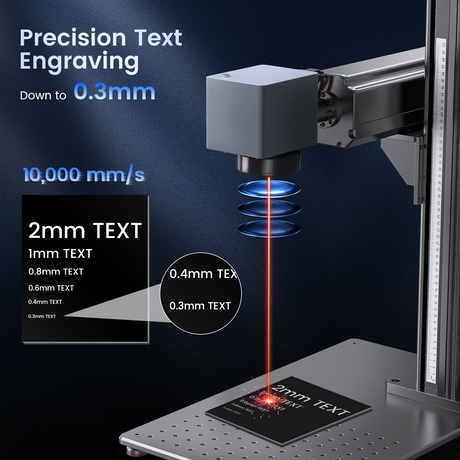

| Engraving Accuracy | 0.01 mm | ||||||
| Positioning Accuracy | ±0.1 µm | ||||||
| Suitable Materials | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | ||||||
| Functions and Compatibility | |||||||

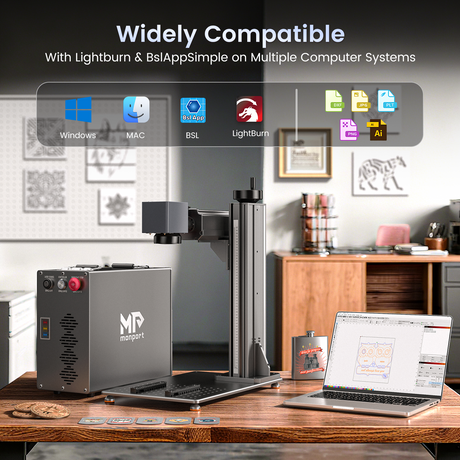

| Compatible Operating Systems | Windows / macOS | ||||||

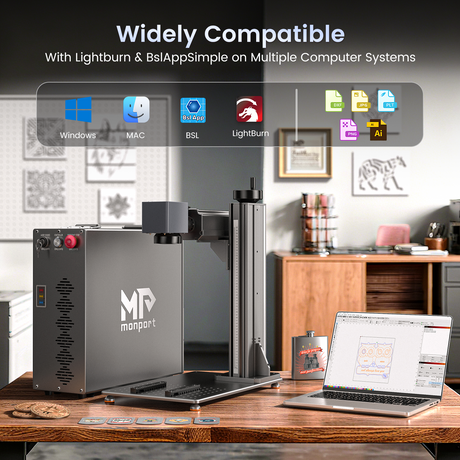

| Compatible Software | BSL App Simple / LightBurn | ||||||
| Electric Lifting | Yes | ||||||

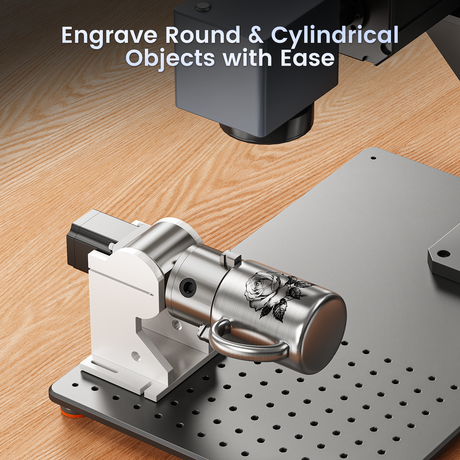

| Rotary Axis Function | Yes | ||||||
| Foot Pedal Function | External Foot Pedal | ||||||
| Data Transmission | USB Cable | ||||||
| Supported Files |
BSLcad: JPG, JPEG, BMP, GIF, PNG, TIF, TIFF, EMF, DXF, AI, PLT, Gerber (CS, GBR, etc.), SVG LightBurn: BMP, JPG, JPEG, PNG, GIF, TIF, TIFF, TGA, WEBP, AI, PDF, SC, DXF, GC, GCODE, NC, HPGL, PLT, SVG, LBRN, LBRN2, MAGE |
||||||
| Mechanical Interface | |||||||
| Galvanometer Thread Size | M68 | M79 | |||||
| Field Lens Dimension | M85 | ||||||
| Packaging | |||||||
| Package Dimensions | 75 × 55 × 56 cm | 75 × 55 × 65 cm | |||||
| Gross Weight | 48 kg | 49.5 kg | 48.5 kg | 50 kg | 50.5 kg | 51.5 kg | 68.5 kg |

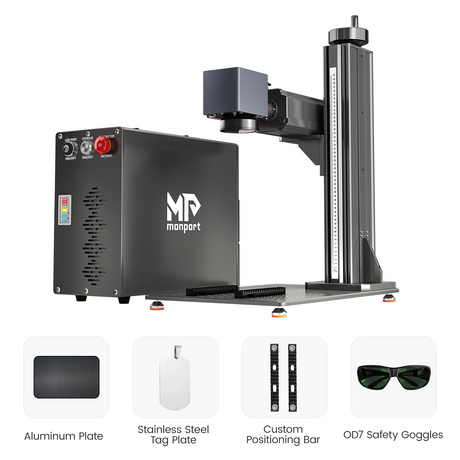

Standard Package List
| Item | Quantity | Item | Quantity |
|---|---|---|---|
| Fiber Laser Engraver | 1 | Power Cord (1.5 m) | 1 |
| USB Cable (2 m) | 1 | USB Flash Drive | 1 |
| Laser Key | 2 | User Manual | 1 |
| Safety Goggles (OD7+) | 1 | Wrench Set | 1 |
| Ruler (50 cm) | 1 | Foot Switch | 1 |
| Positioning Bars | 2 | USB-to-Type-C Adapter | 1 |
| Fixator | 1 | Test Aluminum Sheets | 10 |
| Metal Pendants | 4 | M8 × 12 Screws (Support Column) | 4 |
| M5 × 12 Screws (Laser Arm) | 4 | M6 × 12 Screws (Positioning Bars) | 4 |
