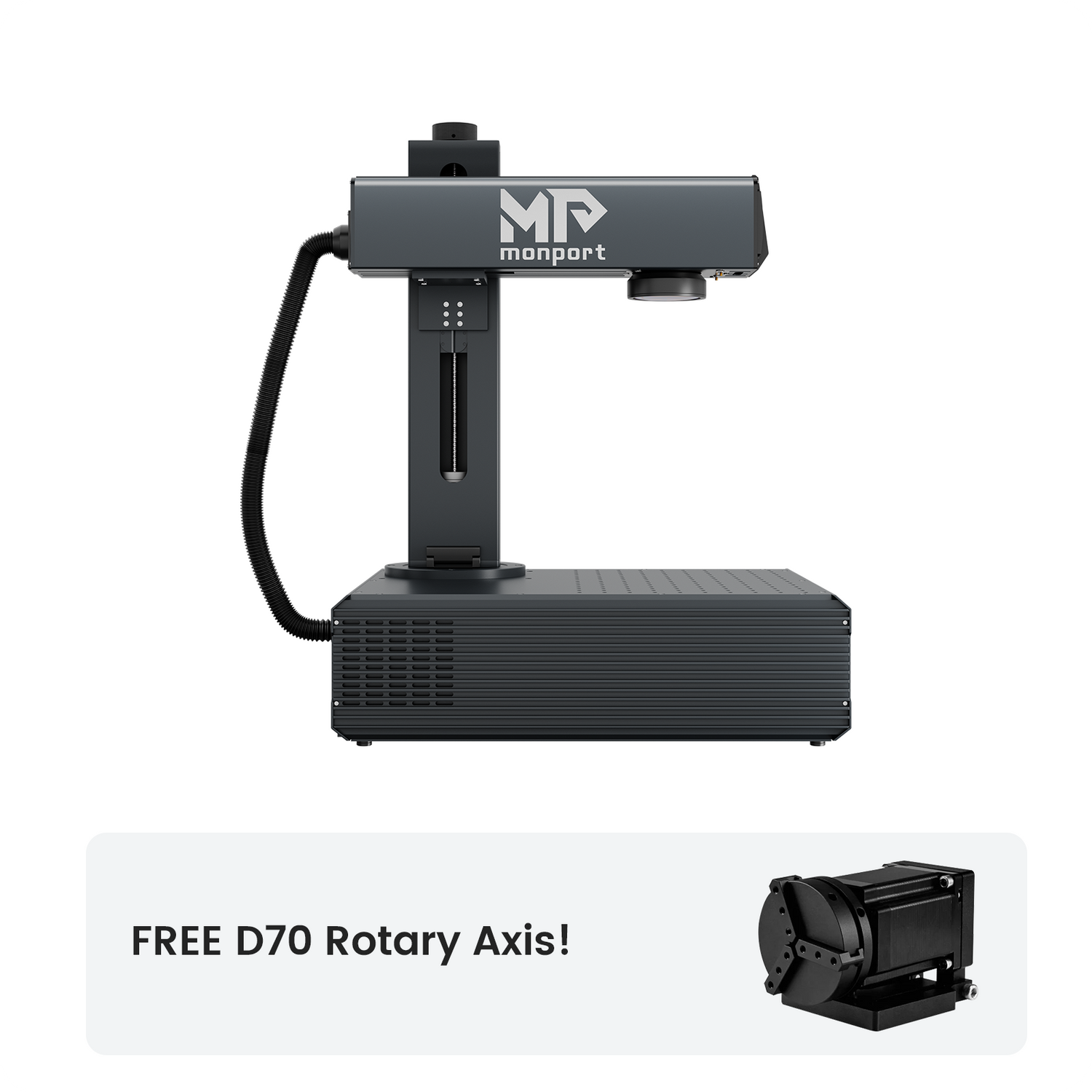

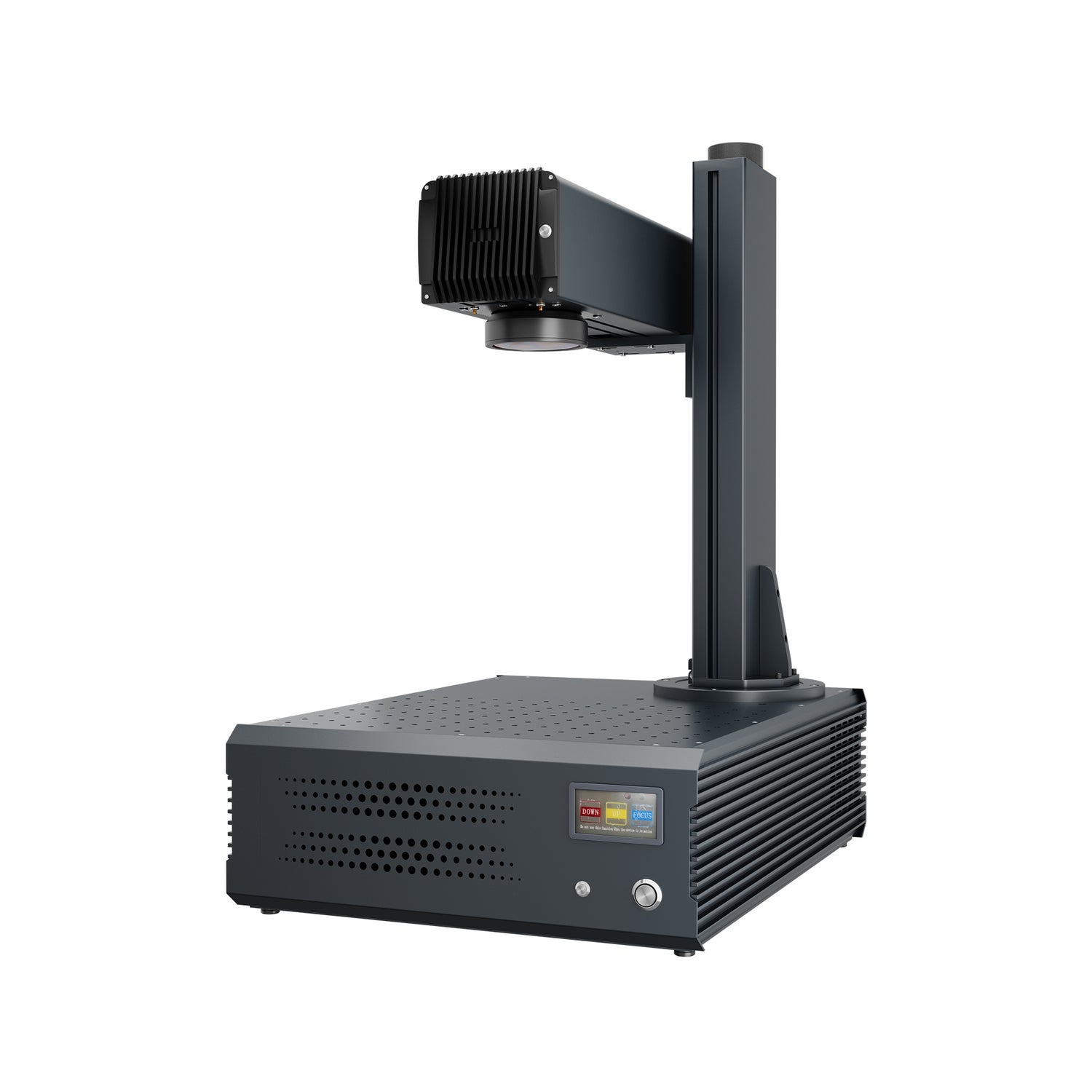

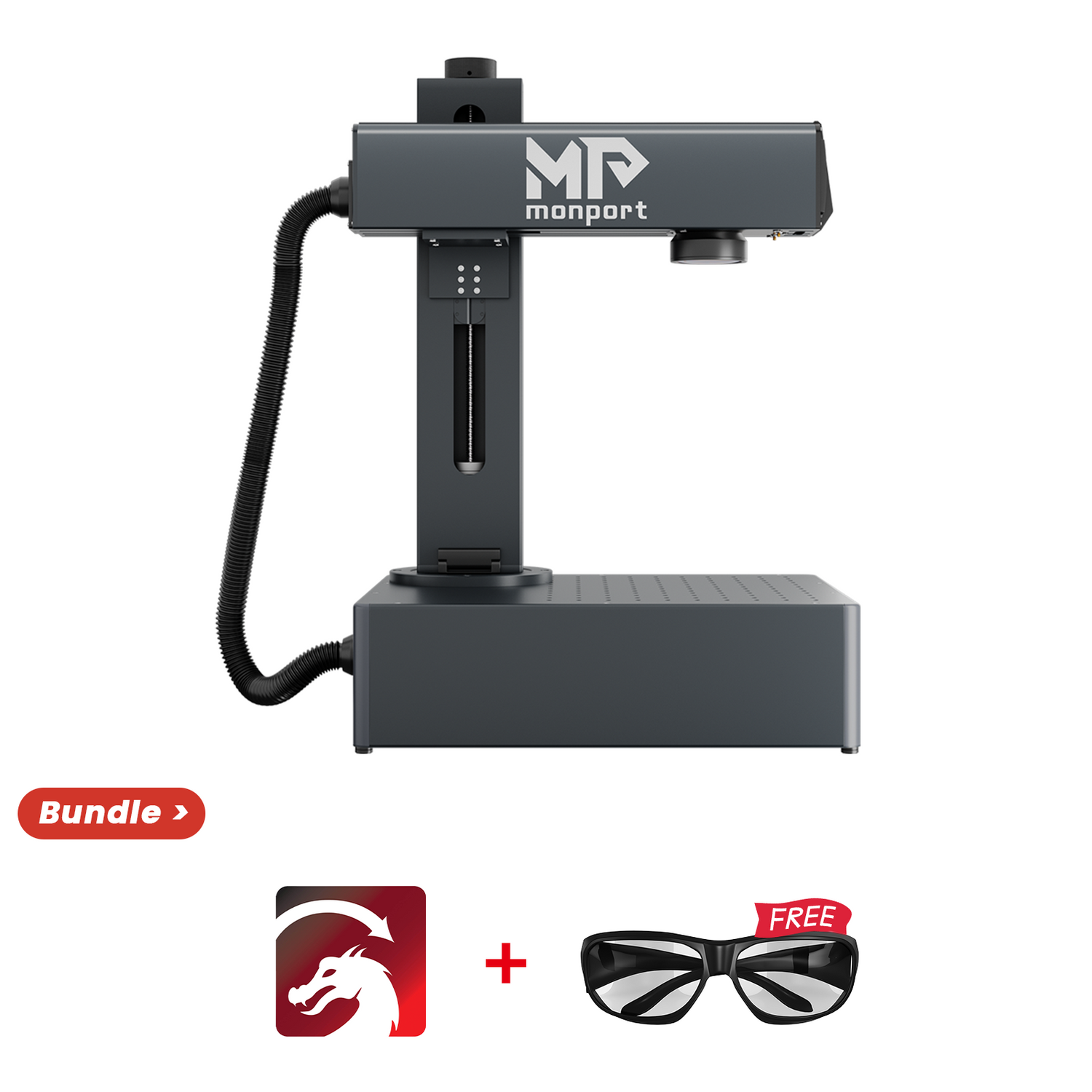

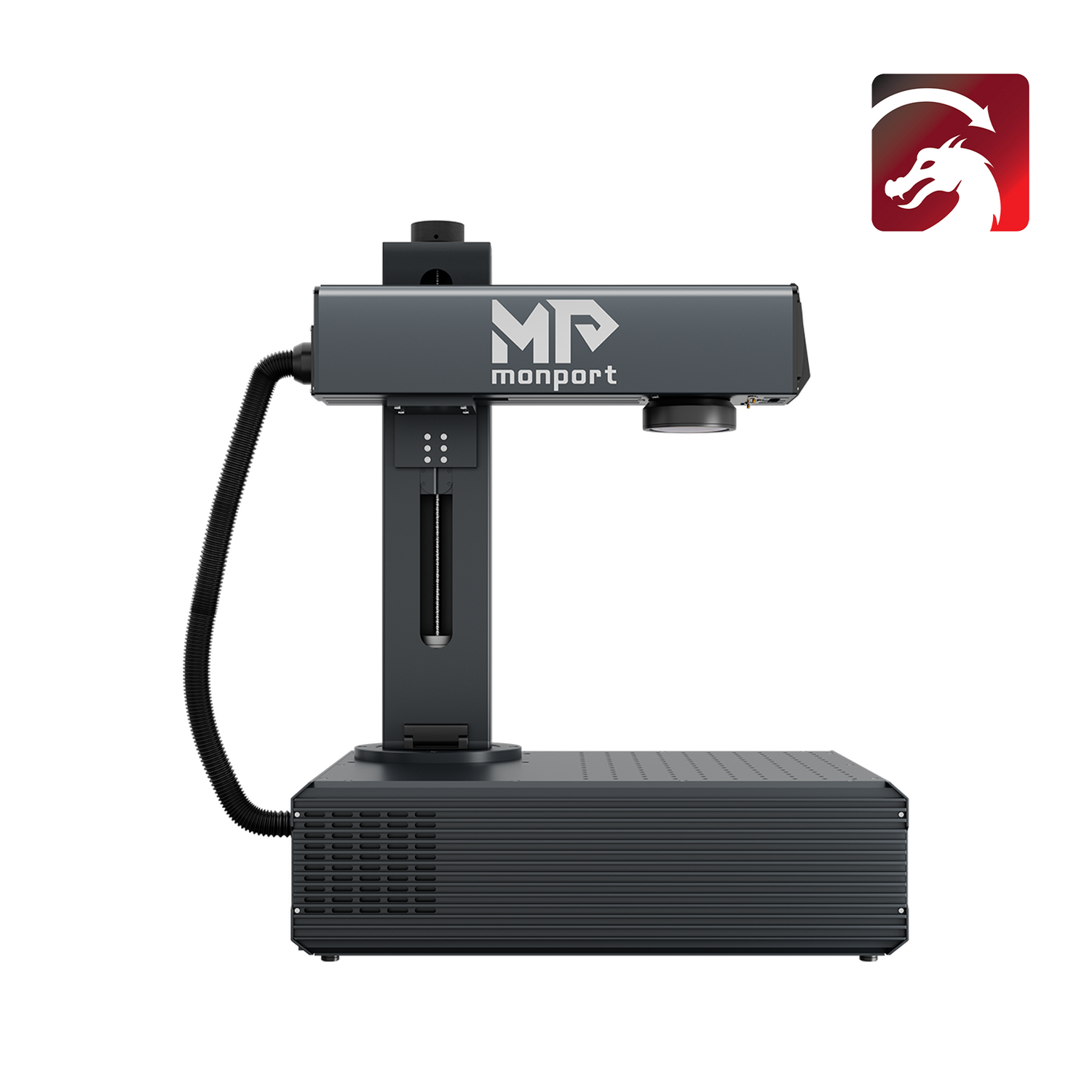

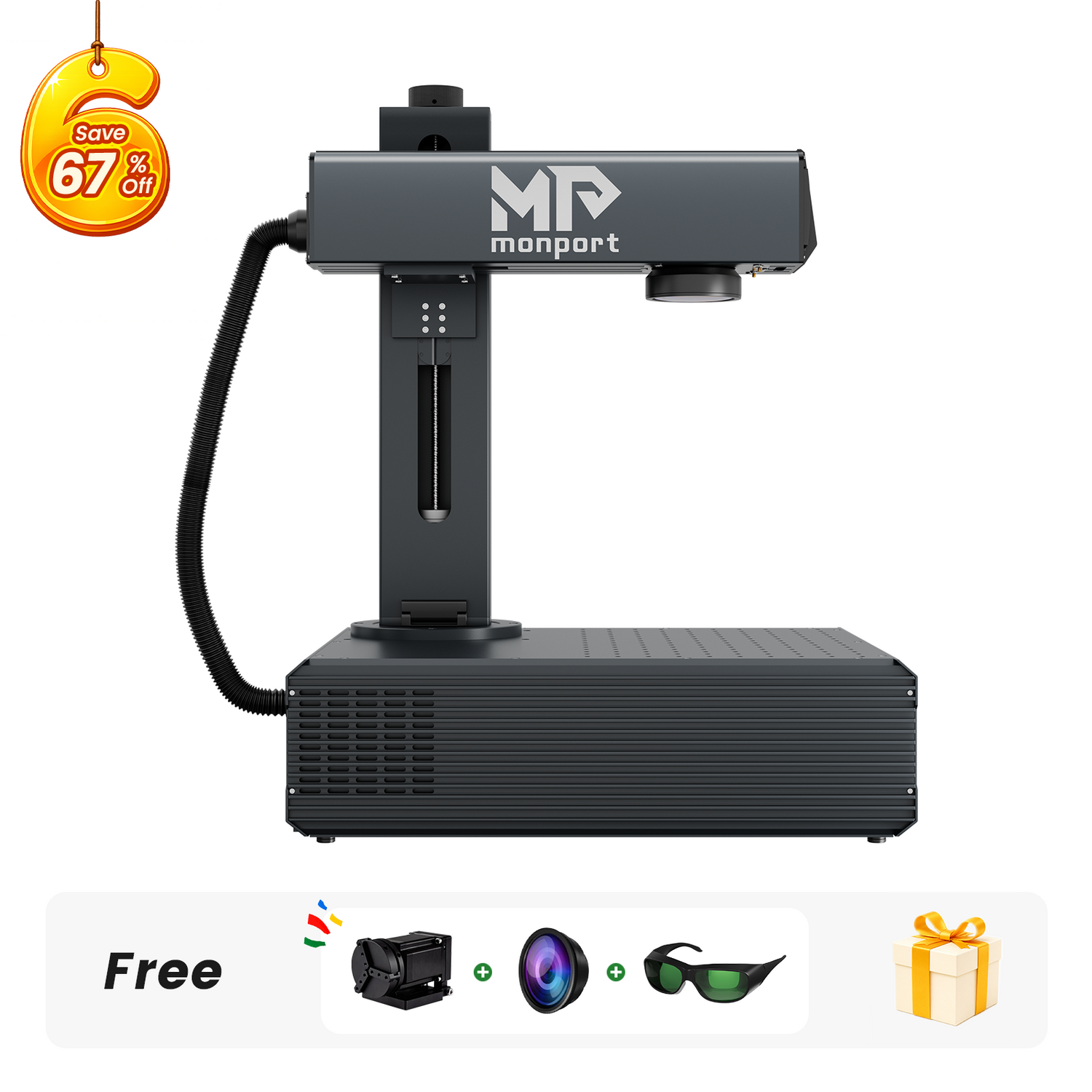

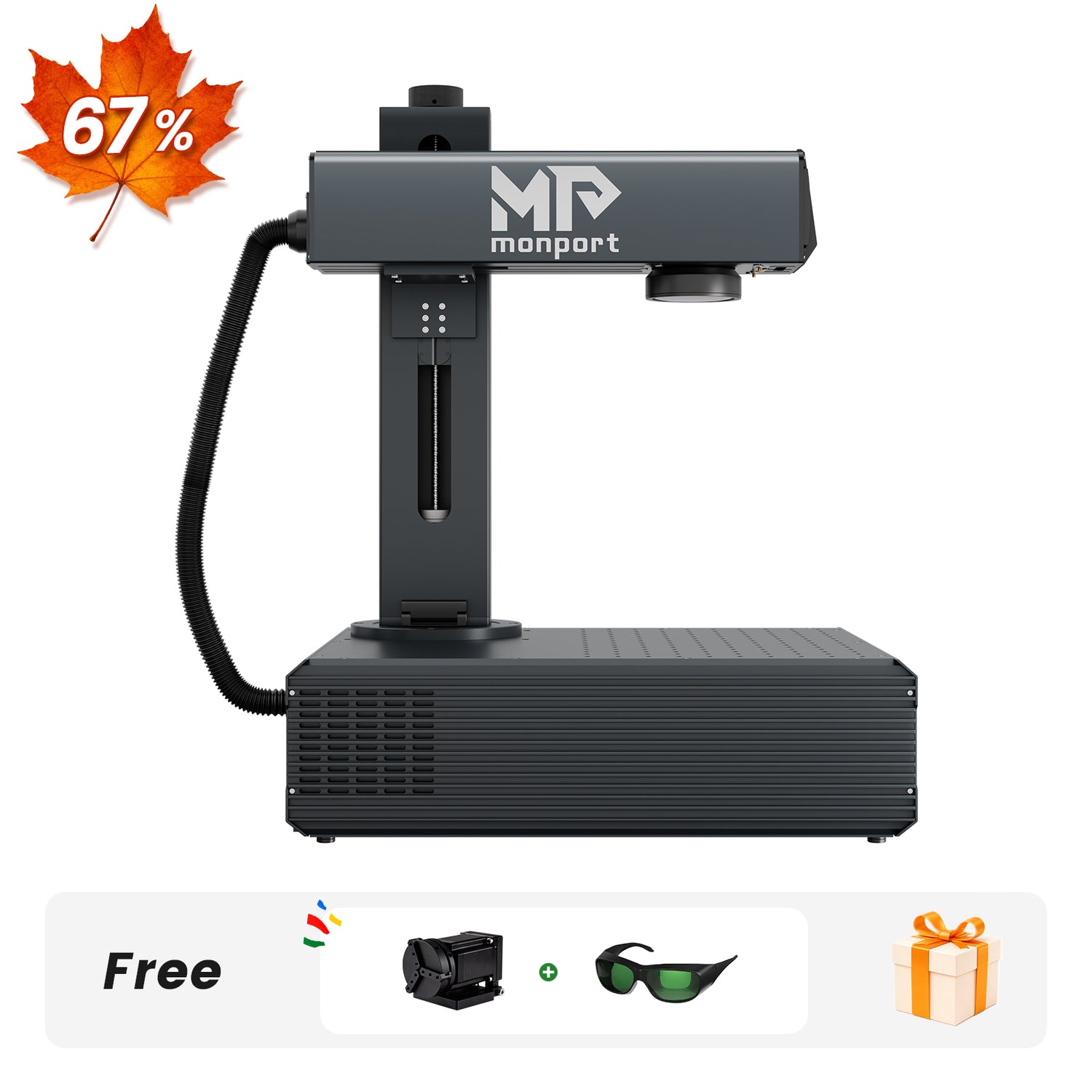

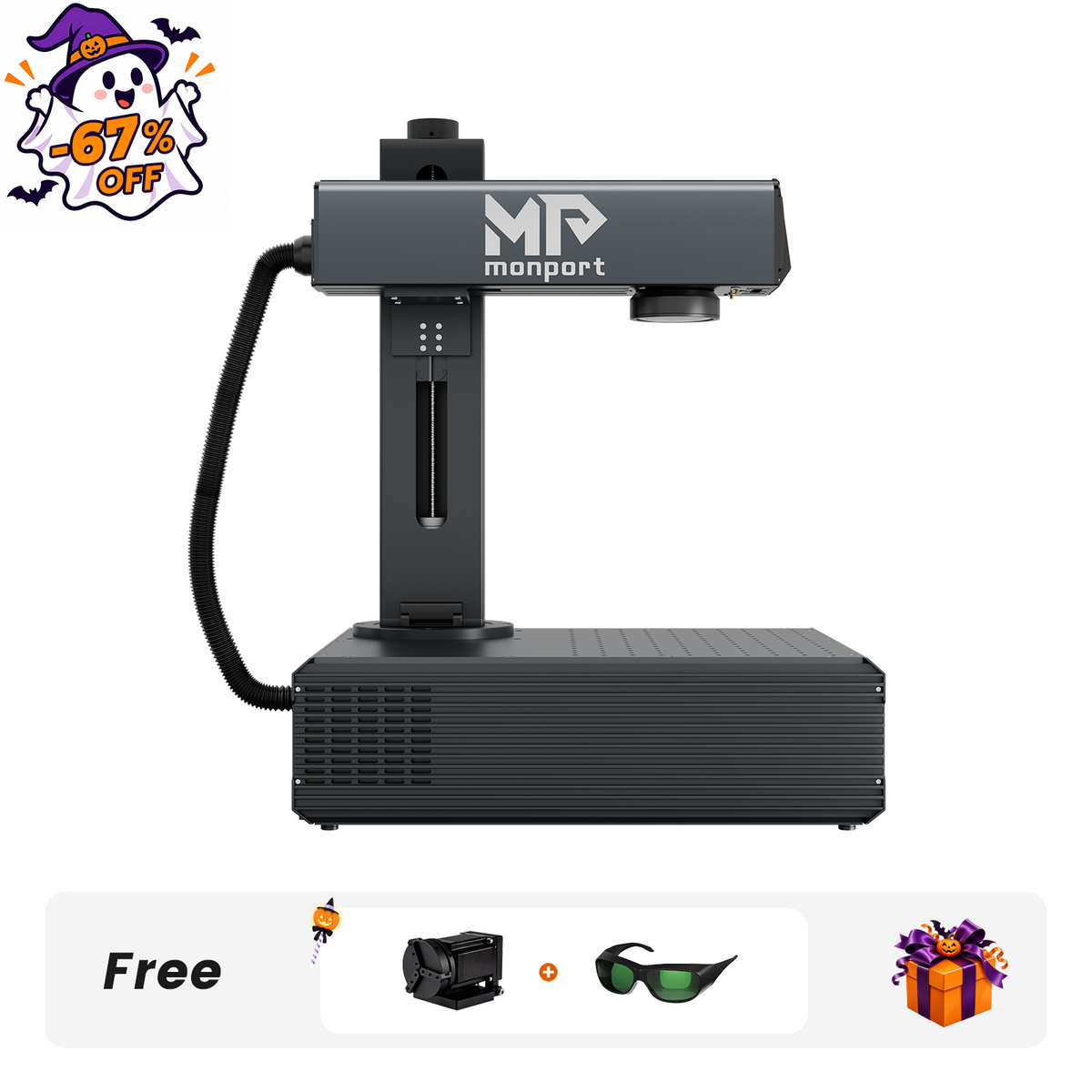

Monport GA 100W Upgraded Integrated MOPA Fiber Laser Engraver & Marking Machine with Auto Focus
Only 3 Left In Stock
Monport GA 100W Upgraded Integrated MOPA Fiber Laser Engraver & Marking Machine with Auto Focus - Machine is backordered and will ship as soon as it is back in stock.
-
£20.00 off£159.99 -
£60.00 off£539.99
Couldn't load pickup availability

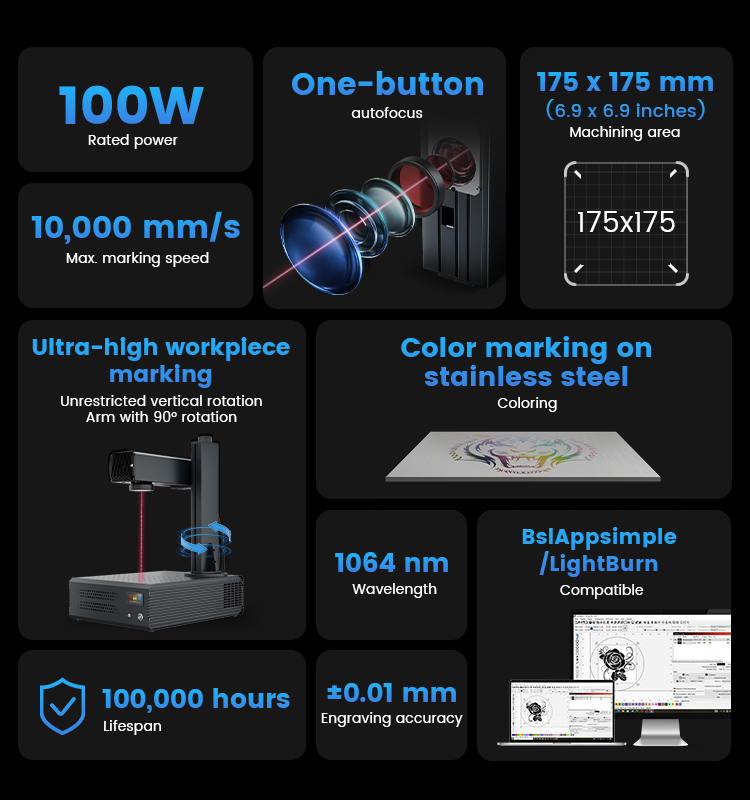

Dimension & Specifications
Dimension & Specifications
Product name: GA MOPA 100W
Wavelength: 1064nm
Laser power: 100W
Rated voltage: 220V
Frequency range: 1-3000kHz
Compatible software: BslAppSimple
Lightburn
Supported image formats: BMP, GIF, JPG, JPEG, DXF, DST, Al.etc
Supported system: Windows xp/7/8/10/11 , MacOS 10.11 or above.
Engraving area: 6.9x6.9in.175×175 mm
Max. marking depth in one pass (depending on materials): 0.006in.(0.15mm)

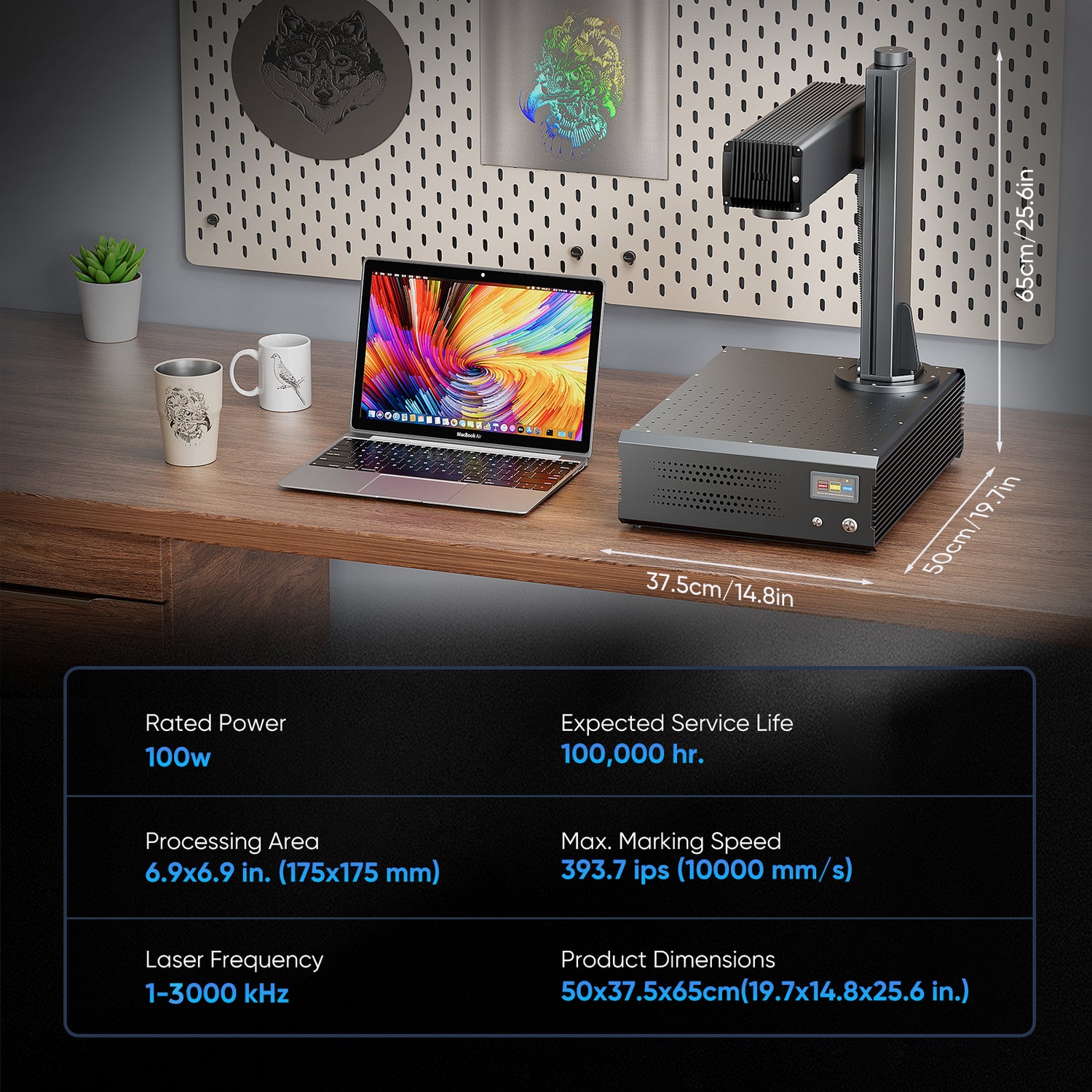

Product dimensions: 14.8x19.7x25.6in (37.5x50x65cm)
Max Z.Height (field lens to workbench): 410mm
Color engraving:YES
Engraving accuracy: 0.01mm
Positioning accuracy: ±0.1 µm
Pulse width: 2-500ns
Engraving speed: 10000 mm/s 393.7 ips
Beam quality M2:＜1.8
Beam diameter: 7±1mm
Maximum pulse energy: 1.5mJ
Field lens dimensions: M85
Galvanometer thread size: M68

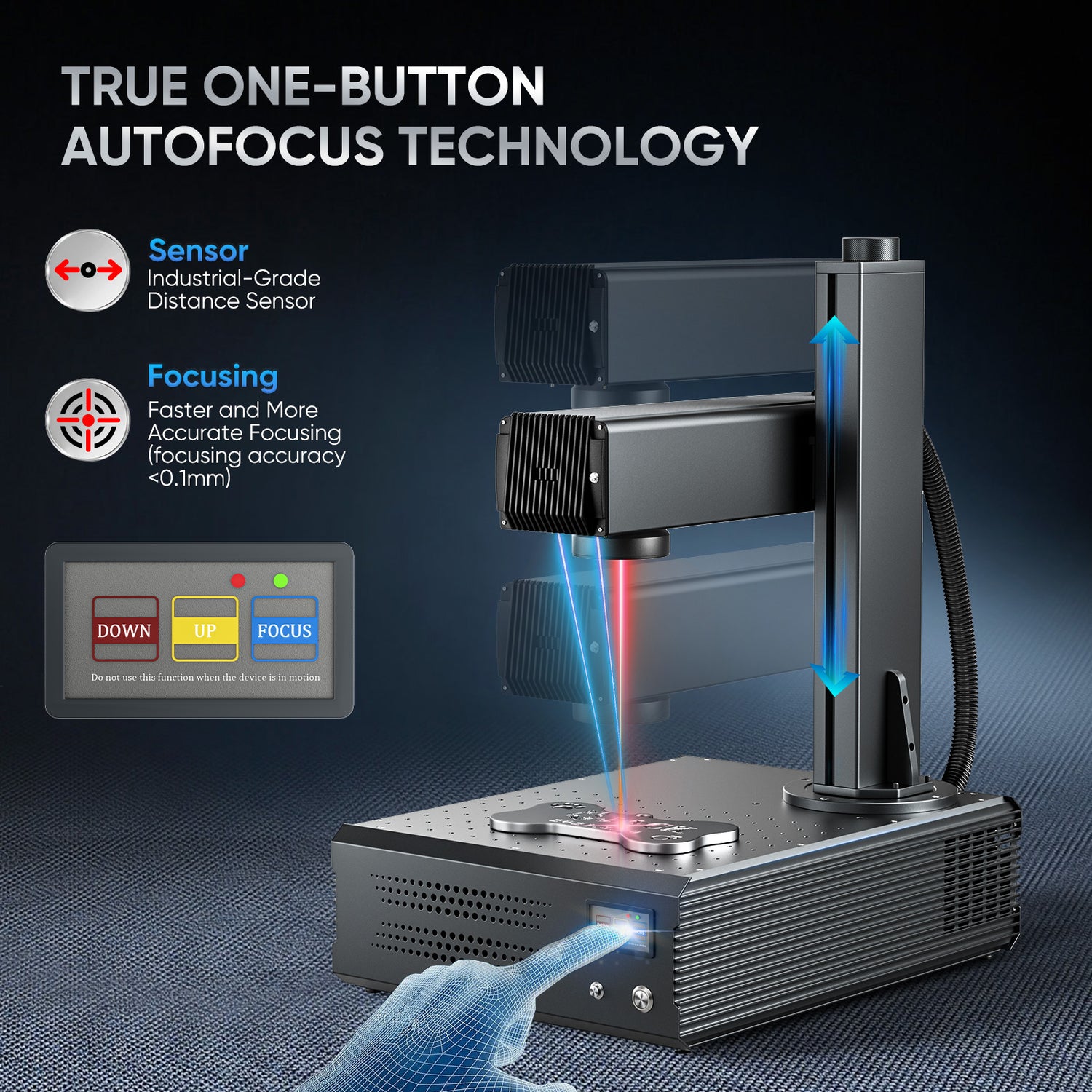

Focusing mode: Auto focus
Cooling type: Air cooling

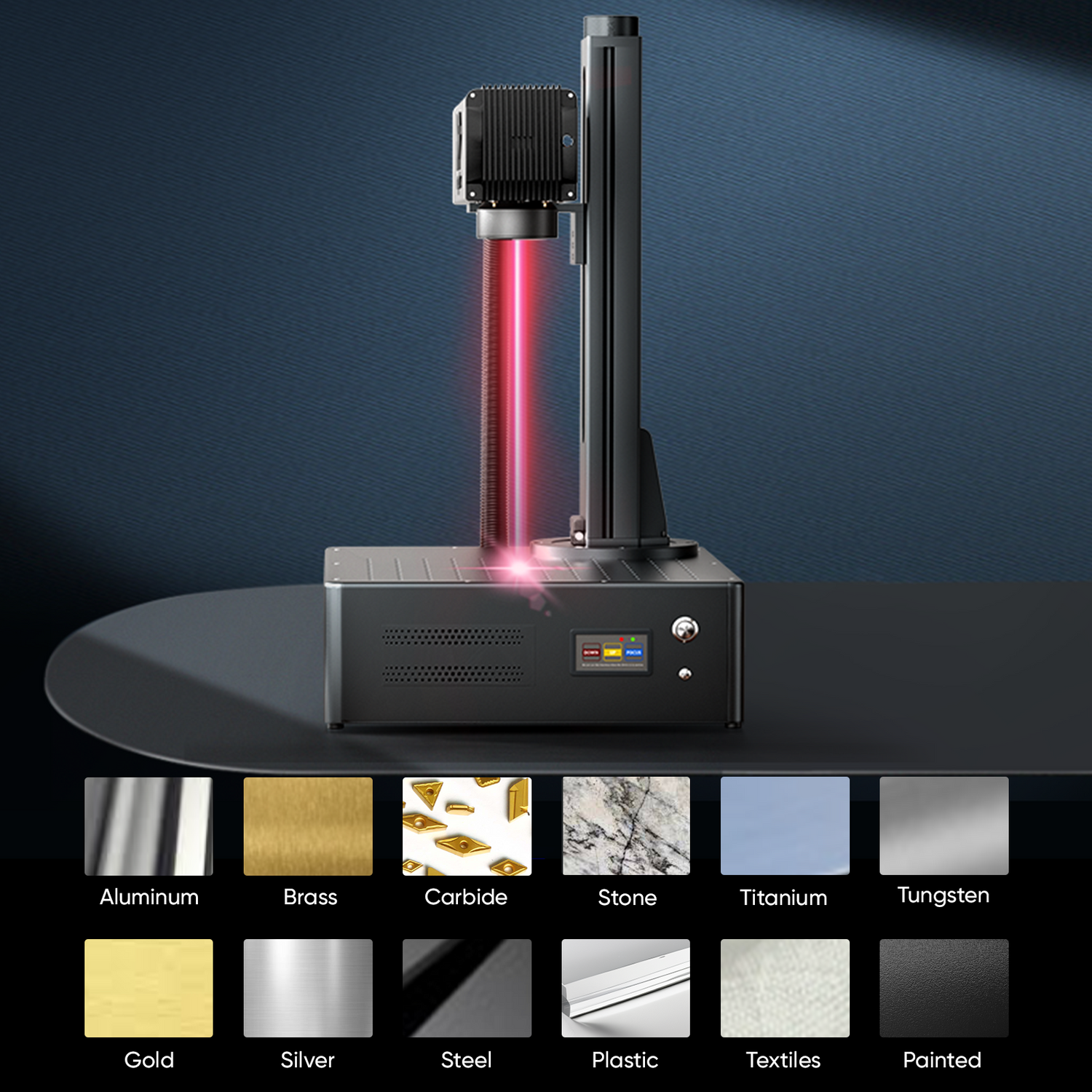

Materials suitable for engraving: Brass, hard plastic, titanium, brick, marble, gold, hard metal, silver, tungsten, granite, steel, etc.
Expected lifespan: 100,000 hrs.

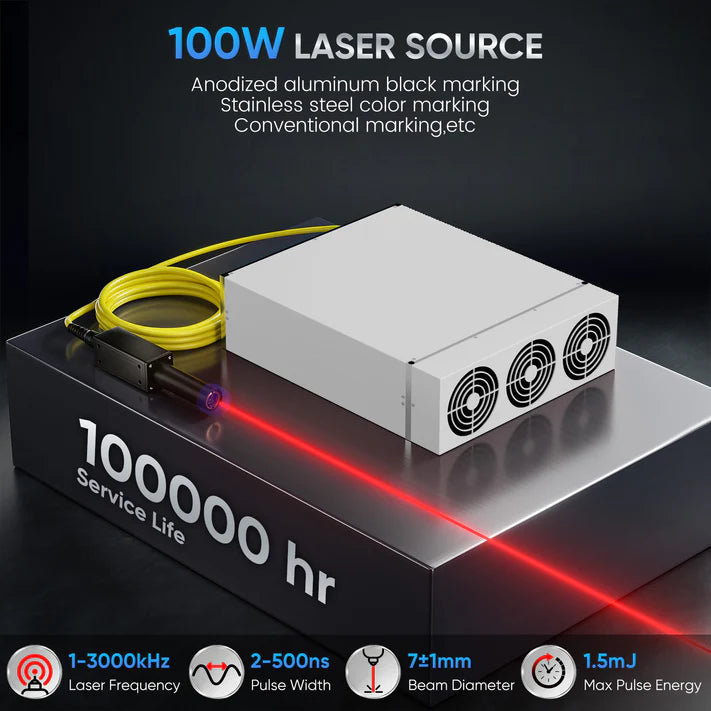

Laser type: MOPA fiber laser
Electric lifting: YES
Rotation axis function: YES
Foot pedal function: Built-in foot pedal function
No more manual adjustments and no more guesswork

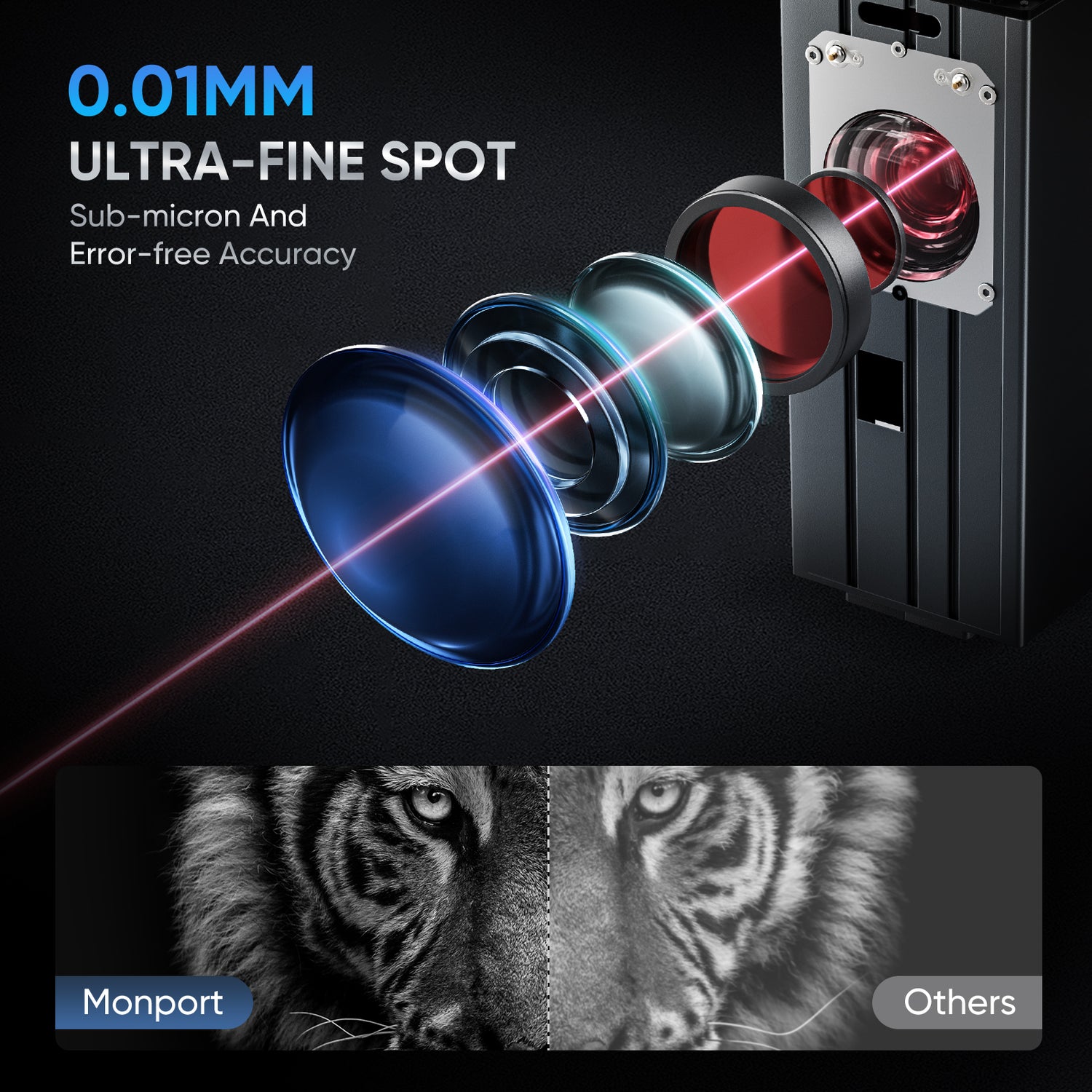

0.01mm precision lively and detailed

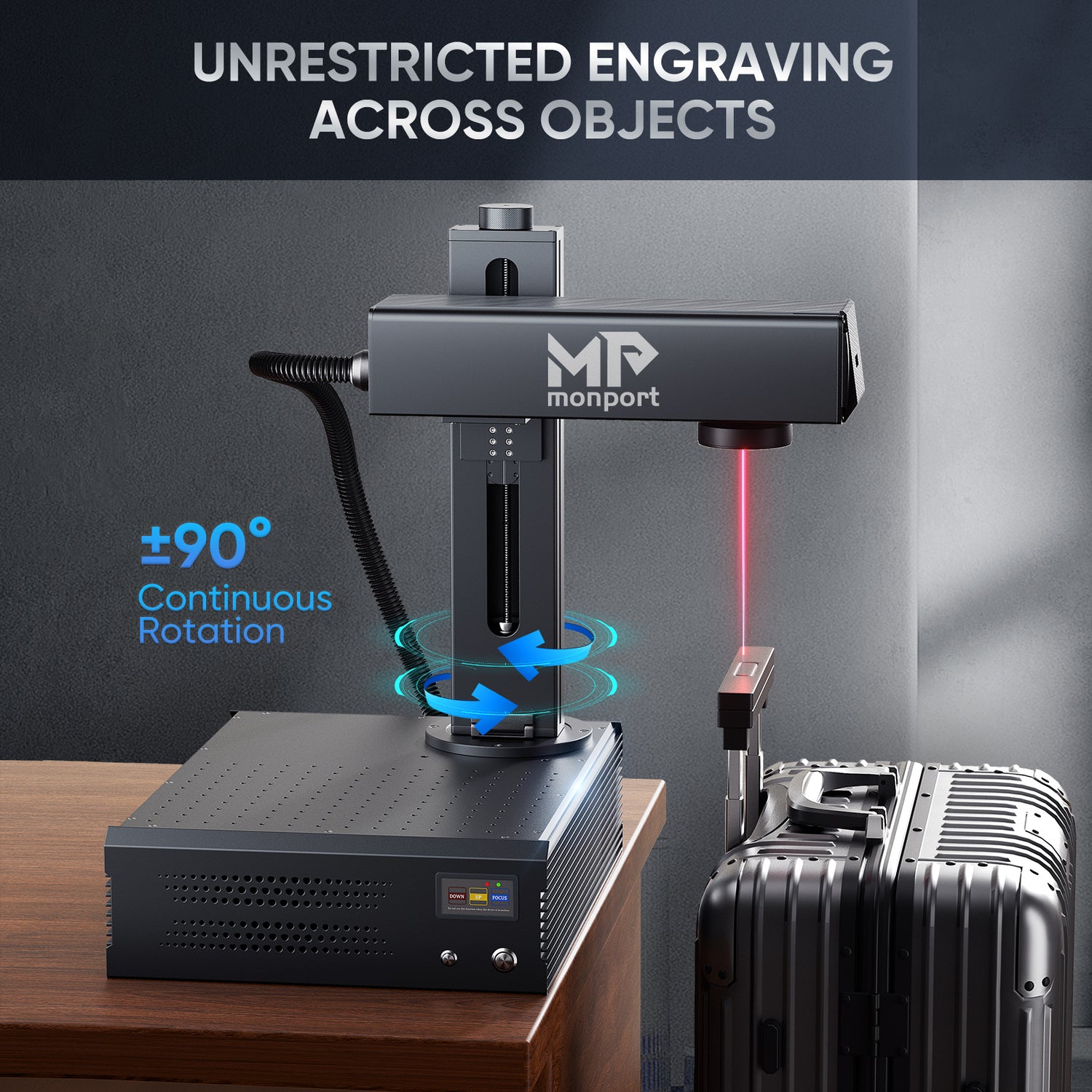

Unlock new angles,craft more with ease
Save time,boost efficiency
Simple and precise engraving on round surfaces

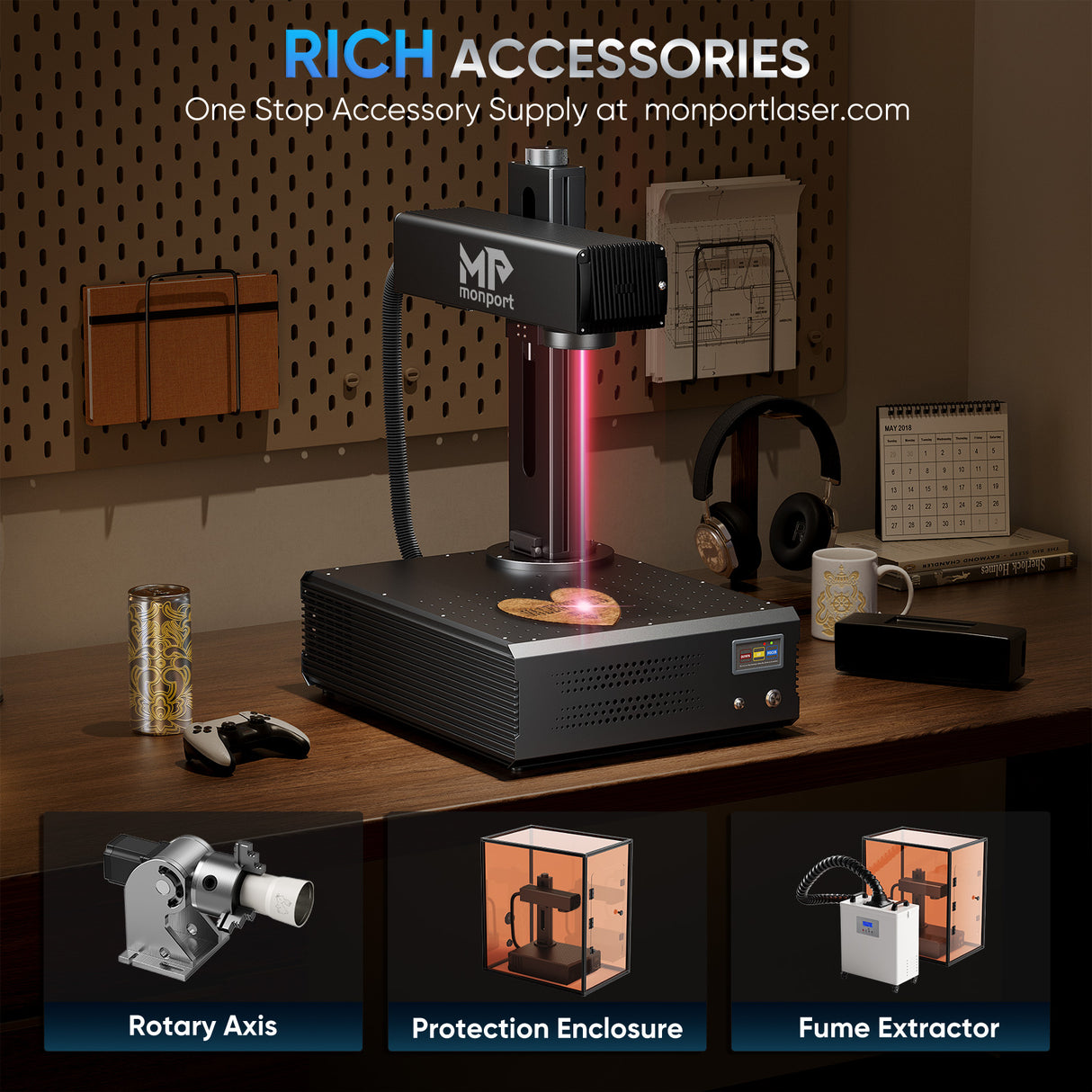

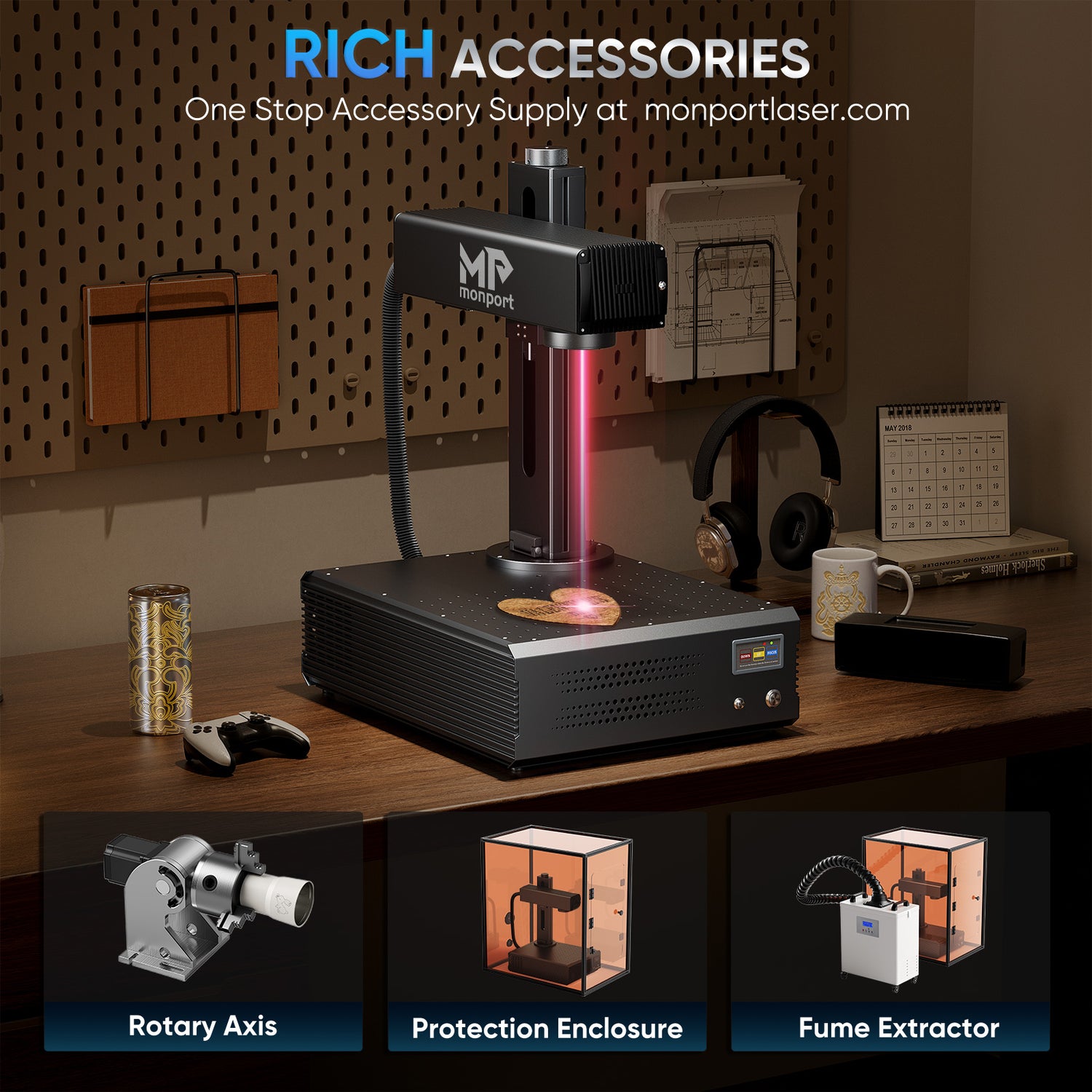

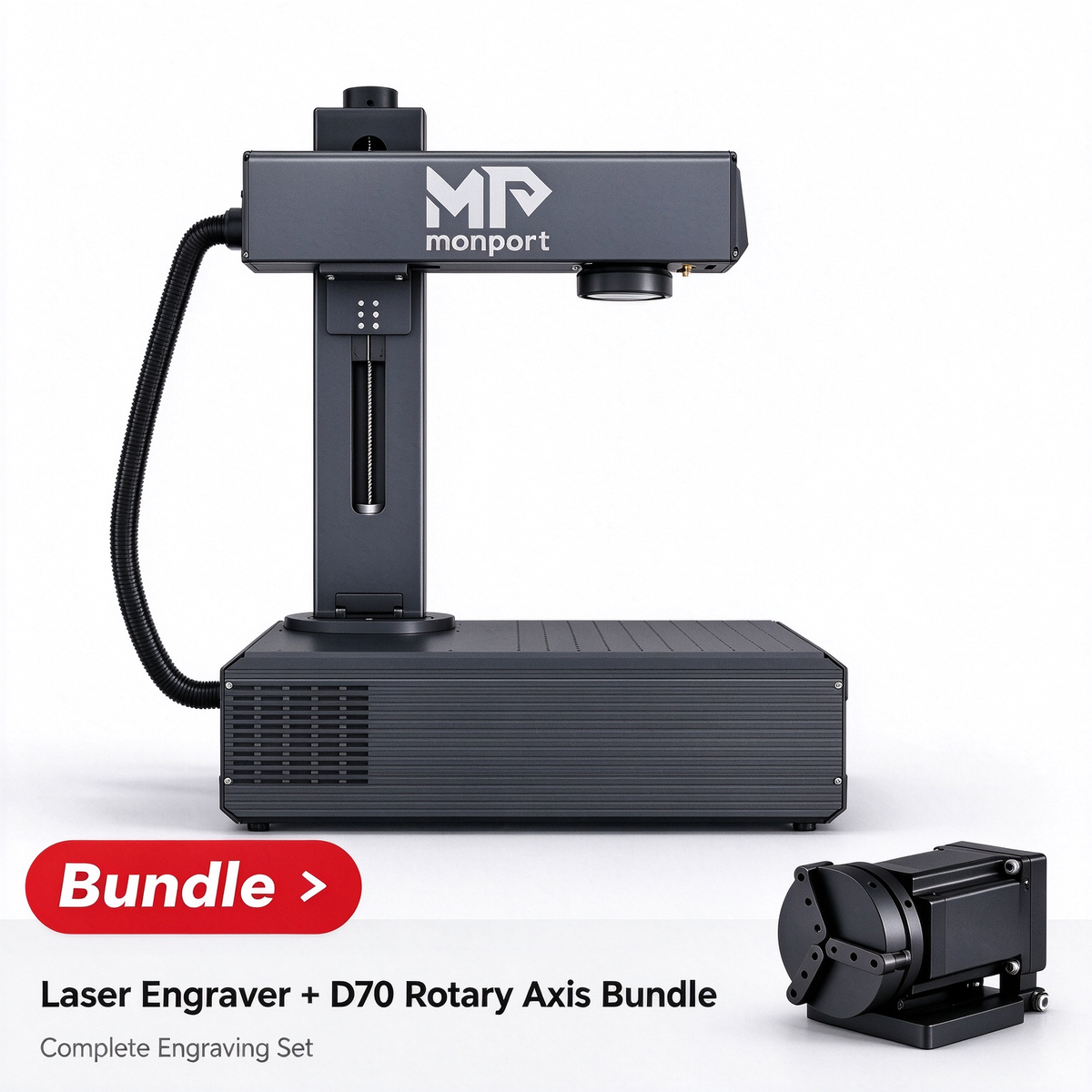

Engrave rings, bracelets and more – simply connect the rotary axis attachment (not included).
Red light preview for precise engravings
The Monport fiber laser engraver's red light preview function precisely frames the design position and displays a preview of the vector and text outlines. This ensures perfect alignment and effectively reduces errors, making engraving more efficient and precise.
Fiber laser positioning bar
Our fiber laser is equipped with positioning bars to ensure precise alignment, effectively improving efficiency in batch production and repeated engraving.
Quiet operation
Work quietly and stay focused with minimal noise
Pushing the boundaries of technology
We have optimized the size of our workspace to ensure that every detail is carved with precision, so that each carving is full of possibilities and surprises.
A long-lasting and stable working partner
Rigorously tested and inspected, this machine not only has a long service life but also stable operation under heavy workload, resulting in long-lasting productivity.

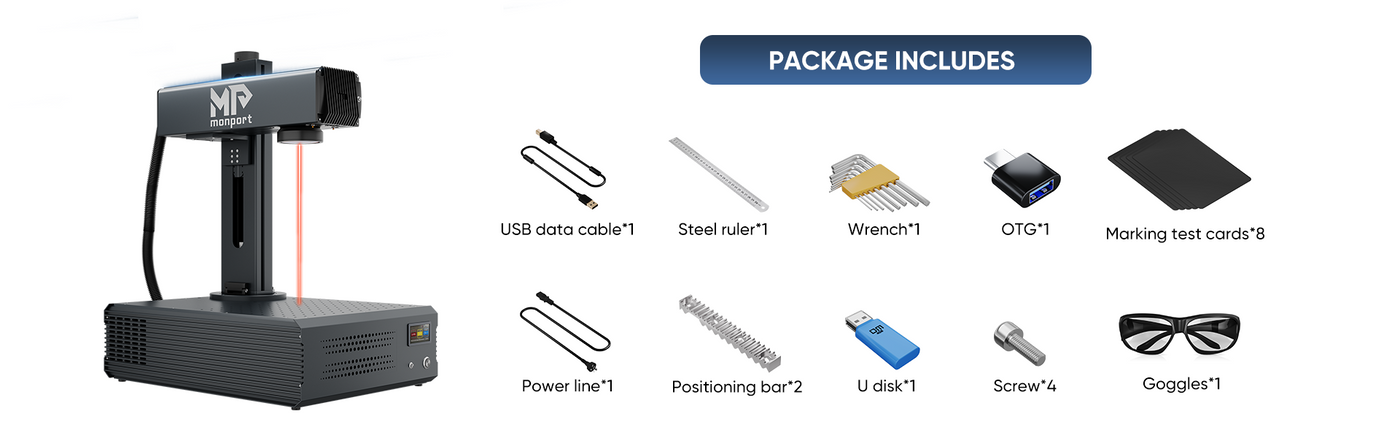

Free Laser Safety Glasses Included
Protect your eyes from high-power lasers with our Fiber laser protection glassses. Designed for ND lasers and semiconductor applications, these laser protection glassses,offer superior protection with a range of 800 - 1100nm and 1000 - 1090nm.
QUESTIONS & ANSWERS
Have a Question?
-
Does autofocus also mean there is auto z axis control for keeping focus as depth of engraving changes
The autofocus function means the machine can automatically find and set the correct focus distance before engraving. However, it does not mean that the Z-axis will automatically adjust during the engraving process to continuously maintain focus as the engraving depth increases.
For deeper engraving applications, the focus position needs to be adjusted manually between passes if the material depth changes significantly. The autofocus feature is mainly designed to make the initial focusing process faster and more convenient.
-
Can you fit different lenses to engrave larger areas. How long is delivery in the uk
Yes, you can use a M85 lens to replace the original fiber lens. The GA100W fiber laser is in stock now. The shipping time will take about 5-7days.
