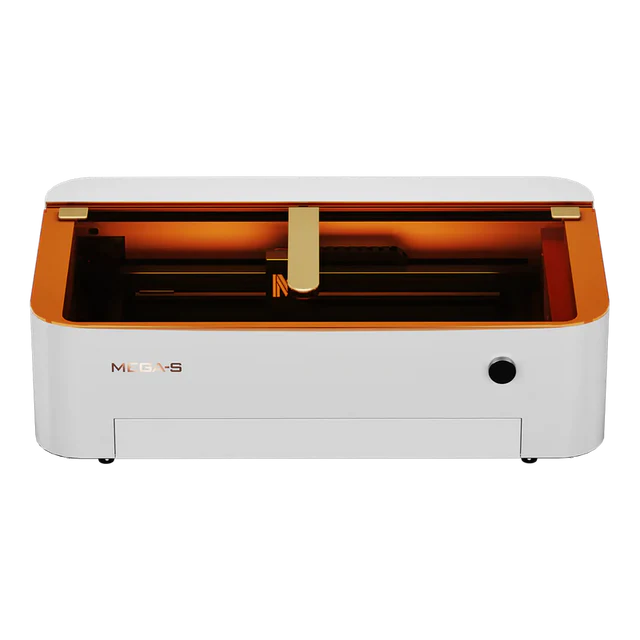

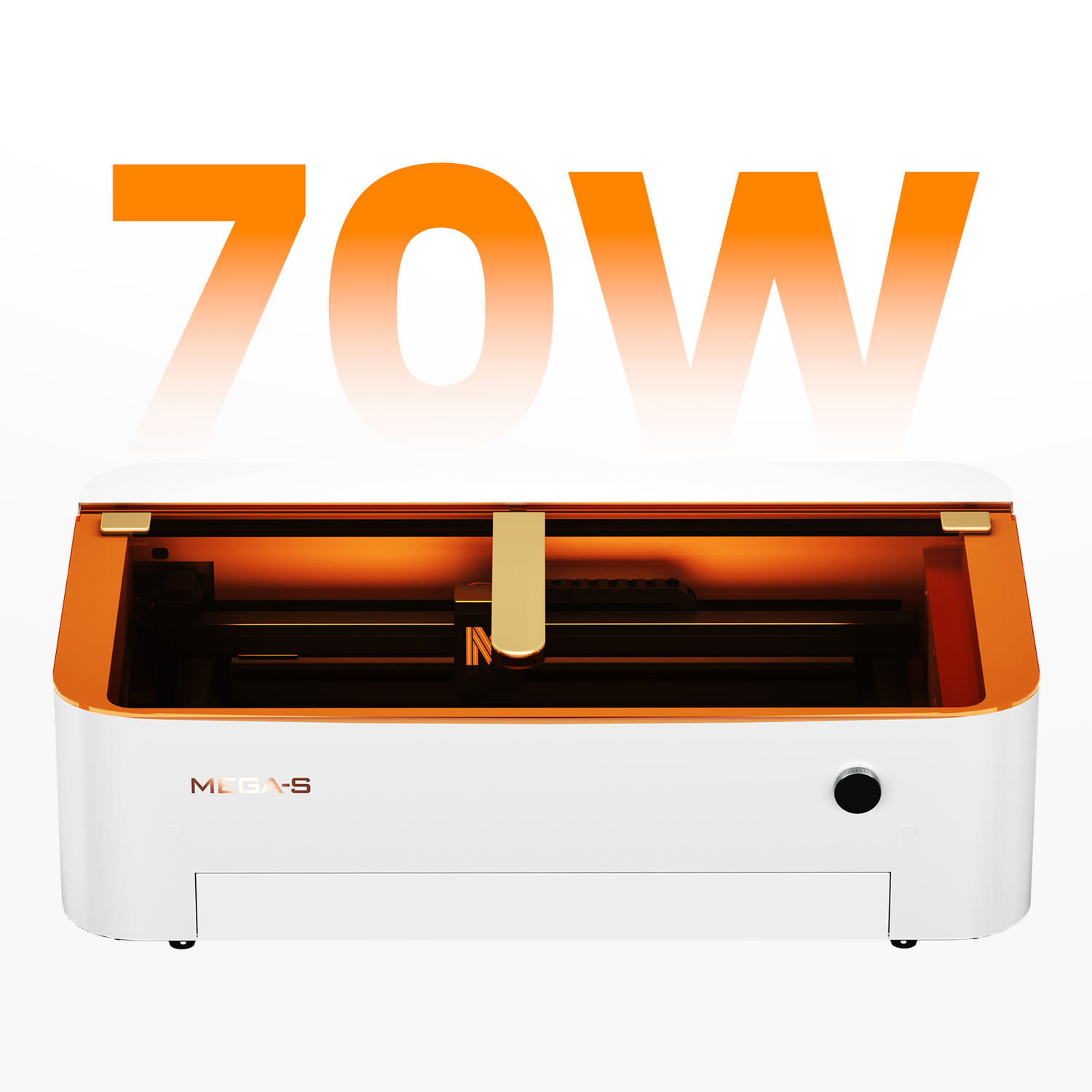

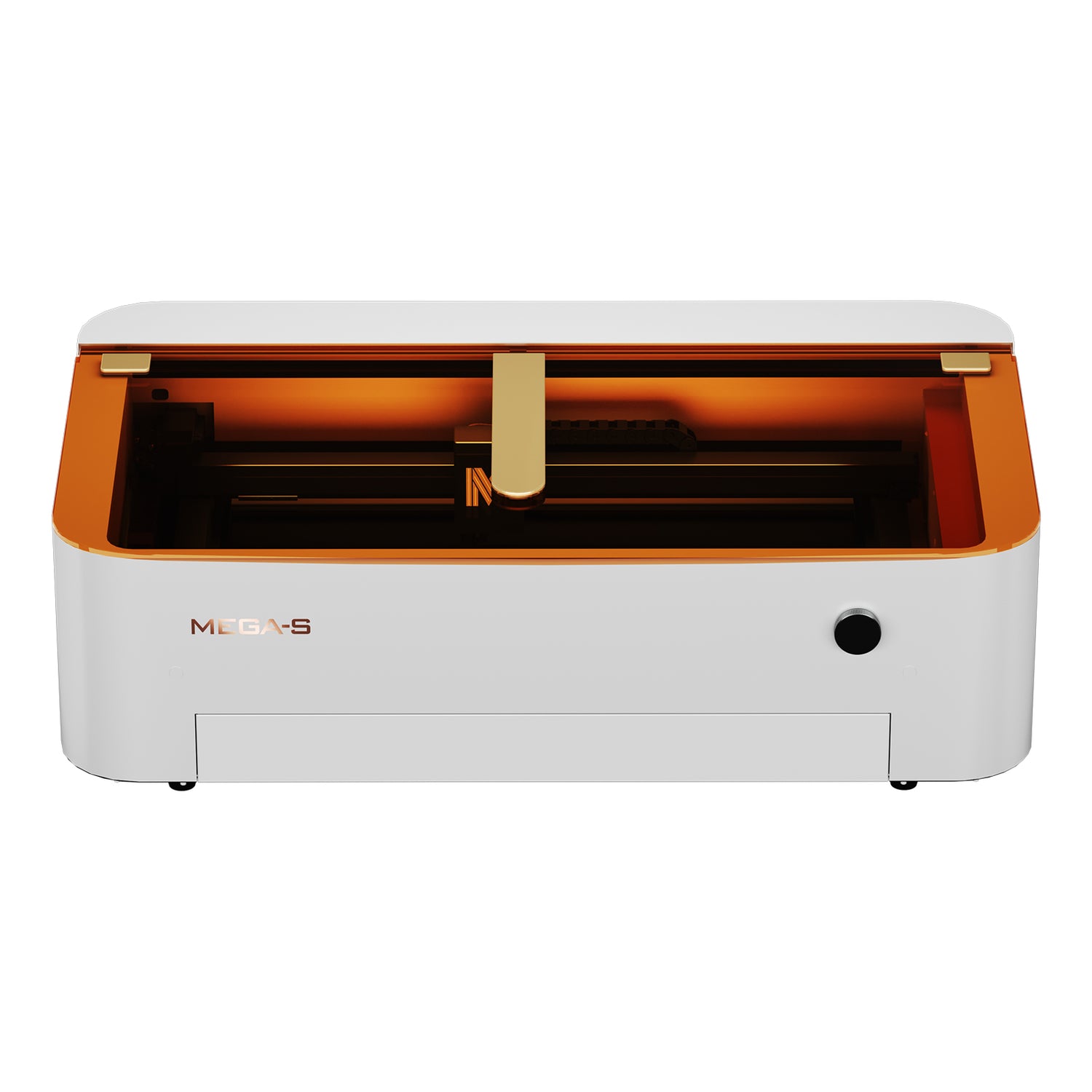

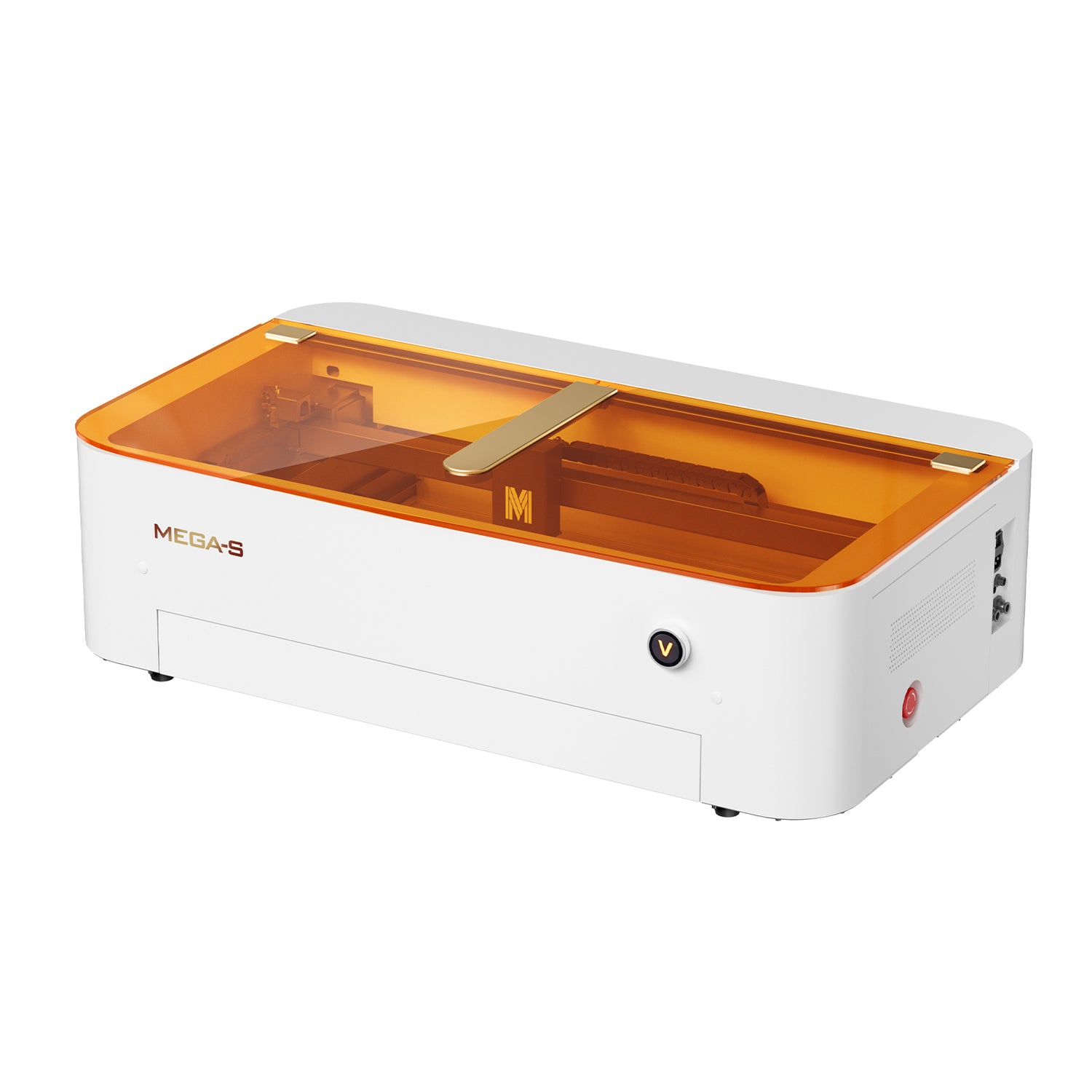

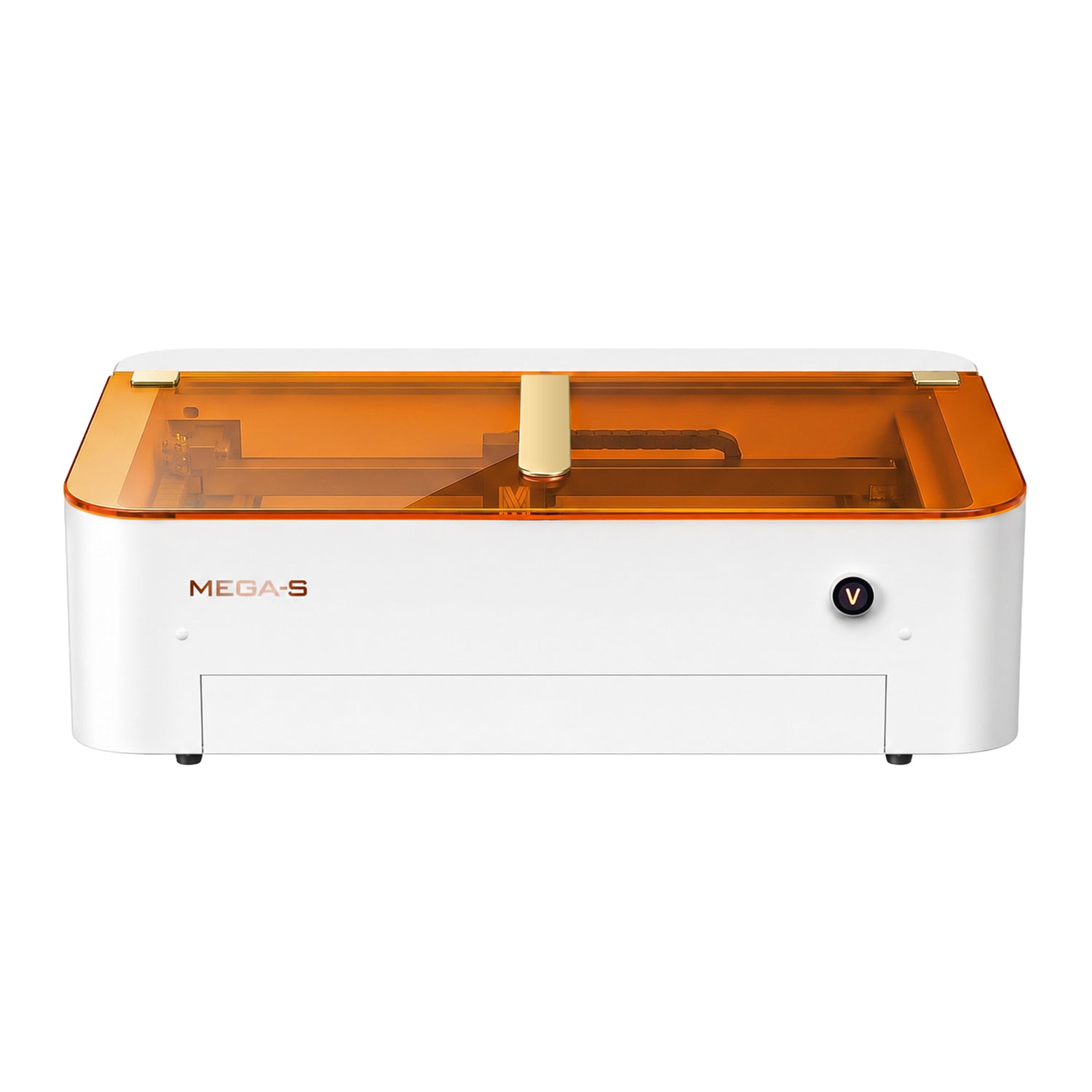

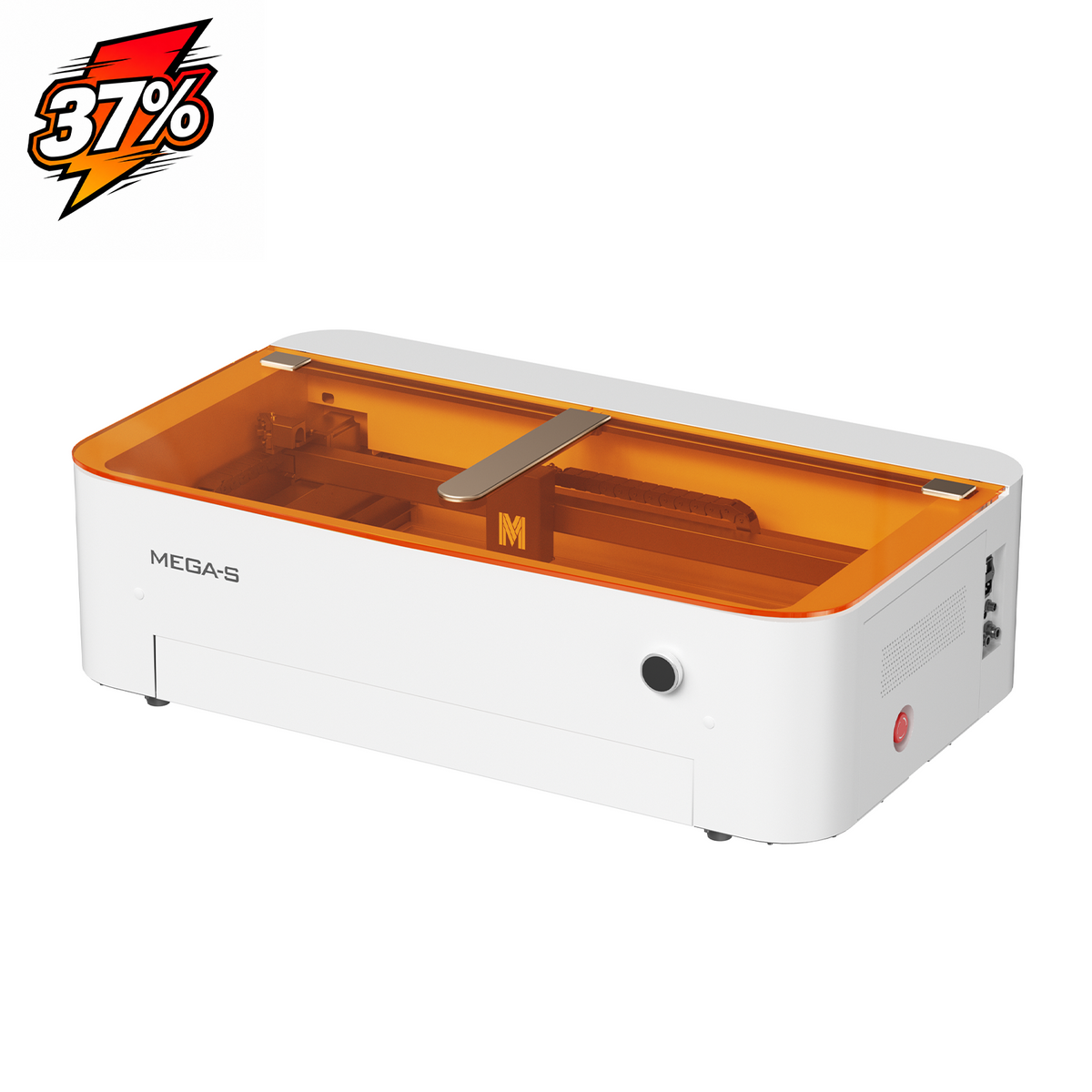

Monport MegaS – Mega Series Upgrade: 70W CO₂ Laser Engraving and Cutting Machine with Intelligent Precision
Save Up To 52%, Limited Time!
Monport MegaS – Mega Series Upgrade: 70W CO₂ Laser Engraving and Cutting Machine with Intelligent Precision - Machine is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Mega Features
Mega Features

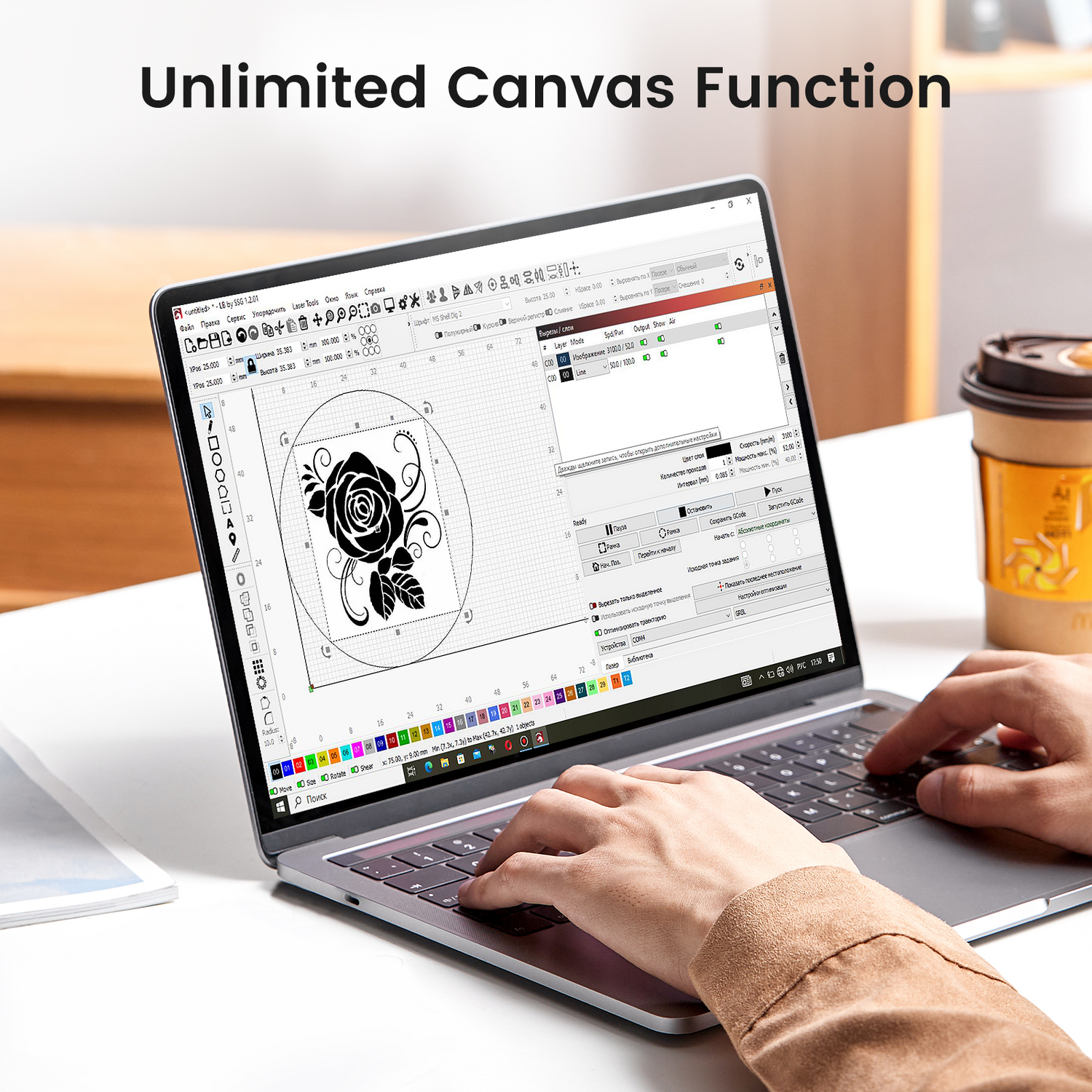

LightBurn Ready External Connection
Designed based on real user workflows, MEGA now supports external connection to LightBurn. Simply connect using the dedicated cable for smooth and efficient operation.

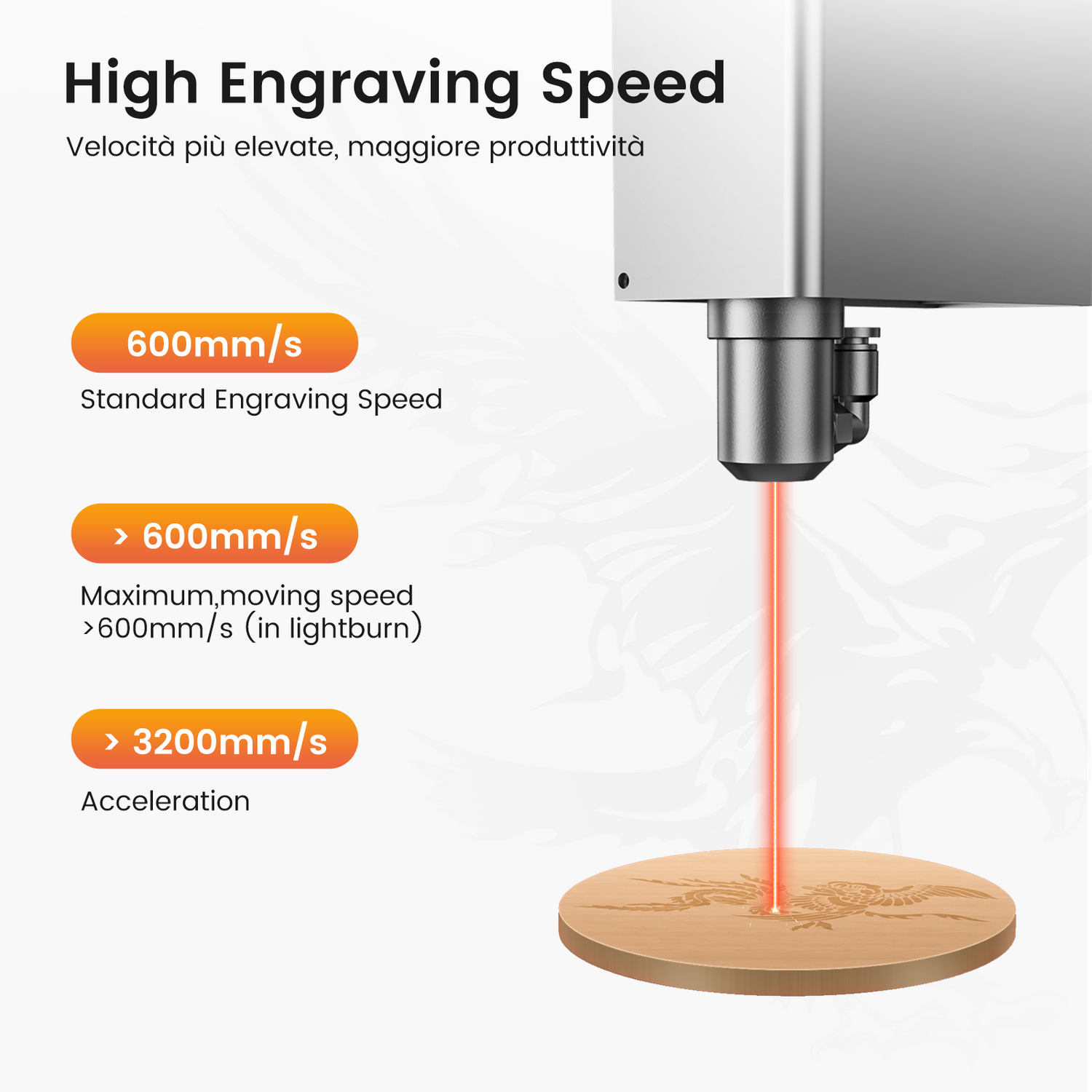

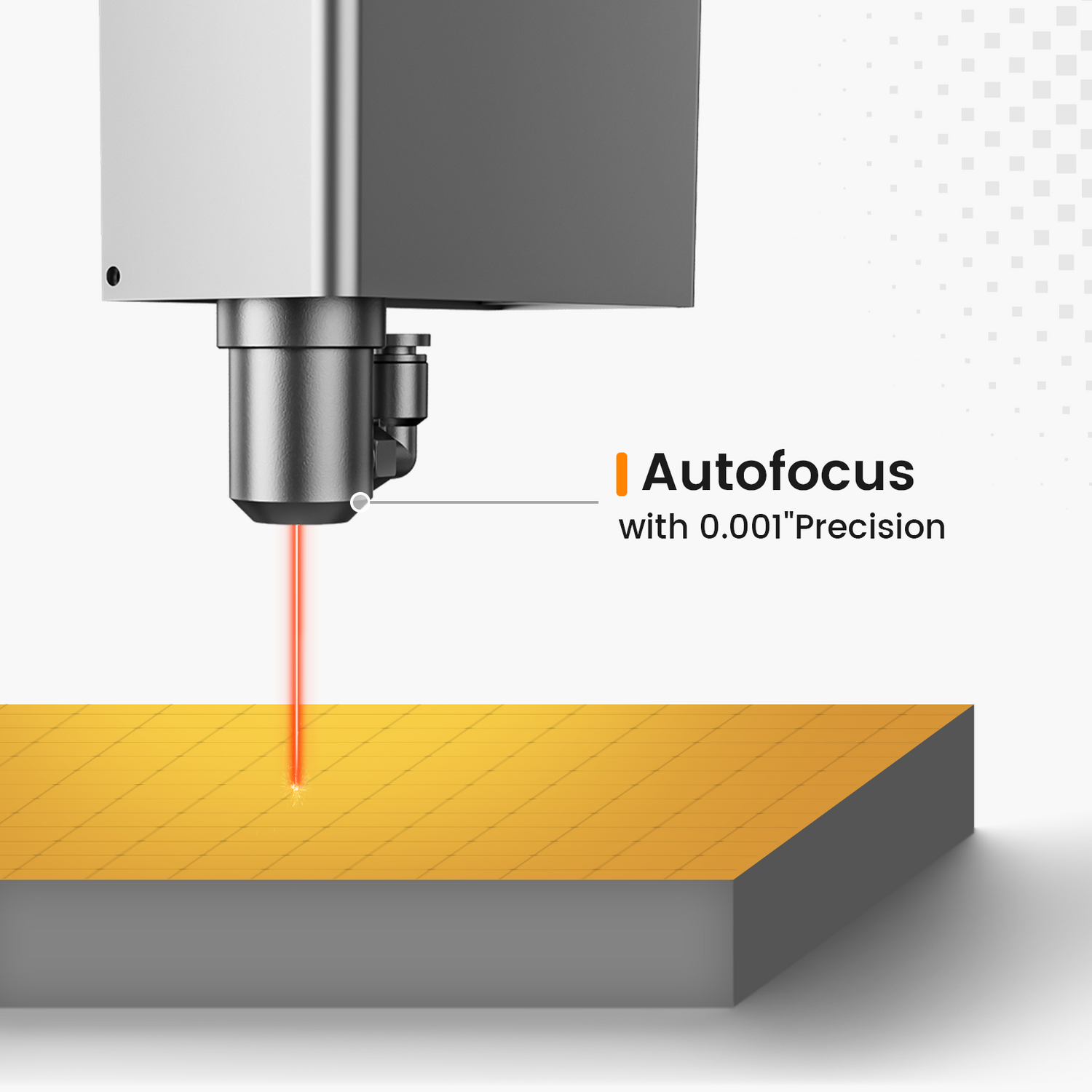

Autofocus and High-Speed Engraving
Powered by LiDAR-based ranging technology, MEGA delivers 100 percent autofocus with engraving speeds up to 600 mm per second. High-speed engraving is achieved while maintaining excellent precision and stability.

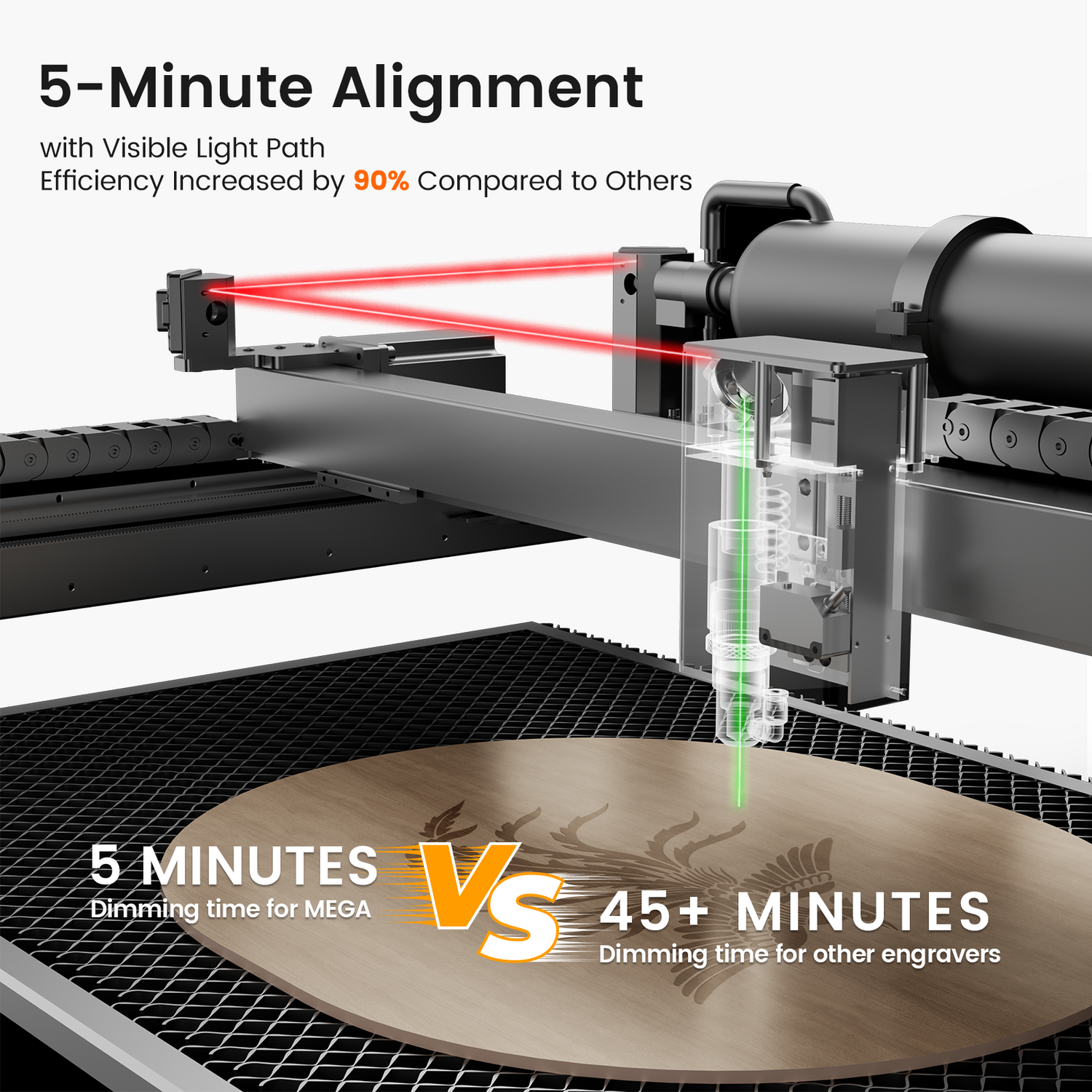

5-Minute Visual Laser Path Alignment
The visual laser path alignment system allows setup in just five minutes. The simplified calibration process improves efficiency and enables beginners to start engraving quickly.

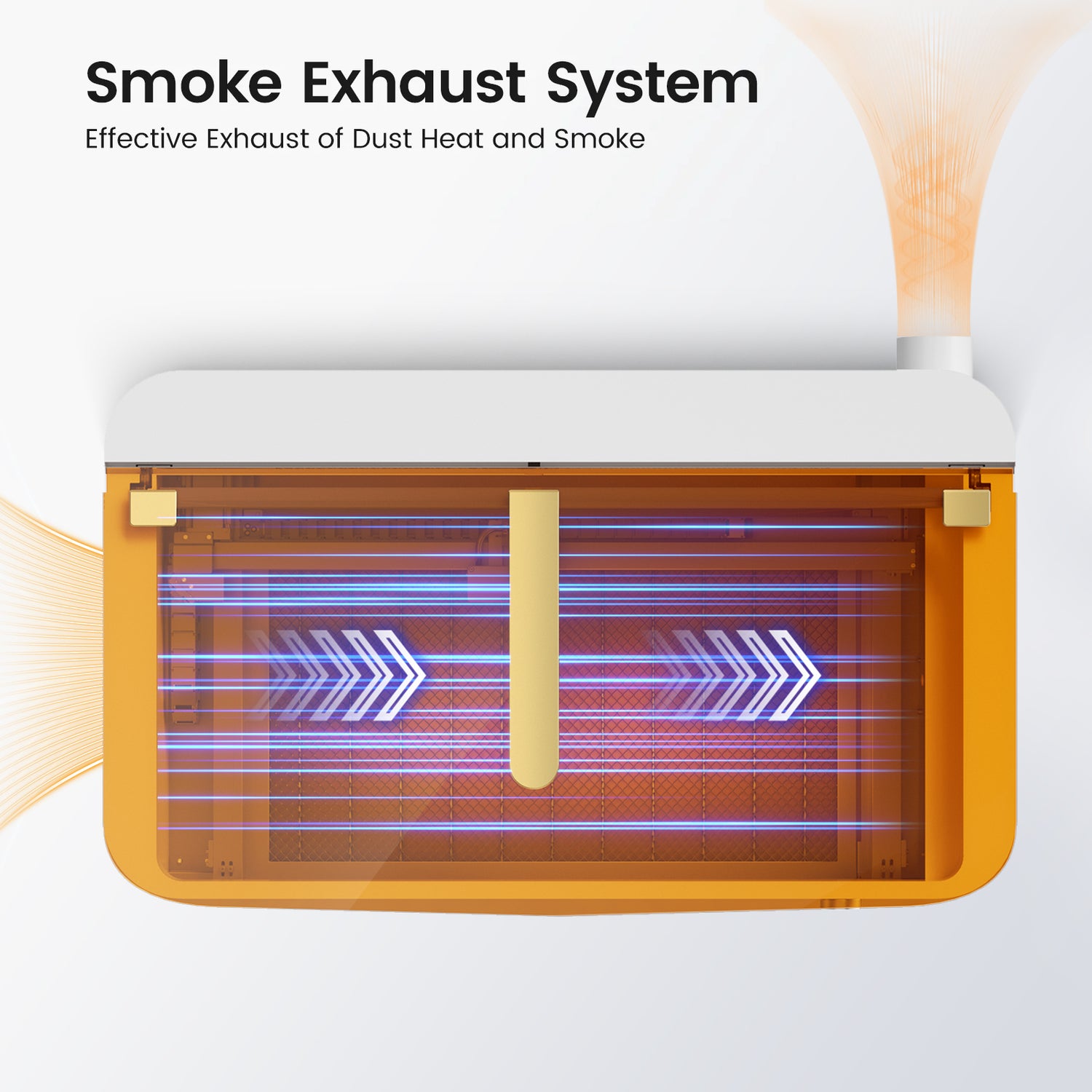

Powerful Exhaust System with Strong Suction
The MEGA engraving machine features an exhaust system equipped with nine fans to efficiently remove smoke and dust. The optimized airflow design creates internal negative pressure to minimize fume leakage and maintain a clean working environment.

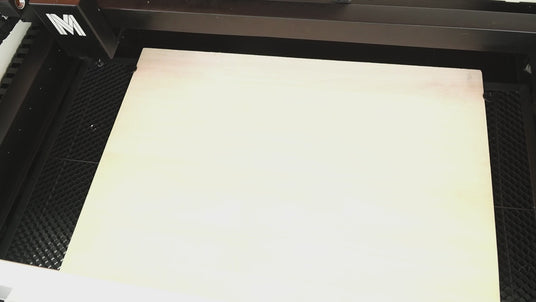

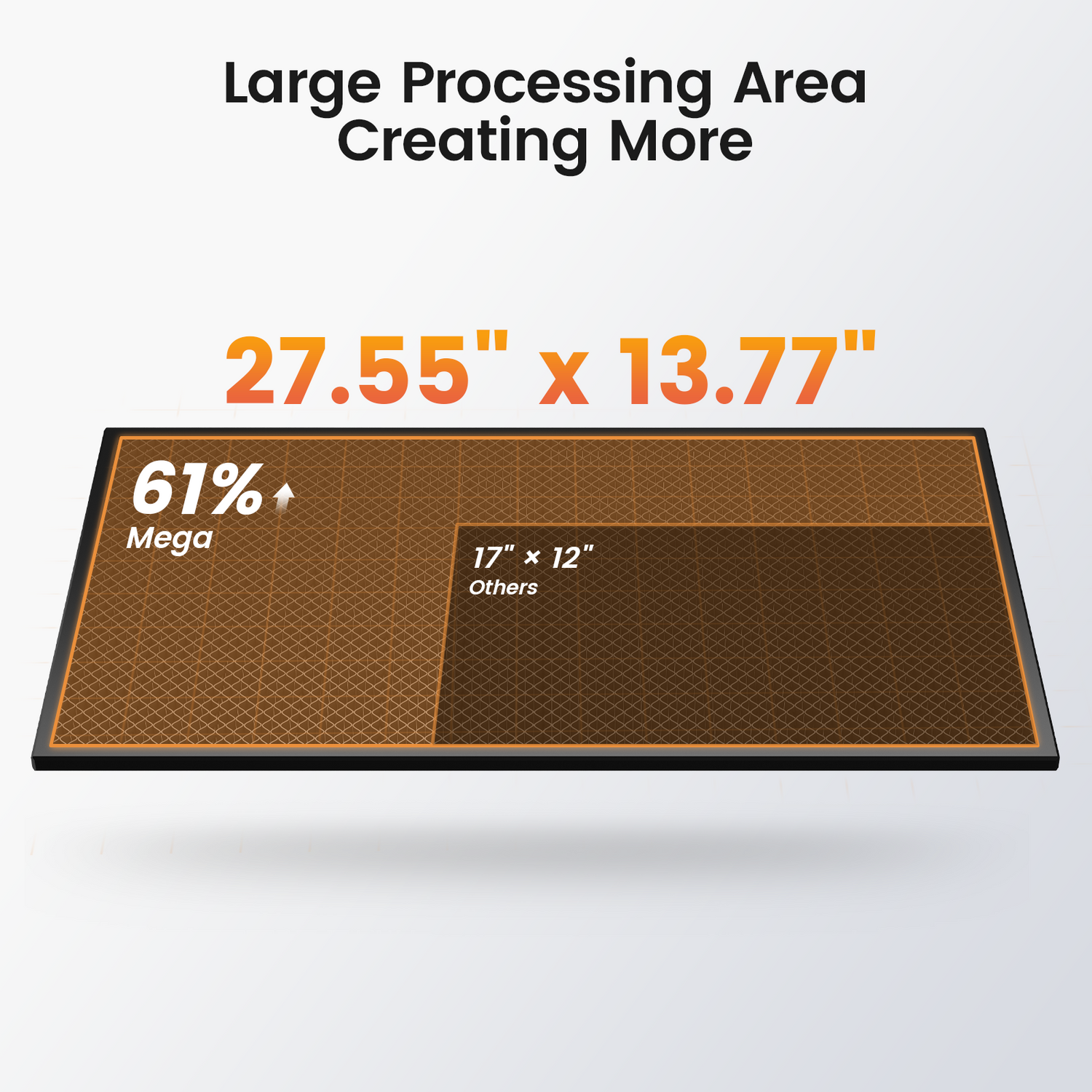

Large Working Area Without Size Limitations
The spacious 700 × 350 mm working area supports large projects as well as batch micro engraving in a single process, significantly improving productivity and workflow efficiency.

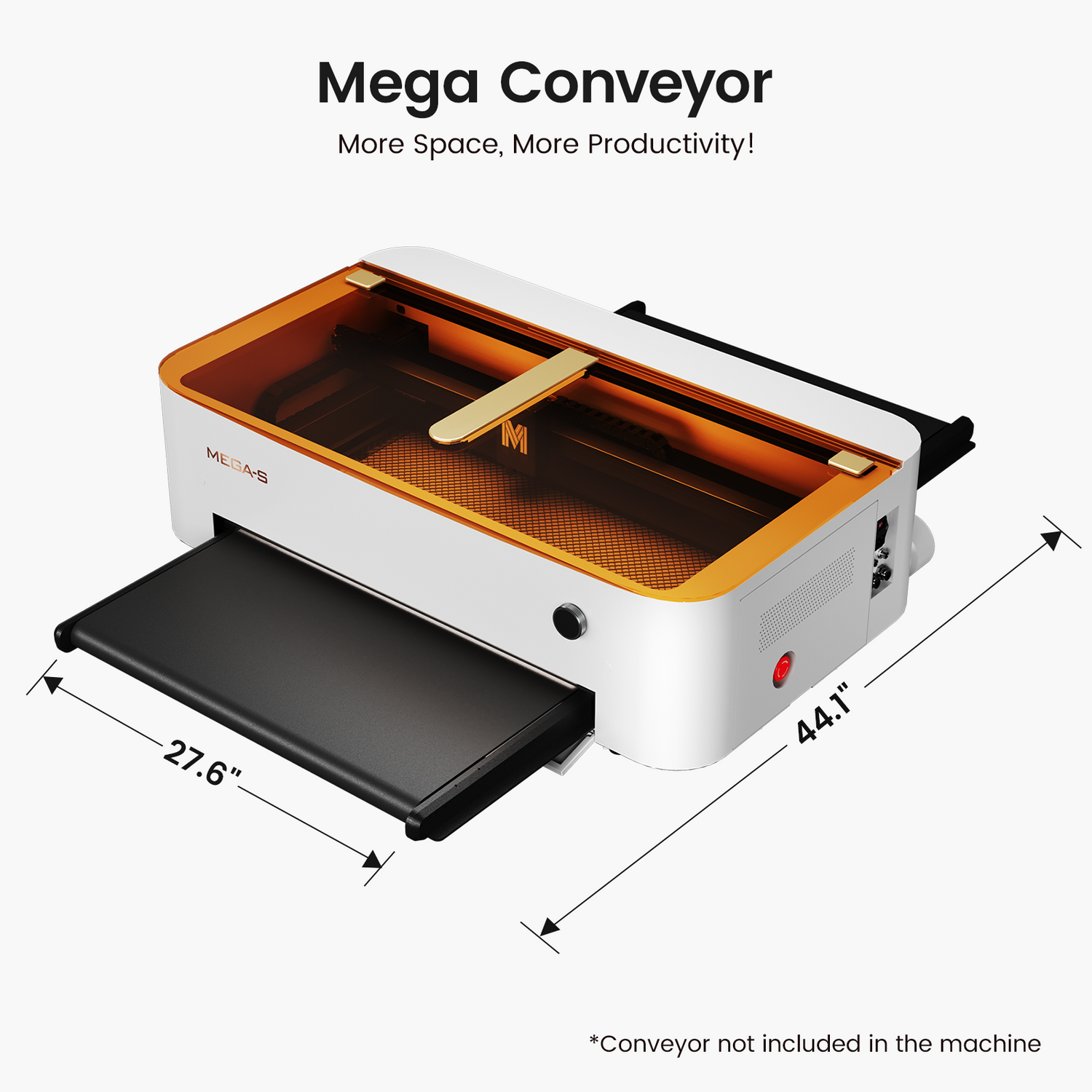

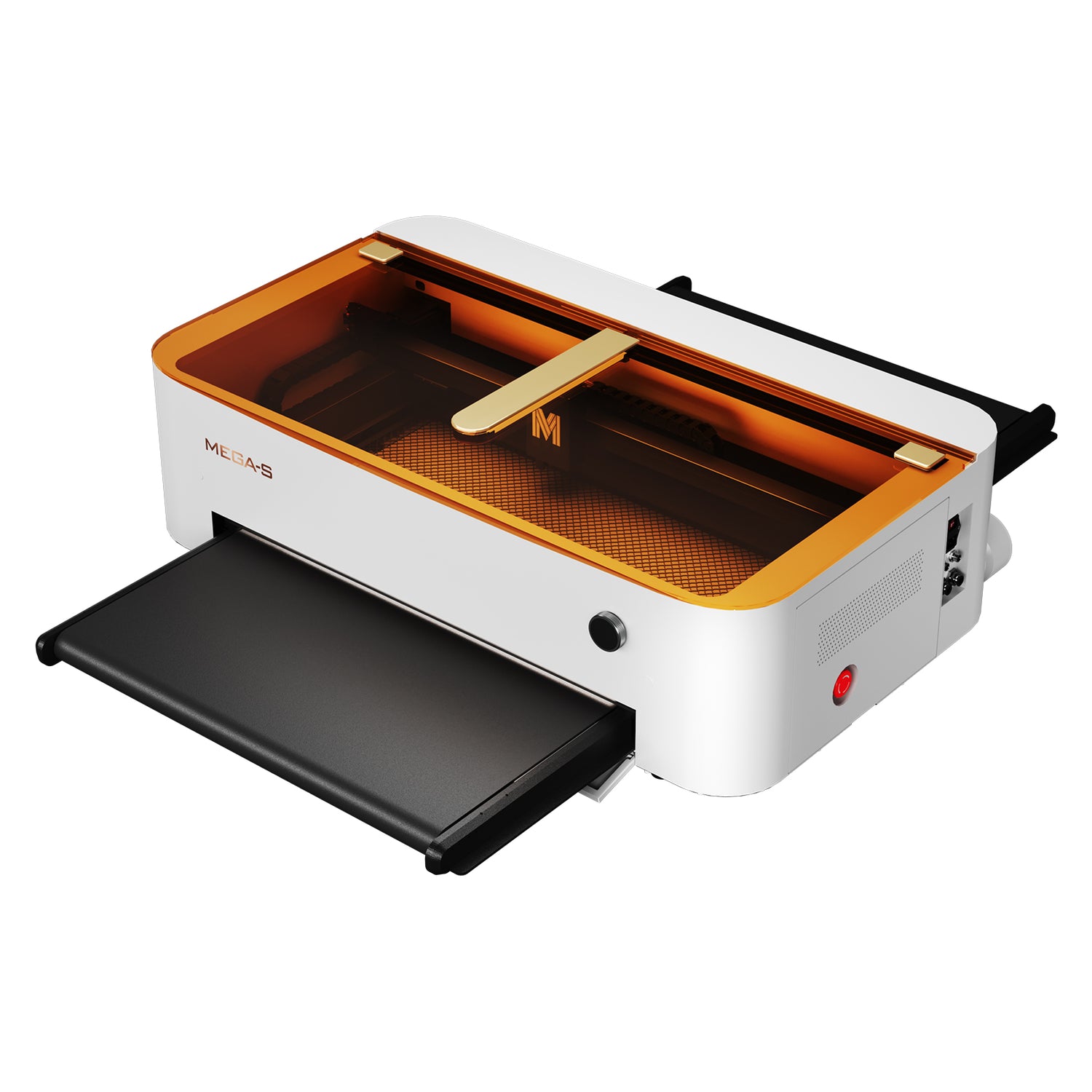

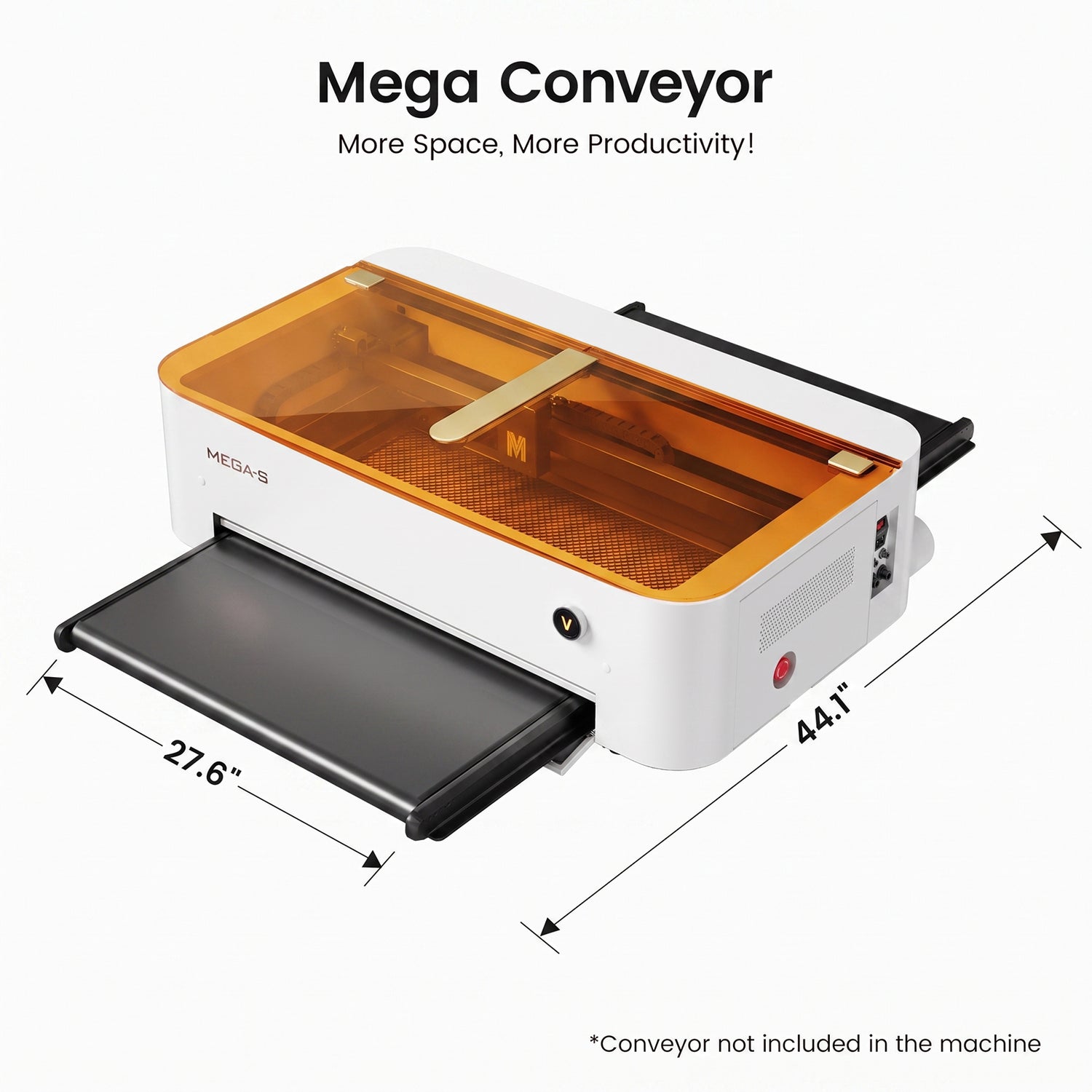

AutoPassthrough Continuous Processing
With intelligent control technology, the AutoPassthrough function automatically transports stacked engraving materials of different shapes for continuous and efficient production.

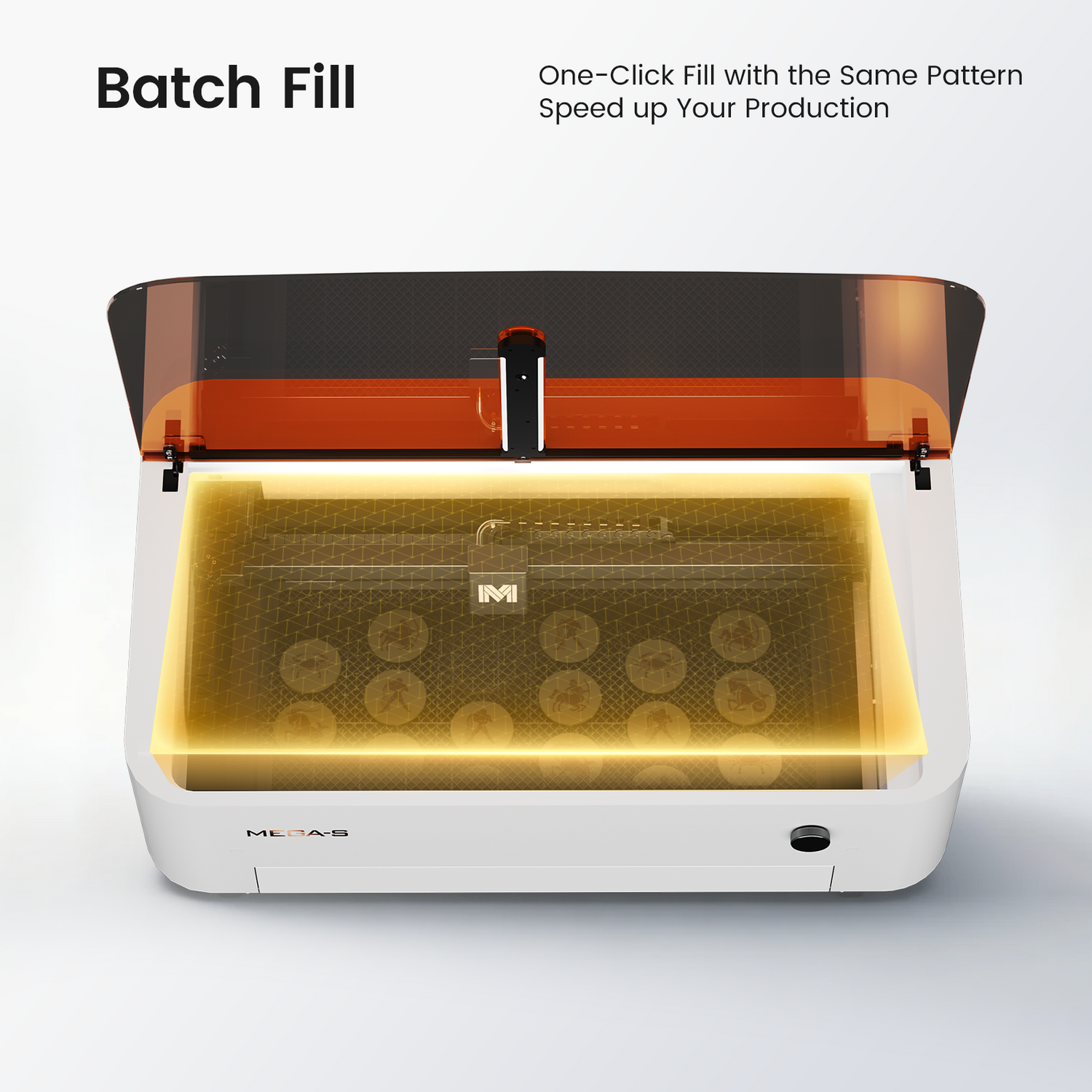

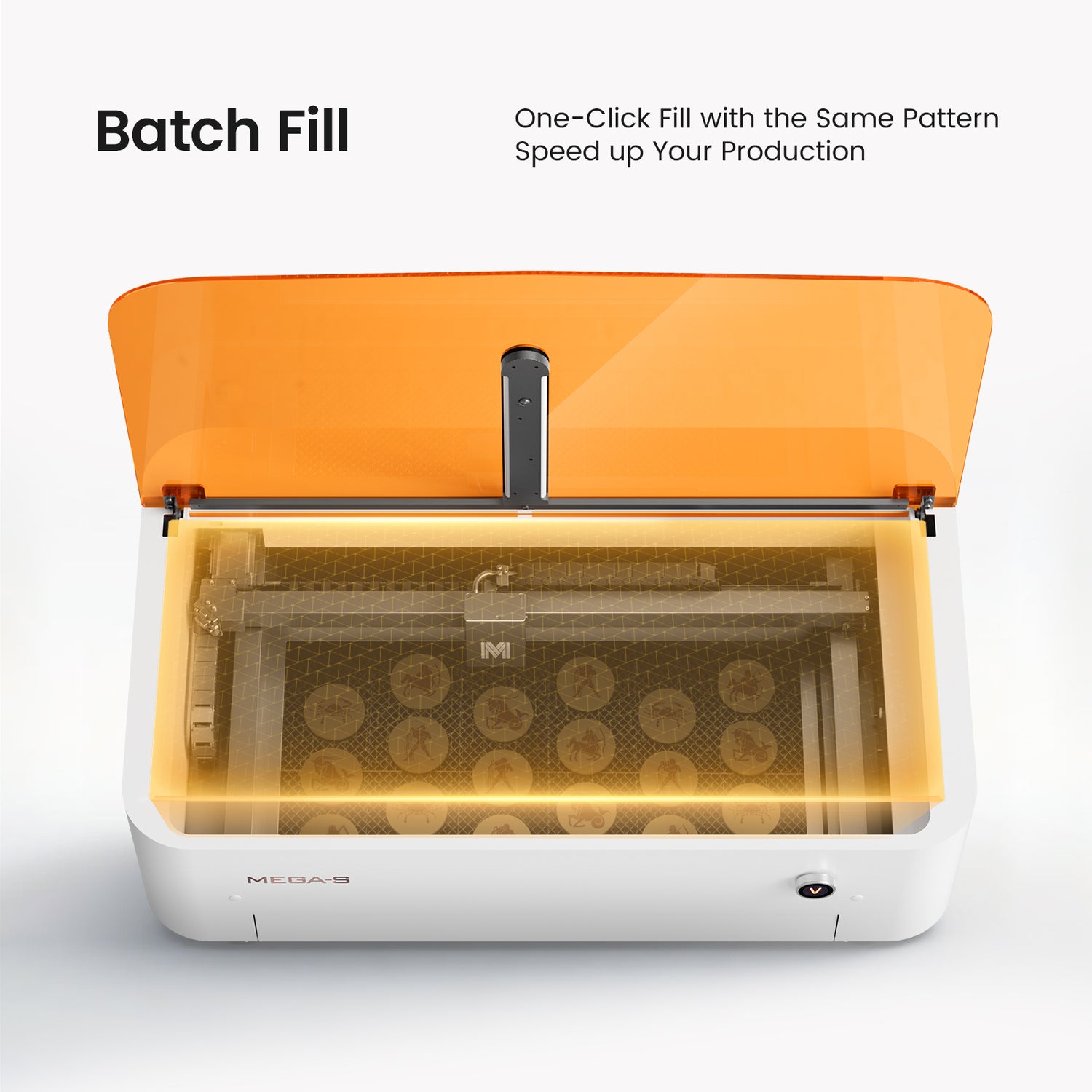

Intelligent Batch Filling

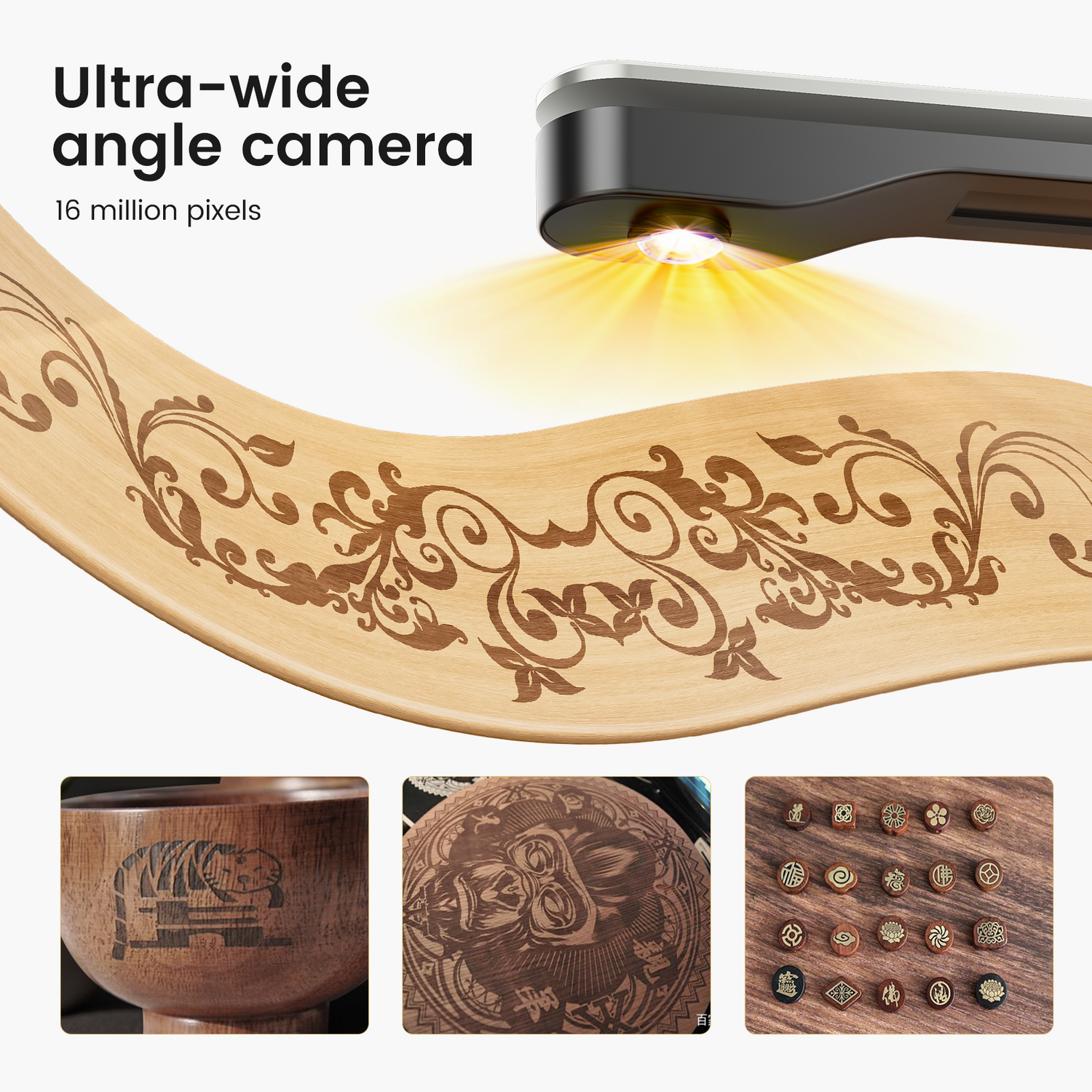

The built-in panoramic camera with 1000 DPI image resolution automatically recognizes multiple objects and intelligently fills engraving layouts, helping maximize efficiency and material utilization.
Enclosed Guide Rail Design
The enclosed guide rail structure effectively prevents dust contamination, extends service life, and ensures smooth long-term machine operation.
Laser Leakage Protection Design
MEGA integrates a laser leakage prevention design to ensure safe operation by preventing laser exposure during use.
Smart Touchscreen Control
The intelligent touchscreen supports touch, rotation, and press operations, providing a user-friendly interface for seamless control and improved functionality.
Warranty & Certifications
Warranty & Certifications
2-Year Parts Warranty
6-Month Warranty on Laser Tube and Power Supply
CE Approved and IEC 60825 Certified
User Manual
User Manual
Download Mega S User Manual Here

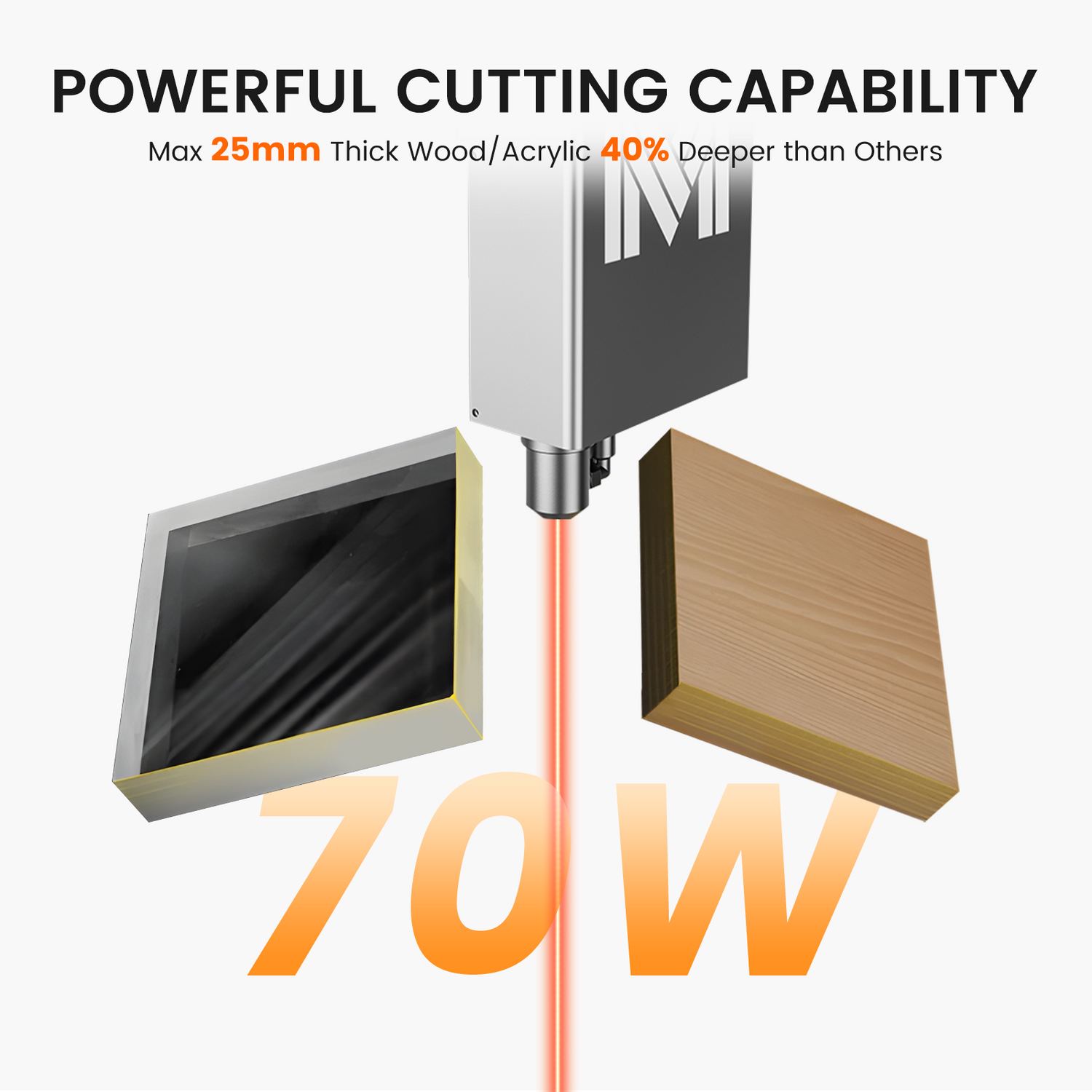

Improved Cutting Performance

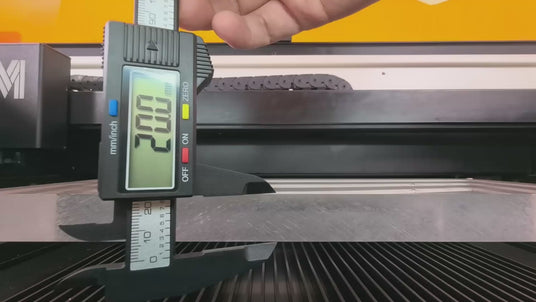

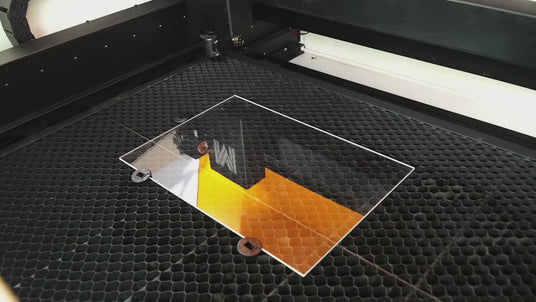

Cuts acrylic up to 20 mm and basswood up to 18 mm.

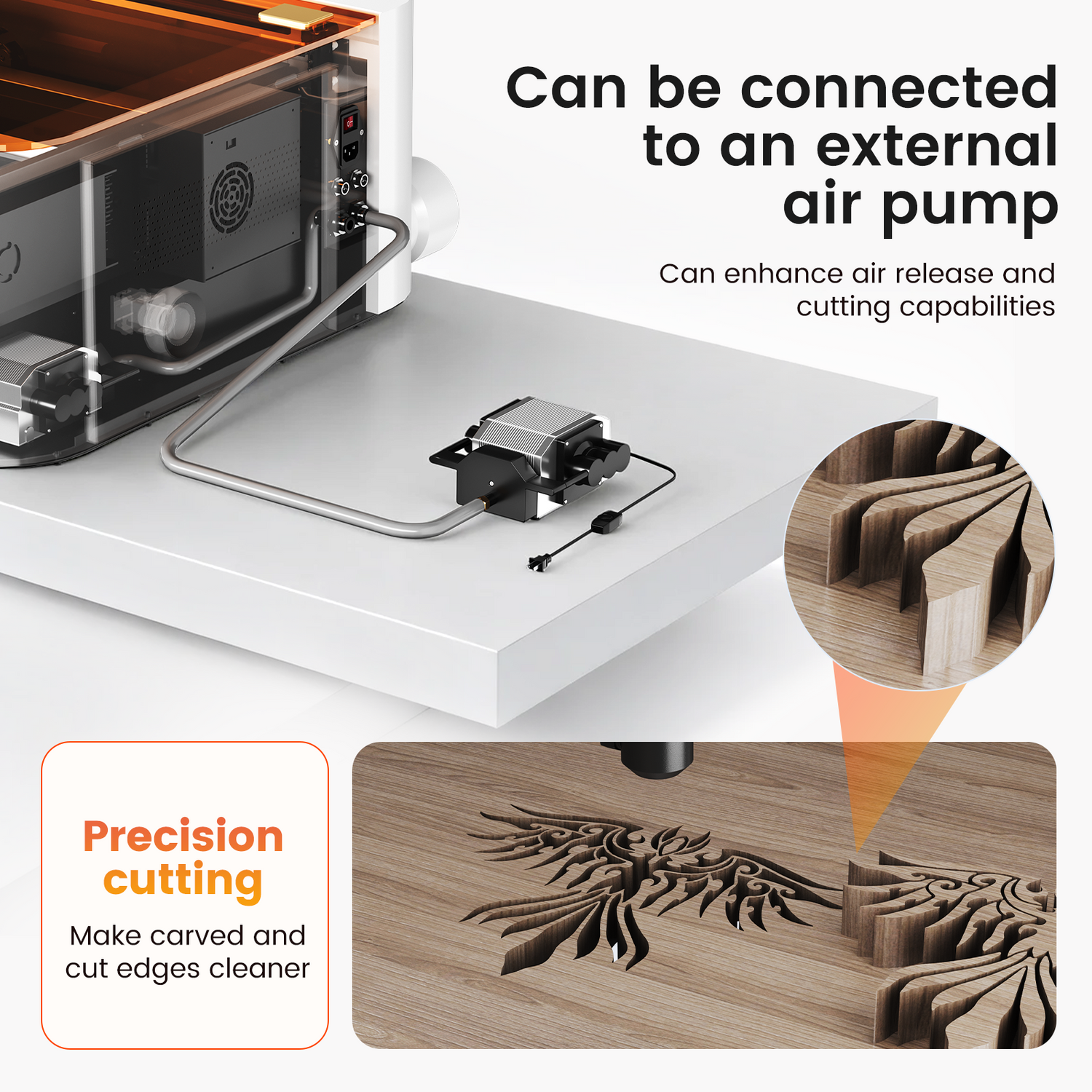

With a long-focus lens and external air pump, cutting performance is improved by up to 25%.

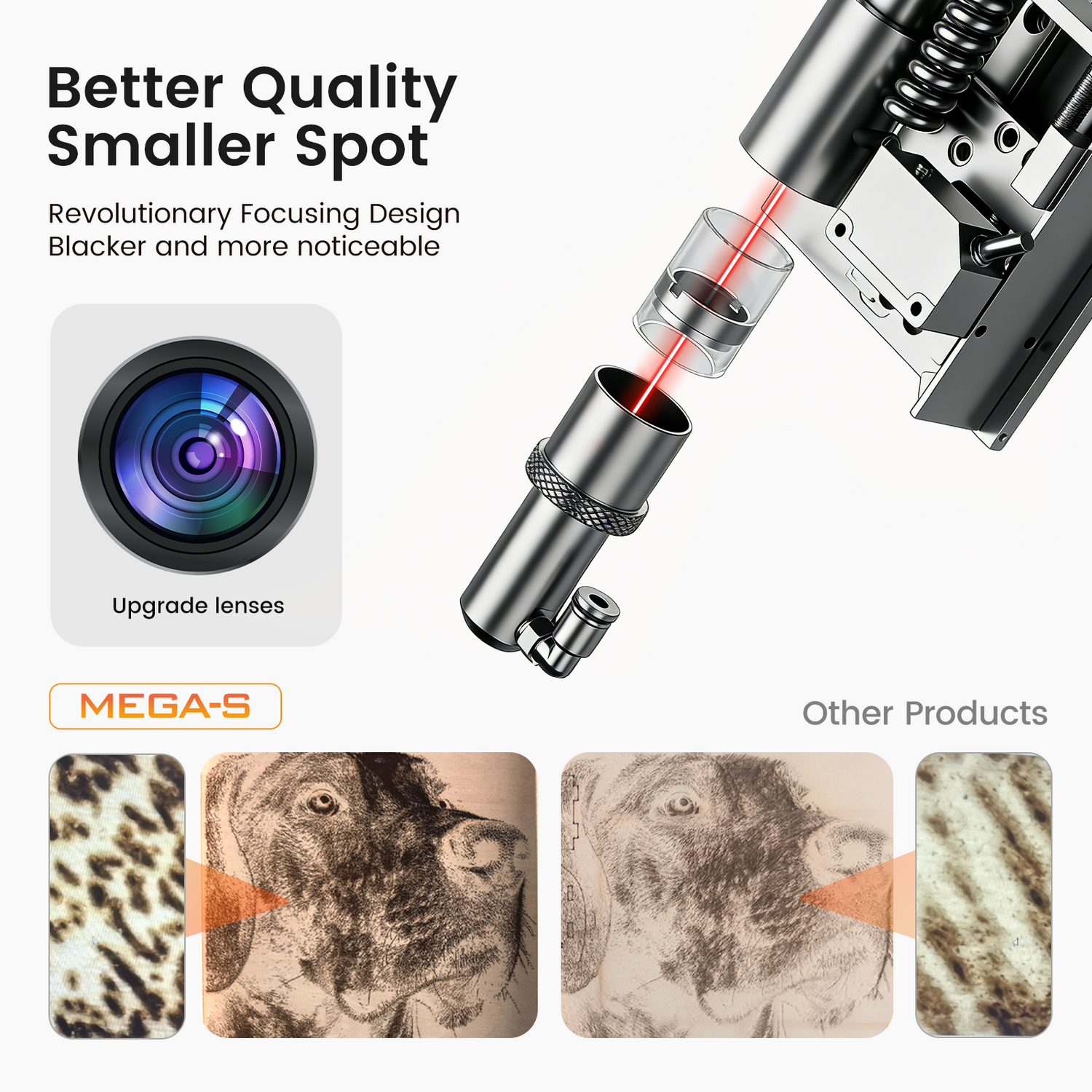

More Precise Processing
Industry-leading optical focusing for excellent engraving results.

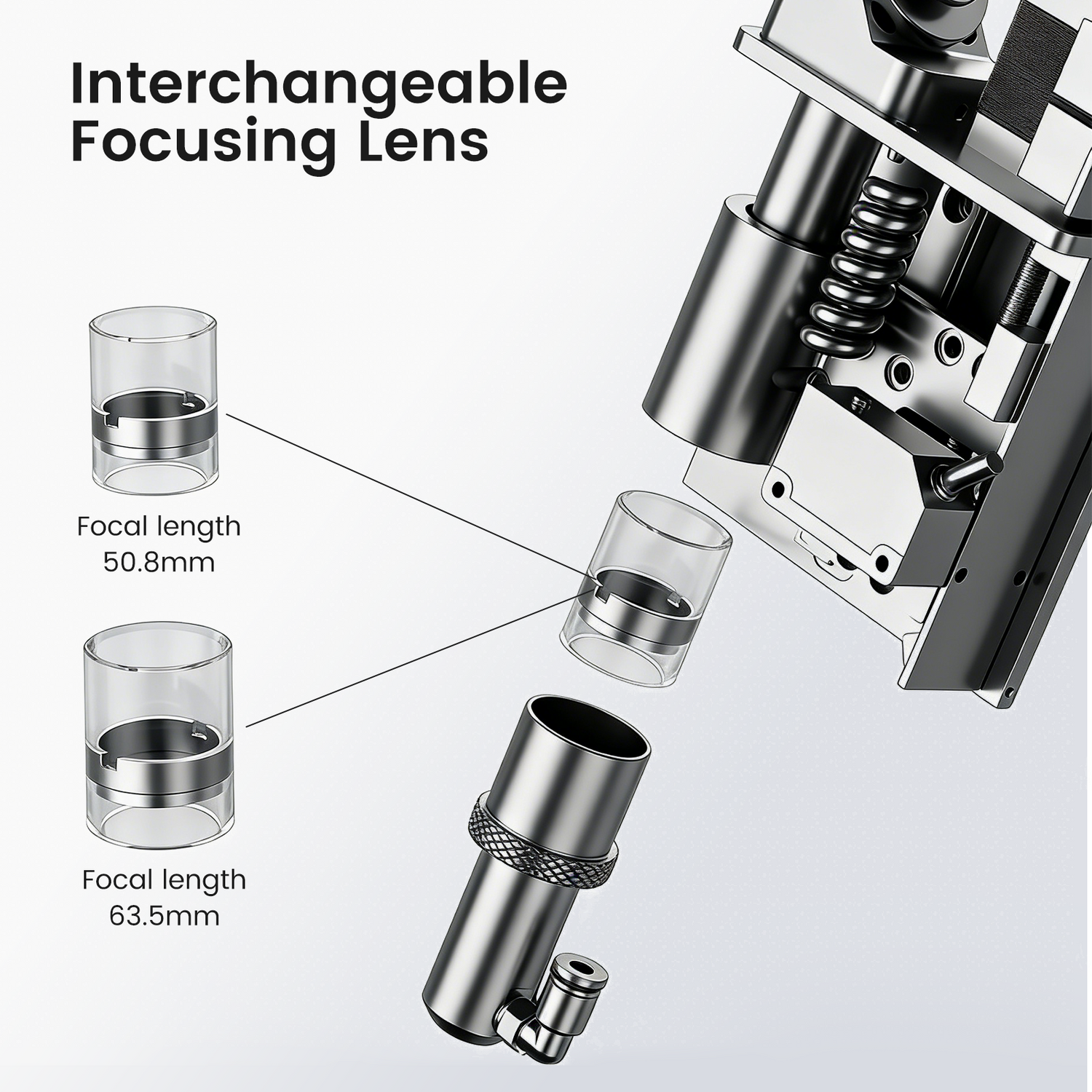

The 1.5-inch focusing lens enables a minimum laser spot diameter of up to 0.03 mm and a resolution of up to 1000 DPI.
For deep engraving, resolutions above 600 DPI ensure high detail accuracy and strong contrast, delivering sharp and precise results.
Optimized Internal Design
Improved airflow delivers superior cutting quality and enhanced performance.
Designed for efficient operation in commercial applications and laser projects.

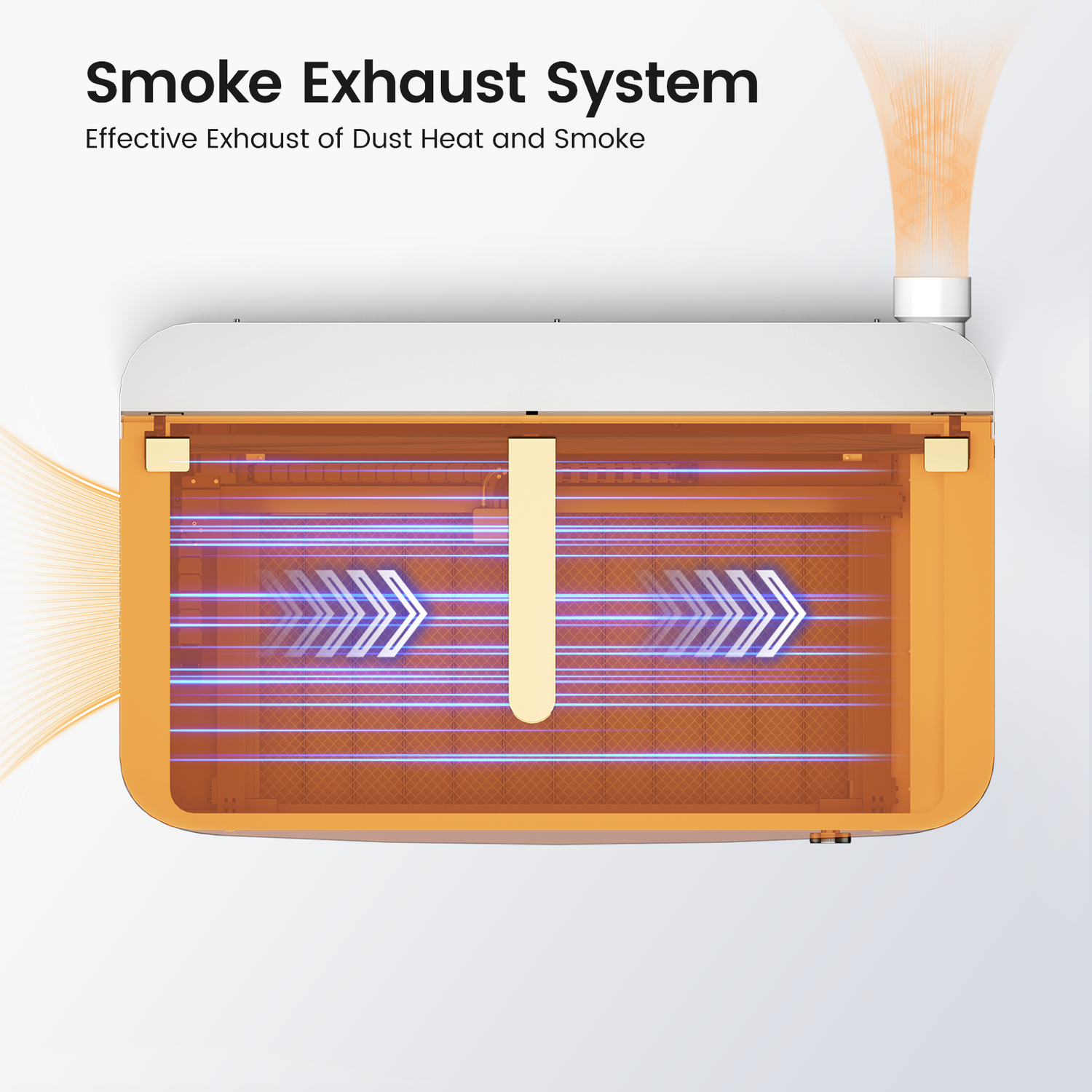

Powerful exhaust air system with strong suction power
The MEGA engraving machine's exhaust air system, equipped with nine fans, efficiently removes fumes and ensures a clean working environment with its powerful suction. With the air inlet on the left and the air outlet on the right, the exhaust air volume is greater than the supply air volume, creating a negative pressure inside the machine that minimises the escape of fumes.
Closed guide rail design
The closed guide rail design effectively prevents dust from contaminating the guide rail, which significantly extends its service life and ensures smooth operation over a long period of time.
Laser leakage prevention design
Mega Laser utilises a laser leakage prevention design that ensures no laser leakage during operation for increased safety.
Intelligent touchscreen
Our intelligent touchscreen is versatile. It supports touch, rotate and press operations and offers a user-friendly interface for seamless interaction and enhanced functionality.
Promote the growth of your business.
Promote the growth of your business.
Discover more features

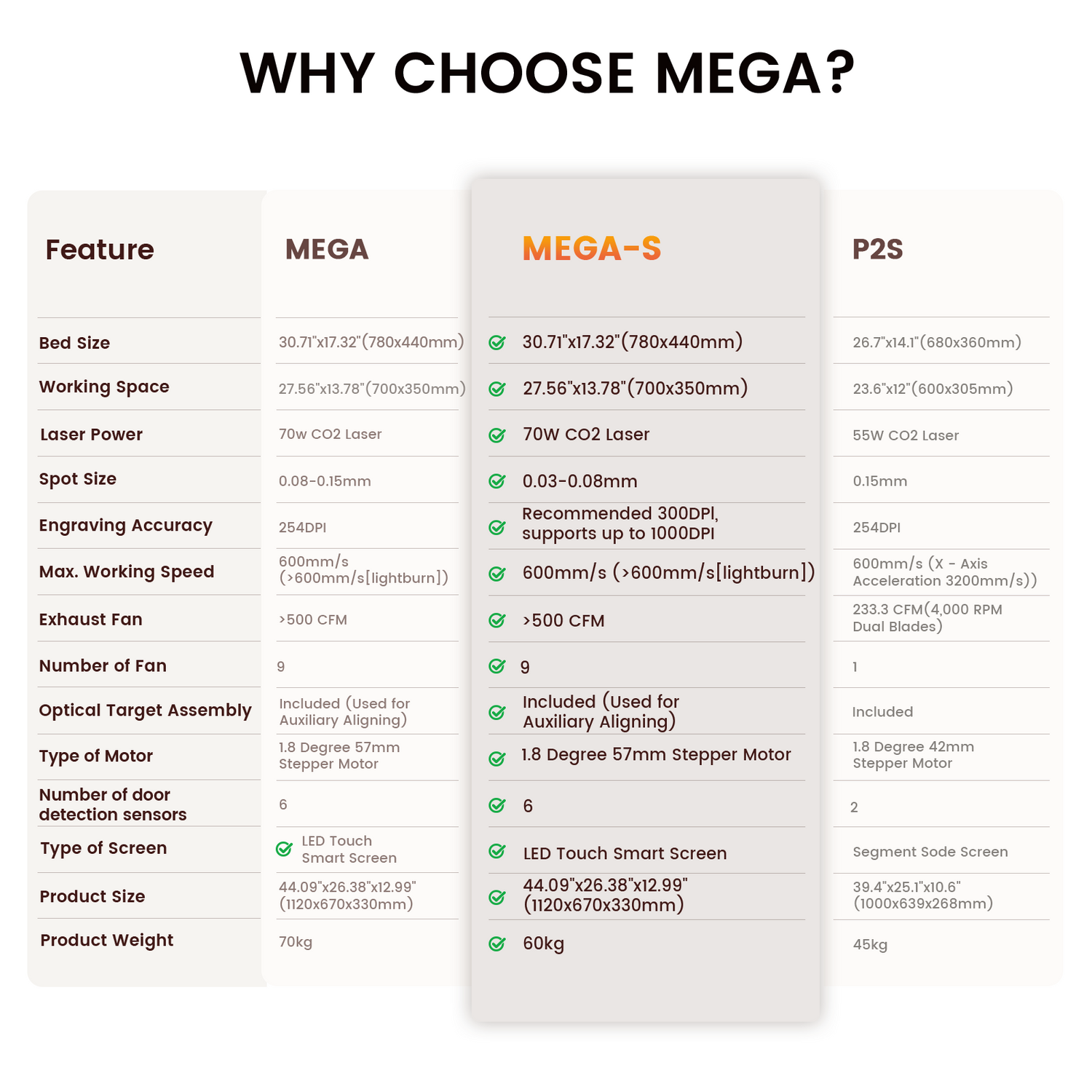

| Item | Specification |
| Work Area | 30.71'' × 17.32'' (780 × 440 mm) |
| Processing Area | 27.56" × 13.78" (700 × 350 mm) |

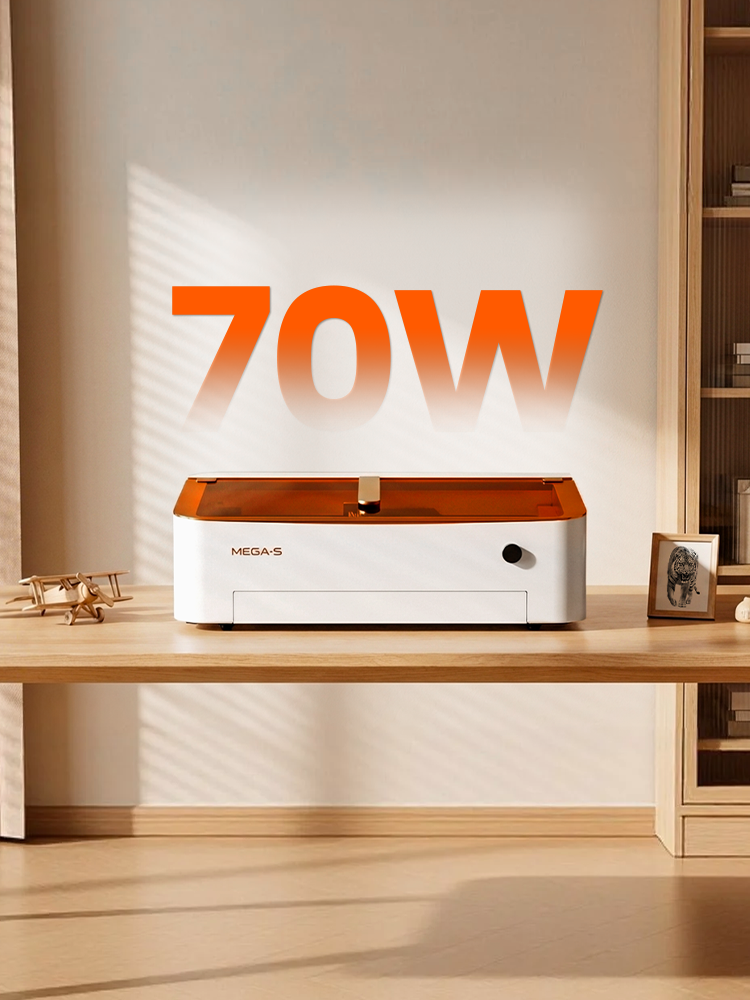

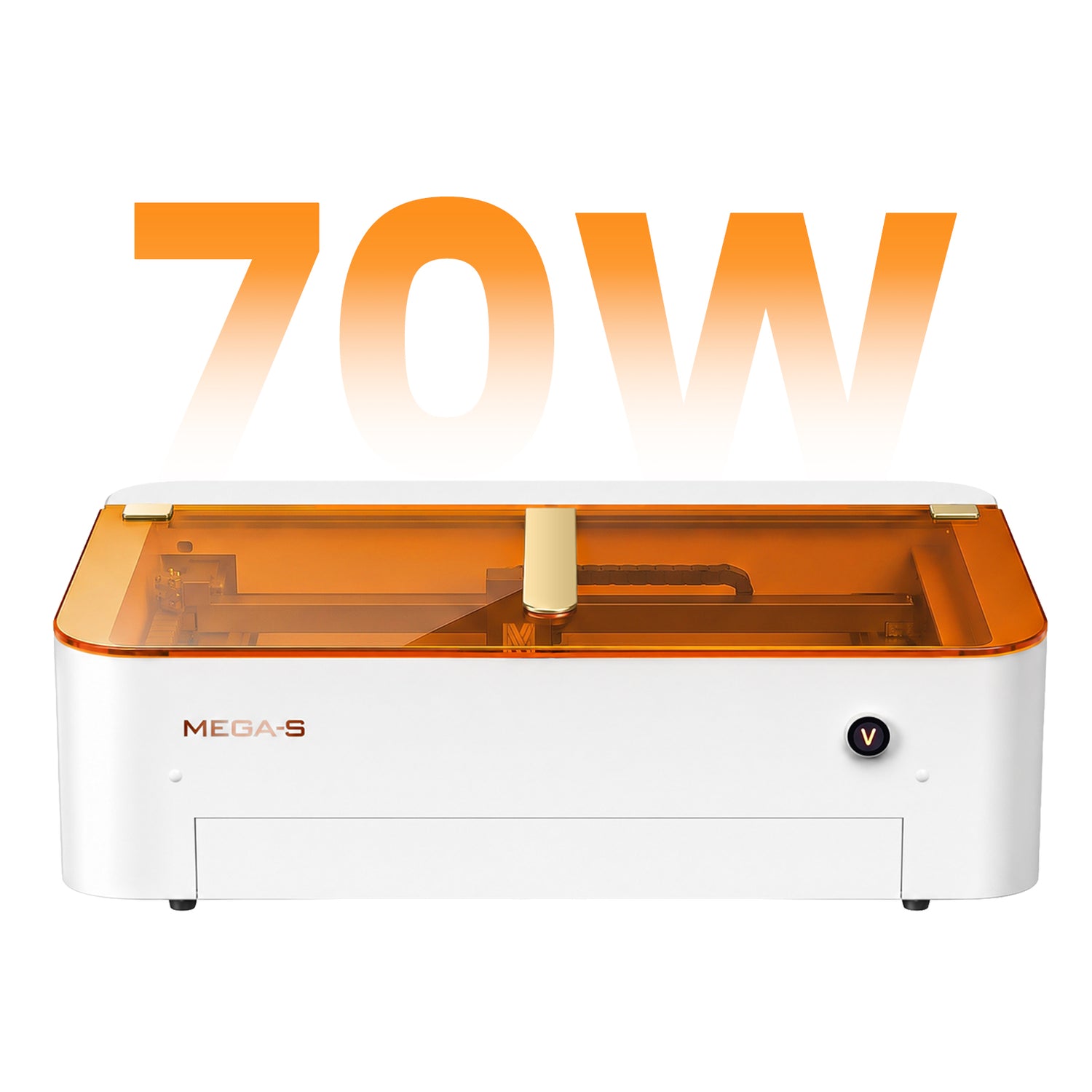

| Laser Power | 70W CO₂ Laser |

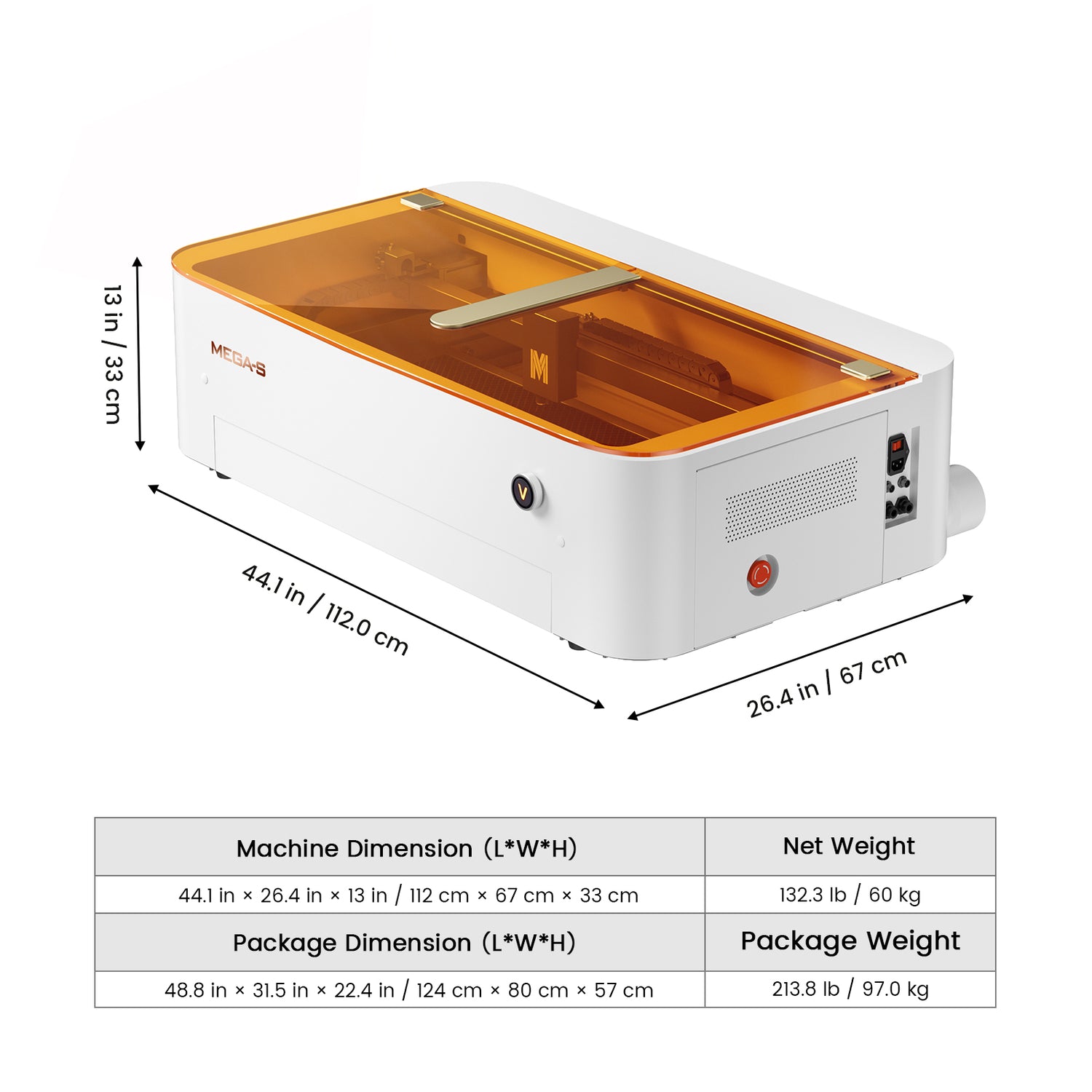

| Product Size | 44.09" × 26.38" × 12.99" (1120 × 670 × 330 mm) |
| Voltage / Current | 220V / 10A or 220V / 5A |
| Max Engraving Speed | 600 mm/s (Max X-axis acceleration 1000 mm/s²) |
| Max Material Height | 0–3.54'' (0–90 mm) |
| Rotary Engraving Diameter | 0–60 mm |
| Z-axis Travel | 0–1.18" (30 mm) |
| Operating Temperature | 10–30°C (50–86°F). If temperature drops below 10°C (50°F), please add antifreeze. |
| Storage Temperature | 10–45°C (50–113°F) |

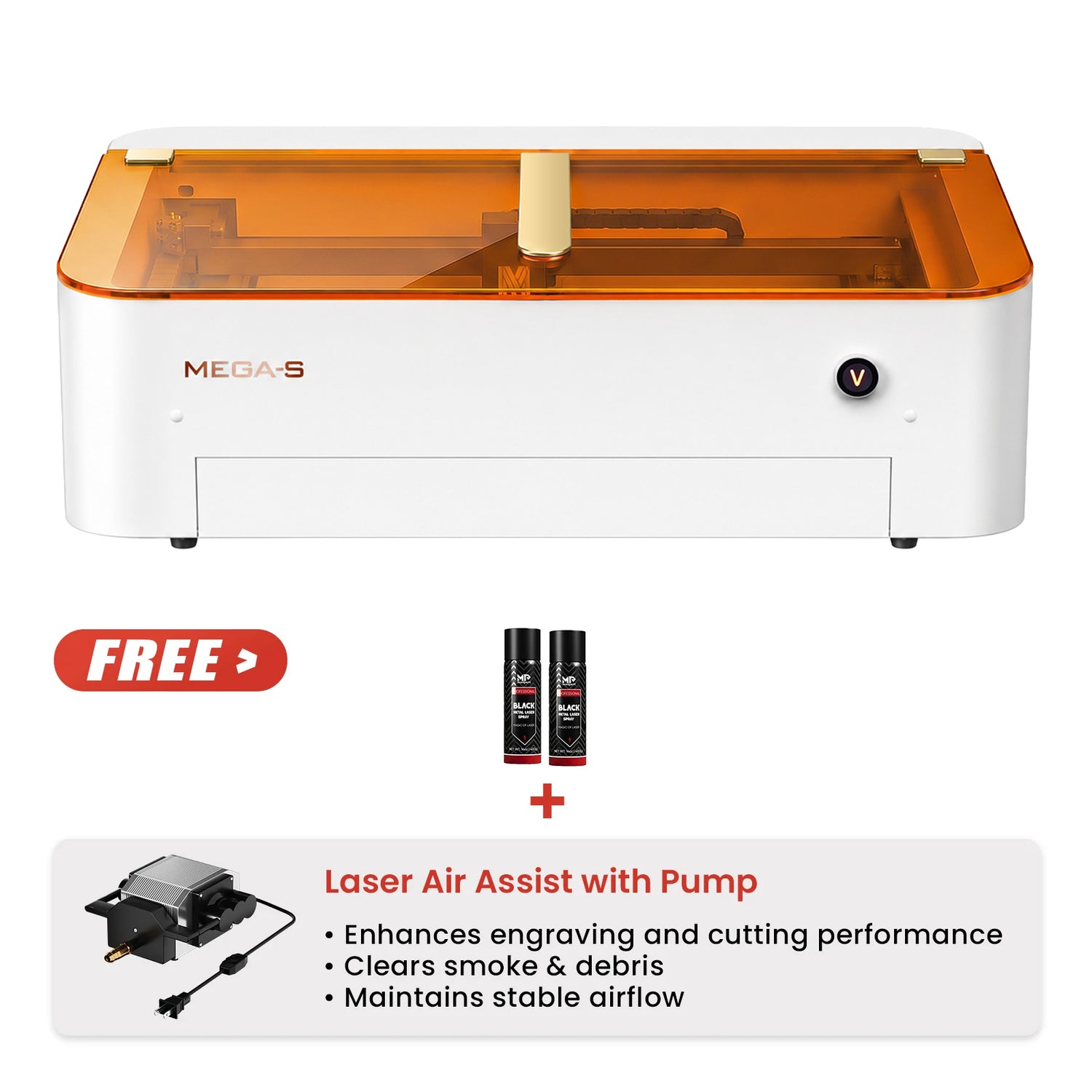

| Air Assist | Included |
| Air Pump Pressure | 50 kPa |
| Exhaust Fan | > 500 CFM |
| Fan Quantity | 9 |
| Visible Light Path | Included (Red/Green) |
| Optical Alignment Module | Included (for assisted alignment) |
| Guide Rail Type | Linear guide rail |
| Guide Rail Design | Enclosed guide rails |
| Motor Type | 1.8° 57 mm stepper motor |
| Door Sensors | 6 sensors |
| Screen Type | LED touch smart screen |
| Daily Maintenance | Only simple wiping required |
| Water Cooling | Capacity: 1.2L (0.32 gal) |
| Distance Measurement System | LiDAR distance measurement system |
| Camera Type | Panoramic camera |
| Effective Pixels | 8MP × 1 |
| Image Resolution | 1000 DPI |
| Focusing Mode | Autofocus |
| Software | M-Design Hub / LightBurn |
| Connectivity | WiFi & USB |
| Supported File Types | SVG / DXF / JPG / JPEG / PNG / BMP, etc. |
| Supported Systems | Windows / Mac |
| Package Contents |
70W CO₂ laser ×1 3mm transparent acrylic ×2 3mm basswood sheets ×5 Kraft paper ×10 Air duct hose and clamp ×1 1L antifreeze ×1 Air duct adapter ×1 Power cable ×1 USB Type-C cable ×1 Optical alignment device ×1 Screwdriver set ×1 Funnel ×1 Mounting clamp set ×1 Hex key set ×1 Woven straps ×2 Business cards ×5 Mega user manual ×1 |
