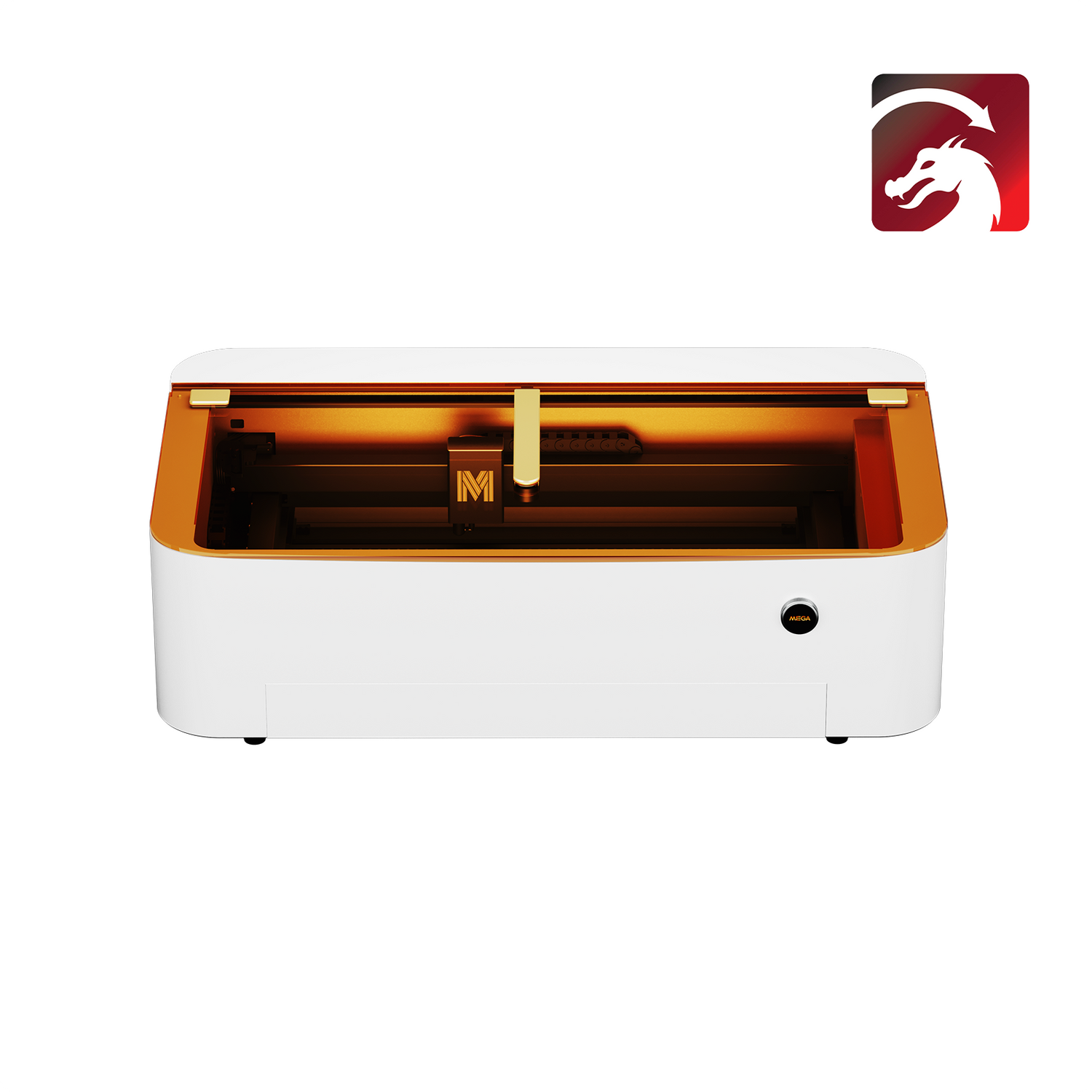

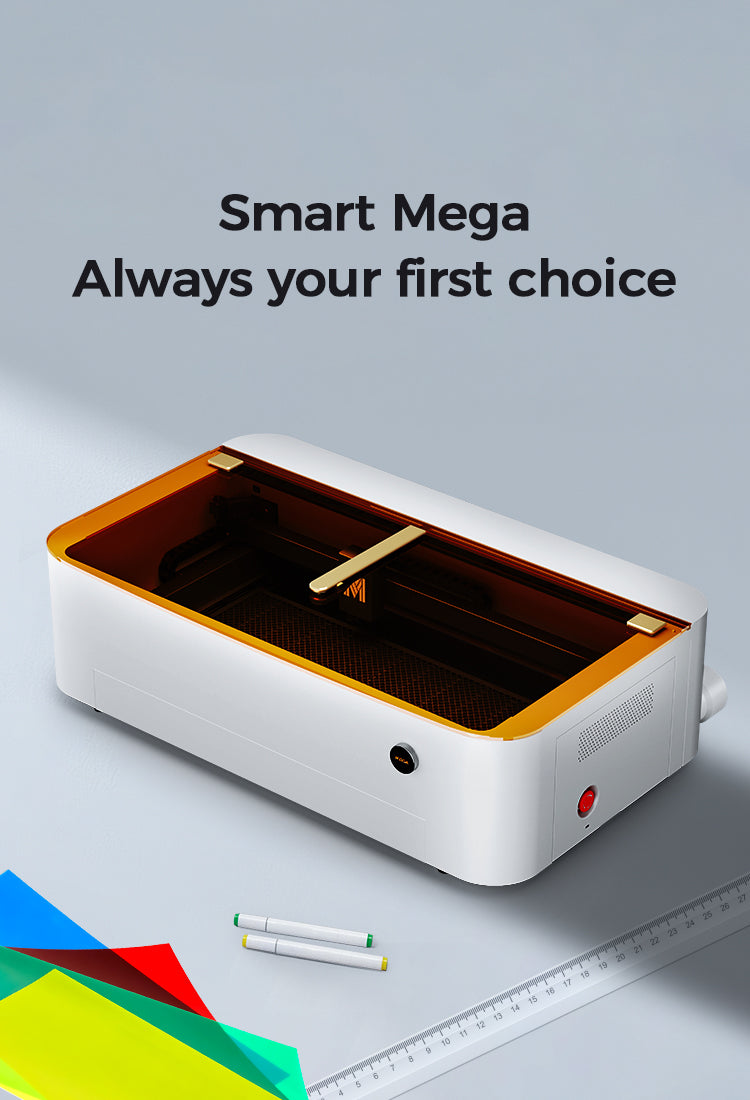

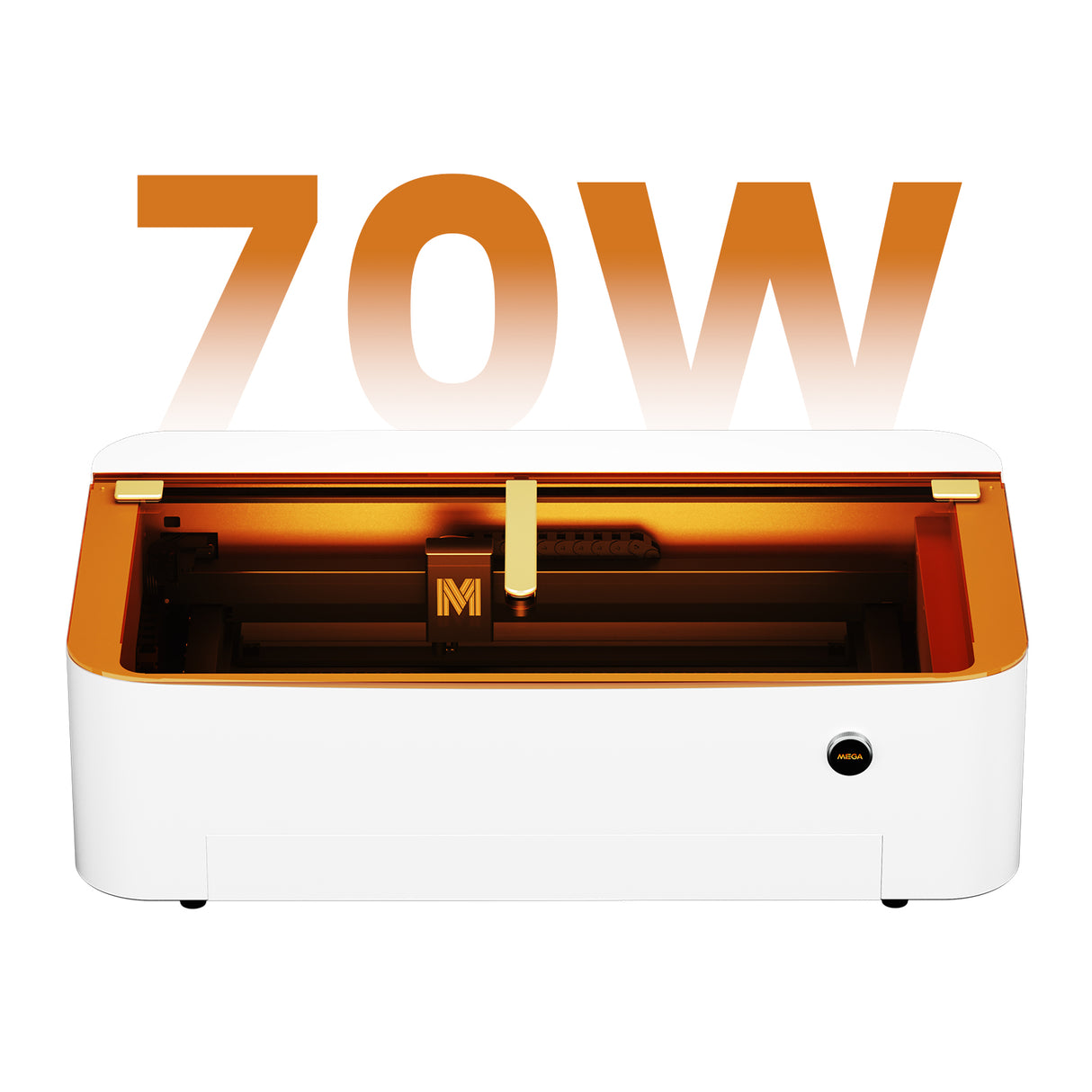

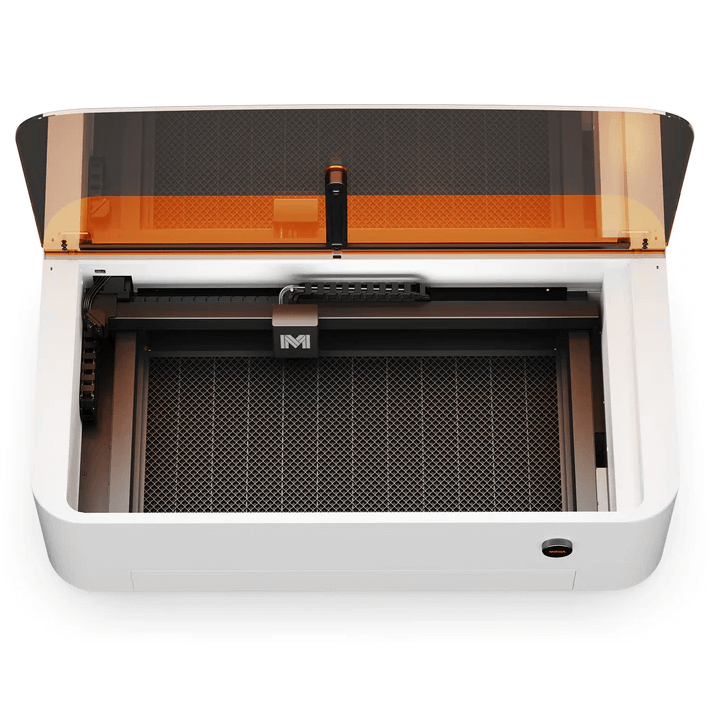

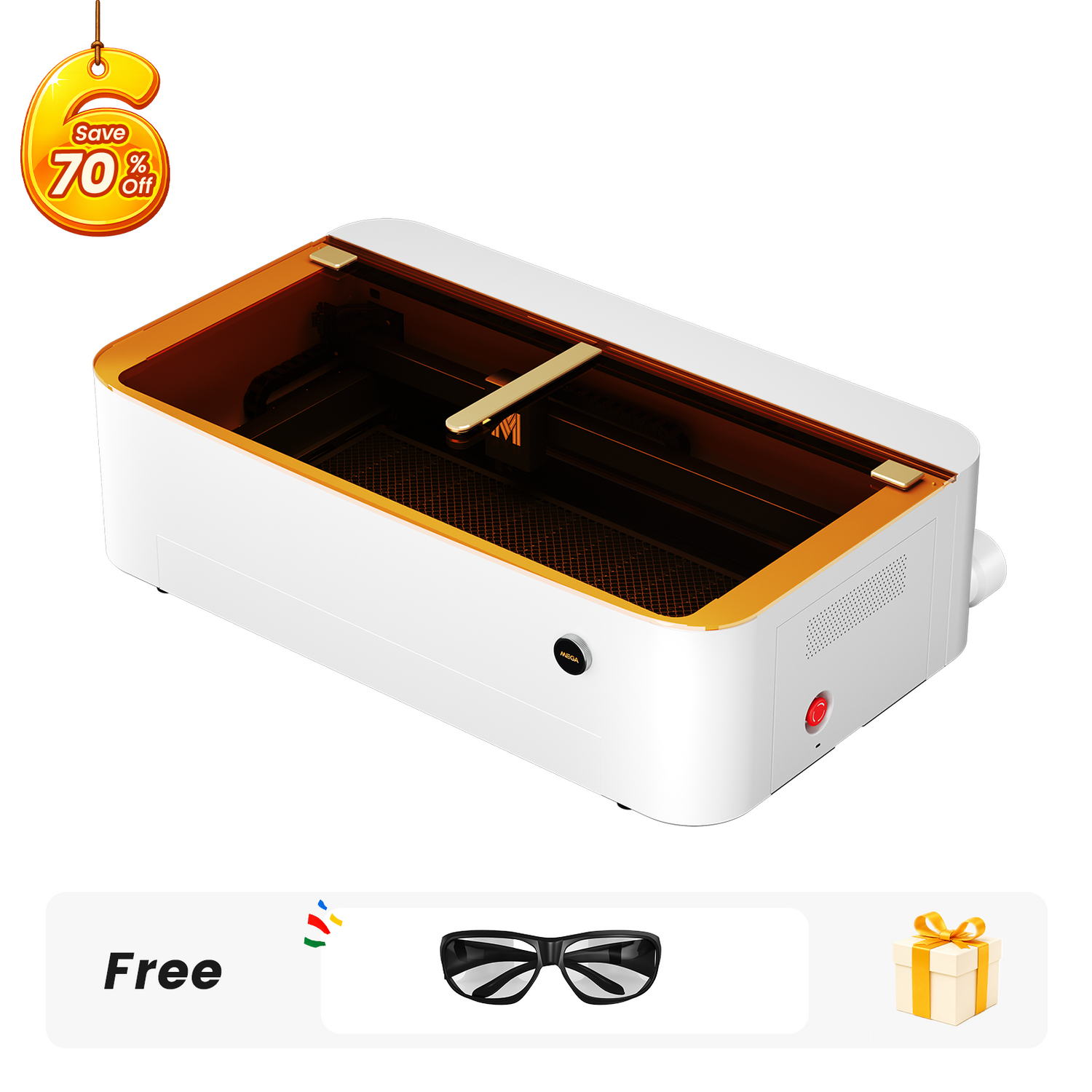

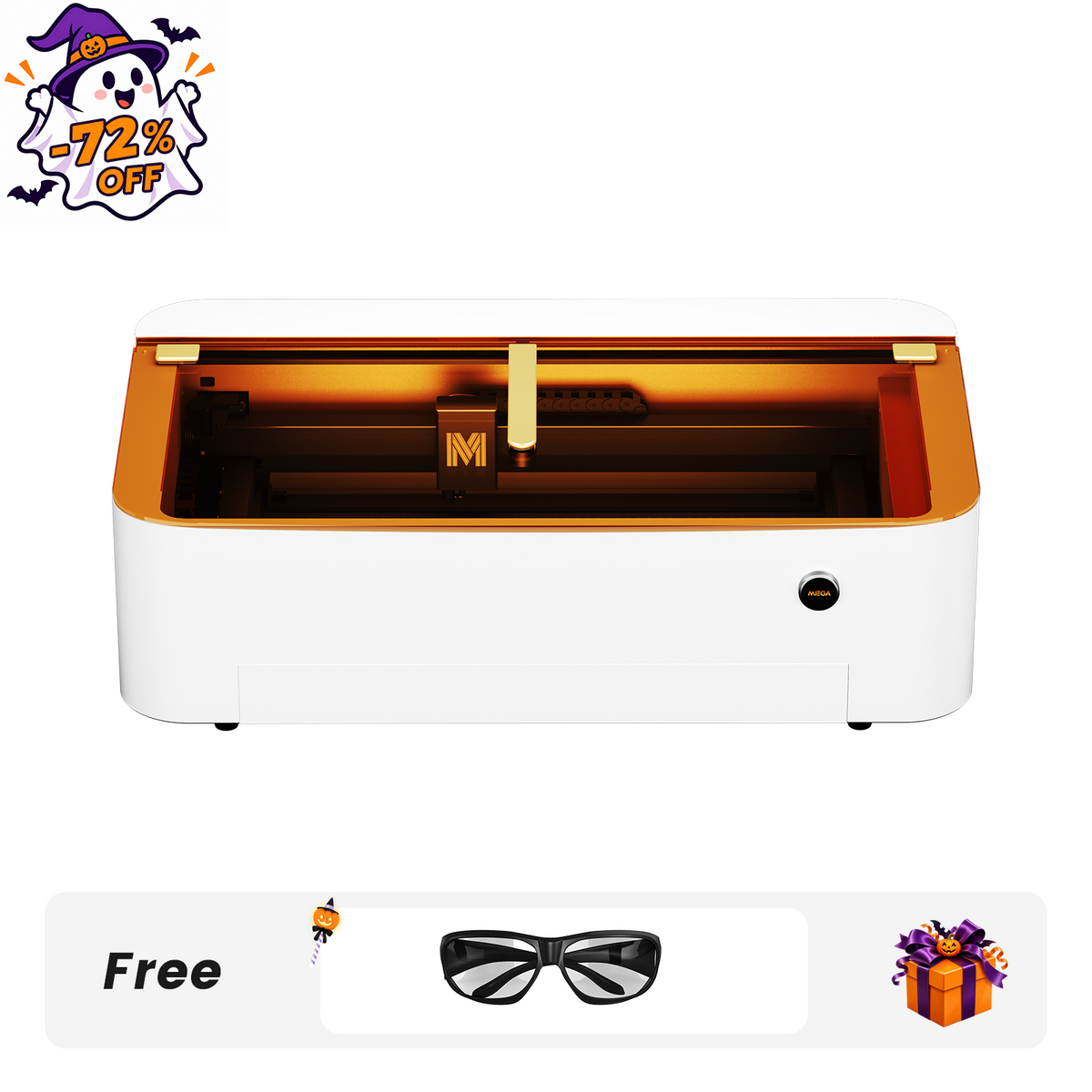

Monport Mega: The World's Premier 70W Intelligent Desktop Engraving Machine
Monport Mega: The World's Premier 70W Intelligent Desktop Engraving Machine - Machine is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.

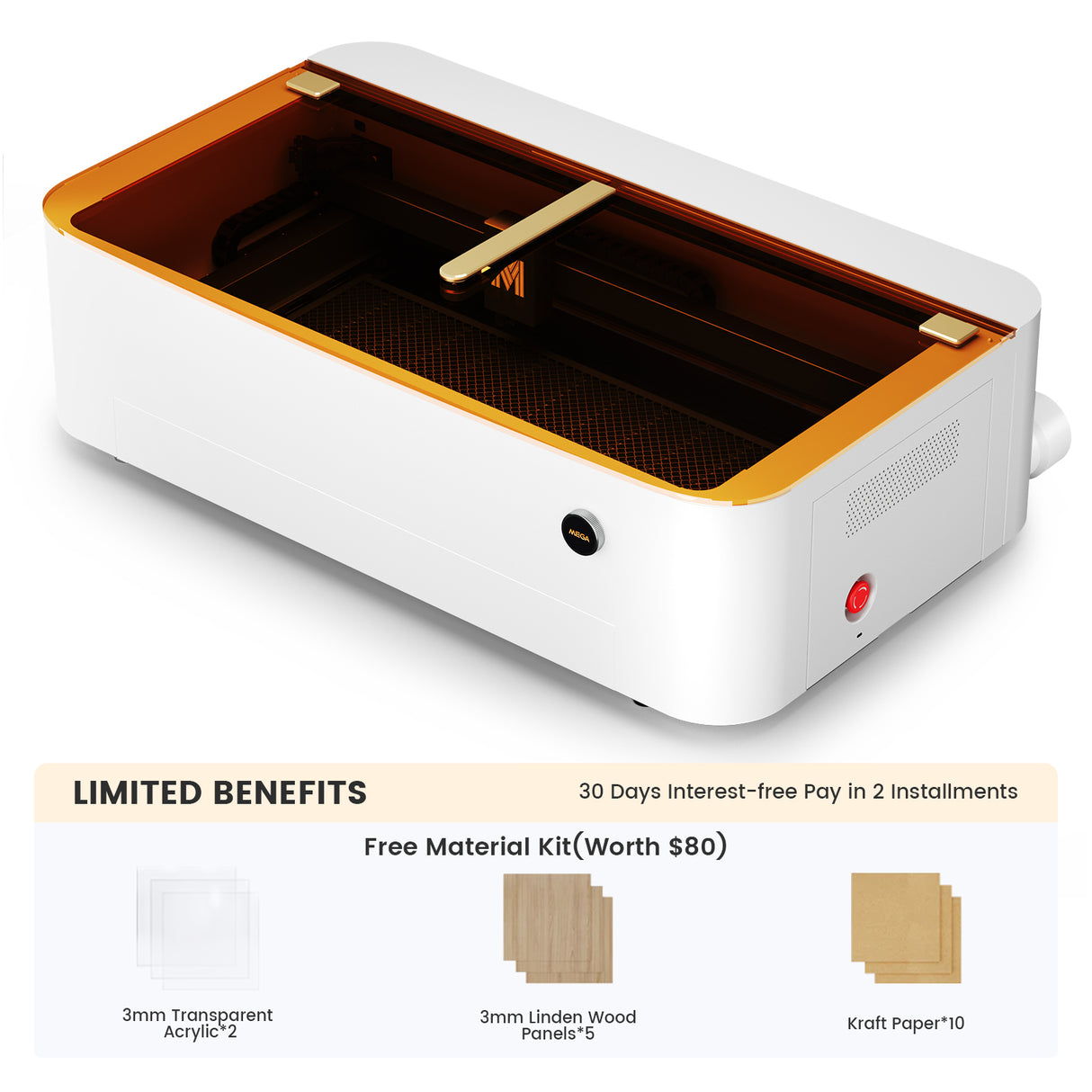

Package Contents
Package Contents
Mega Desktop Machine*1
3mm Transparent Acrylic *2
3mm Linden Wood Panels *5
Kraft Paper *10
Air Duct Hose and Clamp *1
1L Antifreeze *1
Air Duct Adapter *1
Power Cord *1
USB Type C Cable *1
Optical Target Assembly *1
Screwdriver Kit *1
Funnel *1
Fixing Clips Set *1
Hex Wrenches Set *1 Woven Straps *2
Business Cards *5
Mega User Manual *1
Warranty & Certifications
Warranty & Certifications
1-year warranty on the machine (excluding laser tubes).
6-month warranty on laser tubes.
Manuals, materials, tools, and grease are not warranted.
MEGA Information Guide
MEGA Information Guide
User Manual
User Manual
Download Mega User Manual Here

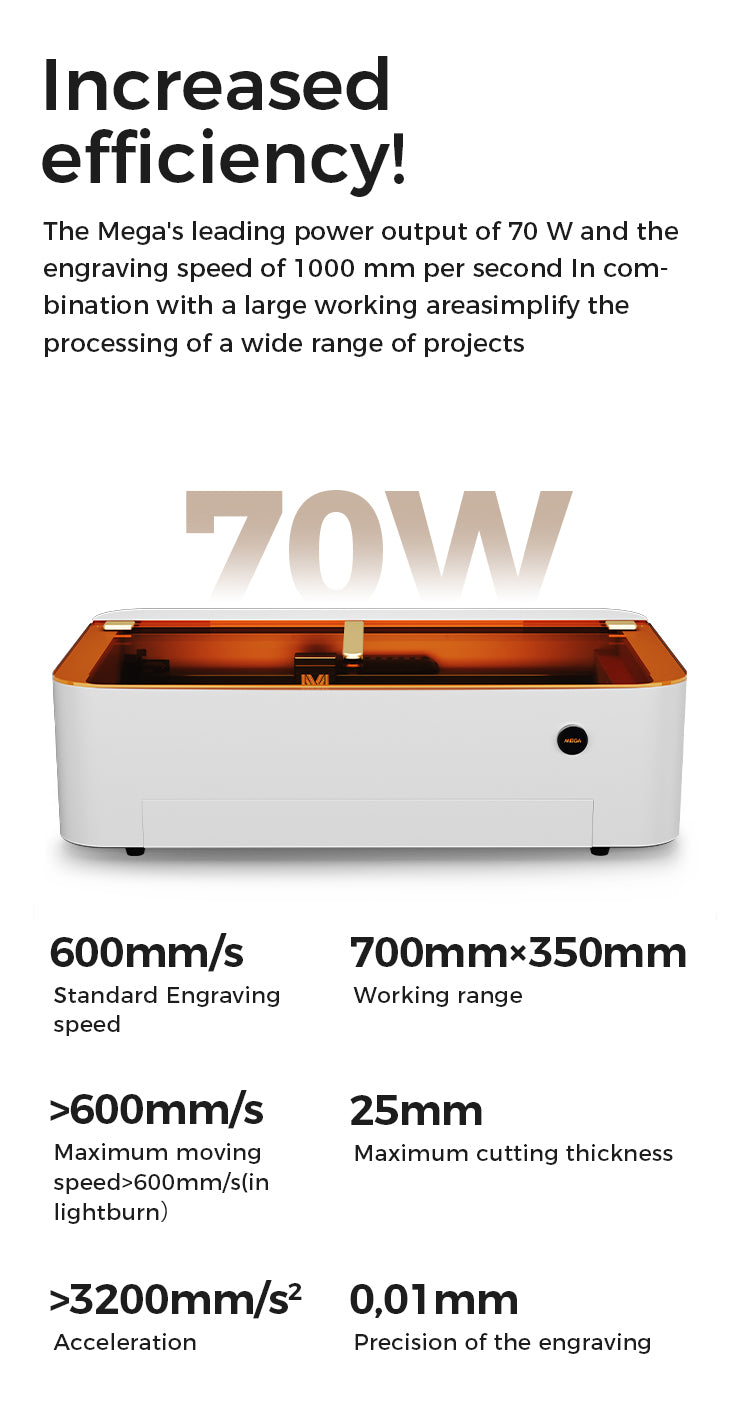

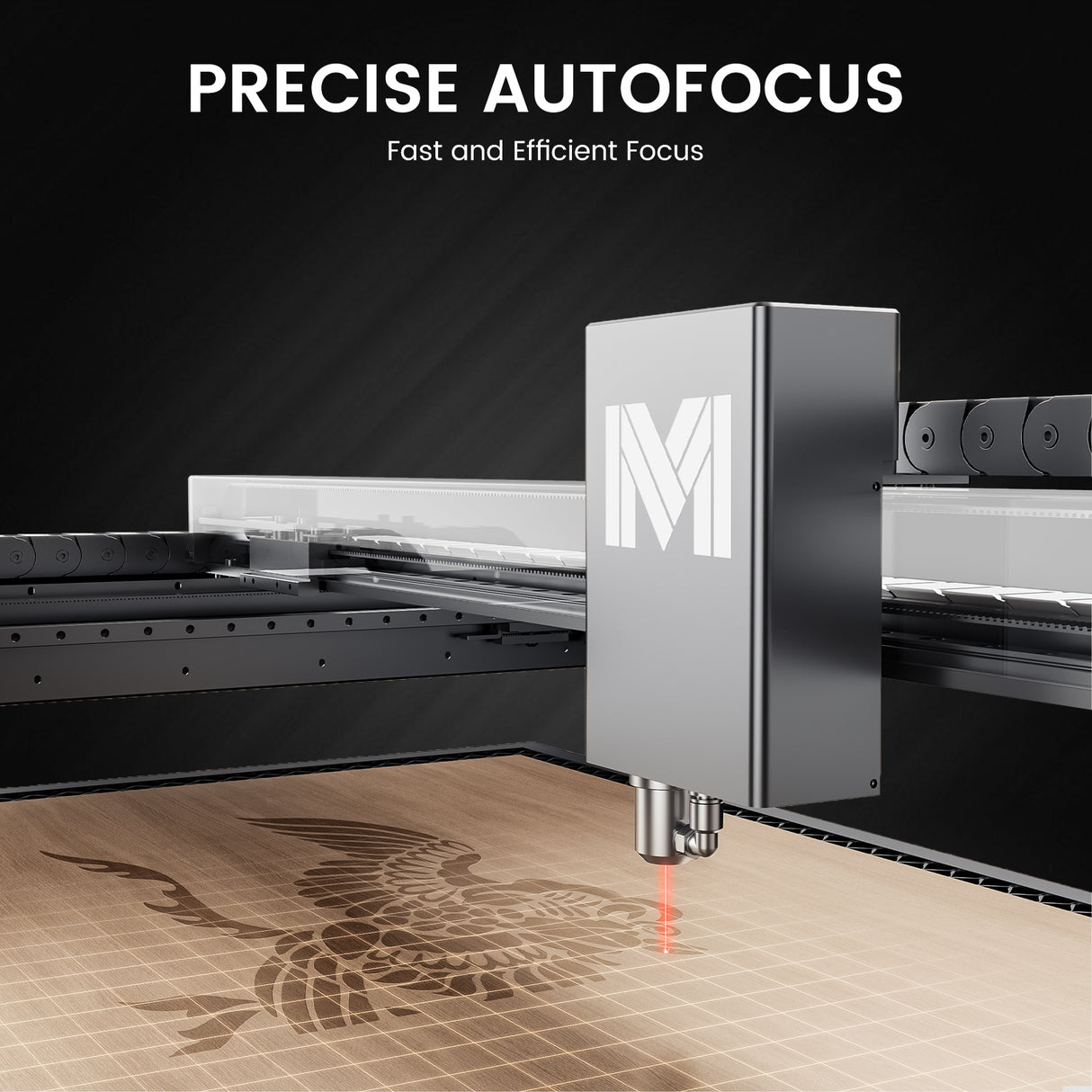

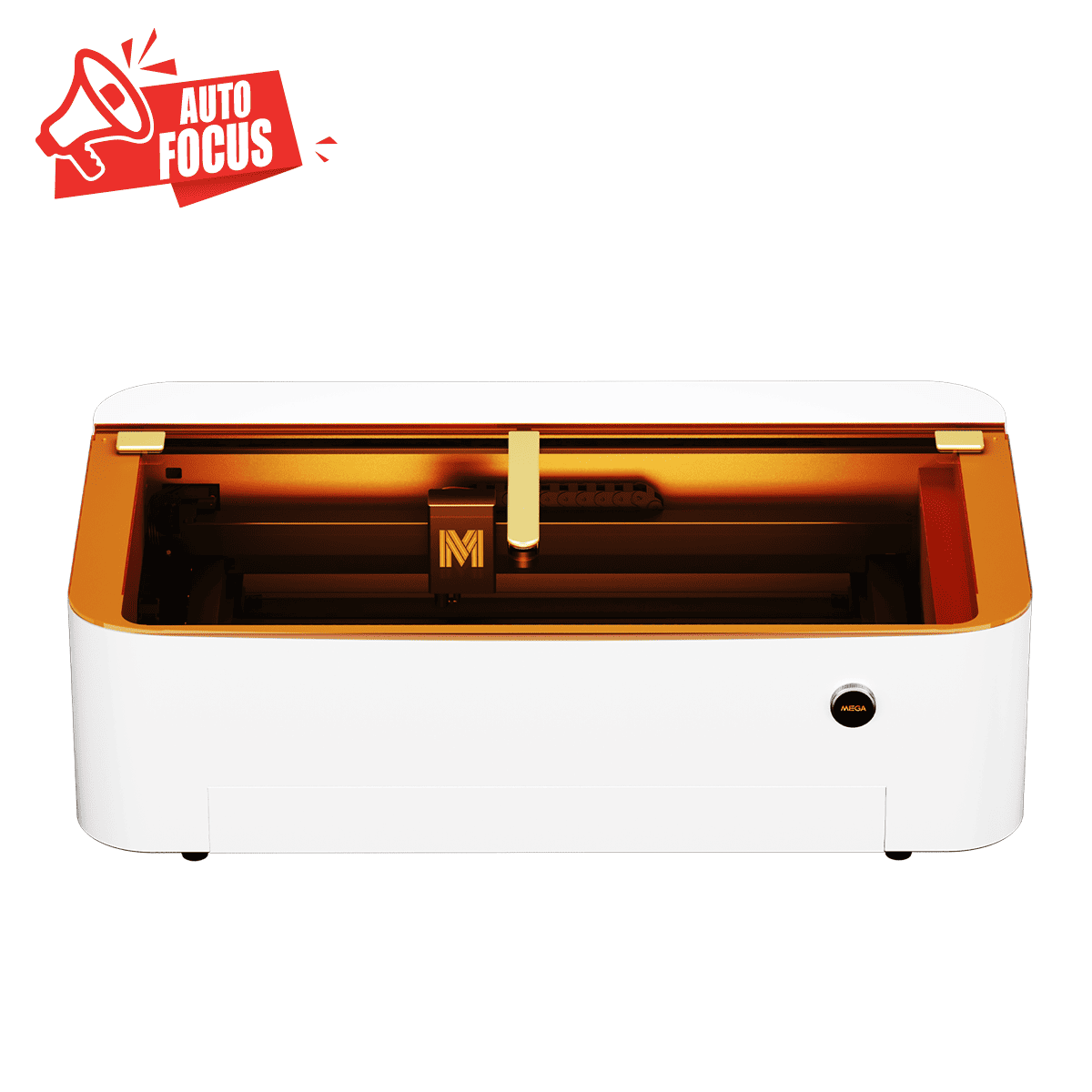

Autofocus and fast engraving
Mega's integrated laser technology (with a LiDAR-based distance measurement system) achieves 100% autofocus, and the engraving speed reaches 1000 mm/s. Even with fast engraving, our system ensures high precision.

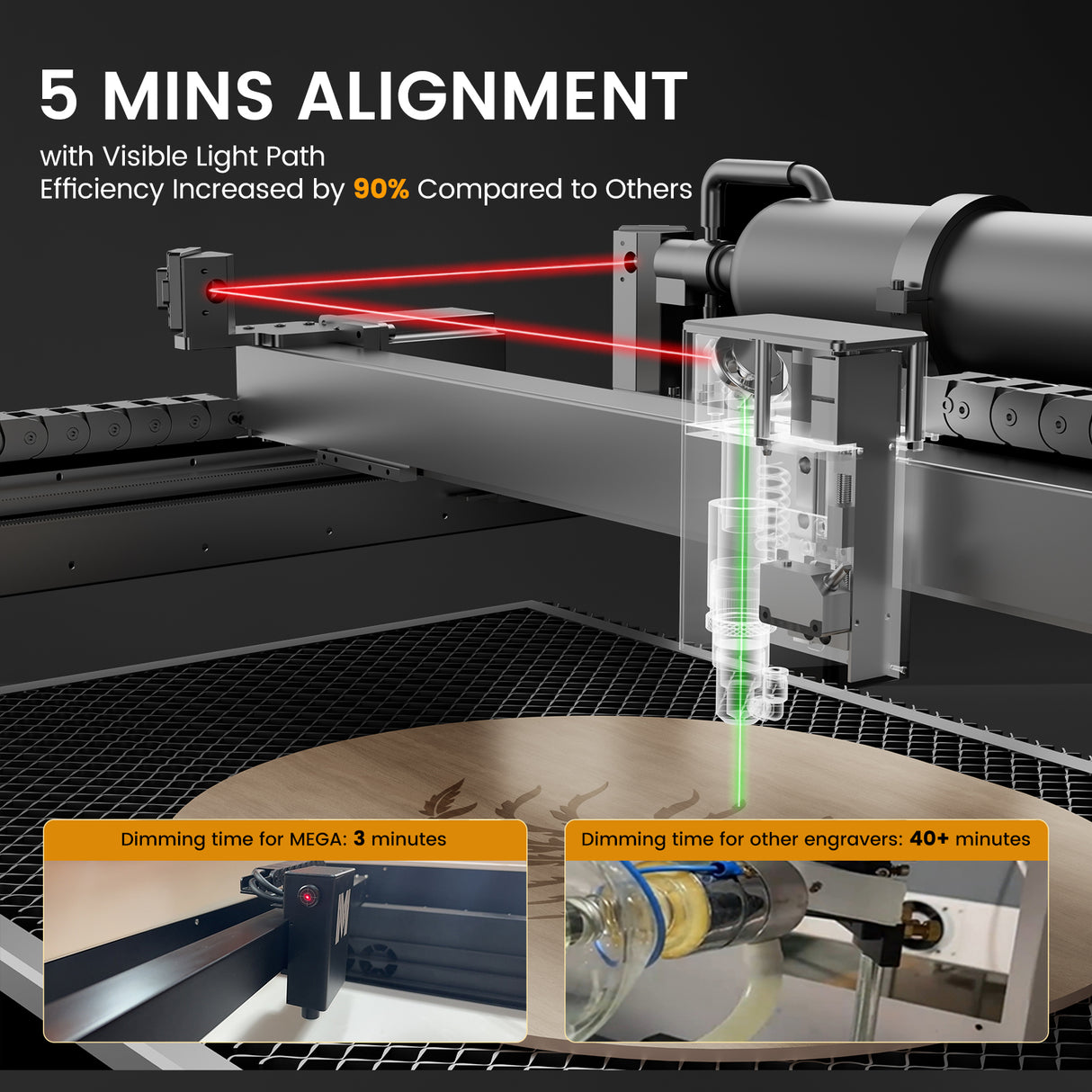

5 minutes, simple light path setup
We offer a visual light path alignment technology for laser aligners that takes only 5 minutes to set up and completely transforms engraving efficiency. Even beginners can master it quickly.

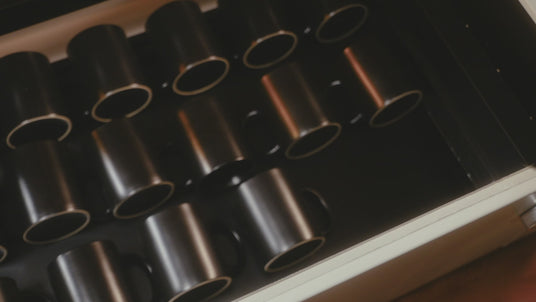

Effortless engraving on curved surfaces
Mega's 3D-Curve technology makes engraving on curved surfaces a breeze and opens up a creative journey with curved materials.

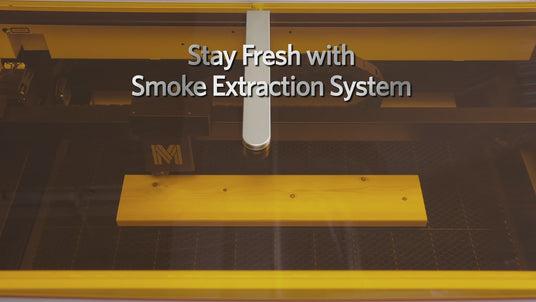

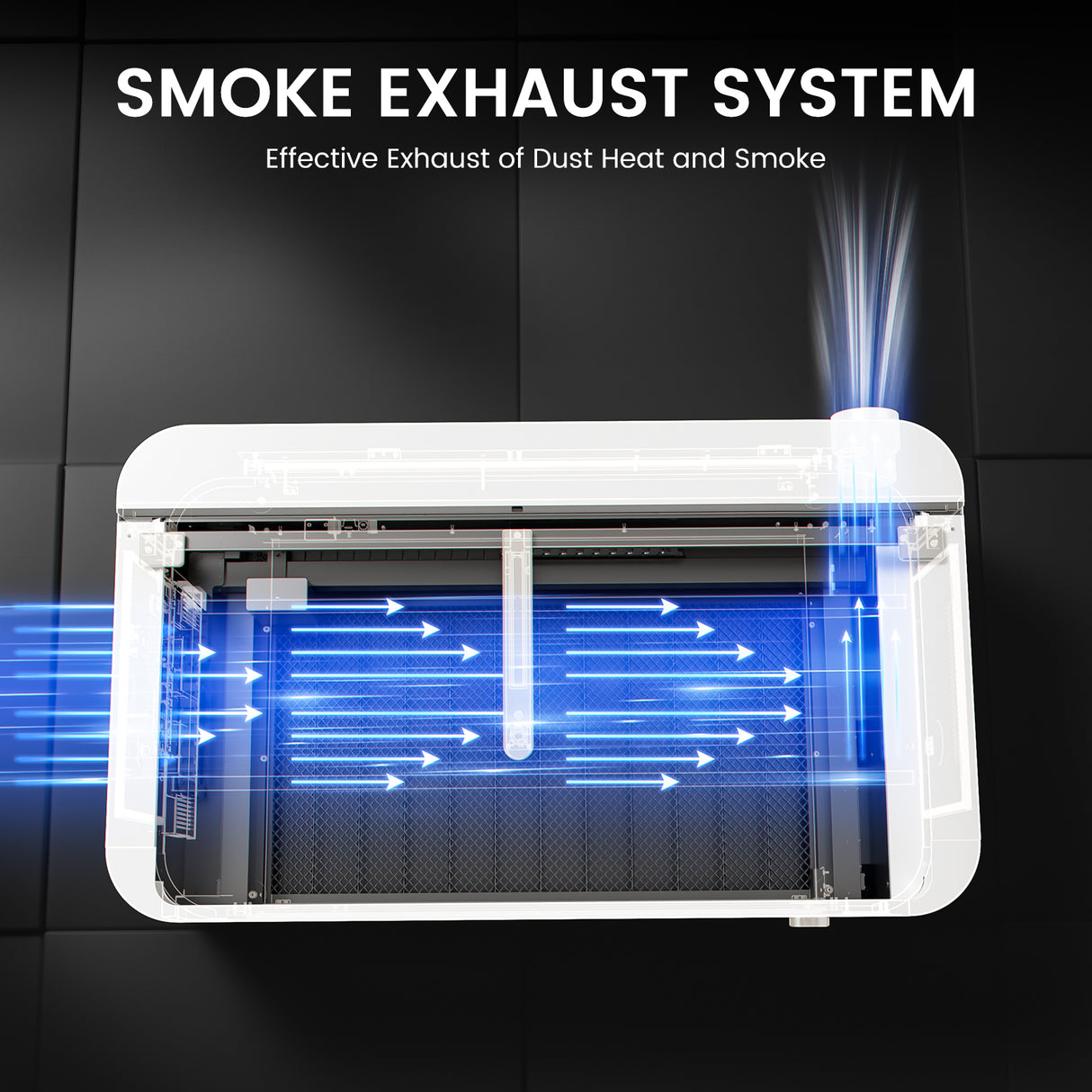

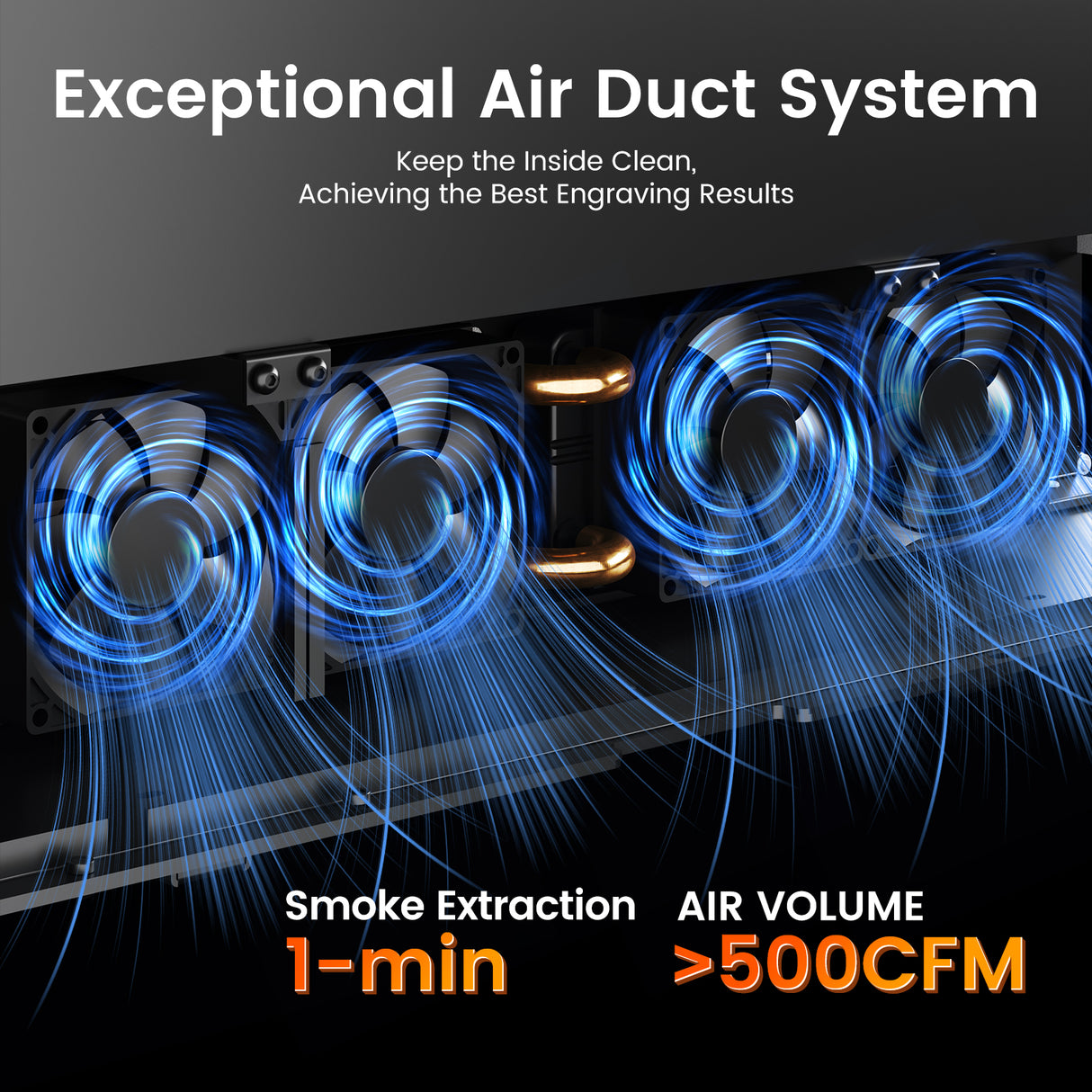

Powerful exhaust air system with strong suction power
The MEGA engraving machine's exhaust air system, equipped with nine fans, efficiently removes fumes and ensures a clean working environment with its powerful suction. With the air inlet on the left and the air outlet on the right, the exhaust air volume is greater than the supply air volume, creating a negative pressure inside the machine that minimises the escape of fumes.

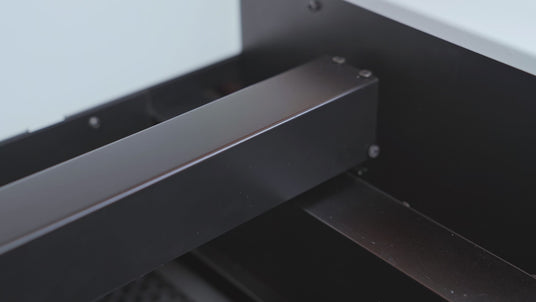

Closed guide rail design
The closed guide rail design effectively prevents dust from contaminating the guide rail, which significantly extends its service life and ensures smooth operation over a long period of time.
Laser leakage prevention design
Mega Laser utilises a laser leakage prevention design that ensures no laser leakage during operation for increased safety.

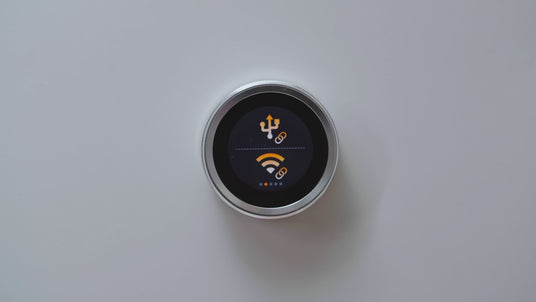

Intelligent touchscreen
Our intelligent touchscreen is versatile. It supports touch, rotate and press operations and offers a user-friendly interface for seamless interaction and enhanced functionality.

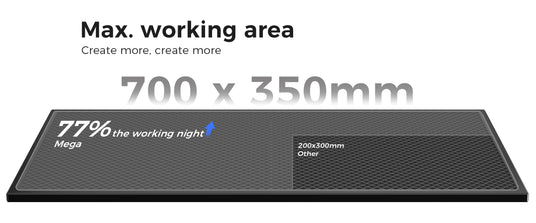

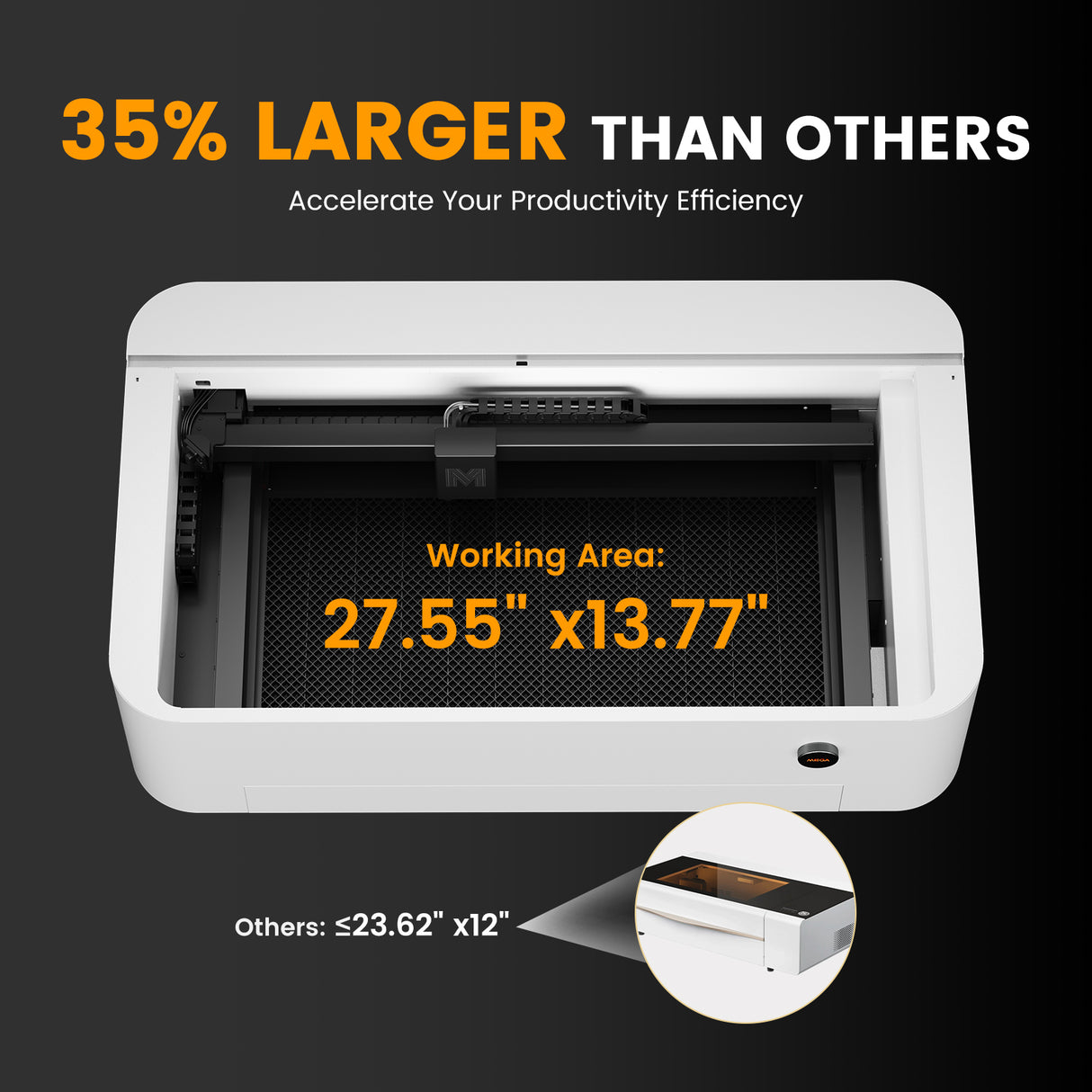

Wide working area, without size limits
Say goodbye to size restrictions! The generous 700*350mm working area allows you to process everything from large projects to series micro-engravings in a single operation, significantly increasing your productivity!

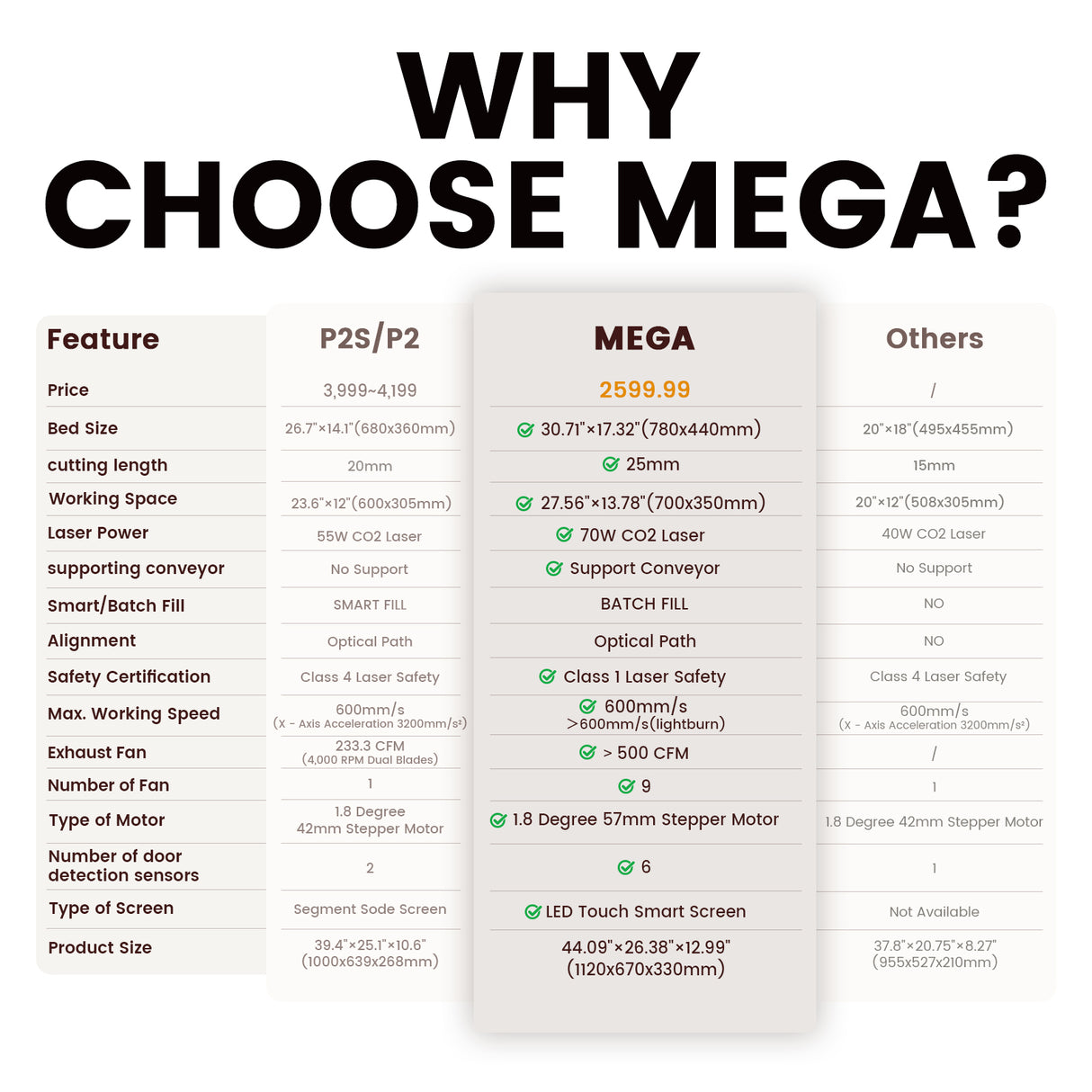

| Lot | Specification |
| Loading area | 30.71''×17.32''(780x440mm) |
| Processing surface | 27.56""x13.78""(700x350mm) |
| Laser power | 70W CO2 Laser |
| Product size | 44.09’'×26.38''×12.99''.(1120x670x330mm) |
| Net weight | 70kg |
| Voltage/current | 220V/10A or 220V/5A |
| Max. Engraving speed | 1000 mm/s (Max. Acceleration of the X-axis 12000 mm/s²) |
| Max. Workpiece height | 0-3.54''(0-90mm) |
| Rotating engraving diameter | 0-60mm |
| Z-axis movement | 0-1.18“(30mm) |
| Operating ambient temperature | 10-30°C (50-86°F)If the temperature falls below 10°C (50°F) falls, please add antifreeze. |
| Bearing temperature | 10-45°C (50-113°F) |
| Air support | Included |
| Air pump pressure | 50kPa |
| Exhaust air fan | ＞500 CFM |
| Number of fans | 9 |
| Visible light path | Included（Red/Green） |
| Optical target assembly | Included (used for auxiliary alignment) |
| Type of guide rail | Linear guide |
| Tightness of the guide rail | Closed guide rails |
| Motor type | 1.8-Grad-57-mm-Schrittmotor |
| Number of door detection sensors | 6 |
| Type of extinguishing system | Built-in |
| Weight of extinguishing gas | Reusable 40g CO2 cylinder (TR21-4 needle valve) |
| Type of screen | LED-Touch-Smartscreen |
| Daily maintenance | Only a simple wipe down required |
| Water cooling | Capacity: 1.2L(0.32gal) |
| Distance measuring system | LiDAR distance measuring system |

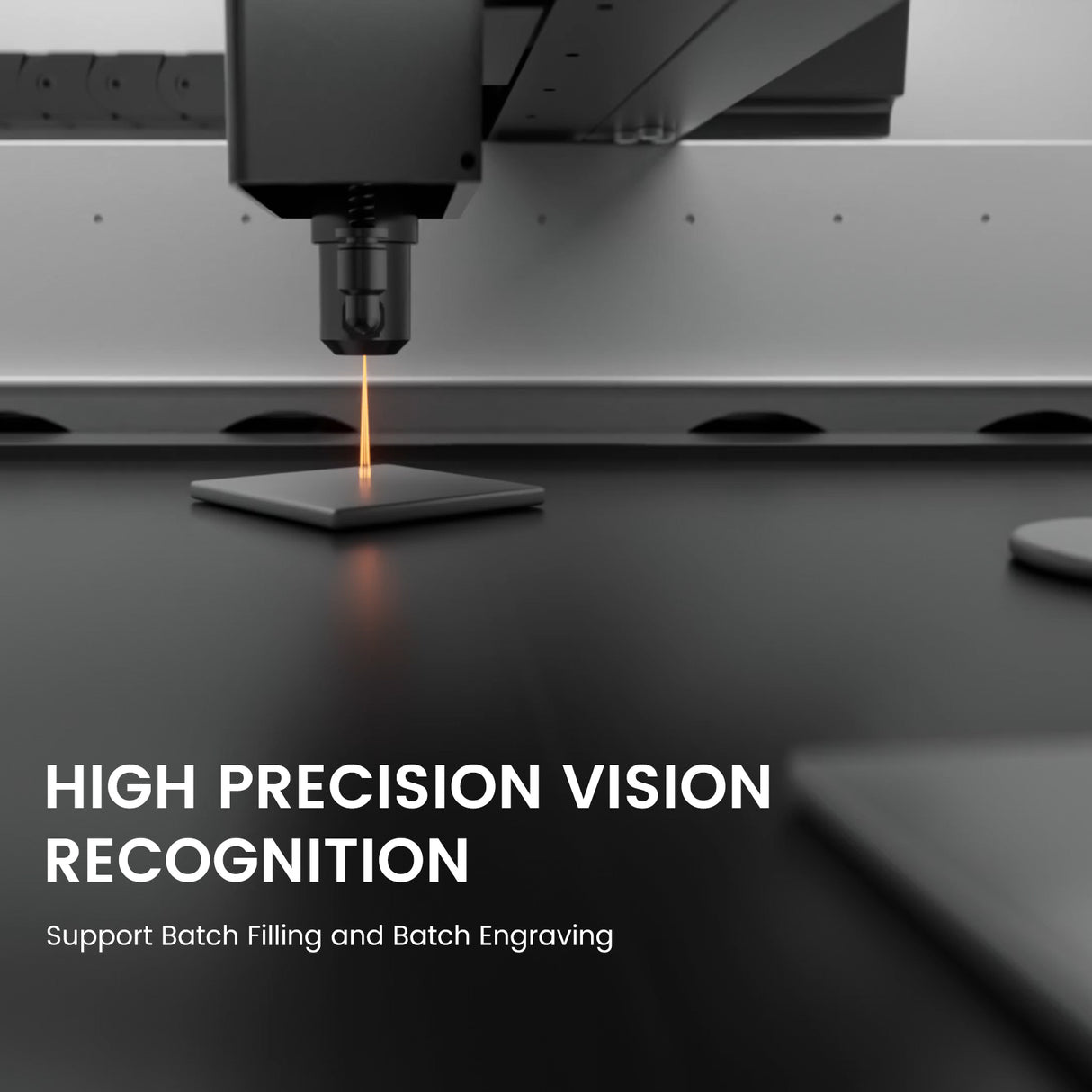

| Camera type | Panoramic camera |
| Number of effective pixels | 8MP×1 |
| Optical precision | 0.3mm |
| Image resolution | 1000 DPI |
| Focus mode | Autofocus |

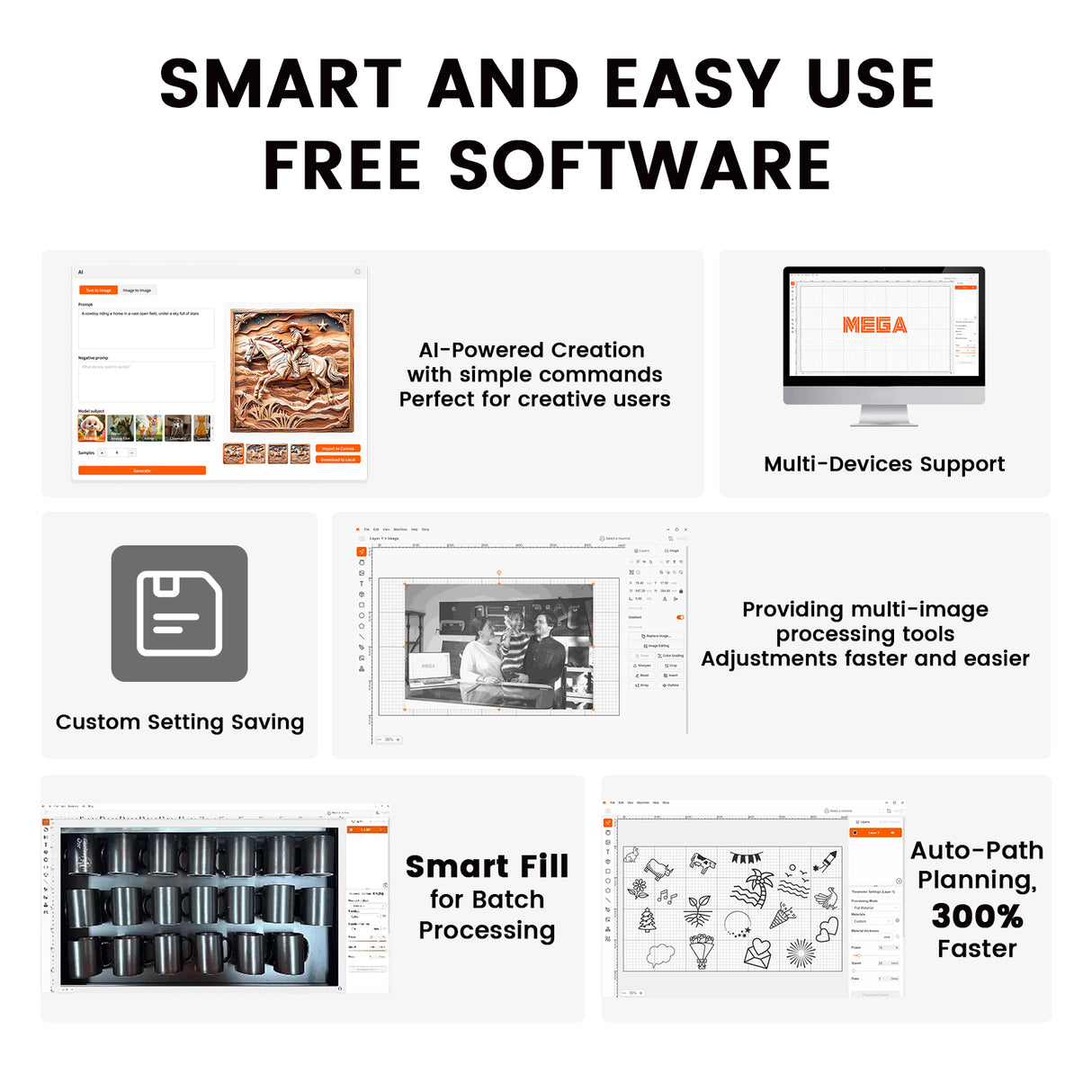

| Software | M-Design Hub / Lightburn |
| Connection | WFi & USB |
| Support file | SVG/DXF/IPG/IPEG/PNG/BMP,etc |
| Support systems | Windows / Mac |
| Package contents | 70W Co2 laser *1 3mm Transparent Acrylic *2 3mm Limewood panels *5 Kraft paper *10 Hose and clamp for air channel *1 1 litre antifreeze *1 Air duct adapter *1 Mains cable *1 USB Type C cable *1 Optical aiming device *1 Screwdriver set *1 Funnel *1 Set of fixing clamps *1 Hexagon spanner set *1 Woven tapes *2 Business cards *5 Mega user manual *1 |
