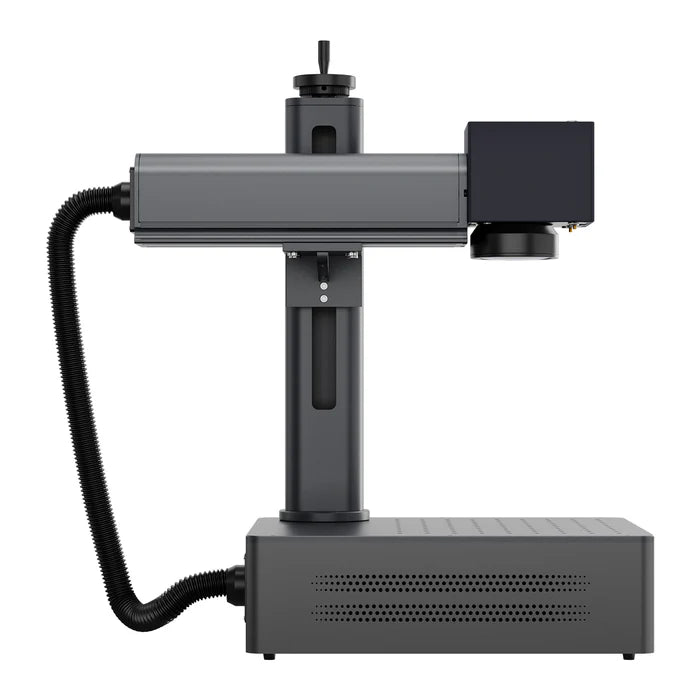

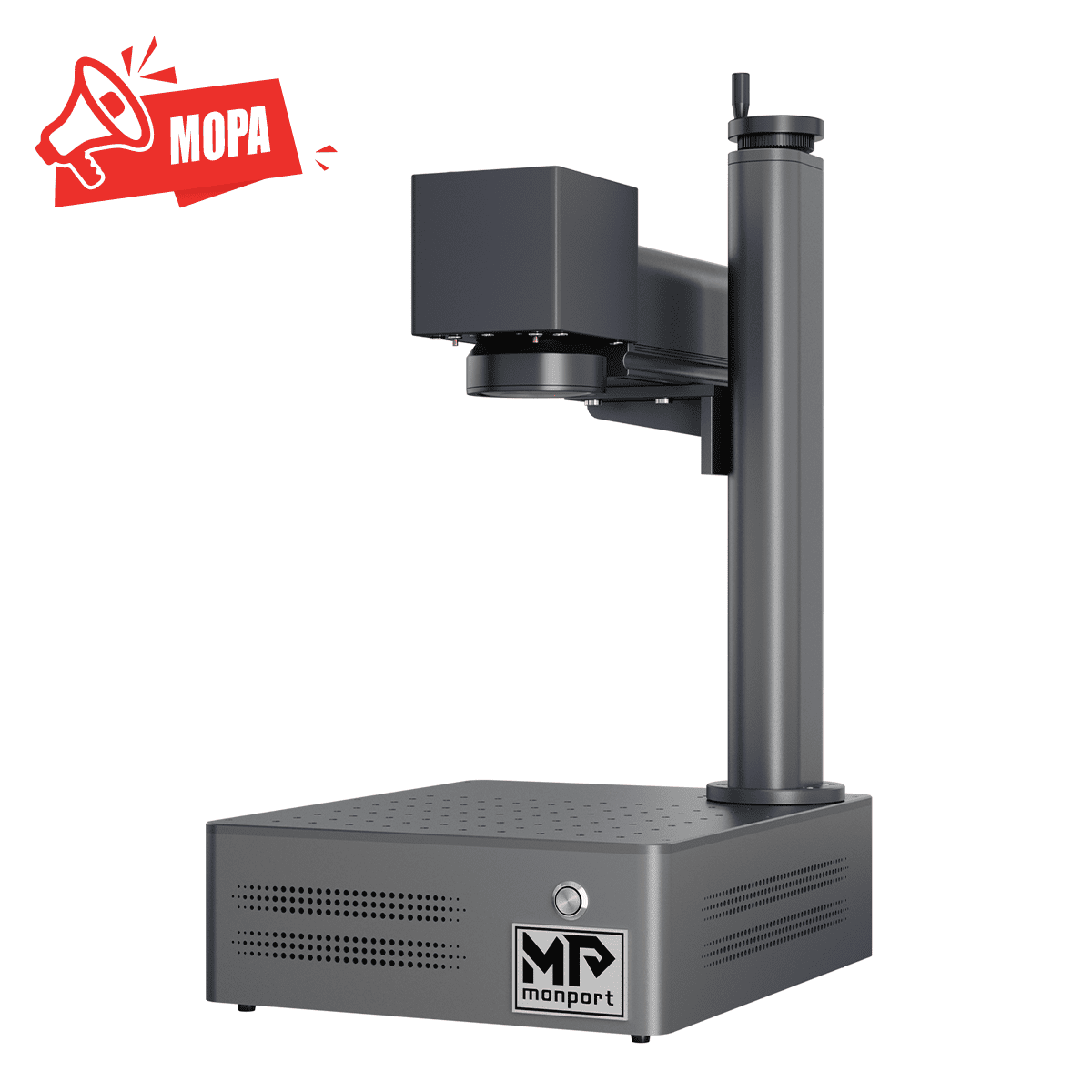

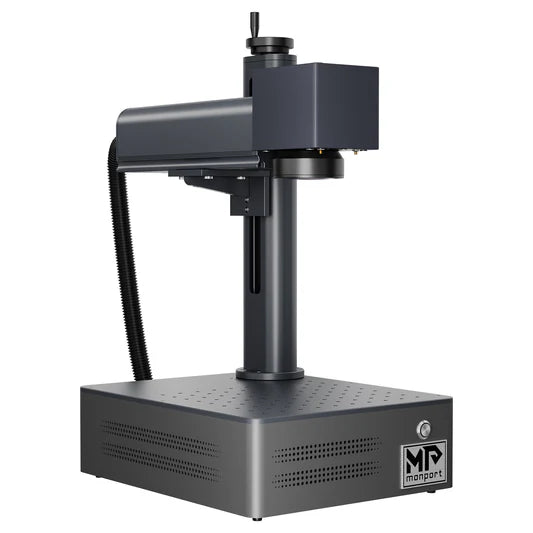

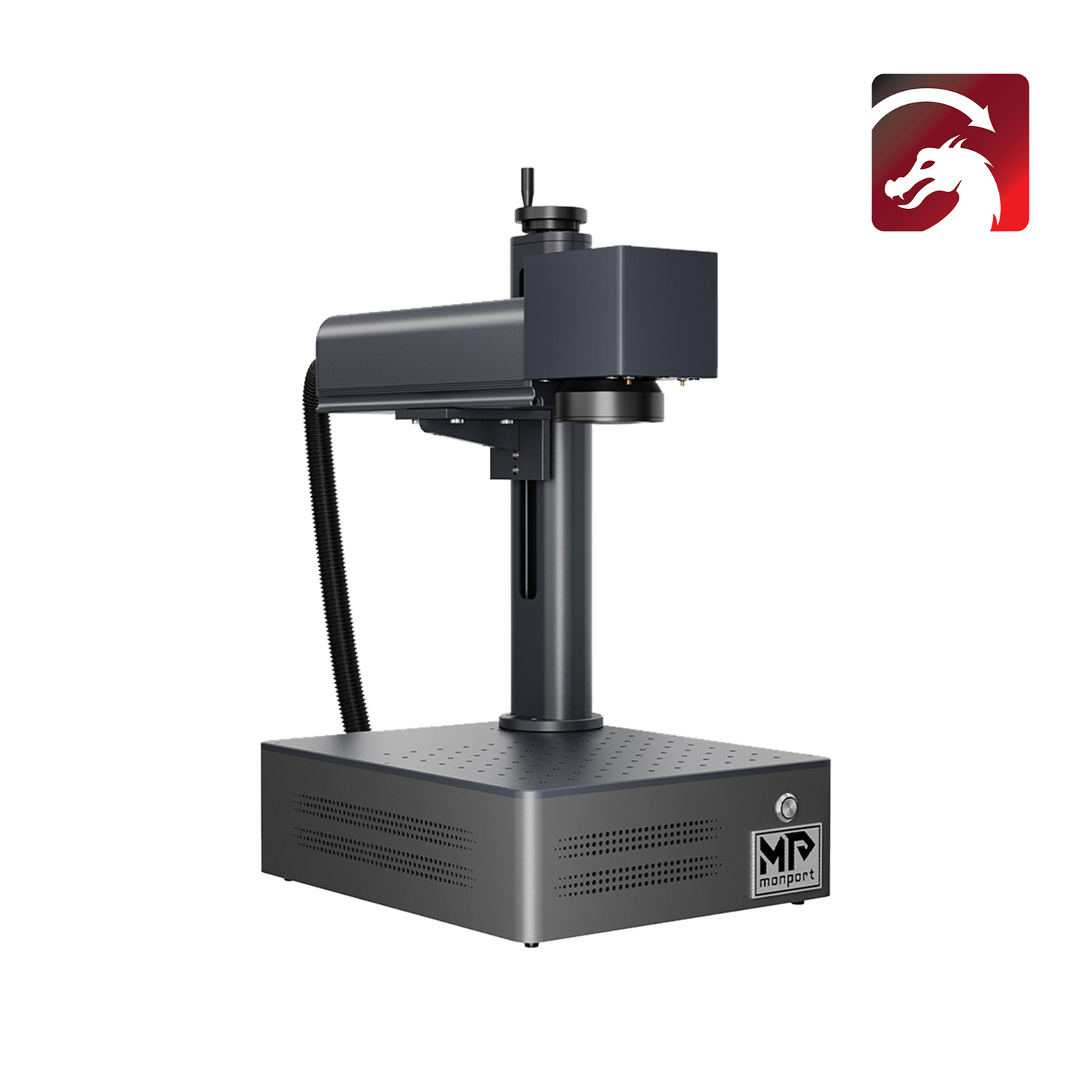

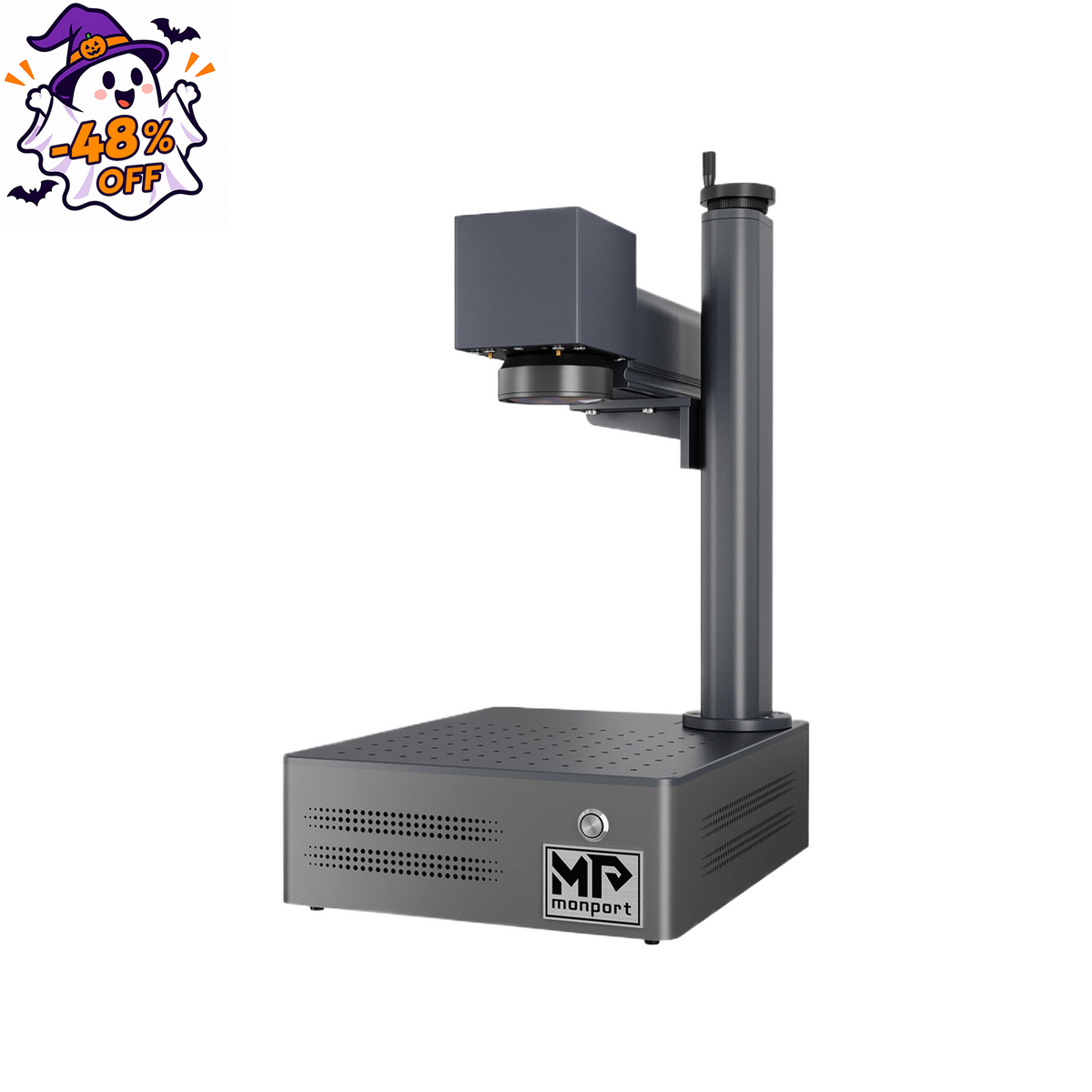

Monport GM 30W Integrated MOPA Fiber Laser Engraver & Marking Machine

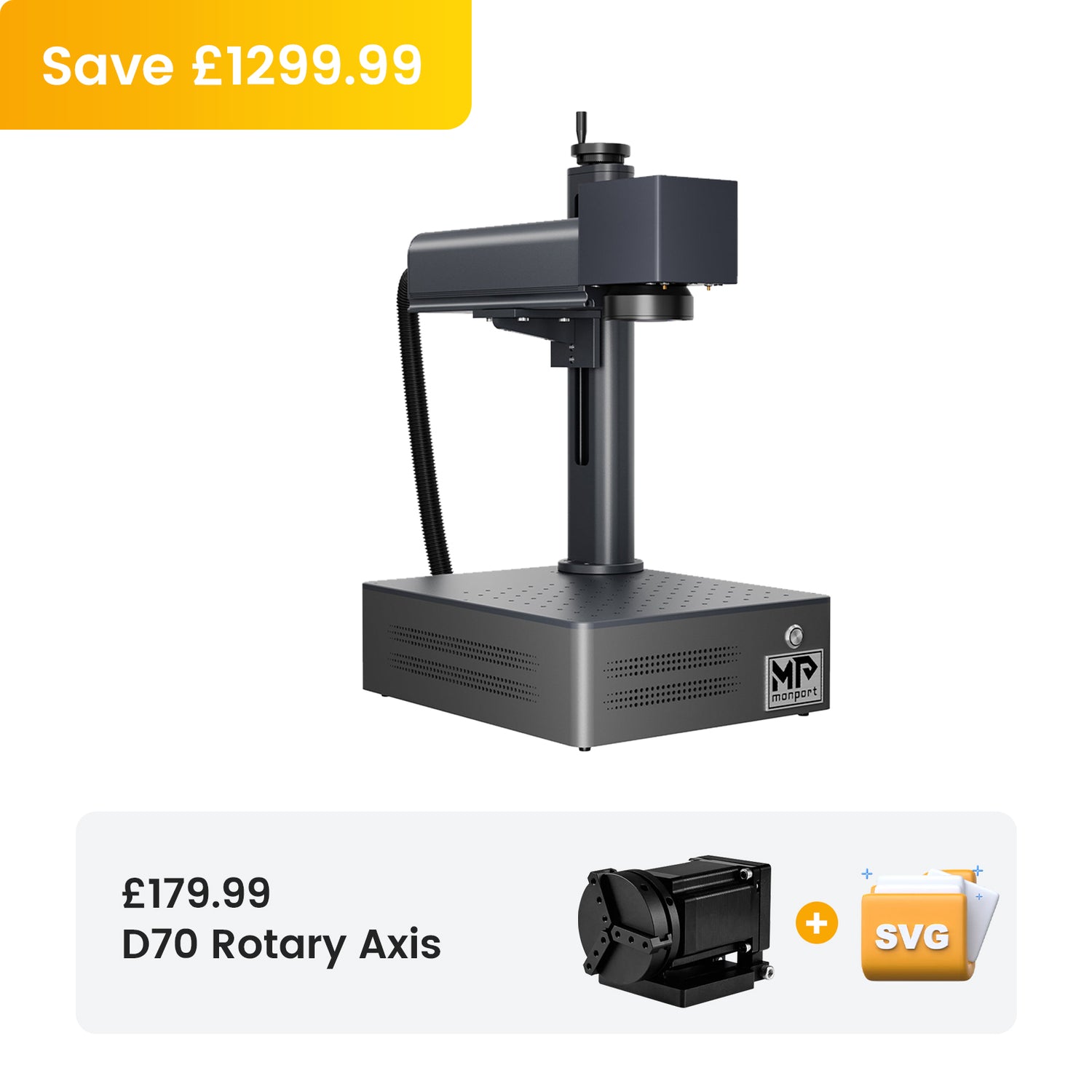

Free rotary axis & protective glasses& field lens
Monport GM 30W Integrated MOPA Fiber Laser Engraver & Marking Machine - Machine is backordered and will ship as soon as it is back in stock.
-
£20.00 off£159.99 -
£60.00 off£539.99
Couldn't load pickup availability
QUESTIONS & ANSWERS
Have a Question?
-
Hello! What lens size is included in the package for the GM 30W Integrated MOPA laser? I will be doing high-detail laser etching on small car buttons, so I need the finest spot size possible (preferably 110x110mm or 70x70mm). Can I choose the lens size before ordering?"
Thank you for your inquiry.
The GM 30W Integrated MOPA comes with a 175 × 175 mm lens as standard.
Since you are looking for a smaller working area and a finer spot size for high-detail engraving on small car buttons, you can purchase an additional M85 70 × 70 mm lens to replace the standard lens.
This 70 × 70 mm lens would be a better choice for your application where fine, detailed engraving is the priority. You can follow this link
Best regards,
Bella

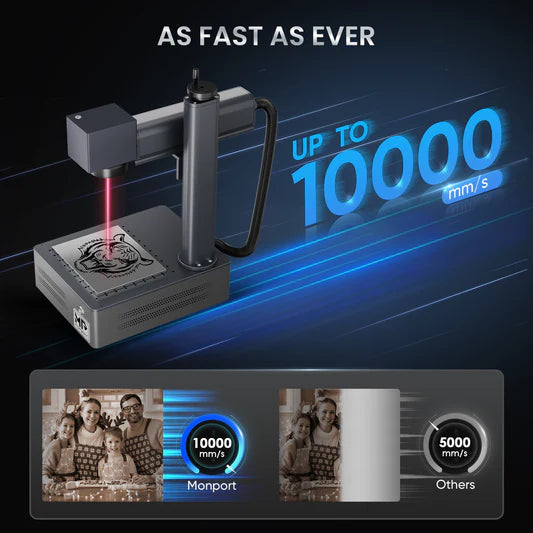

Faster and More Accurate
The newly customized galvanometer system is equipped with more expensive silicon material reflectors, allowing for a maximum speed of 10000mm/s. Monport has also customized an F-theta field mirror, which, together with the entire marking system, can achieve a carving accuracy of 0.01mm.

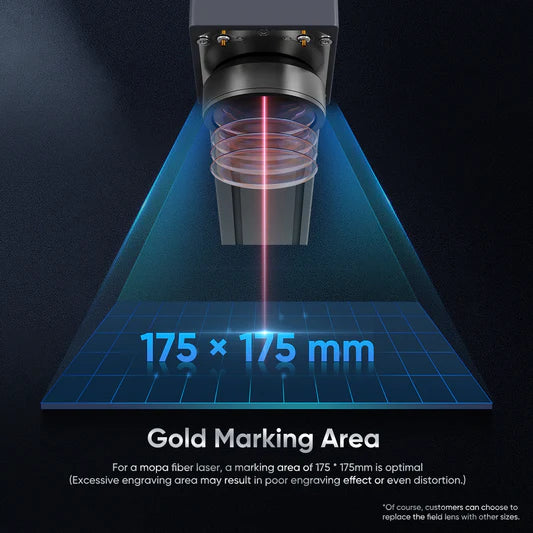

Gold Marking Area
For a mopa fber laser, a marking area of 175*175mm is optimal.Excessive engraving area may result in poor engraving effect or even distortion.After special tuning by Monport, even when carving at the edges, there will be no weak light.

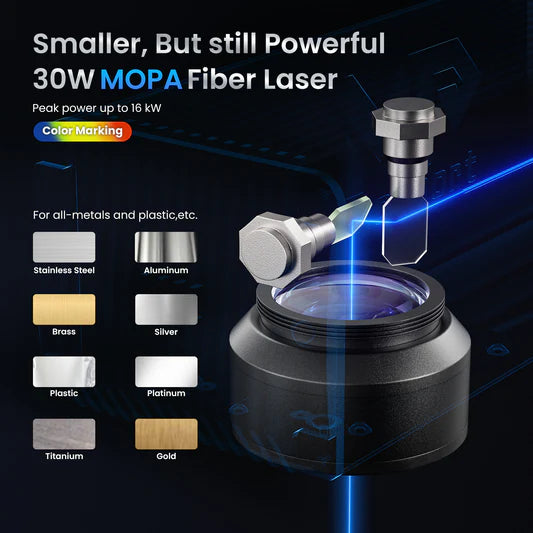

True color marking
Monport uses JPT MOPA laser to achieve true color marking, including stainless steel color marking, brass color marking, aluminum blackening and other applications (Frequency adjustable range 1-4000kHz, pulse width adjustable range 2-500ns).You can set different parameters to achieve various colors, and of course Monport will also provide a large number of color printing parameters as a reference.

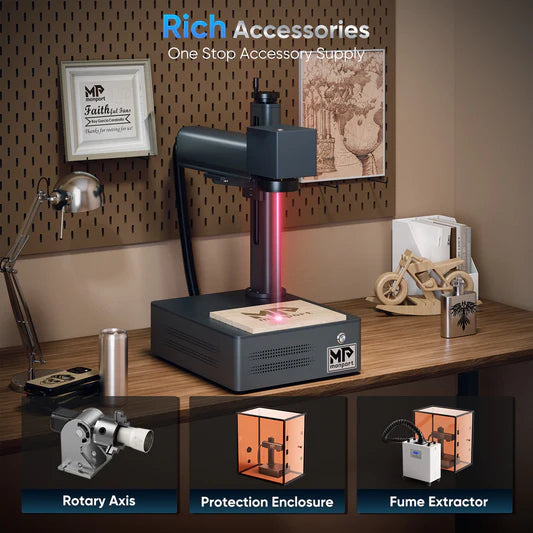

Rich Compatibility with Accessories
You can pair it with a rotary (marking circular objects), a smoke purifier (absorbing smoke and dust), a protective cover (noise reduction, safety), and all of which are sold in Monport stores.
