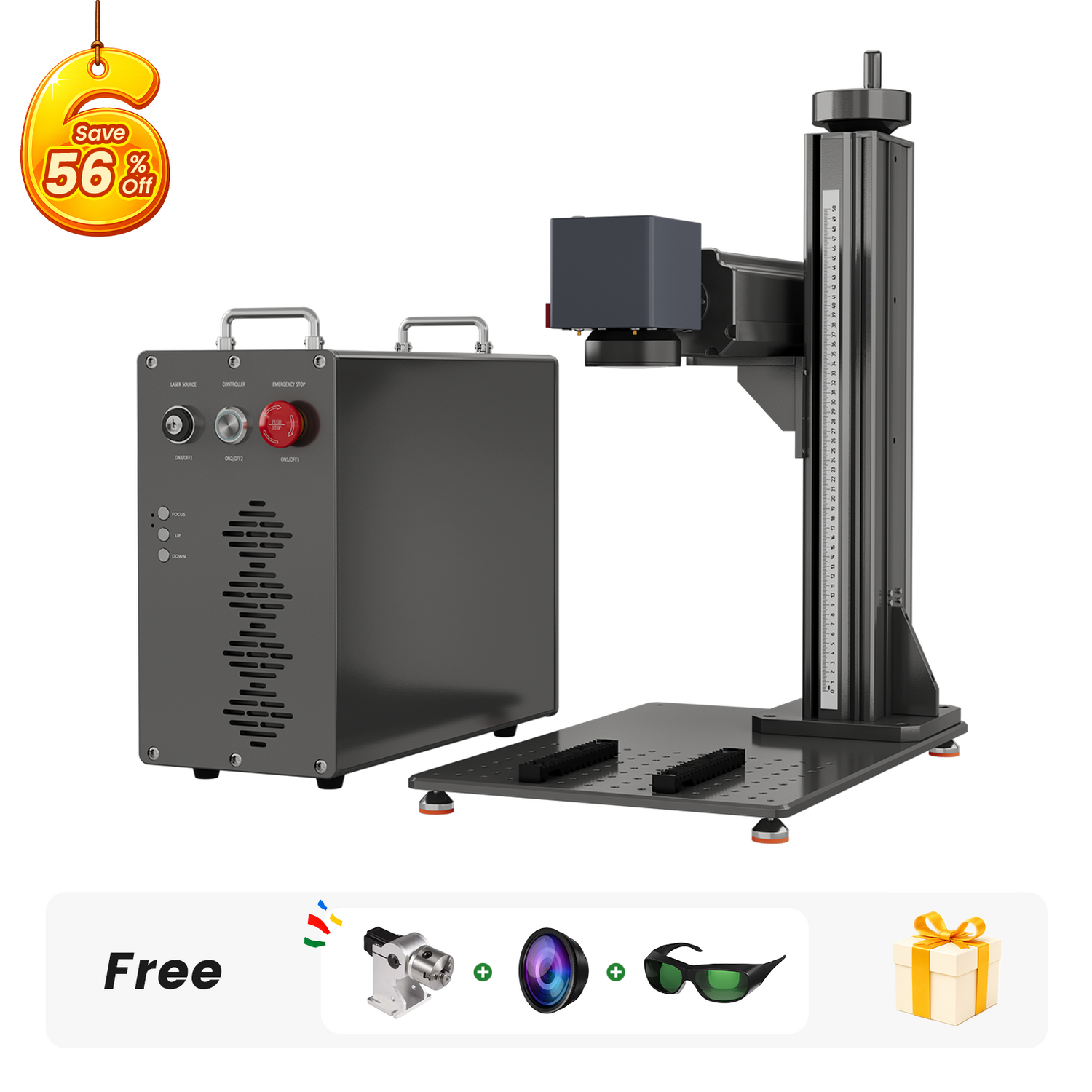

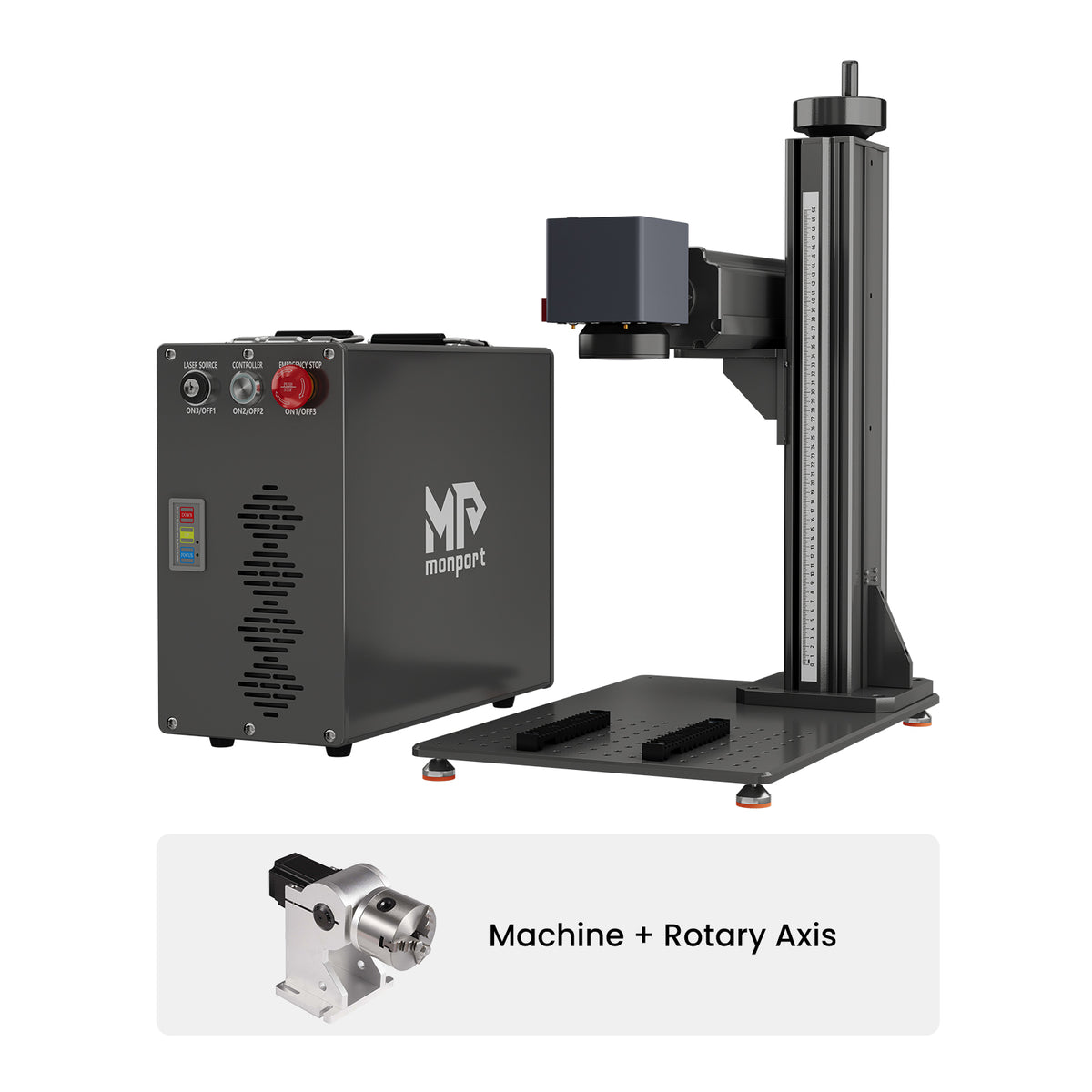

Monport GT 100W Split MOPA Fiber Laser Engraver & Color Marking Machine With AutoFocus
Monport GT 100W Split MOPA Fiber Laser Engraver & Color Marking Machine With AutoFocus - Machine is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Dimension & Specifications
Dimension & Specifications
Product Dimensions:45*21*39.5 cm/35*55*69.5 cm
Laser Power:100W
Wavelength: 1064nm
Frequency Range: 1-3000kHz
Pulse Width: 2-500 ns Unadjustable(Fixed pulse width)
Rated voltage:220V
Field Lens Engraving Area: 6.9 x 6.9 in.（175x175mm）Quartz Field Lens
Max. Engraving Speed: 10000mm/s（393.7 ips）
Compatible Operating Systems:Windows /macOS

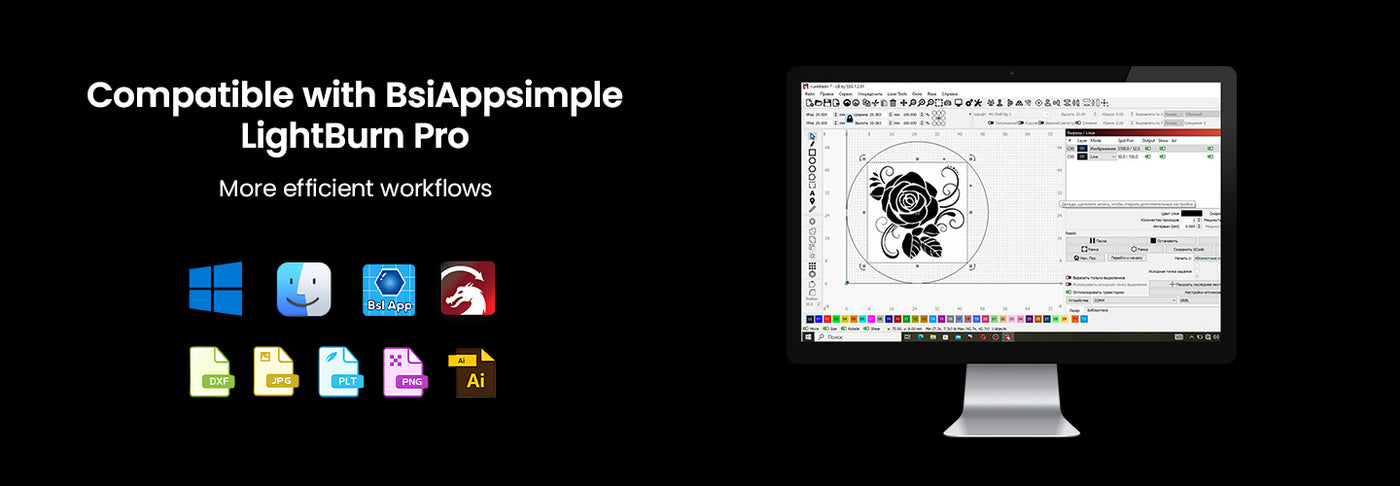

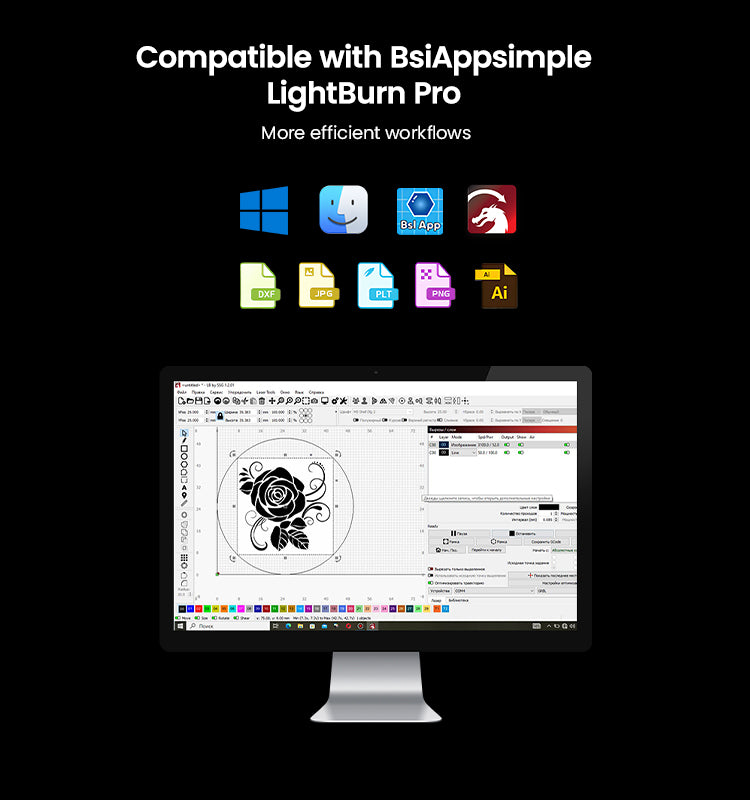

Compatible Software:BslAppSimple，Lightburn
Max. Marking Depthon a Single Pass(depend on materials):0.006in.
(0.15mm)
Max Z.height(Field Lens to Workbench): 550mm
Focus mode: Autofocus
Color Engraving: YES
Electric Lifting: YES

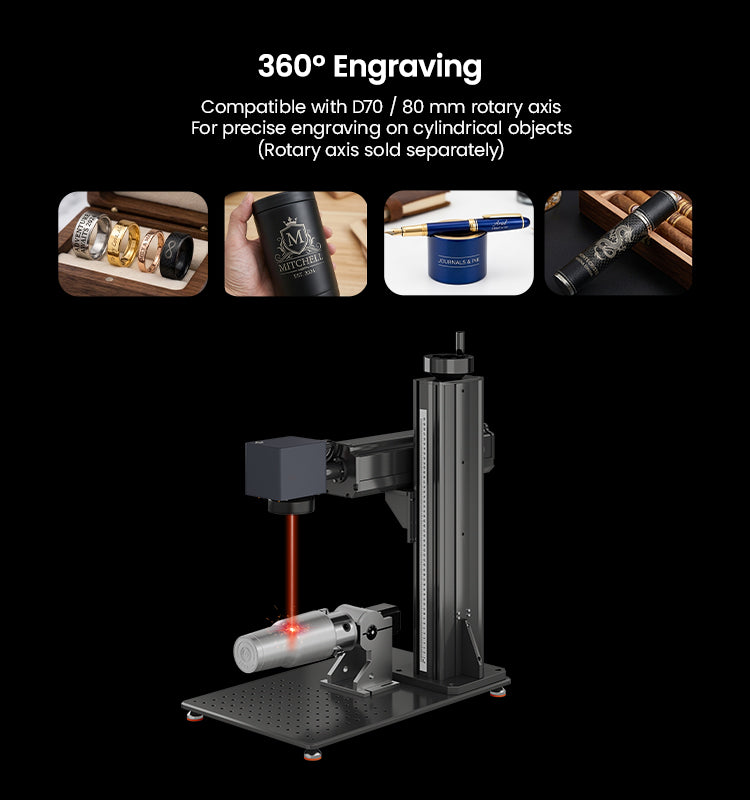

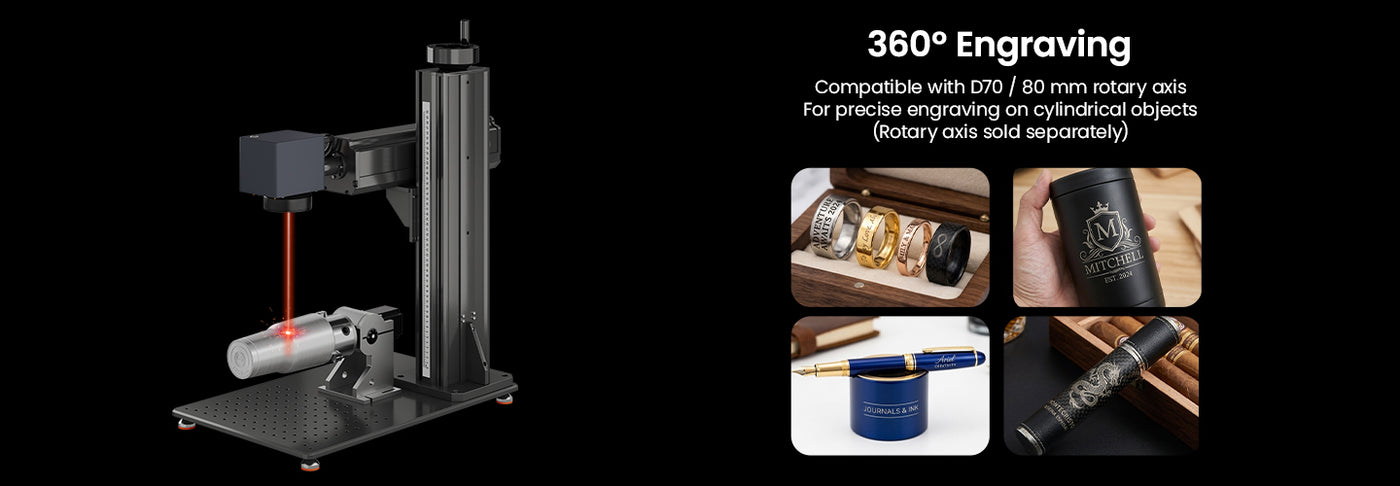

Rotation Axis Function: YES
Foot Pedal Function: External foot pedal
Engraving accuracy:0.01mm
Positioning Accuracy: ±0.1 µm
Beam Quality M2: ＜1.8
Beam Diameter: 7±1 mm
Maximum Pulse Energy: 1.5 mJ
Expected Service Life: 100000 hr.
Galvanometer Thread size: M68
Field lens dimension: M85
Cooling Type: Air Cooling
Laser Type: MOPA Fiber Laser
Materials Suitable for Engraving: Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc

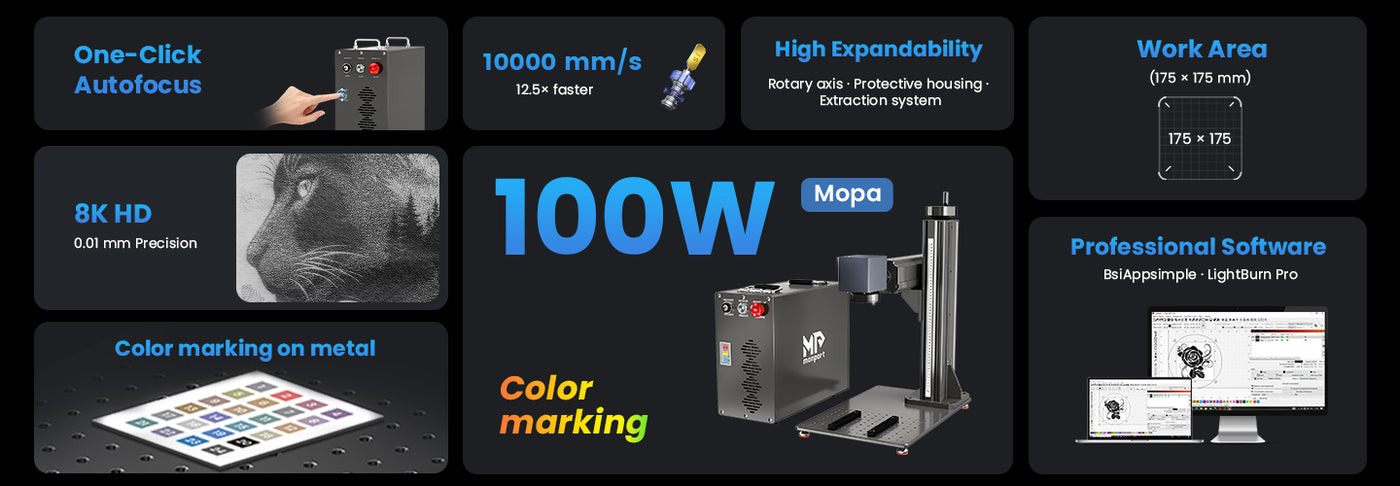

GT 100W MOPA Fiber Laser Benefits
GT 100W MOPA Fiber Laser Benefits

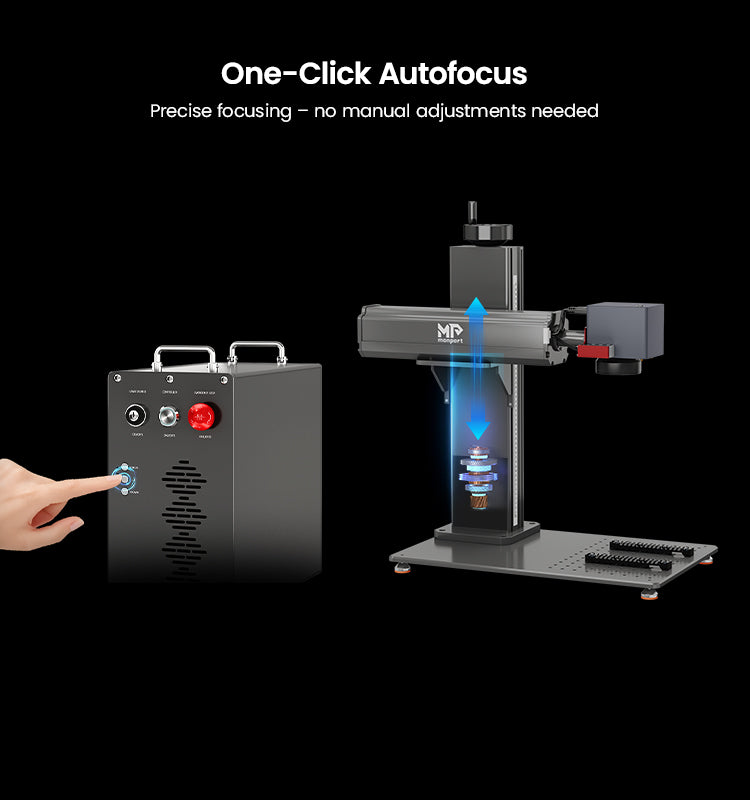

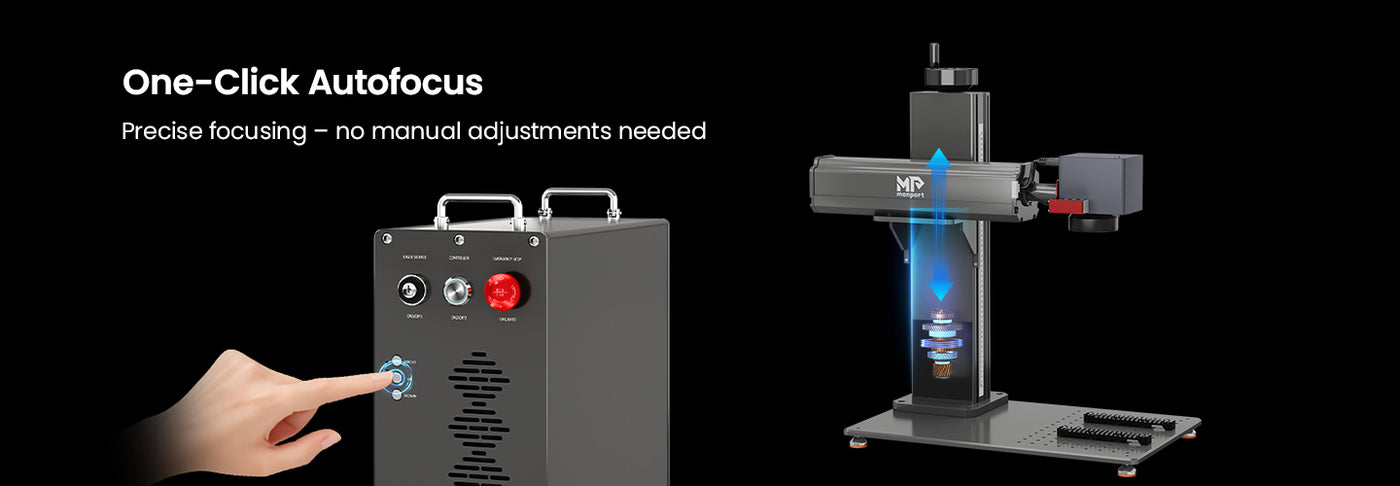

Auto-Focus, Perfect Engraving Every Time
The GT 100W MOPA is the upgraded version of our Gpro 100W MOPA, now featuring Auto-Focus Technology. Achieve flawless precision with just one click—no manual adjustments needed. Effortlessly engrave and cut with unmatched accuracy, ensuring every project is perfect, every time.
Precision and Speed, Redefined
The GT Series is equipped with cutting-edge Industrial Galvo Scanners and Silicon Mirrors, delivering exceptional speed and precision. With a carving speed of up to 10000mm/s (393.7 ips), experience rapid, high-quality engravings like never before. Achieve perfect results faster, boosting your productivity and bringing your creative visions to life with ease.
Create Stunning Color Engravings with MOPA Laser Technology
Experience the next level of laser precision with our MOPA (Master Oscillator Power Amplifier) machines. Effortlessly produce vibrant, full-color markings on metals, turning every project into a masterpiece with unmatched clarity and detail.

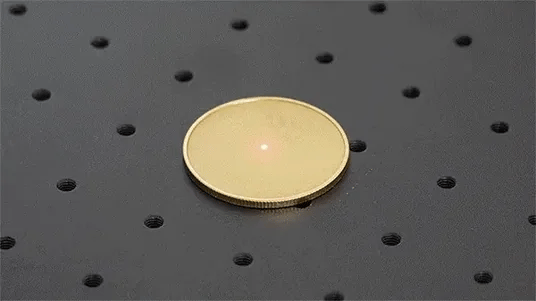

Deep Engraving & 3D Relief
The higher the power, the deeper the engraving. Achieve precise deep carvings and stunning 3D reliefs with unmatched clarity and detail. Ideal for intricate designs that require depth and texture, our GT Series elevates your creativity to new dimensions.
Advanced Techniques: Aluminum Black Marking & More
Unlock high-end engraving capabilities with processes like black marking on aluminum, creating durable, high-contrast designs that last. Ideal for premium finishes and professional-grade projects, offering precision and quality on a variety of materials.
High Engraving Precision
Delivers ultra-fine engraving details with a minimum spot size of 0.01mm, ensuring every line, curve, and texture is captured with exceptional clarity and accuracy.
Thin Material Cutting
Higher power means stronger cutting capability. Effortlessly cut through thin sheets with precision and speed, achieving clean edges and professional results every time.

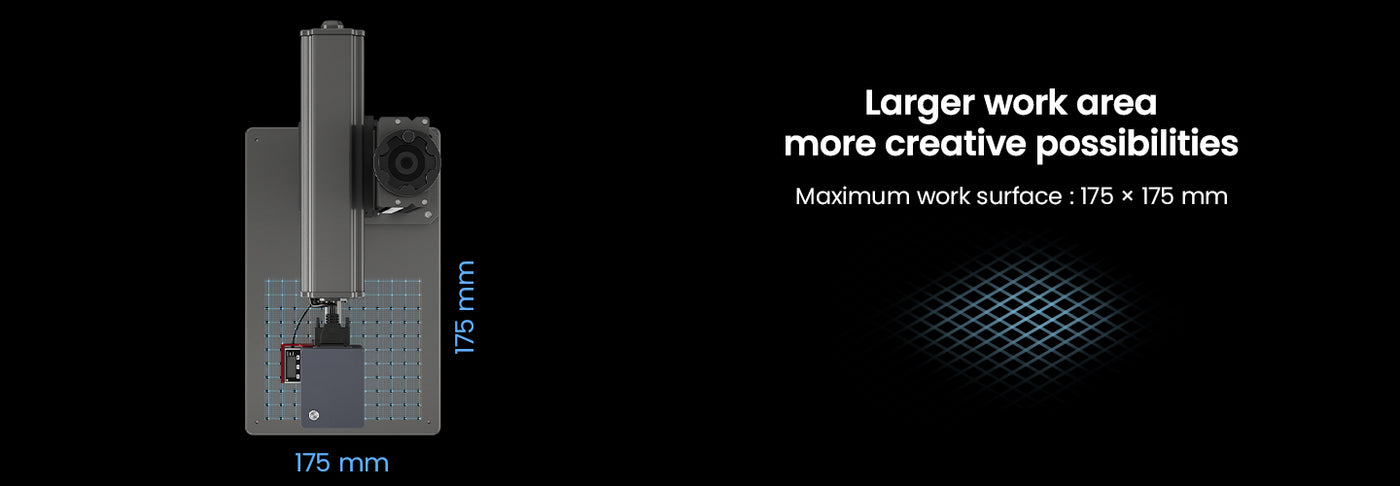

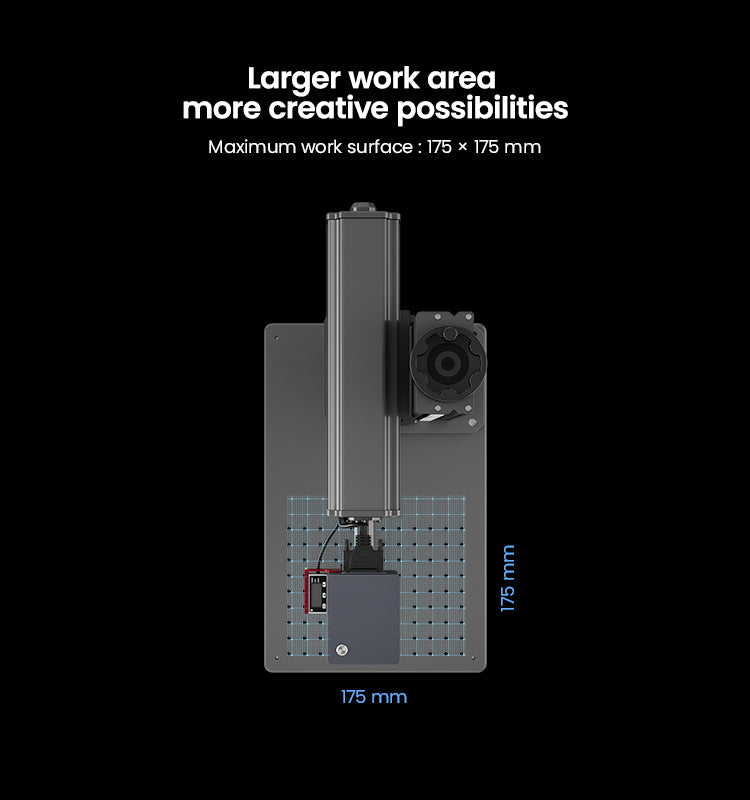

Extra-Large Work Area
With an expansive 175×175mm work area, tackle larger designs in a single pass or efficiently arrange multiple identical pieces for batch engraving. High-speed processing ensures you can complete more work in less time, boosting productivity and precision.
Package contents
Package contents
1x Fiber Laser Engraver
1x USB Cable(2 meters)
1x Power Cord(1.5 meters)
1x USB Flash Drive
1x User Manual

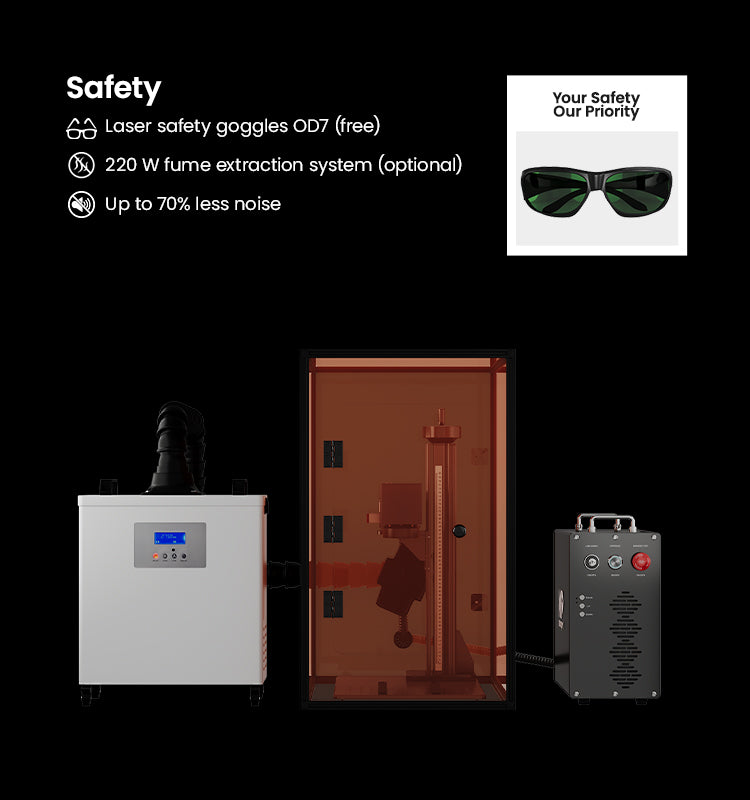

1x Goggles（OD7+)
1x Wrench Set
1x Ruler（50cm）
1x Foot Switch
2x Positioning Bars
4x Screws M6*12
4x Screws M6*10
4x Screws M5*16
1x Usb to TypeC Adapter
10x Test Aluminum Sheets
Deep Engraving & 3D Relief
GT Series for Precise 3D Deep Engraving
More power means faster speeds, deeper engraving, and sharper details.
Designed for clear relief effects and pronounced depth structures.

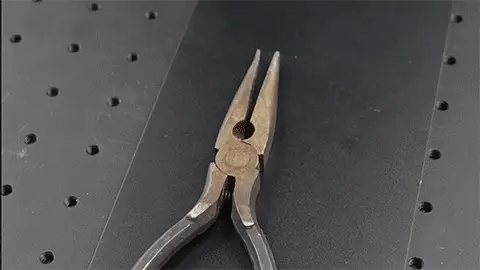

Laser Rust Removal – Fast, Precise & Damage-Free
Effortlessly remove rust, oxidation, and surface contaminants in seconds — without damaging the base material.
No chemicals, no contact, no residue — just clean, restored metal surfaces.

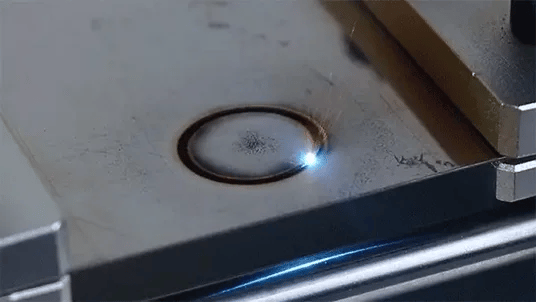

Metalworking Expert · Thin Metal Cutting
Higher power delivers stronger cutting performance.
Precisely cuts thin metal up to 3 mm with clean edges and professional results.
Speed Comparison: GT 30W→60W→80W→100W→200W MOPA=1×→2×→3.5×→5×→8×
| Product Model | GT30 | GT50 | GT30 Mopa | GT60 Mopa | GT80 Mopa | GT100 Mopa | GT200 Mopa |
| Product Dimensions | 45*21*39.5 cm 35*55*69.5 cm |
||||||
| Laser Power | 30w | 50w | 30w | 60w | 80w | 100w | 200w |
| Laser Type | Q-switched fiber laser | MOPA Fiber Laser | |||||
| Wavelength | 1064nm | ||||||
| Frequency Range | 30~60kHz | 20~80kHz | 1-3000kHz | ||||
| Pulse Width | 80-120 ns Unadjustable (Fixed pulse width) |
100-140 ns Unadjustable (Fixed pulse width) |
2-500 ns | ||||
| Rated voltage | 1064nm | ||||||
| Field Lens Engraving Area |
5.9 x 5.9 in. （150x150mm） |
7.9 x 7.9 in. （200x200mm） |
6.9 x 6.9 in. （175x175mm） |
6.9 x 6.9 in. （175x175mm）Quartz Field Lens |
|||
| Max. Engraving Speed | 10000mm/s（393.7 ips） | 22000mm/s （866.1 ips） |
|||||
| Compatible Operating Systems | Windows / macOS | ||||||
| Compatible Software | BslAppSimple，Lightburn | ||||||
| Max. Marking Depth on a Single Pass(depend on materials) |
0.003in. (0.08mm) |
0.004in. (0.1mm) | 0.003in. (0.08mm) |
0.004in. (0.1mm) |
0.005in. (0.13mm) |
0.006in. (0.15mm) |
0.008in. (0.2mm) |
| Max Z.height (Field Lens to Workbench) |
550mm | ||||||
| Focus mode | Autofocus | ||||||
| Color Engraving | No | YES | |||||
| Electric Lifting | YES | ||||||
| Rotation Axis Function | YES | ||||||
| Foot Pedal Function | external foot pedal | ||||||
| Engraving accuracy | 0.01mm | ||||||
| Positioning Accuracy | ±0.1 µm | ||||||
| Beam Quality M2 | ＜1.5 | ＜1.8 | ＜1.5 | ＜1.8 | |||
| Beam Diameter | 6-8 mm | 6-8 mm | 7±1 mm | ||||
| Maximum Pulse Energy | 0.75 mJ | 1.25mJ | 0.8 mJ | 1.5 mJ | |||
| Expected Service Life | 100000 hr. | ||||||
| Galvanometer Thread size | M68 | ||||||
| Field lens dimension | M85 | ||||||
| Cooling Type | Air Cooling | ||||||
| Warranty | 2-year （1 year for laser source) |
||||||
| Product Color | Dark Gray | ||||||
| Materials Suitable for Engraving | Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc | ||||||
| Supported File | For BSLcad： JPG Files（*.jpg；*.jpeg） BMP Files（*.bmp） GIF Files（*.gif） PNG Files（*.gif） TIF Files（*.tif；*.tiff） EMF Files（*.emf） DXF Files（*.dxf） AI Files（*.ai） FPGL Files（*.plt） Gerber Files（*.cs；*.gbr；etc） Svg Files For LightBurn： Image files (*.bmp *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga *.webp) Vector files (*.ai *.pdf *.sc *.dxf *.gc *.gcode *.nc *.hpgl *.plt *.svg *.lbrn *.lbrn2 *.mage) |
||||||
| Data Transmission | USB Cable | ||||||
| Package Dimension | 75*55*56 cm | ||||||
