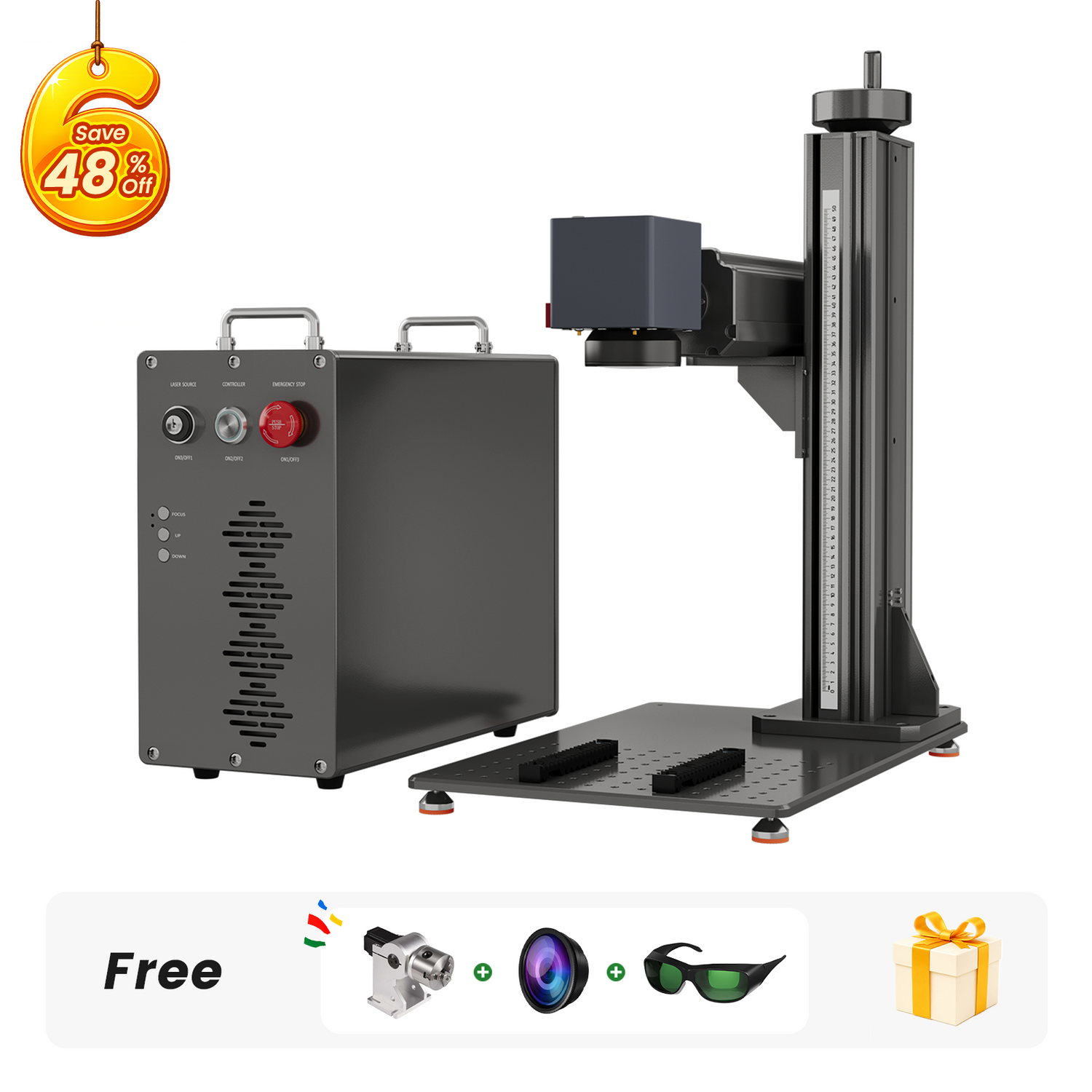

Monport GT 50W Split Fiber Laser Engraver & Marking Machine With AutoFocus (7.9" x 7.9")

Product Dimensions:45*21*39.5 cm/35*55*69.5 cm

Laser Power:50W

Wavelength: 1064nm

Frequency Range:20~80kHz

Pulse Width:100-140 ns
Unadjustable(Fixed pulse width)

Rated voltage:220V

Field LensEngraving Area: 7.9 x 7.9 in.
（200x200mm）

Max. Engraving Speed: 10000mm/s（393.7 ips）

Compatible Operating Systems:Windows / macOS

Compatible Software:BslAppSimple，Lightburn

Max. Marking Depthon a Single Pass(depend on materials):0.004in.(0.1mm)

Max Z.height(Field Lens to Workbench): 550mm

Focus mode: Autofocus

Color Engraving: NO

Electric Lifting: YES

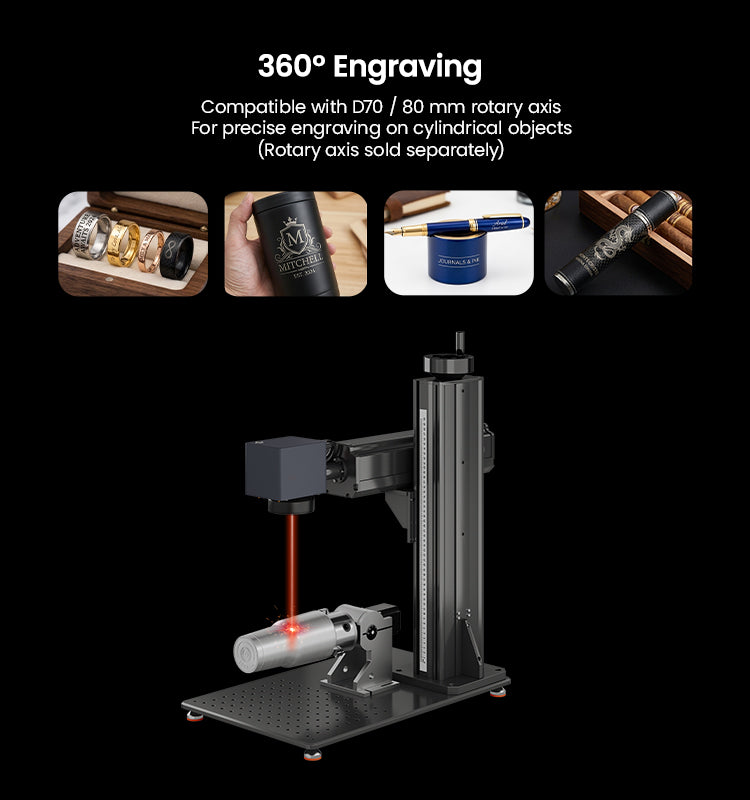

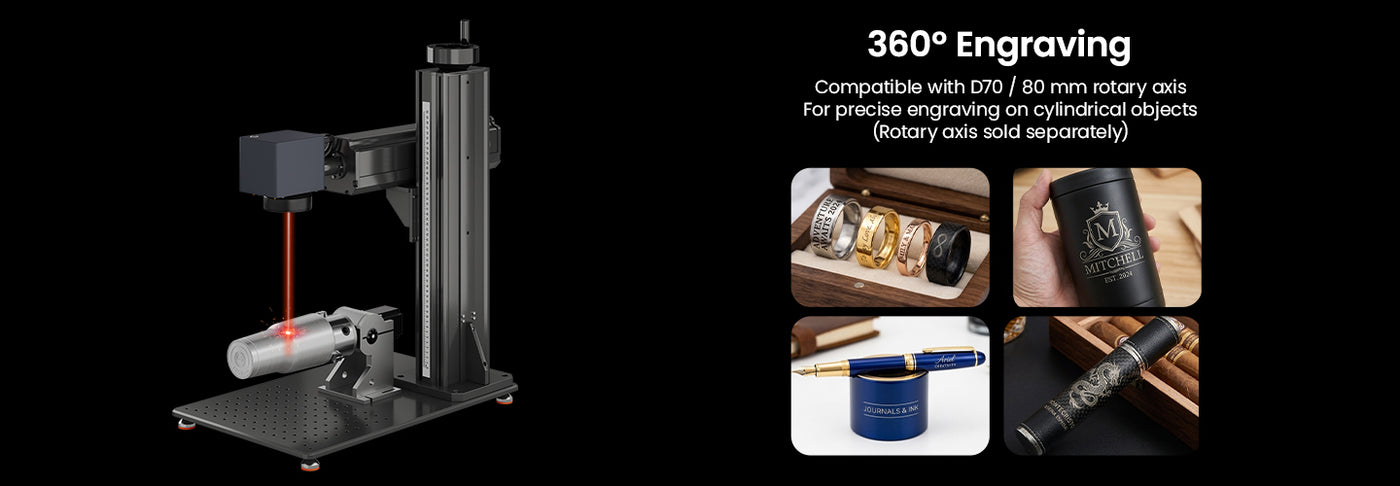

Rotation Axis Function: YES

Foot Pedal Function: External foot pedal

Engraving accuracy:0.01mm

Positioning Accuracy: ±0.1 µm

Beam Quality M2: ＜1.8

Beam Diameter: 6-8 mm

Maximum Pulse Energy: 1.25 mJ

Expected Service Life: 100000 hr.

Galvanometer Thread size: M68

Field lens dimension: M85

Cooling Type: Air Cooling

Laser Type: Q-switched fiber laser

Materials Suitable for Engraving: Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc

Supported File: For BSLcad：JPG Files（*.jpg；*.jpeg）BMP Files（*.bmp）GIF Files（*.gif）PNG Files（*.gif）TIF Files（*.tif；*.tiff）EMF Files（*.emf）DXF Files（*.dxf）AI Files（*.ai）FPGL Files（*.plt）Gerber Files（*.cs；*.gbr；etc）Svg Files For LightBurn：Image files (*.bmp *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga *.webp)Vector files (*.ai *.pdf *.sc *.dxf *.gc *.gcode *.nc *.hpgl *.plt *.svg *.lbrn *.lbrn2 *.mage)

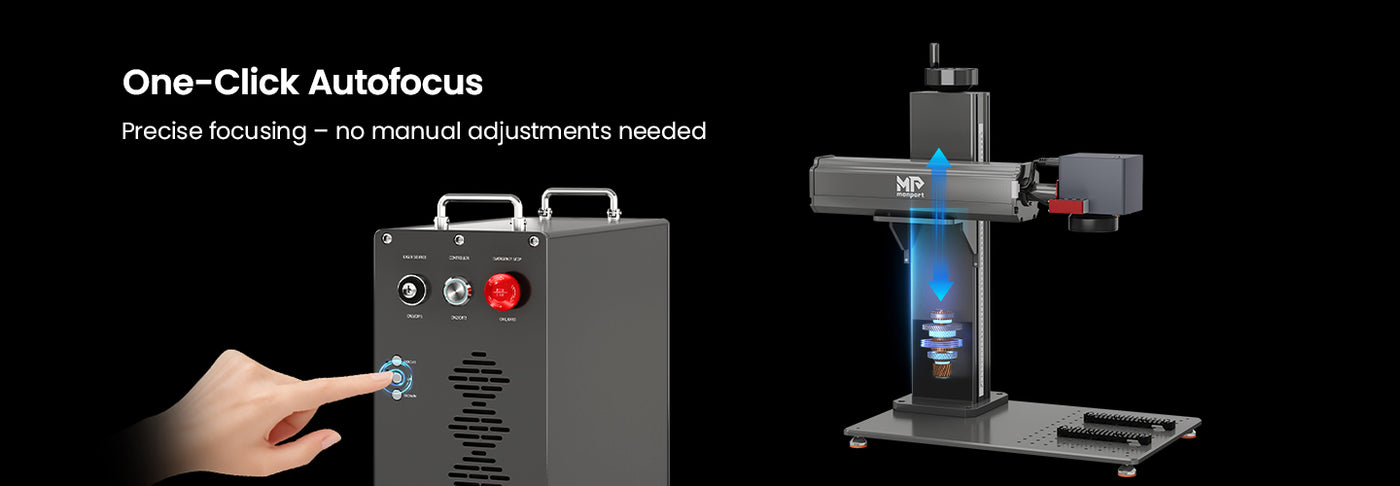

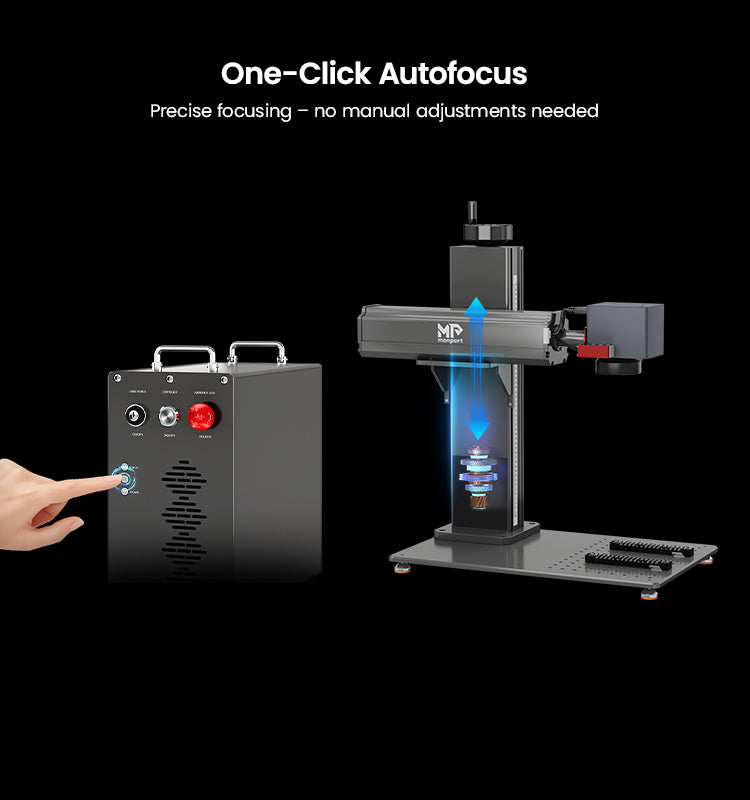

Auto-Focus, Perfect Engraving Every Time

The GT 50W is the upgraded version of our GQ 50W, now featuring Auto-Focus Technology. Achieve flawless precision with just one click—no manual adjustments needed. Effortlessly engrave and cut with unmatched accuracy, ensuring every project is perfect, every time.

Precision and Speed, Redefined

The GT Series is equipped with cutting-edge Industrial Galvo Scanners and Silicon Mirrors, delivering exceptional speed and precision. With a carving speed of up to 10,000mm/s (393.7 ips), experience rapid, high-quality engravings like never before. Achieve perfect results faster, boosting your productivity and bringing your creative visions to life with ease.

Deep Engraving & 3D Relief

The higher the power, the deeper the engraving. Achieve precise deep carvings and stunning 3D reliefs with unmatched clarity and detail. Ideal for intricate designs that require depth and texture, our GT Series elevates your creativity to new dimensions.

High Engraving Precision

Delivers ultra-fine engraving details with a minimum spot size of 0.01mm, ensuring every line, curve, and texture is captured with exceptional clarity and accuracy.

Thin Material Cutting

Higher power means stronger cutting capability. Effortlessly cut through thin sheets with precision and speed, achieving clean edges and professional results every time.

Multiple & Expansive Work Areas

Designed to handle projects of all sizes, the GT Series offers multiple work area options: 150×150mm, and 200×200mm. Enjoy the flexibility to tackle small intricate designs or larger-scale creations with ease.

1x Fiber Laser Engraver

1x USB Cable(2 meters)

1x Power Cord(1.5 meters)

1x USB Flash Drive

1x User Manual

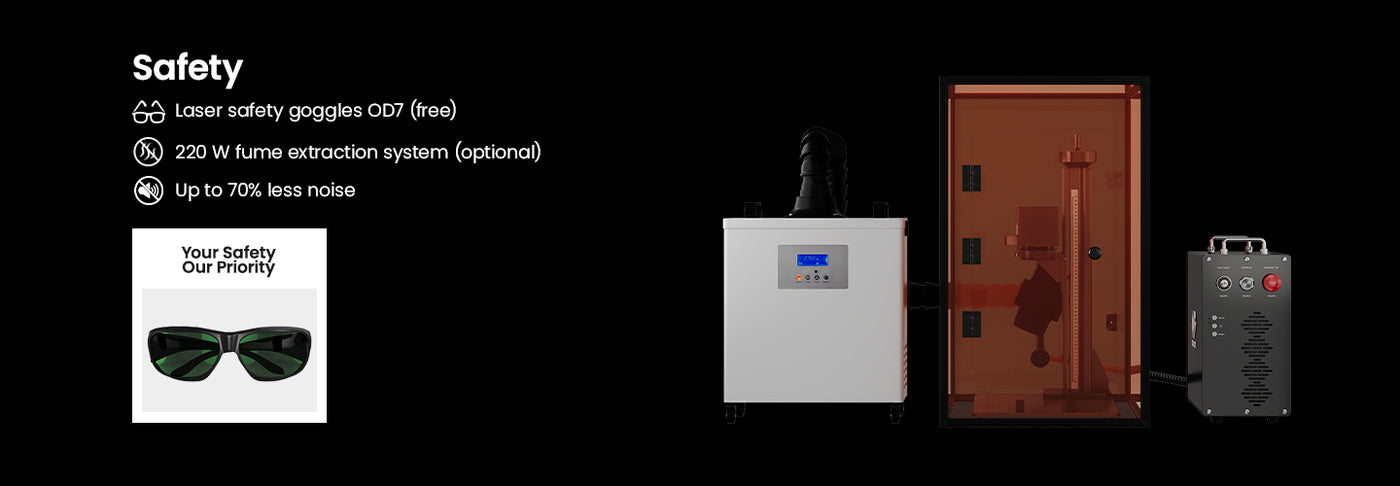

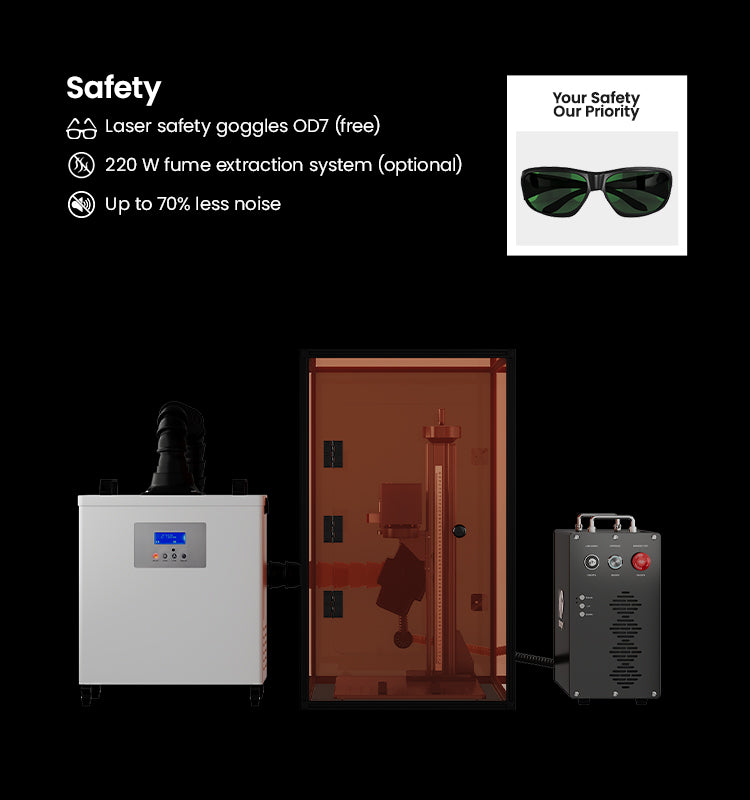

1x Goggles（OD7+)

1x Wrench Set

1x Ruler（50cm）

1x Foot Switch

2x Positioning Bars

4x Screws M6*12

4x Screws M6*10

4x Screws M5*16

1x Usb to TypeC Adapter

10x Test Aluminum Sheets

2-year warranty on all fiber laser machines and parts

1-year warranty on fiber laser source

You will get the tracking number within 2 business days.

The delivery time varies from 3 to 7 business days.
