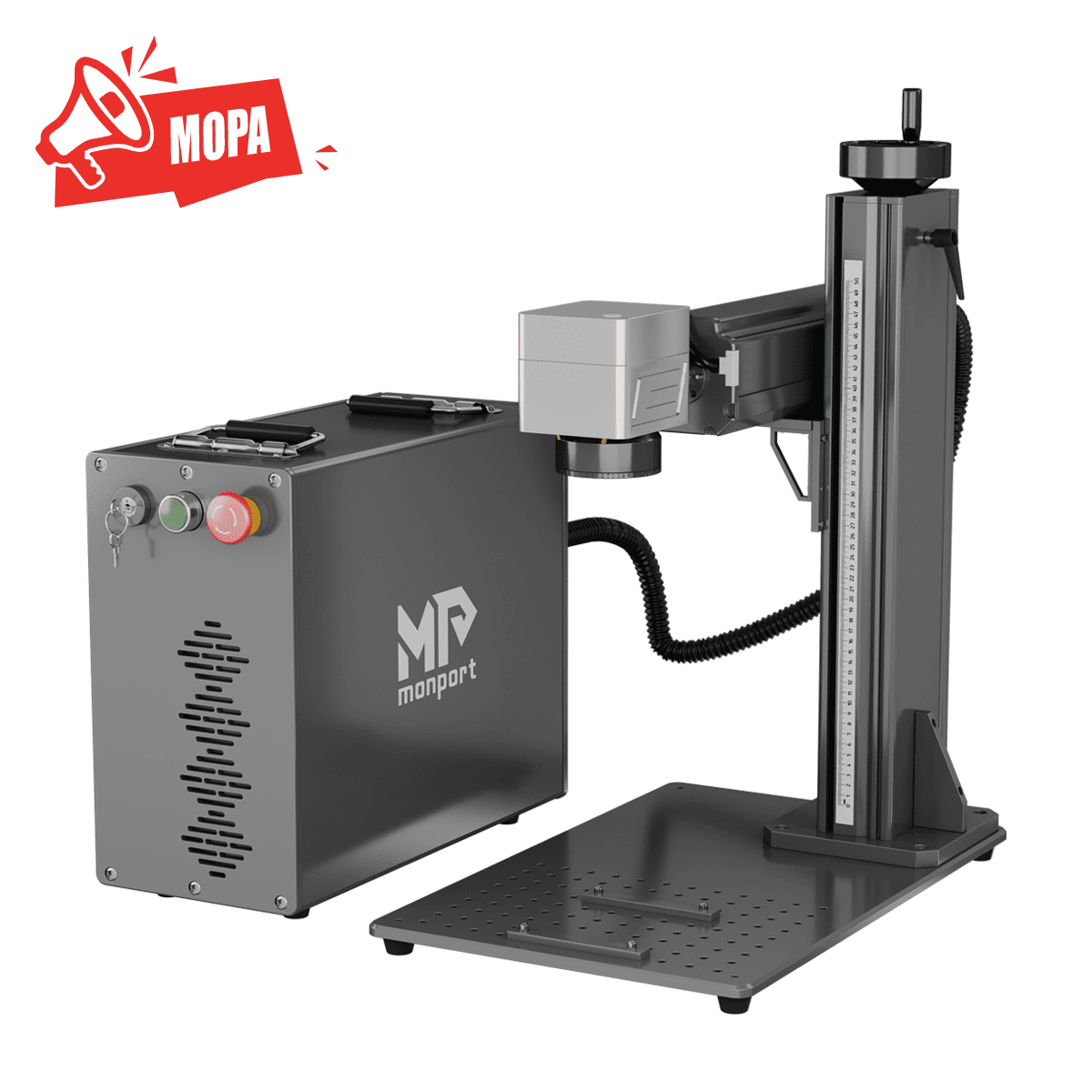

Monport GPro 80W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 80W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Dimension & Specifications
Dimension & Specifications
Wavelength: 1064nm
Laser power: 80W
Rated voltage: 220V
Frequency range: 1-3000kHz
Compatible software: BslAppSimple
Lightburn
Supported image formats: BMP, GIF, JPG, JPEG, DXF, DST, Al.etc
Supported system: Windows xp/7/8/10/11 , MacOS 10.11 or higher.
Engraving area: 6.9x6.9in.175×175 mm
Max. marking depth in one pass (depending on materials): 0.005in.(0.13mm)
Product dimensions: Main body:8.2'' x17.7''x15.3'' (21cmx45cmx39cm)
Main tower: 13.7''x21.6''x26.9'' (35cmx55cmx68.5cm)
Max Z.Height (field lens to workbench): 550mm
Color engraving:YES
Engraving accuracy: 0.01mm
Positioning accuracy: ±0.1 µm
Pulse width: 2-500ns
Engraving speed: 10000 mm/s 393.7 ips
Beam quality M2:＜1.8
Beam diameter: 7±1mm
Maximum pulse energy: 1.5mJ
Focusing mode: Manual focus
Cooling type: Air cooling
Materials suitable for engraving: Brass, hard plastic, titanium, brick, marble, gold, hard metal, silver, tungsten, granite, steel, etc.
Expected lifetime: 100,000 hrs.
Laser type: MOPA fiber laser
Electric lifting: No
Rotation axis function: YES
Foot pedal function: external foot pedal
GPro Fiber Laser Benefits
GPro Fiber Laser Benefits
Powerful Laser Core & High-Performance Marking Controller
Monport's 80W fiber laser marking machine, equipped with the 80W marking controller, ensures powerful performance and precision, removing limitations on your creativity and processing capabilities.
Versatile Laser Marking Capabilities
Our fiber laser engraver, with adjustable frequency (1-3000kHz) and pulse width (2-500ns), enables vibrant stainless steel markings, anodized aluminum black engraving, precise cutting, drilling, and intricate designs on plastic buttons. Experience rich and precise visual effects with ease.
Easy Focus with Precision
Our laser engraver machine features three-point red light alignment for easy focusing and allows for red light preview. Preview the marking area through the red light, swiftly confirming your marking positions with precision.
Enhanced Security Features
We've adopted the access key to prevent any unauthorized laser use, while the large E-stop button is readily available for emergencies, ensuring high levels of safety.
Versatile Operating Software
Monport's fiber laser marker is compatible with BslAppSimple
Lightburn for seamless operation, catering to both Windows and Mac systems. Note that LightBurn is exclusively available for use on Mac systems.
User manual
User manual
Warranty & Certifications
Warranty & Certifications
2-year warranty on all fiber laser machines and parts
1-year warranty on fiber laser source
Free shipping within UK
Free shipping within UK
You will get the tracking number within 2 business days.
The delivery time varies 40 business days.
If the arrived outer package is damaged, please refuse to sign for it and take a photo, then contact Monport via support@monportlaser.uk.
We are very glad to help you with the exchange process.
1064nm
Wavelength
10000 mm/s
Engraving speed
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Powerful Laser Core & High-Performance Marking Controller
Monport's 80W fiber laser marking machine, equipped with the 80W marking controller, ensures powerful performance and precision, removing limitations on your creativity and processing capabilities.
Premium Galvanometer
A superior fiber laser demands a top-notch galvanometer. Monport opts for the high-end Sino-Galvo galvanometer for exceptional stability, precise positioning, rapid marking speed, and robust anti-interference capabilities. The overall performance surpasses other brands by 100%.
Easy, Fast, Accurate Focusing
Monport GPro MOPA Fiber laser machine featuresthree-point red light alignment foreasy focusingand allows forred light preview. Preview the marking area through the red light, swiftly confirming your marking positions with precision.
Fastest MOPA Fiber Laser
Boasting an unparalleledmarking speed up to 10000mm/s, Monport GPro MOPA Fiber Laser is designed to cater to the most demanding industrial and creative applications, ensuring that your projects are not only completed with precision but also with an efficiency that sets new industry standards.
Versatile Color Marking Capacity
Monport GPro MOPA Fiber Laser, with adjustable frequency (1-3000kHz) and pulse width (2-500ns), enables vibrant stainless steel markings, anodized aluminum black engraving, precise cutting, drilling, and intricate designs on plastic buttons. Experience rich and precise visual effects with ease.
Sub-Micron Precision
Experience the pinnacle of engraving accuracy with the Monport GPro MOPA Fiber Laser, featuring sub-micron high-precision technology. Designed for professionals who demand nothing but the best, the state-of-the-art GPro MOPA fiber laser redefines precision, allowing you to create intricate designs and detailed colorful markings with unparalleled clarity.
| Series | Gpro 30W MOPA | Gpro 60W MOPA | Gpro 80W MOPA | Gpro 100W MOPA |
| Wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
| Laser Power | 30W | 60W | 80W | 100W |
| Rated voltage | 220V | 220V | 220V | 220V |
| Frequency Range | 1-3000kHz | 1-3000kHz | 1-3000kHz | 1-3000kHz |
| Compatible software | BslAppSimple Lightburn |
BslAppSimple Lightburn |
BslAppSimple Lightburn |
BslAppSimple Lightburn |
| Supported image formats | BMP, GIF, JPG, JPEG, DXF, DST, Al.etc | BMP, GIF, JPG, JPEG, DXF, DST, Al.etc | BMP, GIF, JPG, JPEG, DXF, DST, Al.etc | BMP, GIF, JPG, JPEG, DXF, DST, Al.etc |
| System Supported | Windows，MacOS | Windows，MacOS | Windows，MacOS | Windows，MacOS |
| Engraving Area | 6.9x6.9 in. 175×175 mm |
6.9x6.9 in. 175×175 mm |
6.9x6.9 in. 175×175 mm |
6.9x6.9 in. 175×175 mm |
| Max. Marking Depth on a Single Pass(depend on materials) |
0.003in. (0.08mm) |
0.004in. (0.1mm) |
0.005in. (0.13mm) |
0.006in. (0.15mm) |
| Product Dimension | "Main Case: 8.2'' x 17.7'' x 15.3'' ( 21cm x 45cm x 39cm ) Main Tower: 13.7"" x 21.6"" x 26.9"" (35 x 55 x 68.5cm)" |
"Main Case: 8.2'' x 17.7'' x 15.3'' ( 21cm x 45cm x 39cm ) Main Tower: 13.7"" x 21.6"" x 26.9"" (35 x 55 x 68.5cm)" |
"Main Case: 8.2'' x 17.7'' x 15.3'' ( 21cm x 45cm x 39cm ) Main Tower: 13.7"" x 21.6"" x 26.9"" (35 x 55 x 68.5cm)" |
"Main Case: 8.2'' x 17.7'' x 15.3'' ( 21cm x 45cm x 39cm ) Main Tower: 13.7"" x 21.6"" x 26.9"" (35 x 55 x 68.5cm)" |
| Max Z.height (Field Lens to Workbench) |
550mm | 550mm | 550mm | 550mm |
| Color Engraving | YES | YES | YES | YES |
| Engraving accuracy | 0.01mm | 0.01mm | 0.01mm | 0.01mm |
| Positioning Accuracy | ±0.1 µm | ±0.1 µm | ±0.1 µm | ±0.1 µm |
| Pulse Width | 2-500 ns | 2-500 ns | 2-500 ns | 2-500 ns |
| Max engraving speed | 10000 mm/s 393.7 ips |
10000 mm/s 393.7 ips |
10000 mm/s 393.7 ips |
10000 mm/s 393.7 ips |
| Beam Quality M2 | ＜1.35 | ＜1.8 | ＜1.8 | ＜1.8 |
| Beam Diameter | 7±1mm | 7±1mm | 7±1mm | 7±1mm |
| Maximum Pulse Energy | 0.8mJ | 1.5mJ | 1.5mJ | 1.5mJ |
| Galvanometer Thread size | M78 | M78 | M78 | M78 |
| Focus mode | Manual focus | Manual focus | Manual focus | Manual focus |
| Cooling Type | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
| Materials Suitable for Engraving | Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc | Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc | Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc | Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc |
| Expected Service Life | 100,000 hr. | 100,000 hr. | 100,000 hr. | 100,000 hr. |
| Warranty | 2-year （1 year for laser source) |
2-year （1 year for laser source) |
2-year （1 year for laser source) |
2-year （1 year for laser source) |
| Laser Type | MOPA Fiber Laser | MOPA Fiber Laser | MOPA Fiber Laser | MOPA Fiber Laser |
| Electric Lifting | NO | NO | NO | NO |
| Rotation Axis Function | YES | YES | YES | YES |
| Foot Pedal Function | external foot pedal | external foot pedal | external foot pedal | external foot pedal |
| Product Color | Black | Black | Black | Black |
