Monport GPro 60W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 60W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus - Machine is backordered and will ship as soon as it is back in stock.
-
11% off£159.99 -
9% off£289.99 -
10% offSold Out -
£469.99 -
64% offSold Out
Couldn't load pickup availability
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Dimension & Specifications
Dimension & Specifications
Wavelength: 1064nm
Laser power: 60W
Rated voltage: 220V
Frequency range: 1-3000kHz
Compatible software: BslAppSimple
Lightburn
Supported image formats: BMP, GIF, JPG, JPEG, DXF, DST, Al.etc
Supported system: Windows xp/7/8/10/11 , MacOS 10.11 or higher.
Engraving area: 6.9x6.9in.175×175 mm
Max. marking depth in one pass (depending on materials): 0.004in.(0.1mm)
Product dimensions: Main body:8.2'' x17.7''x15.3'' (21cmx45cmx39cm)
Main tower: 13.7''x21.6''x26.9'' (35cmx55cmx68.5cm)
Max Z.Height (field lens to workbench): 550mm
Color engraving:YES

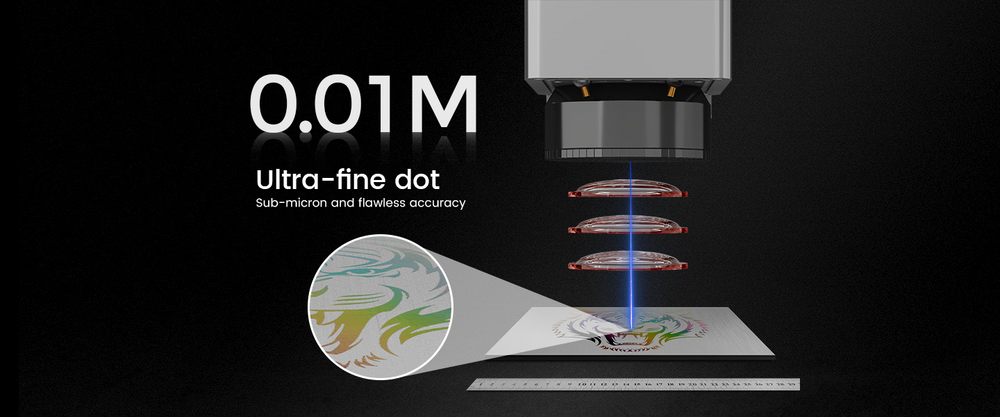

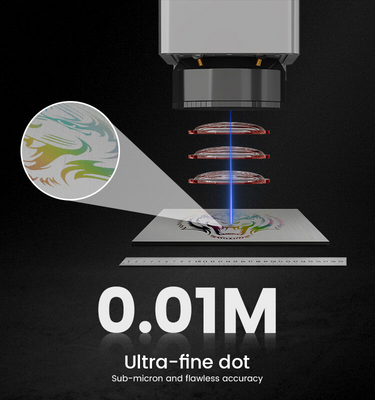

Engraving accuracy: 0.01mm
Positioning accuracy: ±0.1 µm
Pulse width: 2-500ns
Engraving speed: 10000 mm/s 393.7 ips
Beam quality M2:＜1.8
Beam diameter: 7±1mm
Maximum pulse energy: 1.5mJ
Focusing mode: Manual focus
Cooling type: Air cooling
Materials suitable for engraving: Brass, hard plastic, titanium, brick, marble, gold, hard metal, silver, tungsten, granite, steel, etc.
Expected lifetime: 100,000 hrs.
Laser type: MOPA fiber laser
Electric lifting: No
Rotation axis function: YES
Foot pedal function: external foot pedal
GPro Fiber Laser Benefits
GPro Fiber Laser Benefits
Powerful Laser Core & High-Performance Marking Controller
Monport's 60W fiber laser marking machine, equipped with the 60W marking controller, ensures powerful performance and precision, removing limitations on your creativity and processing capabilities.
Versatile Laser Marking Capabilities

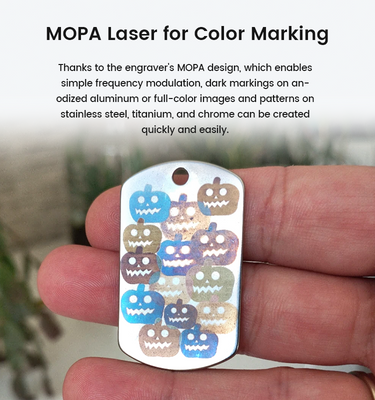

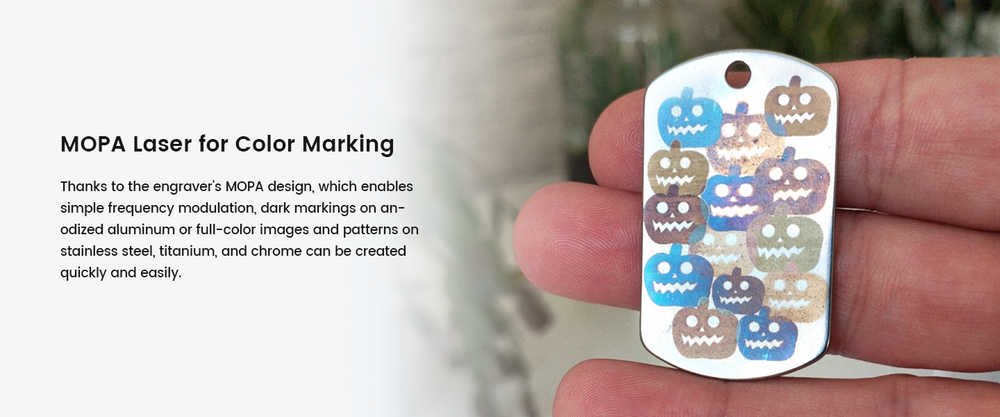

Our fiber laser engraver, with adjustable frequency (1-3000kHz) and pulse width (2-500ns), enables vibrant stainless steel markings, anodized aluminum black engraving, precise cutting, drilling, and intricate designs on plastic buttons. Experience rich and precise visual effects with ease.
Easy Focus with Precision
Our laser engraver machine features three-point red light alignment for easy focusing and allows for red light preview. Preview the marking area through the red light, swiftly confirming your marking positions with precision.
Enhanced Security Features
We've adopted the access key to prevent any unauthorized laser use, while the large E-stop button is readily available for emergencies, ensuring high levels of safety.
Versatile Operating Software
Monport's fiber laser marker is compatible with BslAppSimple
Lightburnfor seamless operation, catering to both Windows and Mac systems. Note that LightBurn is exclusively available for use on Mac systems.
User manual
User manual
Warranty & Certifications
Warranty & Certifications
2-year warranty on all fiber laser machines and parts
1-year warranty on fiber laser source
Free shipping within UK
Free shipping within UK
You will get the tracking number within 2 business days.
The delivery time 15-25 business days.
If the arrived outer package is damaged, please refuse to sign for it and take a photo, then contact Monport via support@monportlaser.uk.
We are very glad to help you with the exchange process.

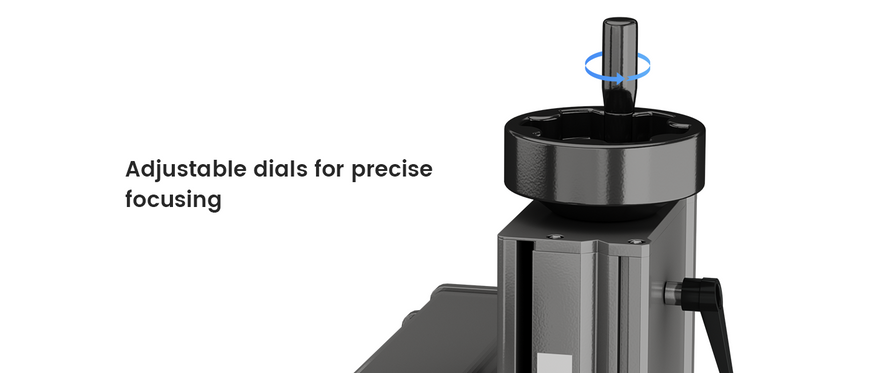

Effortless and precise focusing

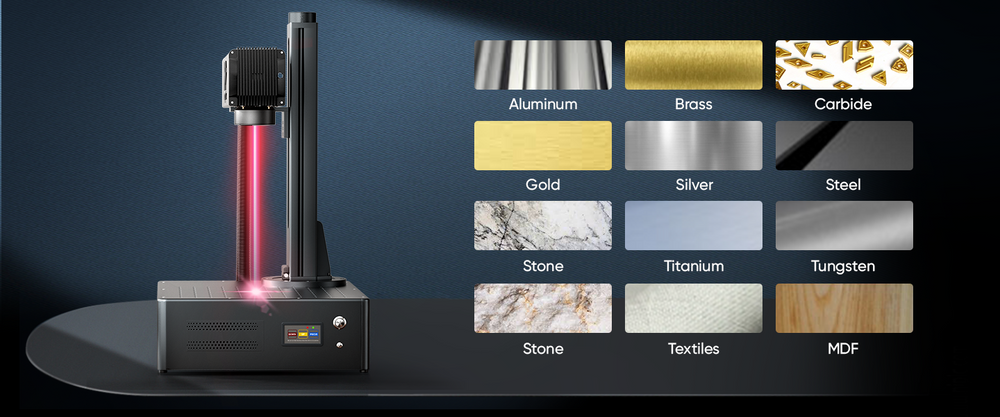

Break through material limitations and achieve unique artistic expressions on any surface

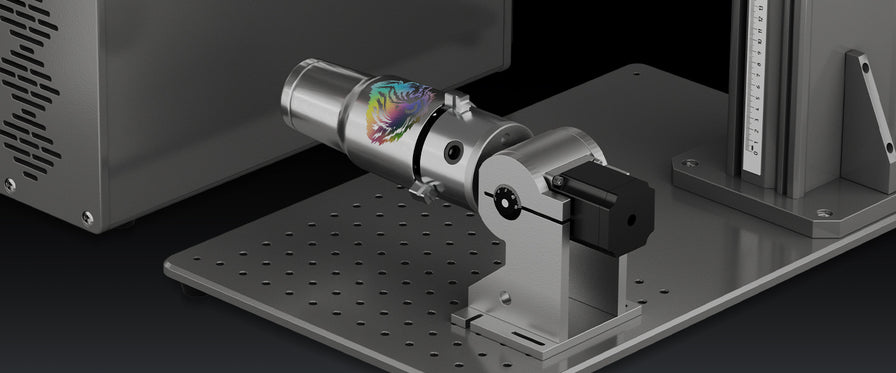

Effortless engraving of cylindrical objects
If you need to engrave curved objects, simply connect the rotary axis attachment. Our fiber laser engraver is equipped with a 4-pin connector for plug-and-play functionality. (The rotary axis attachment must be purchased separately.)
Red Light Preview for Precise Engraving
The Monport fiber laser engraver's red light preview function precisely frames the design position and displays a preview of the vector and text outlines. This ensures perfect alignment and effectively reduces errors, making engraving more efficient and precise.
Fiber Laser Positioning Bar
Our fiber laser is equipped with positioning bars to ensure precise alignment, effectively improving efficiency in batch production and for repeated engravings.

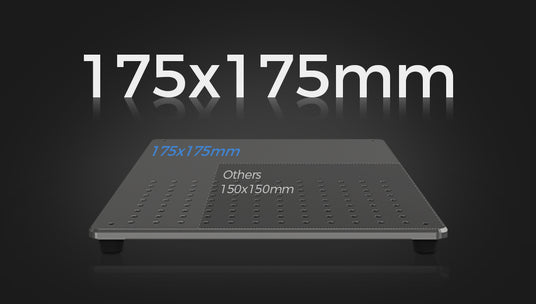

Pushing the boundaries of technology
We've optimized the size of our workspace to ensure every detail is carved with precision, so each carving is full of possibilities and surprises.
A durable and stable work partner
Rigidly tested and inspected, this machine not only has a long service life but also operates reliably under heavy workloads, resulting in long-lasting productivity.

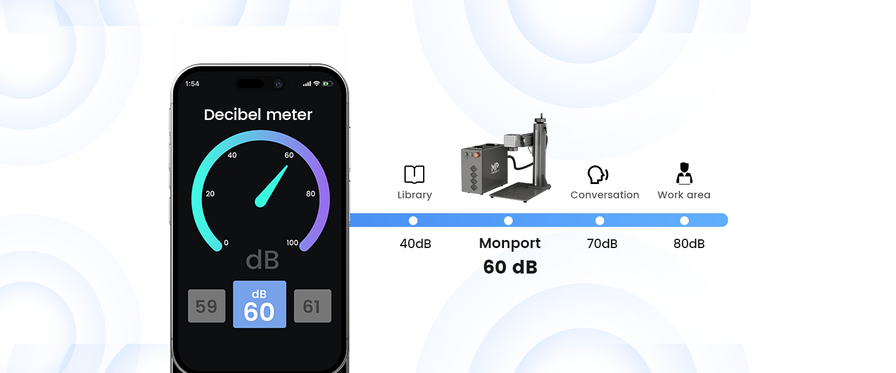

Quiet operation
Work quietly and stay focused with minimal noise
| Series | Gpro 30W MOPA | Gpro 60W MOPA | Gpro 80W MOPA | Gpro 100W MOPA |
| Wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
| Laser Power | 30W | 60W | 80W | 100W |
| Rated voltage | 220V | 220V | 220V | 220V |
| Frequency Range | 1-3000kHz | 1-3000kHz | 1-3000kHz | 1-3000kHz |
| Compatible software | BslAppSimple Lightburn |
BslAppSimple Lightburn |
BslAppSimple Lightburn |
BslAppSimple Lightburn |
| Supported image formats | BMP, GIF, JPG, JPEG, DXF, DST, Al.etc | BMP, GIF, JPG, JPEG, DXF, DST, Al.etc | BMP, GIF, JPG, JPEG, DXF, DST, Al.etc | BMP, GIF, JPG, JPEG, DXF, DST, Al.etc |
| System Supported | Windows，MacOS | Windows，MacOS | Windows，MacOS | Windows，MacOS |
| Engraving Area | 6.9x6.9 in. 175×175 mm |
6.9x6.9 in. 175×175 mm |
6.9x6.9 in. 175×175 mm |
6.9x6.9 in. 175×175 mm |
| Max. Marking Depth on a Single Pass(depend on materials) |
0.003in. (0.08mm) |
0.004in. (0.1mm) |
0.005in. (0.13mm) |
0.006in. (0.15mm) |
| Product Dimension | "Main Case: 8.2'' x 17.7'' x 15.3'' ( 21cm x 45cm x 39cm ) Main Tower: 13.7"" x 21.6"" x 26.9"" (35 x 55 x 68.5cm)" |
"Main Case: 8.2'' x 17.7'' x 15.3'' ( 21cm x 45cm x 39cm ) Main Tower: 13.7"" x 21.6"" x 26.9"" (35 x 55 x 68.5cm)" |
"Main Case: 8.2'' x 17.7'' x 15.3'' ( 21cm x 45cm x 39cm ) Main Tower: 13.7"" x 21.6"" x 26.9"" (35 x 55 x 68.5cm)" |
"Main Case: 8.2'' x 17.7'' x 15.3'' ( 21cm x 45cm x 39cm ) Main Tower: 13.7"" x 21.6"" x 26.9"" (35 x 55 x 68.5cm)" |
| Max Z.height (Field Lens to Workbench) |
550mm | 550mm | 550mm | 550mm |
| Color Engraving | YES | YES | YES | YES |
| Engraving accuracy | 0.01mm | 0.01mm | 0.01mm | 0.01mm |
| Positioning Accuracy | ±0.1 µm | ±0.1 µm | ±0.1 µm | ±0.1 µm |
| Pulse Width | 2-500 ns | 2-500 ns | 2-500 ns | 2-500 ns |
| Max engraving speed | 10000 mm/s 393.7 ips |
10000 mm/s 393.7 ips |
10000 mm/s 393.7 ips |
10000 mm/s 393.7 ips |
| Beam Quality M2 | ＜1.35 | ＜1.8 | ＜1.8 | ＜1.8 |
| Beam Diameter | 7±1mm | 7±1mm | 7±1mm | 7±1mm |
| Maximum Pulse Energy | 0.8mJ | 1.5mJ | 1.5mJ | 1.5mJ |
| Galvanometer Thread size | M78 | M78 | M78 | M78 |
| Focus mode | Manual focus | Manual focus | Manual focus | Manual focus |
| Cooling Type | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
| Materials Suitable for Engraving | Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc | Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc | Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc | Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc |
| Expected Service Life | 100,000 hr. | 100,000 hr. | 100,000 hr. | 100,000 hr. |
| Warranty | 2-year （1 year for laser source) |
2-year （1 year for laser source) |
2-year （1 year for laser source) |
2-year （1 year for laser source) |
| Laser Type | MOPA Fiber Laser | MOPA Fiber Laser | MOPA Fiber Laser | MOPA Fiber Laser |
| Electric Lifting | NO | NO | NO | NO |
| Rotation Axis Function | YES | YES | YES | YES |
| Foot Pedal Function | external foot pedal | external foot pedal | external foot pedal | external foot pedal |
| Product Color | Black | Black | Black | Black |
