Monport GM 6W/10W UV Laser Engraver & Marking Machine
Monport GM 6W/10W UV Laser Engraver & Marking Machine - 6W UV / Machine+Free Water Chiller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
QUESTIONS & ANSWERS
Have a Question?
-
Hello, Is there an eta on the 10w UV laser? I have a few other questions: 1: What brand of UV laser source is installed (RFH, Huaray, JPT, etc.)? 2: Which galvo scan head is used? 3: Is the controller JCZ-compatible? 4: Are there other lens available? Best Regards Lewis
Hello,
Thank you for your questions.
Please find the answers below:
- The UV laser source installed in our machine is from GZTech.
- The galvo scan head is a customized galvo scanning system from ZBTK, which is designed specifically for our UV laser machine.
- Our machine is not compatible with the JCZ system. The included engraving software is our own BSL App, which is provided with the machine.
- Yes, we offer additional field lens options. Besides the standard lens, we also have 110mm and 220mm field lenses available for different engraving requirements.
Please feel free to let us know if you have any other questions. We will be happy to assist you.
Best regards,
Bella
Dimension & Specifications
Dimension & Specifications
Laser Power Options:6W/10W
Processing Area: 5.9x5.9 in.150x150mm）
Max Z.height
(Field Lens to Workbench):
350mm
Engraving Speed:10000mm/s(6W)/15000mm/s(10W)
Max. Laser Cutting Capacity (Basswood):8 mm in Multiple Passes
Max. Laser Cutting Capacity (Acrylic): 6 mm in Multiple Passes
Max. Laser Cutting Capacity (Stainless Steel):0.6 mm in Multiple Passes
Laser Spot Size:0.0019 mm ultra-fine laser spot
XY Positioning Accuracy:±0.001 mm
Engraving Resolution:Up to 16K high-definition engraving
Material Compatibility:Supports 1500+ materials including metal, glass, crystal, plastics, wood, PCB, and transparent acrylic
Processing Technology:Cold laser processing for clean engraving without burning or surface damage
Cooling System:Industrial water-cooling system for stable long-term operation
Scanning System:Industrial-grade galvanometer with silicon mirrors
Software Compatibility:BSLApp, LightBurn
Supported Accessories:Rotary attachment, fume extractor, protective enclosure
Typical Applications:Glass engraving, metal color marking, plastic coding, PCB marking, precision engraving
Package Contents
Package Contents
1x UV Laser Engraver
1x USB Cable
1x Power Cord
1x USB Flash Drive
1x User Manual
1x Goggles（OD7+)
1x Wrench Set
1x Ruler（40cm）
1x Foot Switch
2x Positioning Bars
4x Screws M6*12
4x Screws M6*10
4x Screws M5*16
1x Usb to TypeC Adapter
1x Tool Box
2x Water Pipe
UV-LASER
For ultra-sharp precision engraving
Unlock Unlimited Materials
Engrave 1500+ materials, including metal, glass, crystal, plastics, wood, and transparent acrylic. UV laser technology opens up applications that other laser types cannot handle.
Cold Laser, Perfect Results
UV lasers engrave with minimal heat impact, producing clean, permanent marks without burning, discoloration, or surface damage.

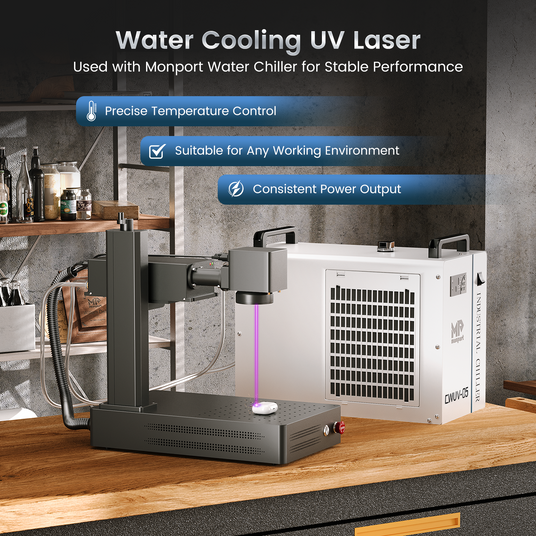

Built for Industrial Stability
A water-cooling system keeps the laser operating at optimal temperature, ensuring reliable performance and longer lifespan during continuous operation.
Extreme Precision Engraving
With an ultra-fine 0.0019 mm laser spot, achieve microscopic detail and ultra-sharp engraving quality with resolutions up to 16K.

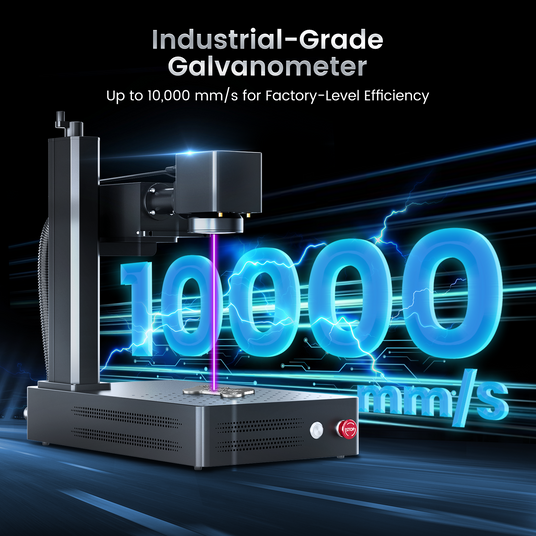

High-Speed Galvo Performance
Industrial-grade galvanometer with silicon mirrors enables engraving speeds up to 10000 mm/s(6W) or 15000mm/s(10W), delivering fast and stable processing.

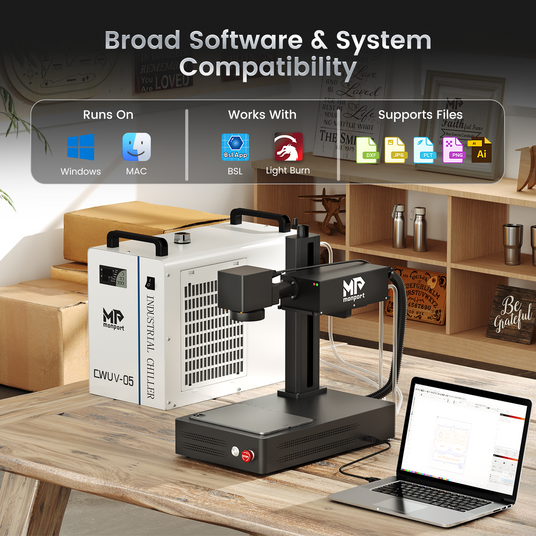

Flexible Software & Expansion
Fully compatible with LightBurn and BSL, and supports accessories such as rotary attachments, enclosures, and fume extractors.
| Product | GM UV6 | GM UV10 | |
| Voltage | 220–240V/ 50Hz | ||
| Overall Rated Power | 400 W | ||
| Max. Working Speed | 10000mm/s（393.7 ips） | 15000mm/s（590.6 ips） | |
| Max. Laser Cutting Capacity (Basswood) | 8 mm in Multiple Passes | 12 mm in Multiple Passes | |
| Max. Laser Cutting Capacity (Acrylic) | 6 mm in Multiple Passes | 10 mm in Multiple Passes | |
| Max. Laser Cutting Capacity (Stainless Steel) | 0.6 mm in Multiple Passes | 1.2 mm in Multiple Passes | |
| Laser Spot Dimension | 0.0019 mm | ||
| XY Positioning Accuracy | ±0.001 mm | ||
| Field Lens | Processing Area | 5.9 x 5.9 in.（150x150mm） | 5.9 x 5.9 in.（150x150mm） |
| Max Z.height (Field Lens to Workbench) |
350mm | ||
| Color Engraving | YES | ||
| Focus mode | Manual Focus | ||
| Electric Lifting | NO | ||
| Rotation Axis Function | YES | ||
| Foot Pedal Function | External Foot Pedal | ||
| Laser | Laser Type | UV Laser | |
| Laser Output Power | 6 W | 10 W | |
| Adjustable Power Range | 10%–100% | ||
| Frequency Range | 10-150kHz | 30-200kHz | |
| Expected Service Life | 20,000 hr. | ||
| Laser Wavelength | 355 nm | ||
| Operating Temperature Range |
41–95 (℉) | 5–35 (℃) | ||
| Max. Humidity | 70% | ||
| Cooling Type | Water Cooling | ||
| Class | 4 | ||
| Supported Materials | Laser Engravable | Glass, Crystal, Acrylic, Wood, Metal, Leather, Plastic, Rubber, Silicone, Ceramic and more | |
| Laser Cuttable | Glass, Plastics (PE, PP, EVA, PET, etc.), Fabric, Leather, Acrylic (Not Fully Transparent), Paper, Wood, and More | ||
| Operating Software | BslAppSimple (Included) (Windows 7/8/10/11) Lightburn (Not included) (Windows 7/8/10/11, MacOS) |
||
| Data Transmission | USB Cable | ||
| Applicable Image Formats | Image files (*.bmp *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga *.webp) Vector files (*.ai *.pdf *.sc *.dxf *.gc *.gcode *.nc *.hpgl *.plt *.svg *.lbrn *.lbrn2 *.mage) , etc. |
||
| Product Color | Black | ||
| Product Dimensions | 29*50*54.5 cm | ||
| Product Weight | 15.6 KG | 20.6 KG | |
| Package Dimension | 73*54*41cm | 73*54*41cm | |
| Gross Weight | 23kg | 28kg | |
| Warranty | 12-Month | ||
