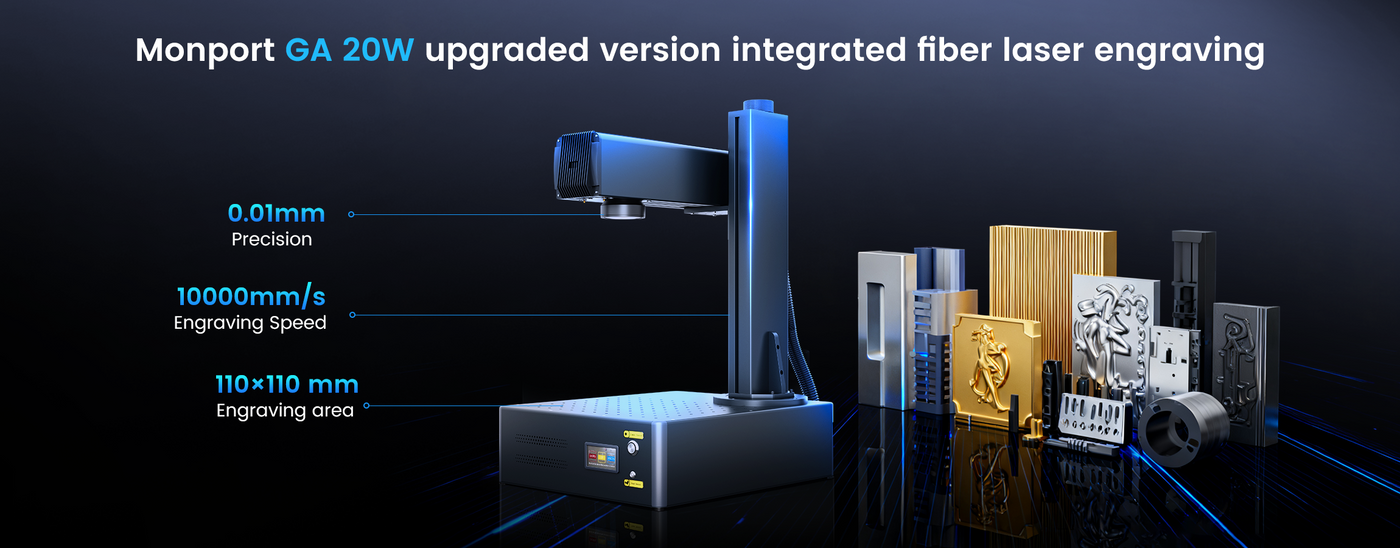

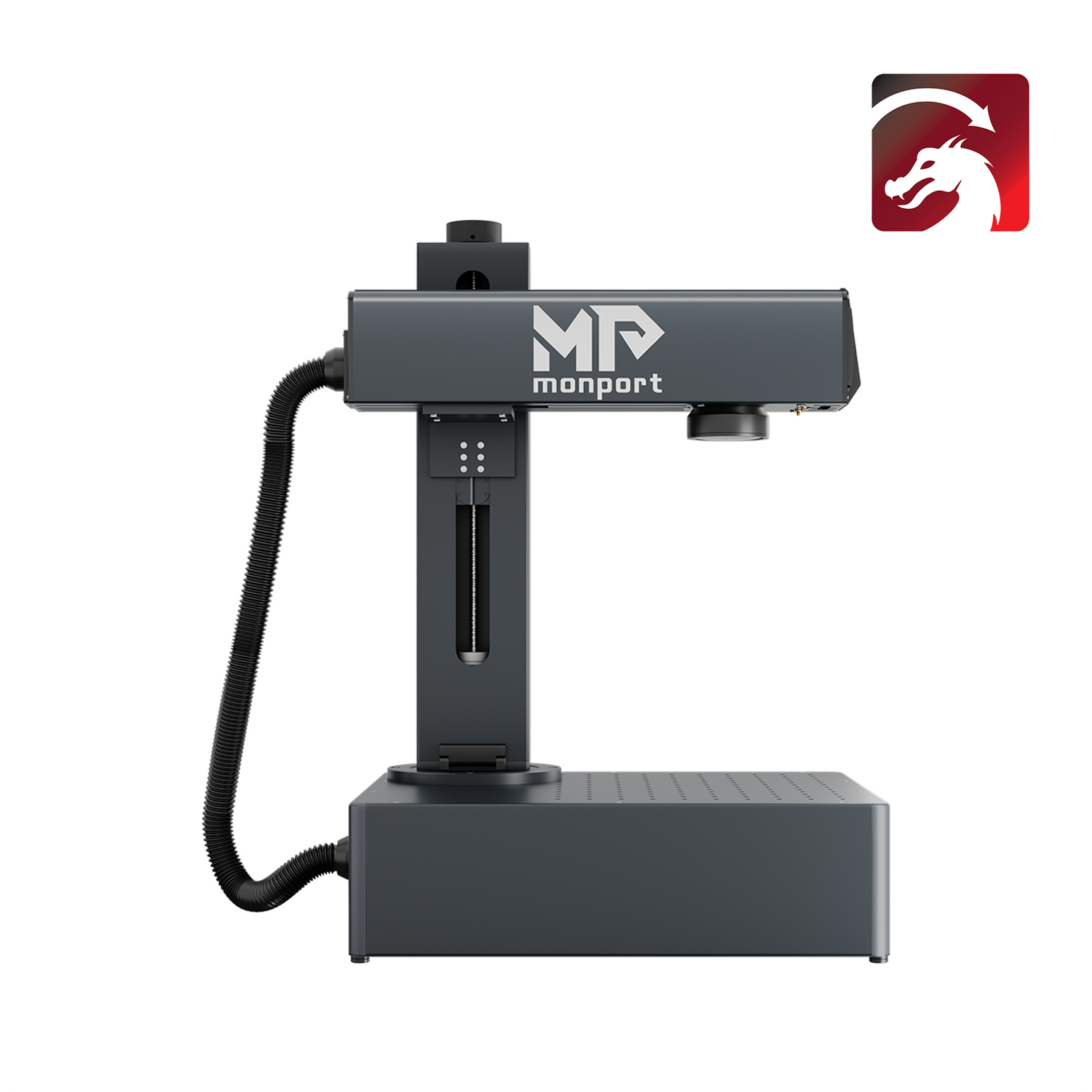

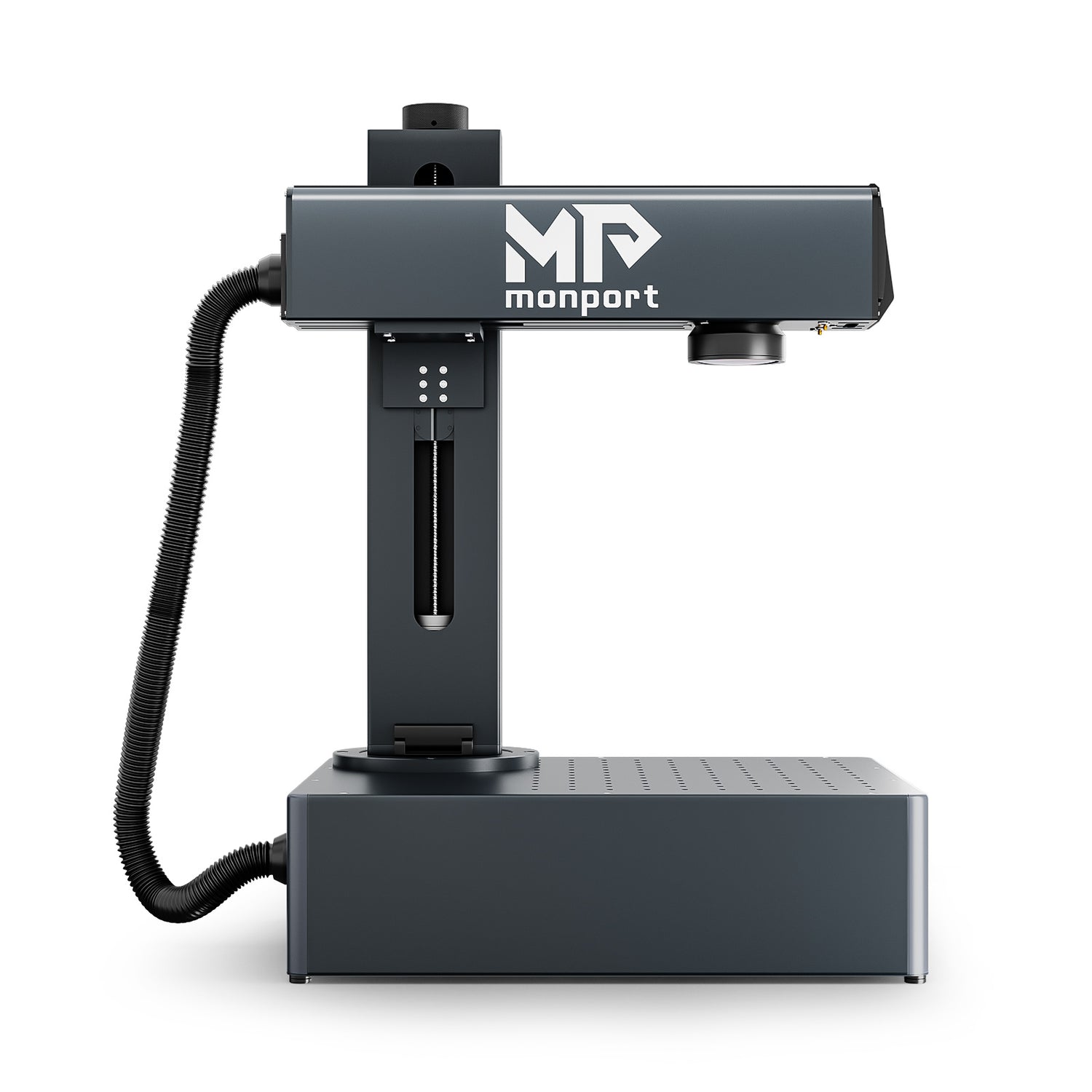

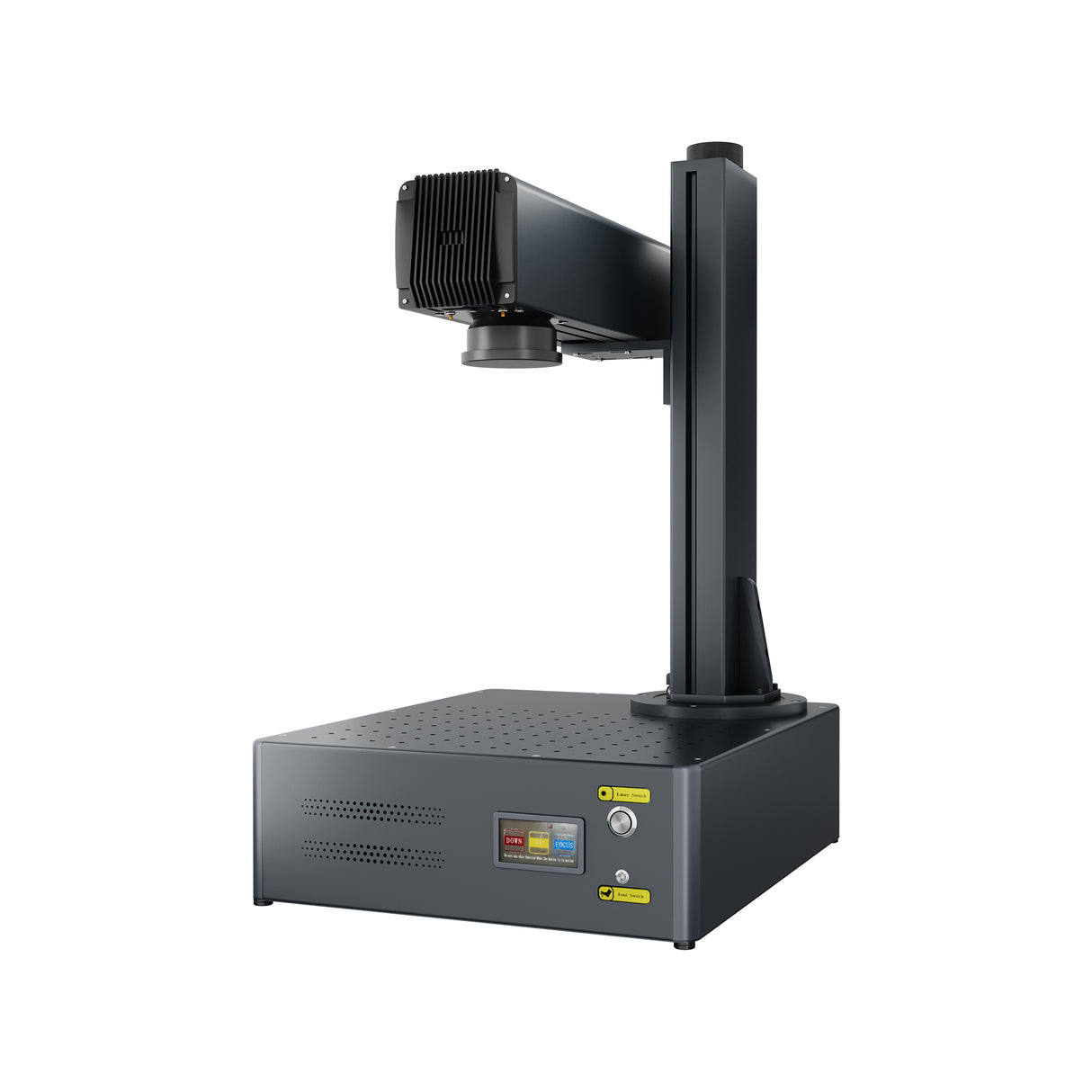

Monport GA 20W Integrated Fiber Laser Engraver & Marking Machines with Auto Focus
Monport GA 20W Integrated Fiber Laser Engraver & Marking Machines with Auto Focus is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Dimension & Specifications
Dimension & Specifications
Product name: GA20
Wavelength: 1064nm
Laser power: 20W
Rated voltage: 220V
Frequency range: 29~60kHz
Compatible software: BslAppSimple
Lightburn
Supported image formats: BMP, GIF, JPG, JPEG, DXF, DST, Al.etc
Supported system: Windows xp/7/8/10/11 , MacOS 10.11 or above.
Engraving area: 4.3x4.3in.110×110 mm
Max. marking depth in one pass (depending on materials): 0.002in.(0.04mm)
Product dimensions: 13.8 x 16.5 x 24.4in (35 x 42 x 62cm)
Max Z.Height (field lens to workbench): 410mm
Color engraving:NO
Engraving accuracy: 0.01mm
Positioning accuracy: ±0.1 µm
Pulse width: 90-120 ns Not adjustable (fixed pulse width)
Maximum
Engraving speed: 10000 mm/s 393.7 ips
Beam quality M2:＜1.5
Beam diameter: 6-8 mm
Maximum pulse energy: 0.78 mJ
Dimensions of Field Lens: M85
Galvanometer Thread Size: M68
Focusing Mode: Auto Focus
Cooling Type: Air Cooling

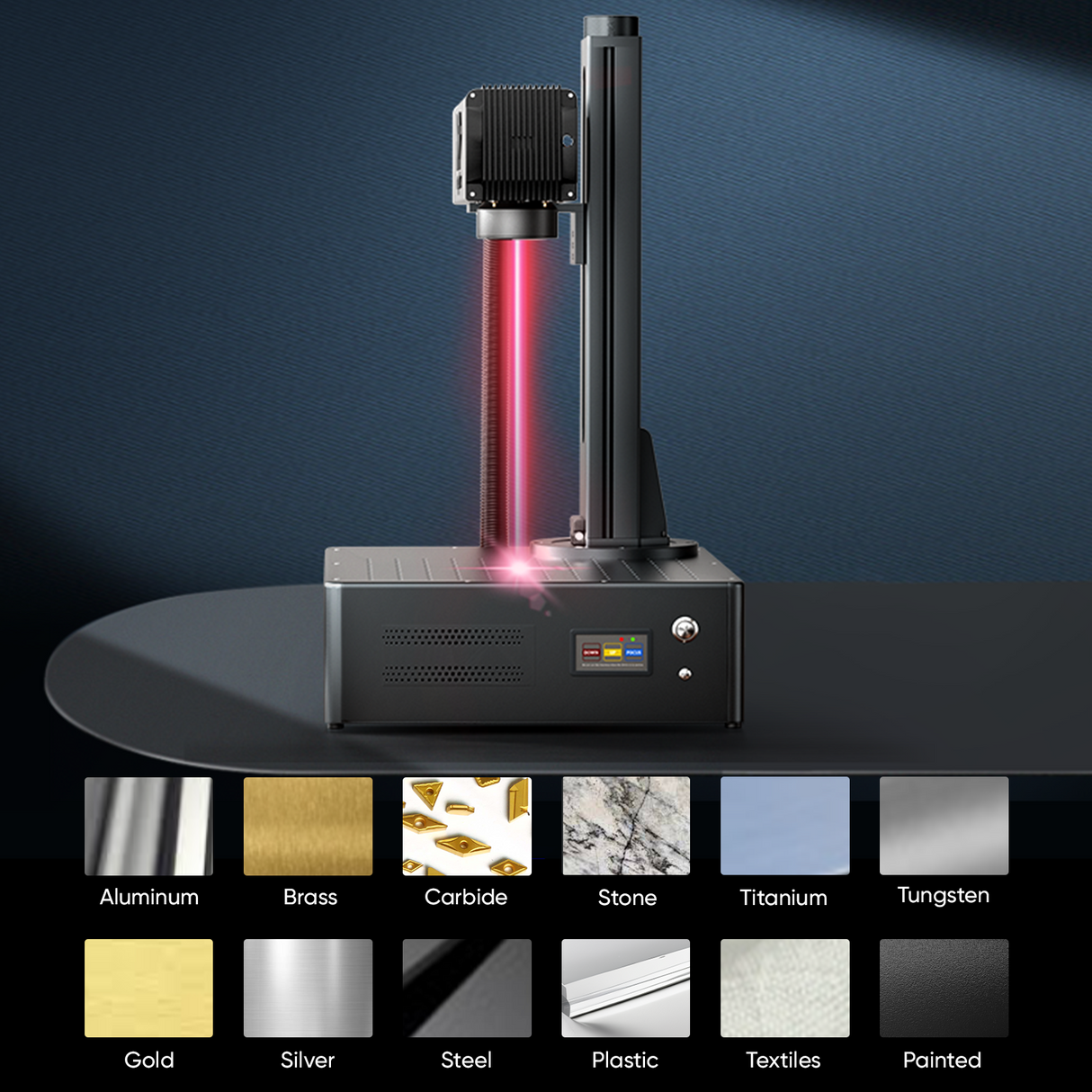

Materials Suitable for Engraving: Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc.
Expected Lifetime: 100,000 hrs
Laser Type: Q-switched Fiber Laser
Electric Lifting: YES

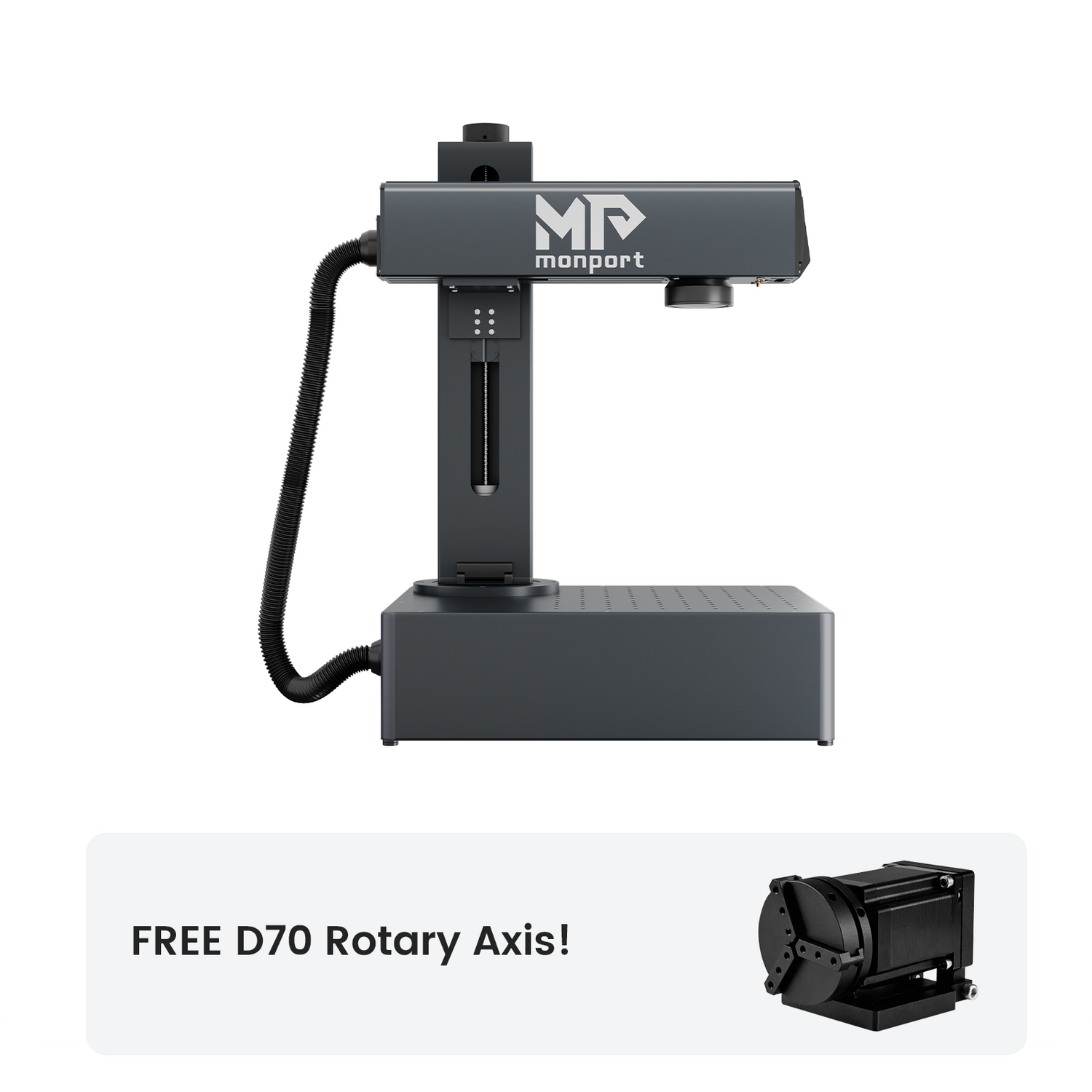

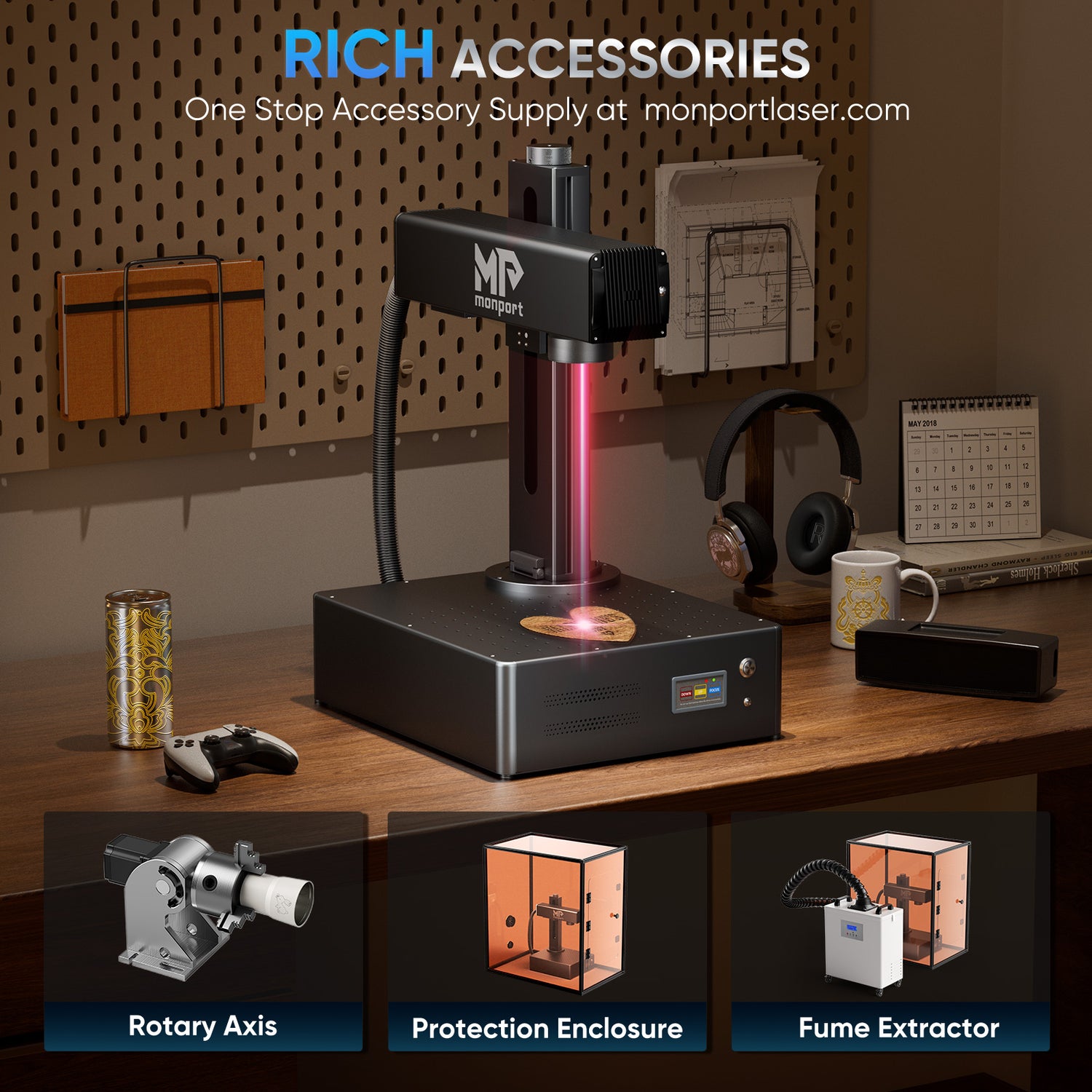

Rotation Axis Function: YES

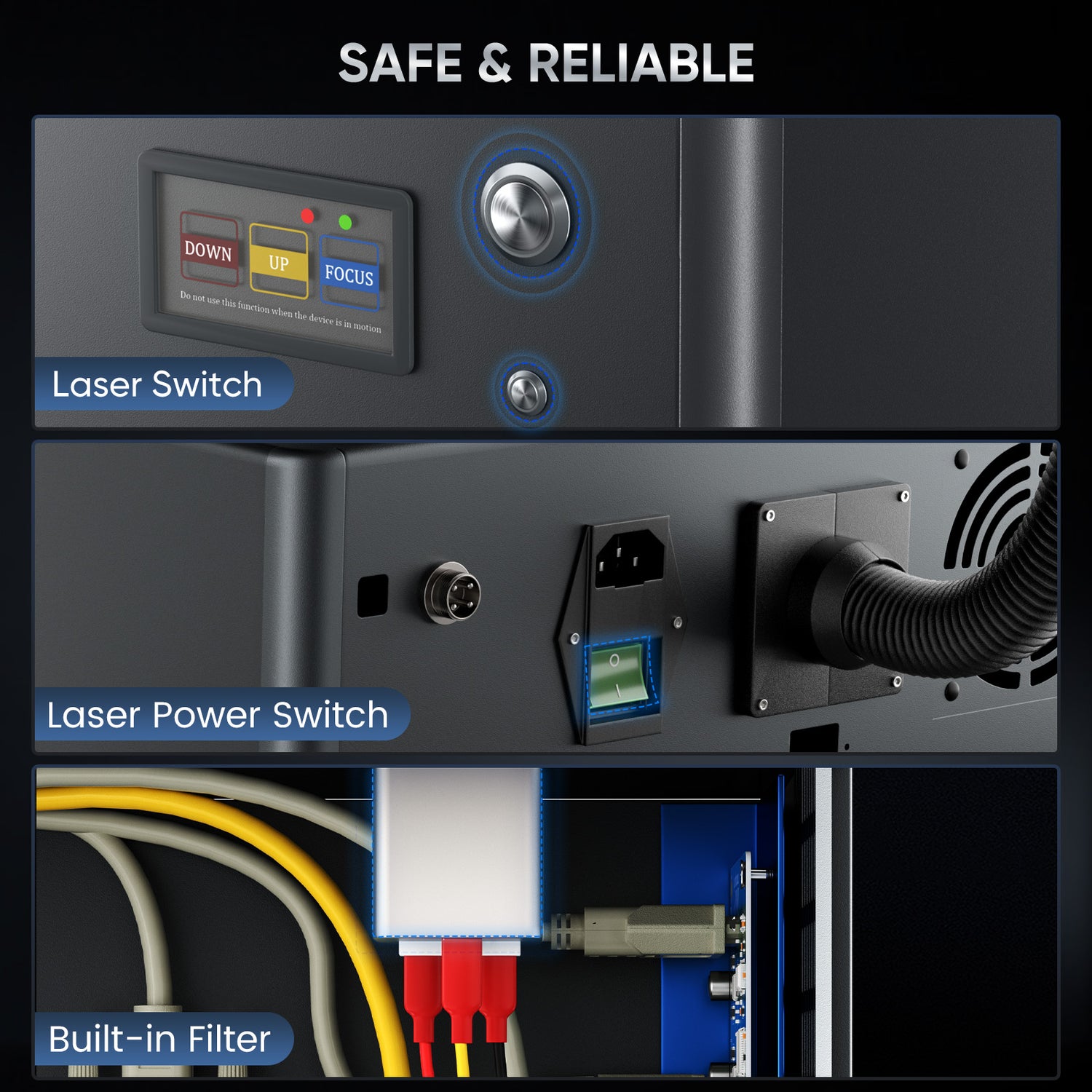

Foot Pedal Function: Built-in Foot Pedal Function
GA Fiber Laser Benefits
GA Fiber Laser Benefits

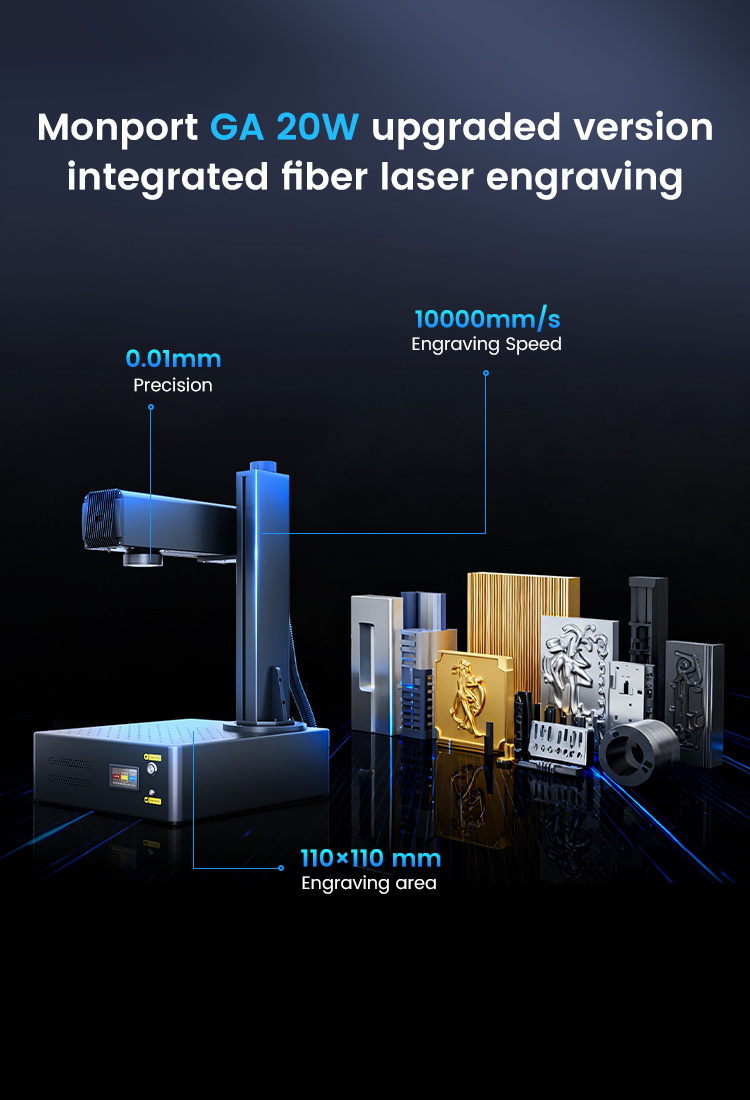

All-in-One Fiber Laser
Experience Monport's latest, independently developed autofocus laser marking machine. Upgraded for enhanced performance and cost-effectiveness, users can enjoy advanced features without significant cost increase. The machine arrives ready-to-use with easy installation, quick setup, and user-friendly operation.
Aluminum Body with Integrated Optics
Monport combines functionality and aesthetics in industrial grade fiber laser engravers. The entire machine features a robust aluminum casing, with the auto-focus and galvanometer modules integrated into the optical path. This integration, paired with sleek exterior lines and a minimalist structure, positions it far ahead of industry competitors.

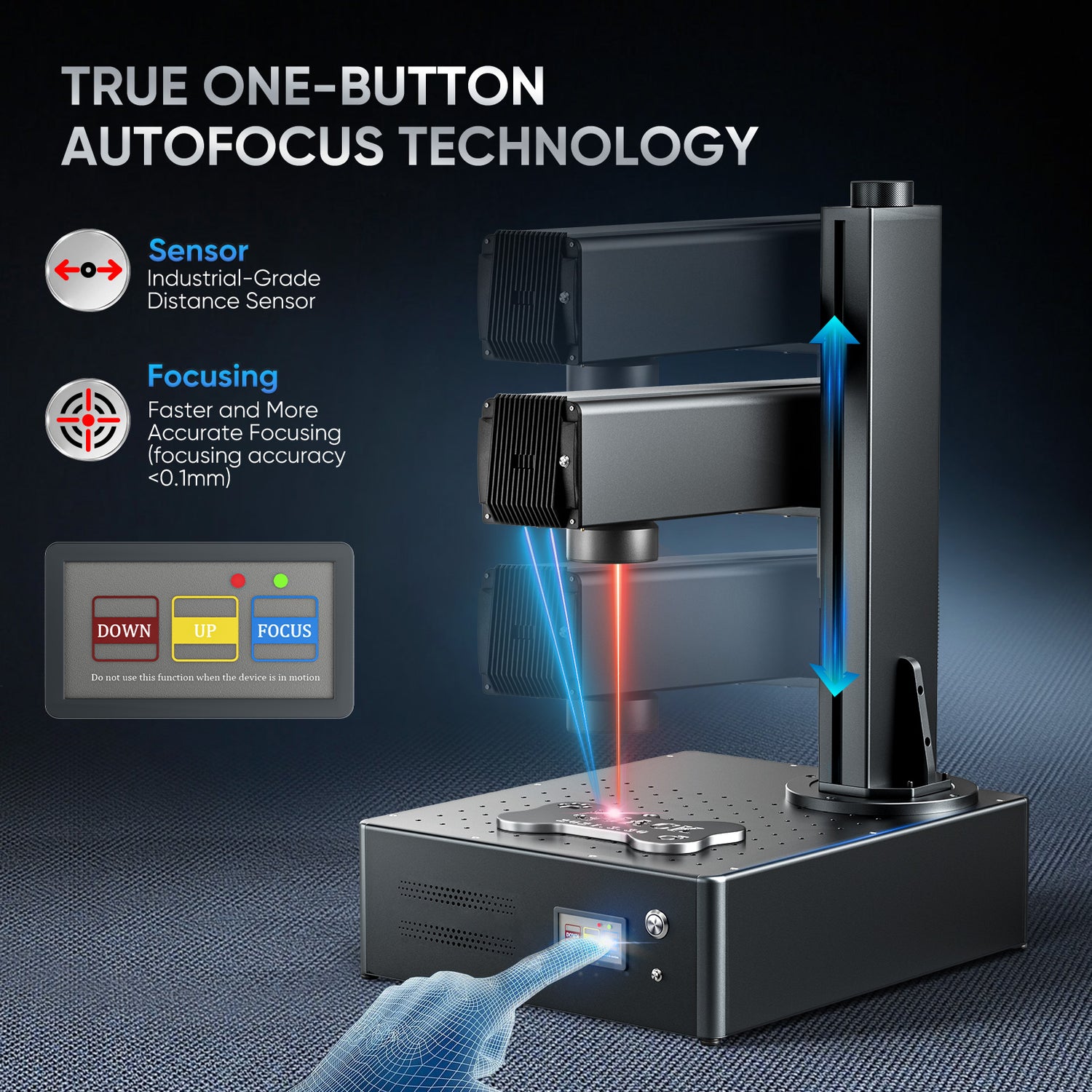

Auto-Focus Innovation
Monport introduces our proprietary auto-focus technology, achieving high precision with a single click (error＜±1mm). This streamlined process enhances work efficiency and focus accuracy compared to traditional manual methods. For added flexibility, manual focus is also possible, supported by three red lights.
Enhanced Performance
Beyond its outstanding design, Monport's desktop marking machine outperforms competitors also in performance. Every component has been rigorously tested for ultra-high stability, precision positioning, rapid marking speeds, and robust anti-interference capabilities (see detailed specifications for reference).

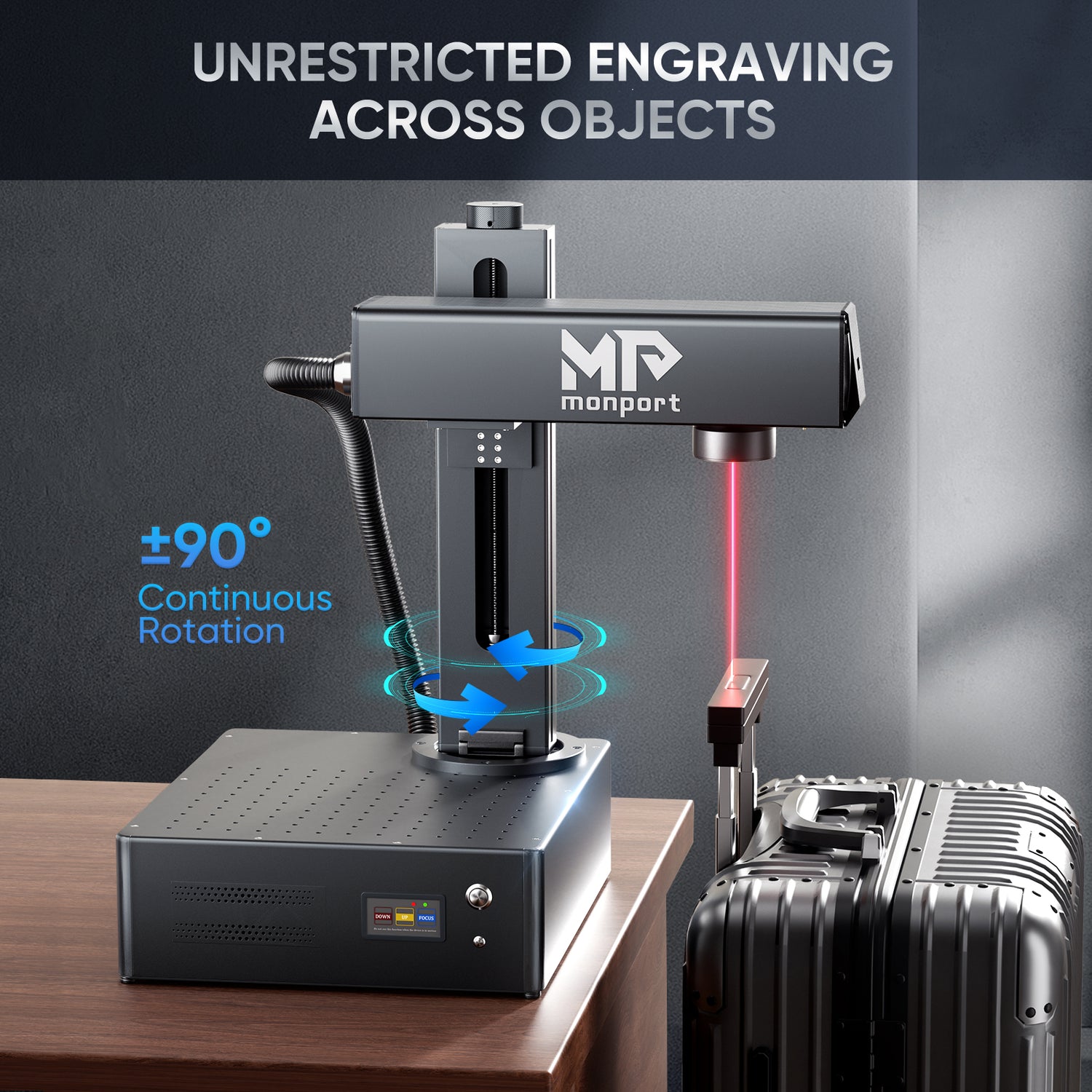

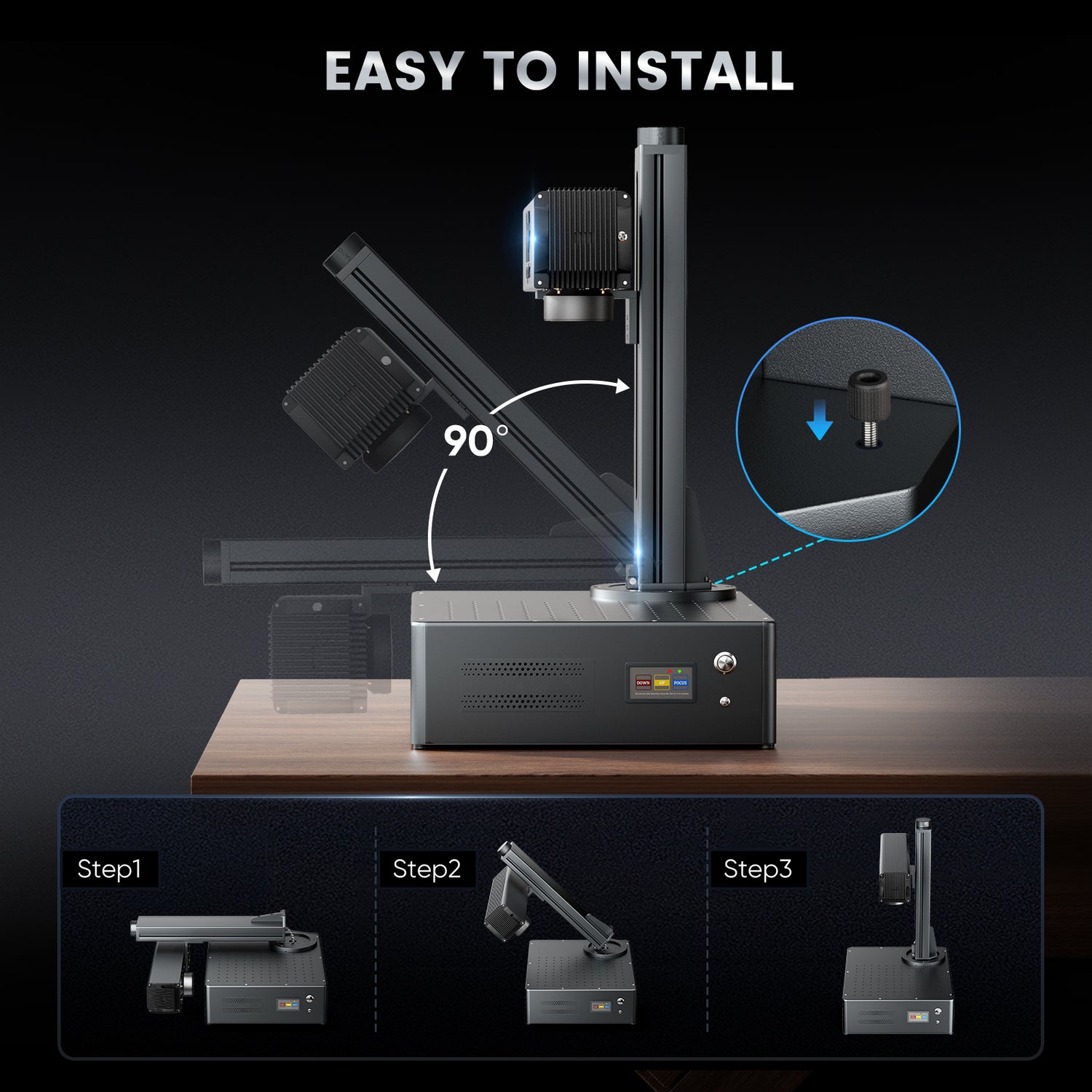

±90° Vertical Arm Rotation
The vertical arm offers an infinitely adjustable range of ±90°. Users can fix it at any angle within this range, promoting unlimited creativity in marking applications. Adjustments are convenient, requiring just the loosening of screws without the need for complete unscrewing.
One-Minute Installation
Installing this LightBurn compatible fiber laser marker is a breeze with its excellent foldable vertical arm design —just tighten two screws, and you're ready to go. Monport promises that even beginners can complete the setup within a minute after unboxing for a hassle-free experience.
Warranty & Certifications
Warranty & Certifications
2-year parts warranty on all GA fiber laser machines
1-year warranty on fiber laser source
FDA COMPLIANT
CE CERTIFICATION
Free shipping within UK
Free shipping within UK
You will get the tracking number within 2 business days.
The delivery time varies from 3 to 7 business days.
If the arrived outer package is damaged, please refuse to sign for it and take a photo, then contact Monport via support@monportlaser.uk.
We are very glad to help you with the exchange process.
Monport GA 20W Integrated Fiber Laser Engraver & Marking Machin...
Auto-Focus Innovation
Monport introduces its proprietary auto-focus technology, achieving high precision (error < ±1mm) with a single click. For added flexibility, manual focusing can also be performed with the support of three red lights.
Enhanced Performance
Beyond its excellent design, Monport’s desktop marking machine outperforms competitors in terms of performance. Each component is rigorously tested, offering ultra-high stability, precise positioning, rapid marking speeds, and robust anti-interference capabilities.

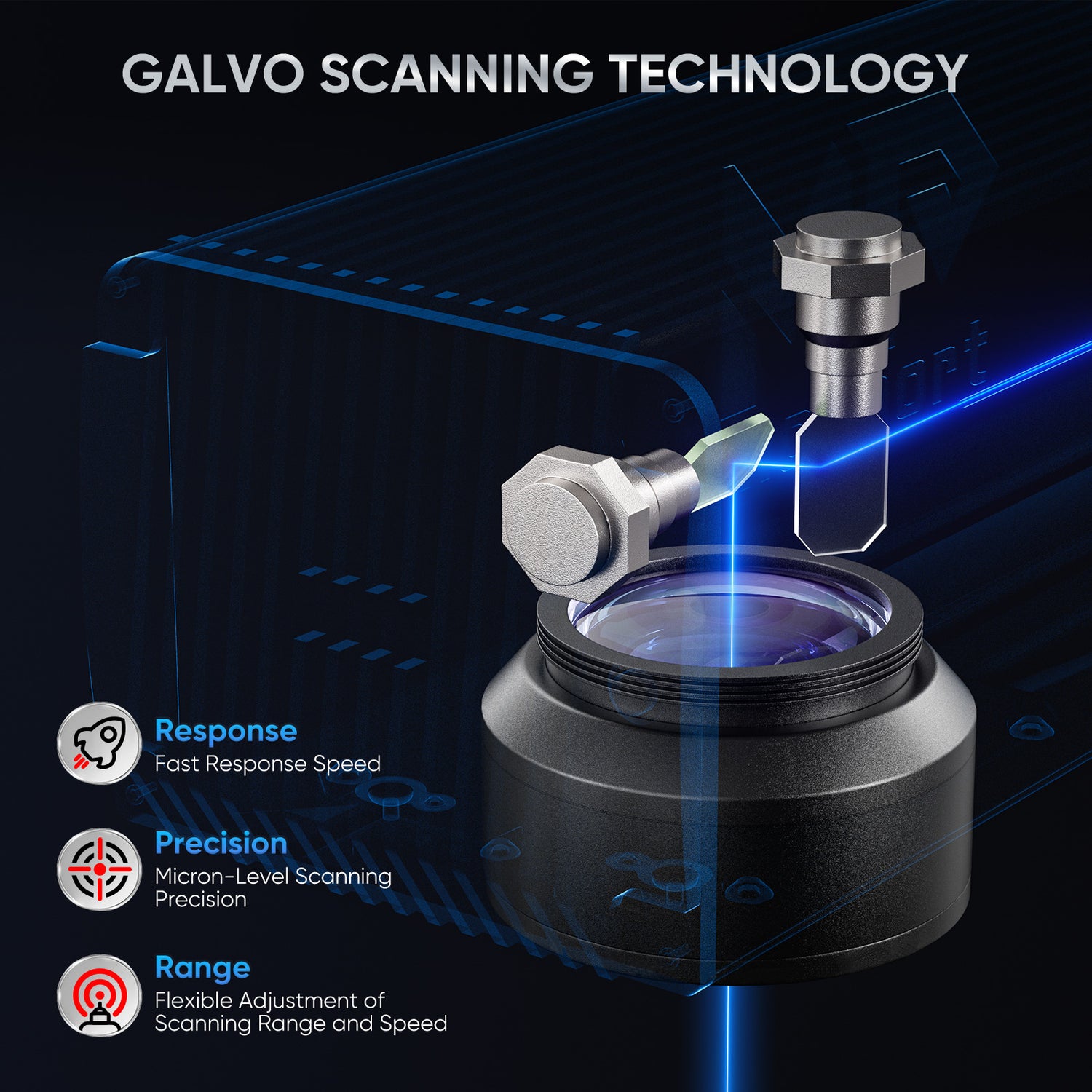

Galvanometer Scanning Technology

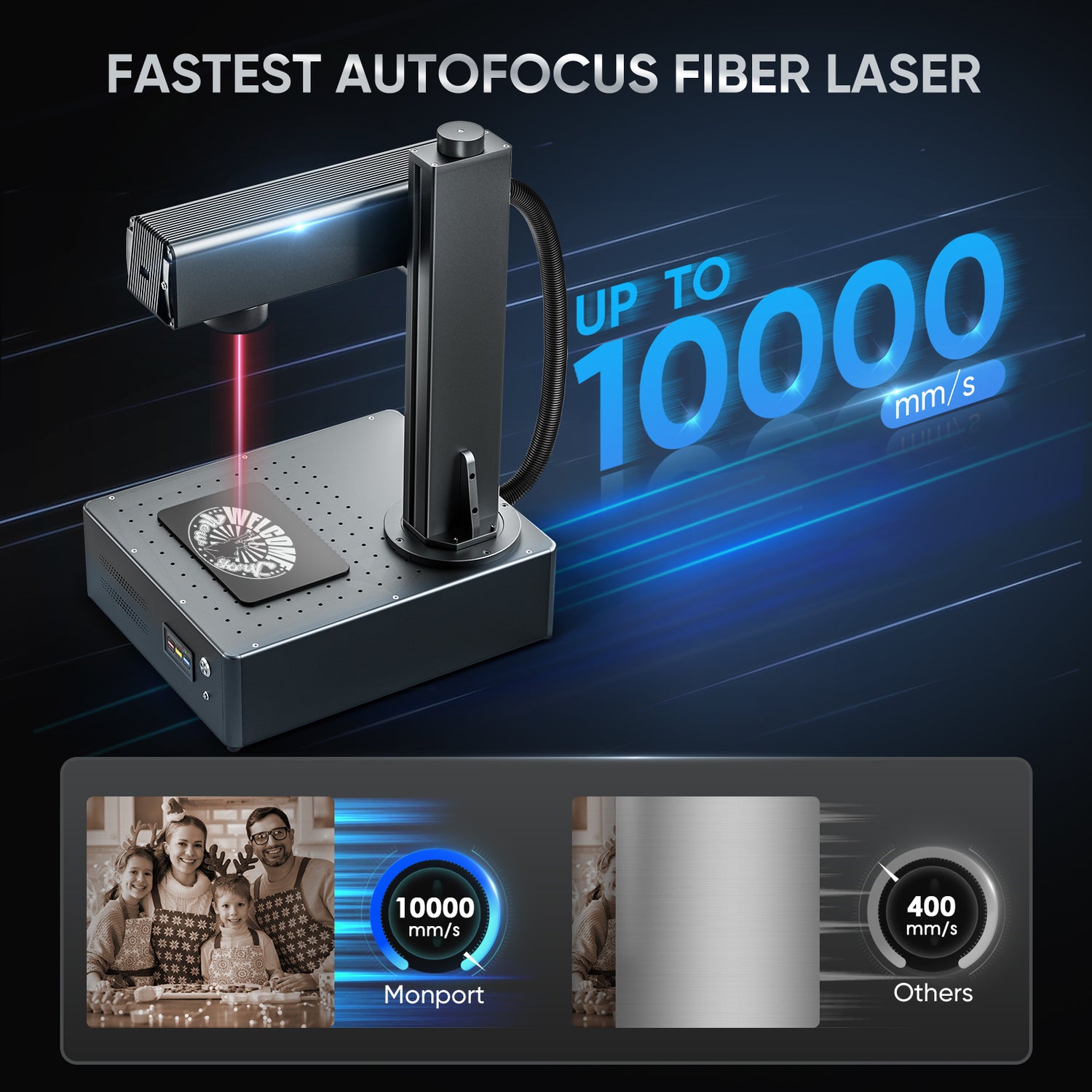

The Monport GA fiber laser is equipped with an advanced Galvo-Tech drive and scanning system, achieving marking speeds of up to 10,000 mm/s. It consistently delivers superior precision along with stable and rapid marking performance.
±90° Vertical Arm Rotation
The vertical arm provides a continuously adjustable range of ±90°. Users can fix it at any angle within this range, allowing for unlimited creativity in marking applications. Adjustment is easy and only requires loosening the screw without completely unscrewing it.

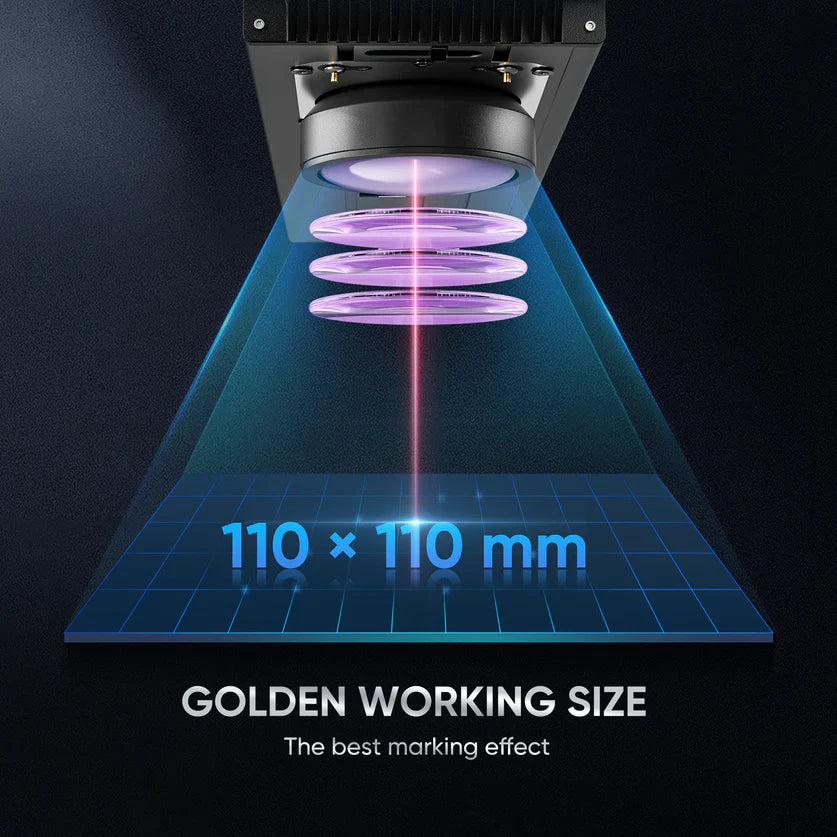

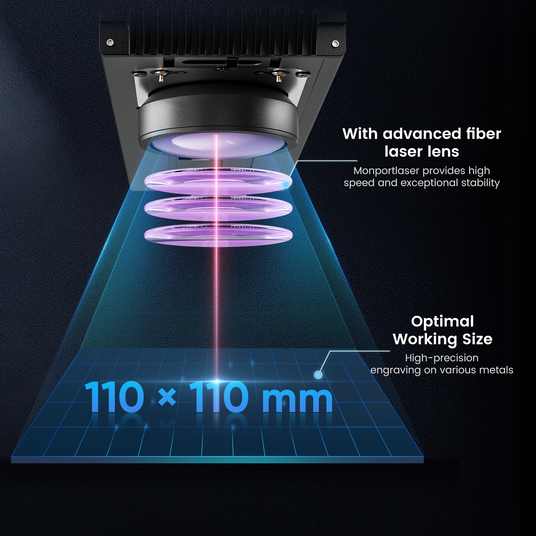

Optimal Working Size
The Monport GA fiber laser marking machine features a working size of 110x110 mm (4.3x4.3 inches), making it ideal for precise marking and engraving. This size allows for optimal marking results on various materials, including metals like stainless steel and aluminum.

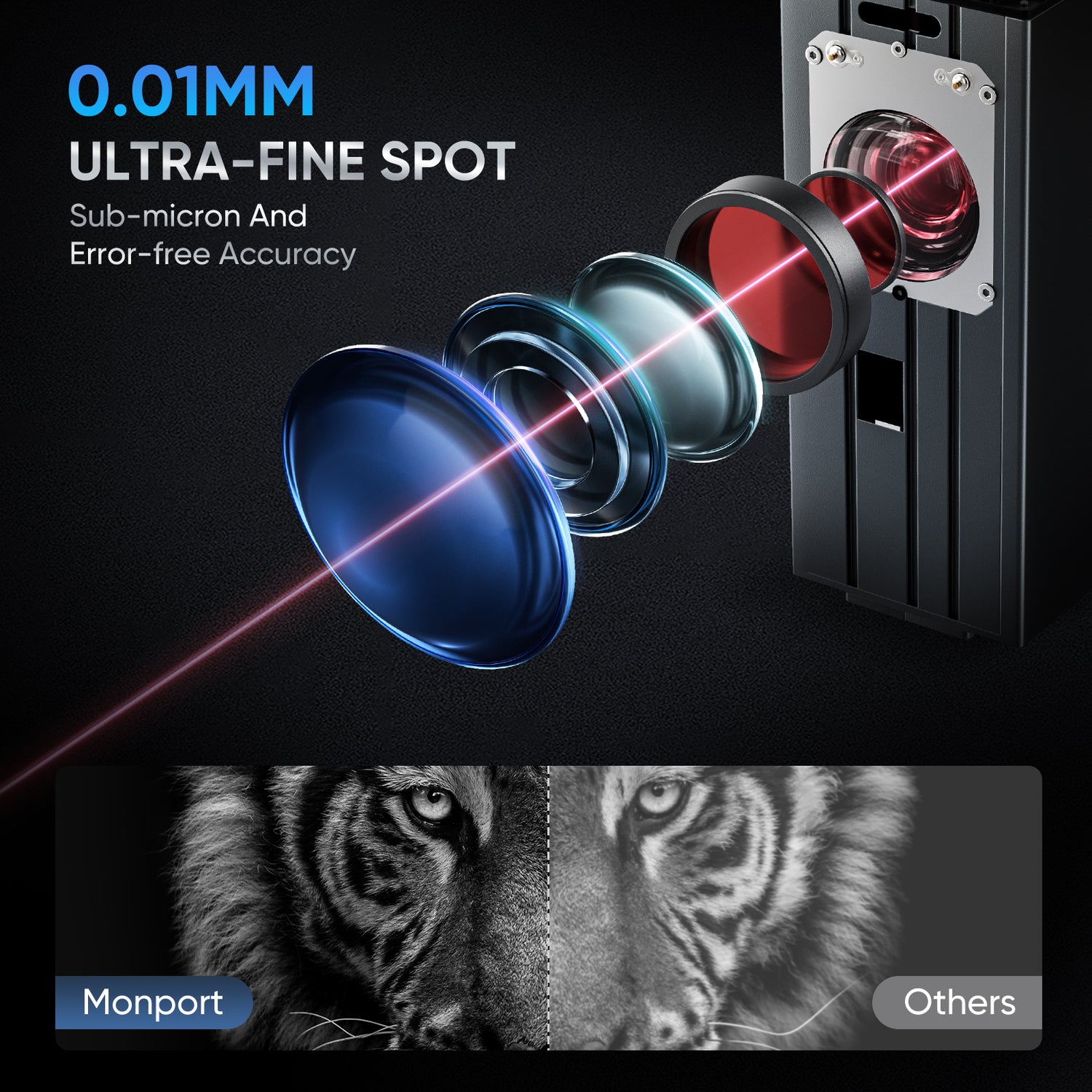

Sub-Micron Accuracy
The Monport GA fiber laser is equipped with a powerful 20W driver and 20W laser source, enabling precise marking and engraving on stainless steel, aluminum, and other metals, all while maintaining sub-micron accuracy and zero-error precision.

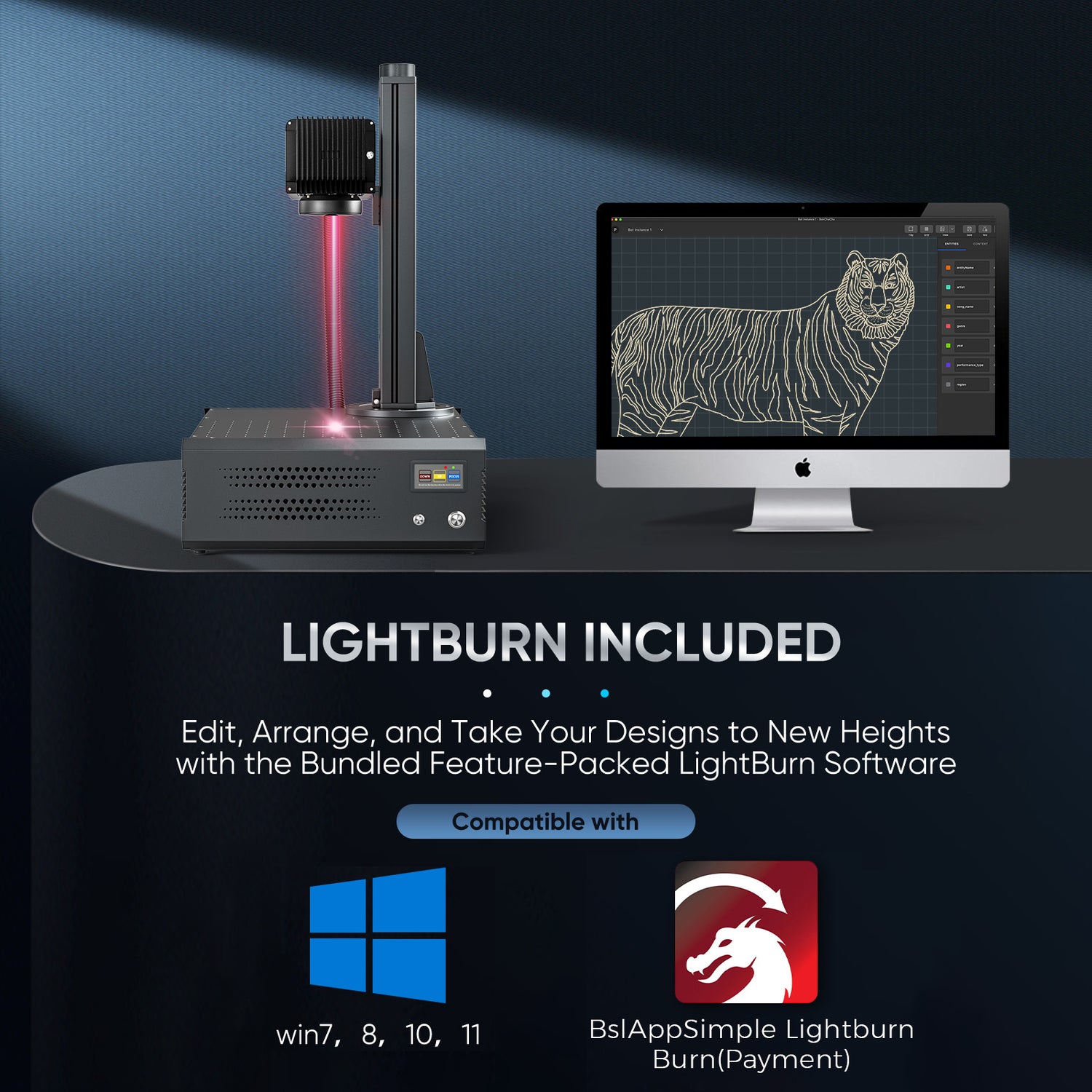

Compatible with LightBurn Software
LightBurn software allows you to edit and arrange your designs. This powerful marking and cutting control software is designed for laser and CNC applications and supports a variety of file formats. Its intuitive interface and extensive features enable you to easily create and customize designs for precise marking and cutting.
