Monport 60W CO2 Laser Engraver & Cutter (28" x 20") with Autofocus and Bracket
Monport 60W CO2 Laser Engraver & Cutter (28" x 20") with Autofocus and Bracket - Machine is backordered and will ship as soon as it is back in stock.
-
£469.99 -
64% offSold Out -
15% off£599.99
Couldn't load pickup availability
Product information
Product information
Power supply: 220-240 V; 50 Hz
Max. Engraving speed: 800 mm/s
Maximum cutting speed: 30 mm/s
Focus mode: Autofocus
Fire protection class of the PC cover: V-2
Certificates: CE
Product size(L×W×H): 49.2‘’ x 36‘’ x 36.2‘’(125cm x 91.5cm x 92cm）
Package size(L×W×H): 52.2‘ x 40.2’ x 45’ ( 135 cm x 102 cm x 114 cm )
Processing area(LxW):20‘’ x 28' ( 50 cm x 70 cm)
Pass-through dimension：27.5 ‘x3.7’(70cm x 9.5cm)
Max. Engraving depth: 10mm
Min. engraving depth: 0.01 mm
Scope of delivery
Scope of delivery
1 × 60W laser engraving machine
1 × water pump
2 × water pipes
1 × exhaust pipe
1 × USB stick
1 × USB cable
1 × Ethernet cable
2 × laser key
2 × Access key
1 × User manual
1×A pair of laser safety goggles
1×Accessory bag
1×hexagon spanner
1×Double-sided adhesive tape
2×Mains cable
1×Silicone sealant
1×stainless steel clamp
Features
Features
Fireproof viewing window
This viewing window is made of special fire-resistant polyester with an iron frame. The melting point of this polyester is between 432 °C and 488 °C and the ignition temperature is over 1000 °C, which can reduce the possibility of fire accidents caused by the laser burning of the materials.
Closed aviation aluminium rail
The rail is equipped with X and Y stepper motors, with efficient power transmission and high precision. The closed rail design avoids smoke and dirt and extends the service life of the rail unit.
Free laser safety goggles
Lasers emit radiation in the invisible form of light. These laser safety goggles are certified to protect your eyes from radiation damage if you look into a Class 4 laser in any way (directly, indirectly or even by looking at the laser dot on a surface can damage your eyes).
Digital Controller compatible with LightBurn
Powerful DSP and FPGA processors ensure precise and fast processing of complex details and files with a huge size of up to 256 MB.
Compatibility with the widely used LightBurn software (sold separately) and free RDWorks
High speed and resolution
The engraving speed is up to 800 mm/s;
The resolution is up to 4500 dpi;
3 LED light strips above the work table provide illumination and precision;
2.0’ focal length provides high resolution for engraving small lettering
Built-in Air Assist system
A built-in air assist system directs a stream of pressurised air through the laser head nozzles to remove contaminants, heat and flammable gases from the engraving surface and laser beam path for more precise engraving.
3 ways to connect to the PC
Two USB ports offer options such as flash drive connectivity and a USB-to-USB PC connection. An Ethernet port is also available for connectivity.
Red dot guide
The red dot indicates the position of the laser head, marks the working path and frames the project sizes to give you more comfort and orientation.
Automatic safety sensors
The safety shut-off sensor stops the machine even when the window cover is switched on. After closing, press the ‘Enter’ button to resume operation.
Warranty&Certifications
Warranty&Certifications
2 years parts warranty
12 months warranty on laser tube and power supply
CE Certified
Free shipping within UK
Free shipping within UK
UK Delivery time: 3-7 working days
Boost Your Productivity
An engraving speed of up to 800 mm/s not only increases productivity but also enables optimized mass production.

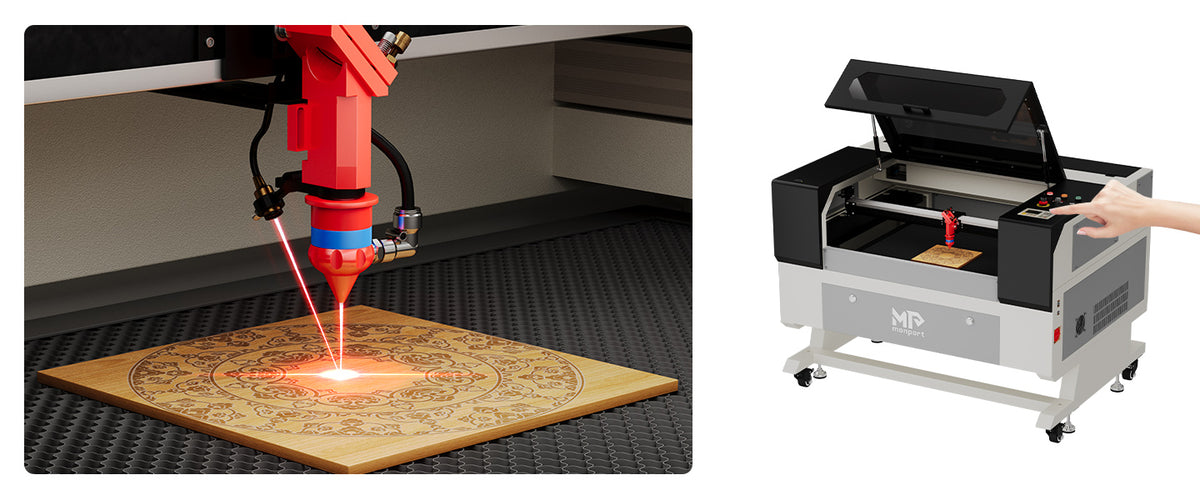

One-Touch-Autofokus
One-touch autofocus: Eliminates tedious manual adjustments and trial and error. Thanks to the motorized, height-adjustable work table, the laser can be effortlessly focused at the touch of a button.
Enclosed Aeronautical Aluminum Rail & Autofocus
The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units. Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment.

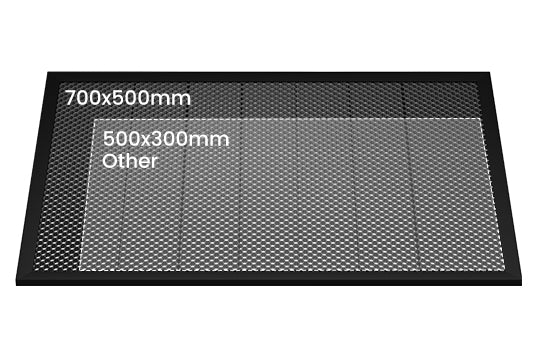

700mm x 500mm Processing Area
Our laser cutter allows you to process large-format objects as well as engrave and cut multiple workpieces simultaneously.
Dimensions (cm): L125 x W91.5 x H92
Working area (mm): 700 x 500
Pass-through dimension：27.5 ‘x3.7’(70cm x 9.5cm)

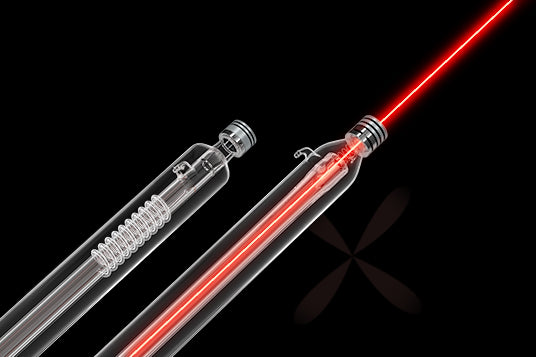

Powerful And Efficient Tubes
Our high-performance DC laser tubes deliver 60W of power with a lifetime of up to 1,000 hours, which can be doubled with continuous use at lower settings.

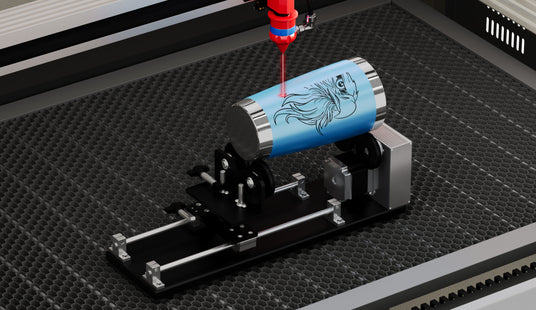

Compatible With Rotary Axis
This laser machine is compatible with any rotary axis available on the market and allows easy 360° engraving on cylindrical and round objects such as cups, bottles, flasks, tubes, pipes, bowls, bracelets and more!

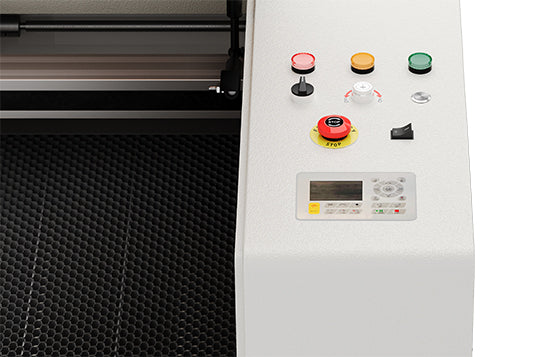

Digital Control Panel
The intuitive control center provides complete control of the laser head. You can easily pause or stop projects, adjust laser power and speed, and view production files.
Industrial-grade Processors And LightBurn Compatible
Powerful DSP and FPGA processors ensure precise and fast processing of complex details and files up to 256 MB in size.
Compatibility with the widely used LightBurn software (sold separately) and the free RDWorks
| Product Name | 60W CO2(400X600mm) | 60W CO2(500x700mm) |
| Wavelength | 10600nm | 10600nm |
| Laser Power | 60W | 60W |
| Rated voltage | 220V | 220V |
| compatible software | RDWorks,LightBurn | RDWorks,LightBurn |
| supported image formats | For RDWorks： *.ai *.pdf *.dxf *.nc *.plt *.svg *.rd *.cut *.dst *.dsb *.eps *.dat *.vd *.bmp *.rdb *.mng *.ico *.cur *.pcx *.wbmp *.wmf *.emf *.jbg *.j2c *.jpc *.pgx *.ras *.pnm *.pgm *.ppm *.ska *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga *.webp *.raw *.jpe *.jfif For LightBurn： Image files (*.bmp *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga *.webp) Vector files (*.ai *.pdf *.sc *.dxf *.gc *.gcode *.nc *.hpgl *.plt *.svg *.lbrn *.lbrn2 *.mage) |
For RDWorks： *.ai *.pdf *.dxf *.nc *.plt *.svg *.rd *.cut *.dst *.dsb *.eps *.dat *.vd *.bmp *.rdb *.mng *.ico *.cur *.pcx *.wbmp *.wmf *.emf *.jbg *.j2c *.jpc *.pgx *.ras *.pnm *.pgm *.ppm *.ska *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga *.webp *.raw *.jpe *.jfif For LightBurn： Image files (*.bmp *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga *.webp) Vector files (*.ai *.pdf *.sc *.dxf *.gc *.gcode *.nc *.hpgl *.plt *.svg *.lbrn *.lbrn2 *.mage) |
| System Supported | Windows / macOS | Windows / macOS |
| Engraving Area | 400x600mm | 500x700mm |
| Product Dimension | 112x75x64cm | 125x91.5x92cm |
| Z-Axis Movement | 150mm | 150mm |
| Net Weight | 95kg | 145kg |
| Max engraving speed | 800mm/s | 800mm/s |
| Focus mode | Autofocus | Autofocus |

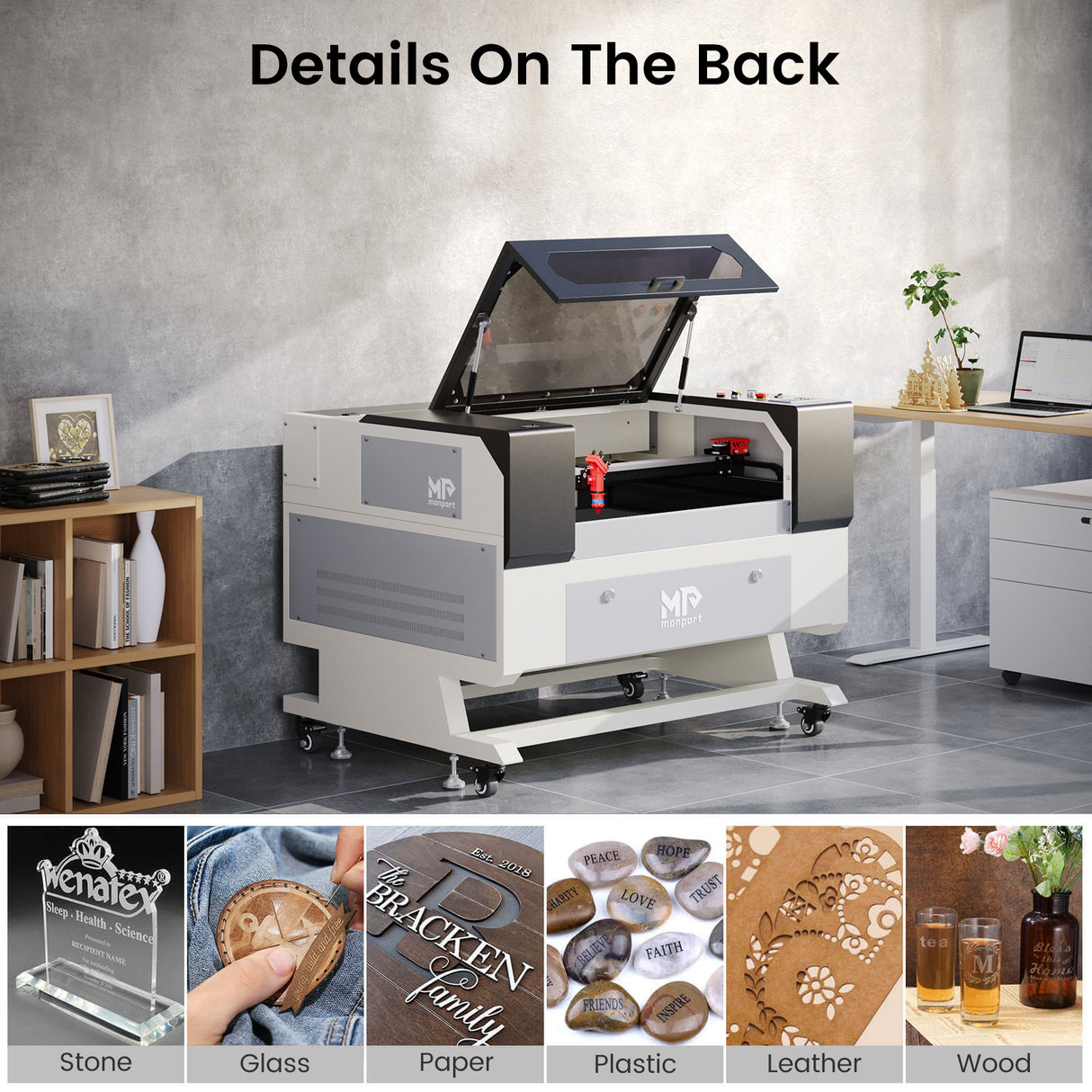

| Materials Suitable for Engraving | Wood, glass, acrylic, fabric, leather, paper, cardboard, rubber，etc | Wood, glass, acrylic, fabric, leather, paper, cardboard, rubber，etc |
| Expected Service Life | 2,000hrs | 2,000hrs |
| Warranty | 2Years | 2Years |
| Electric Lifting | YES | YES |
| Rotation Axis Function | YES | YES |
