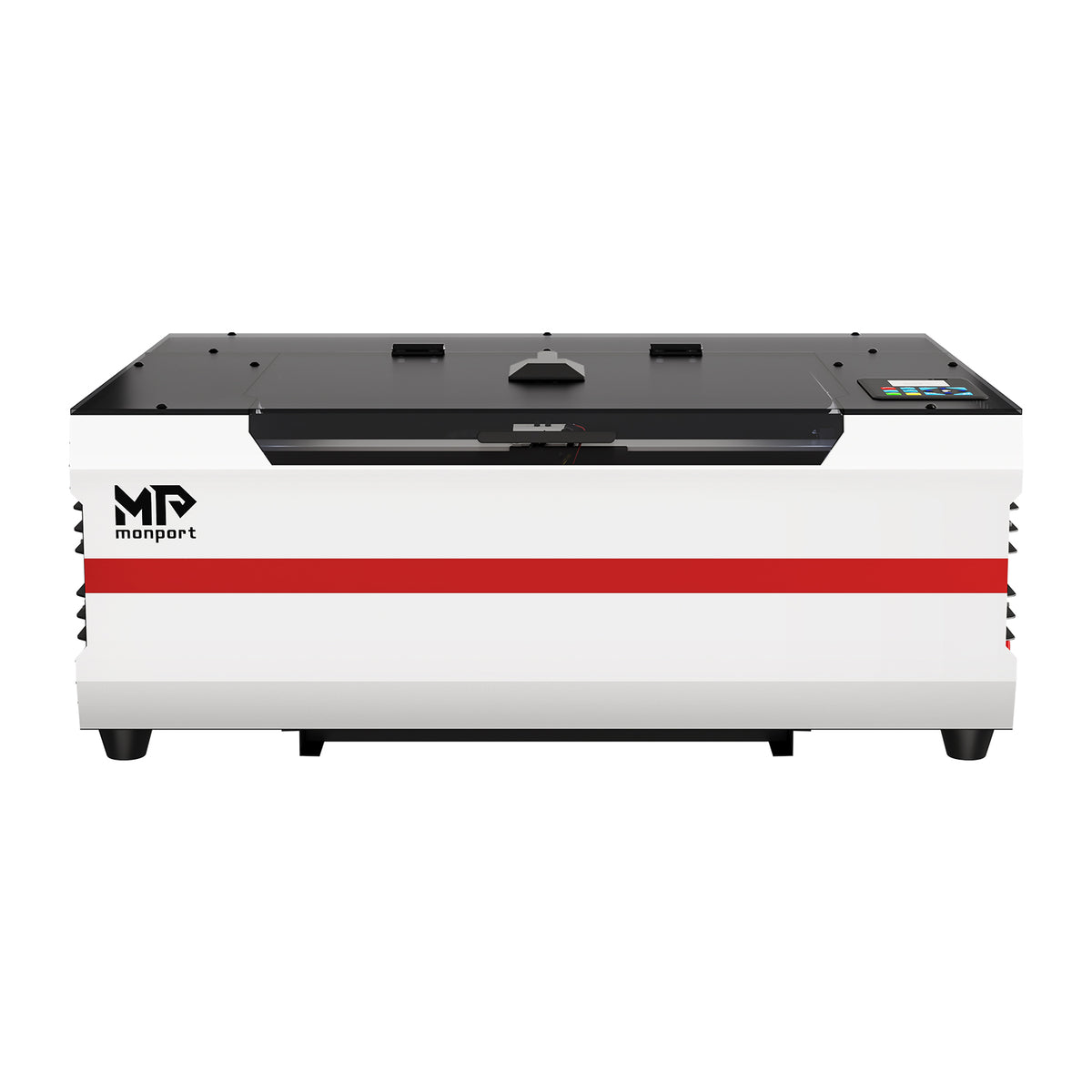

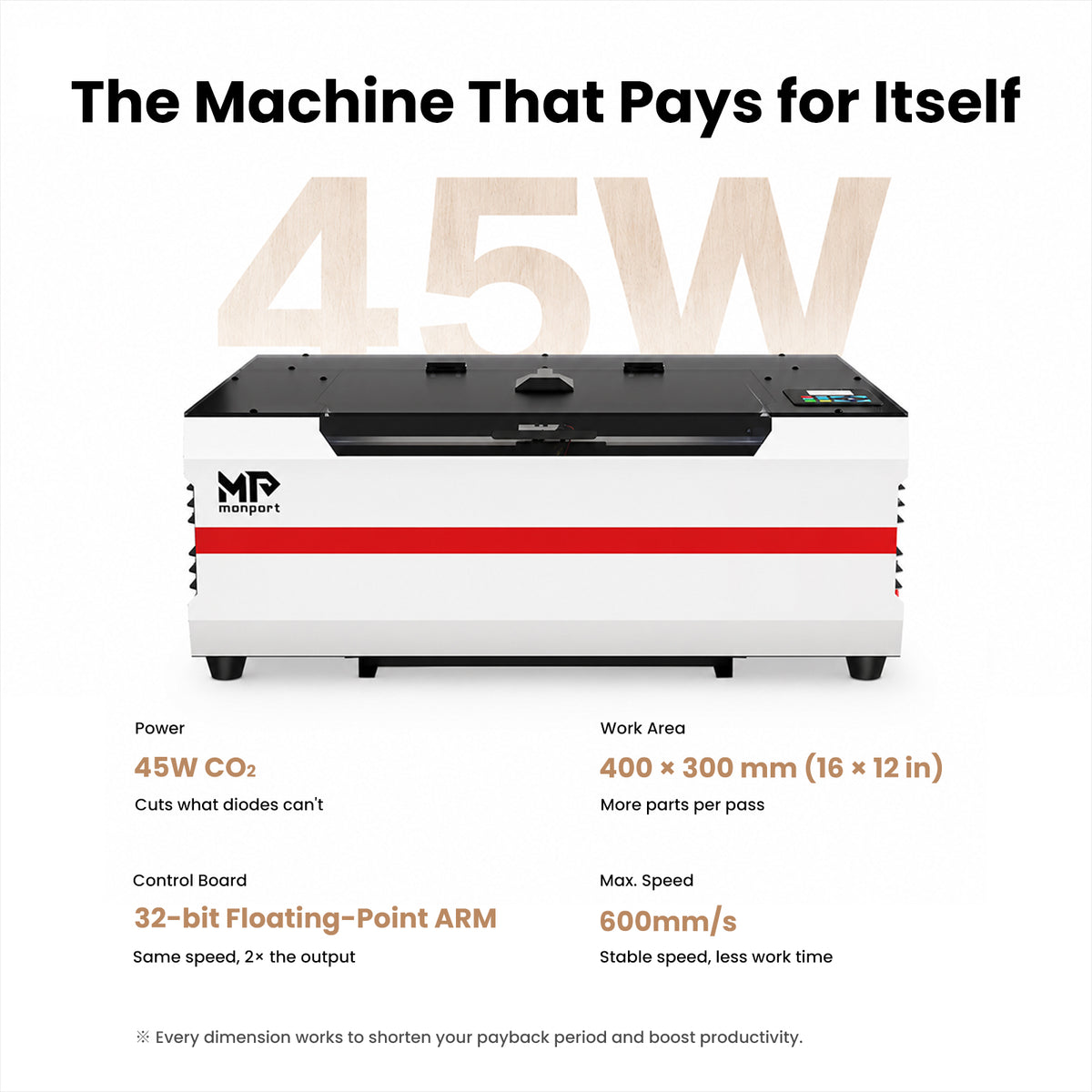

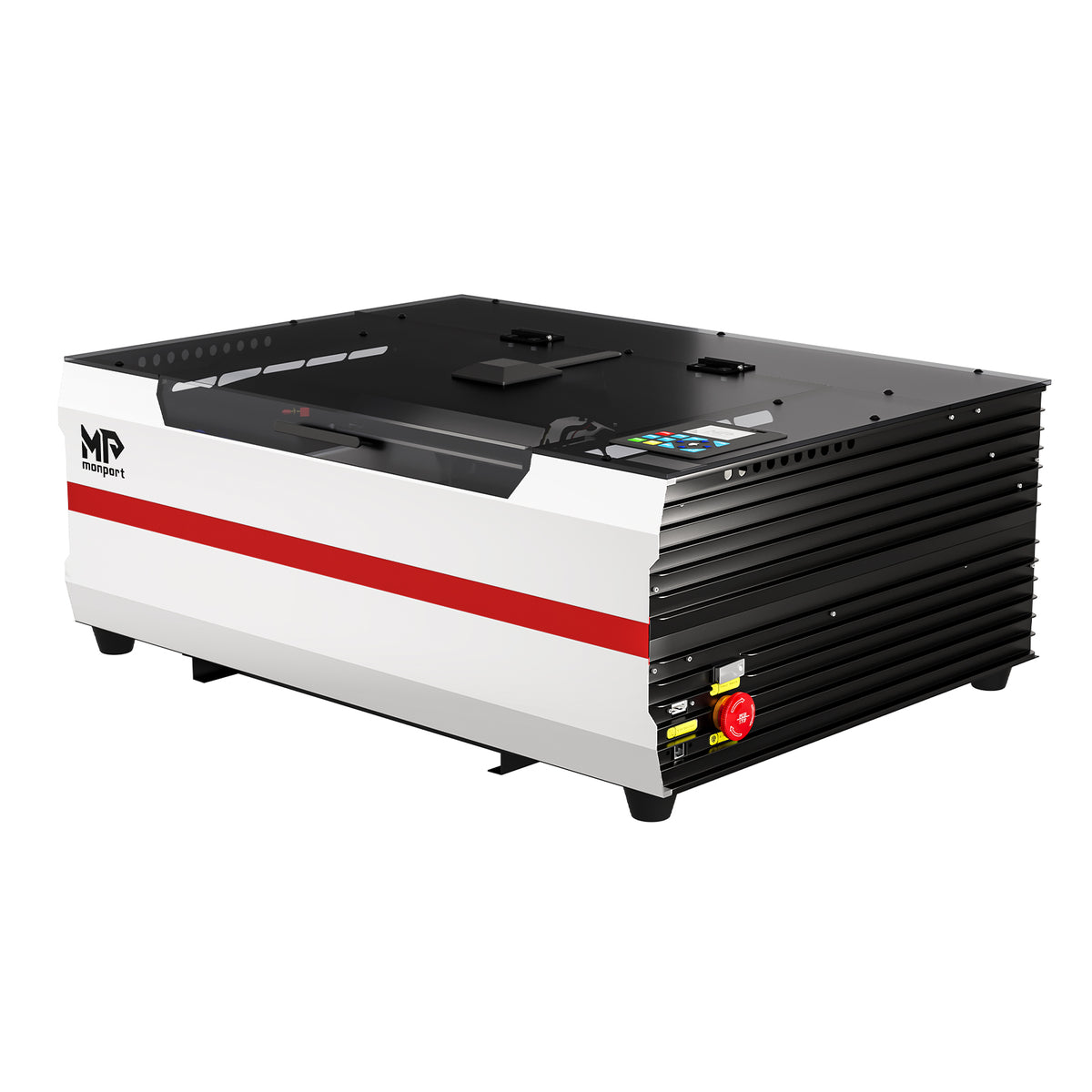

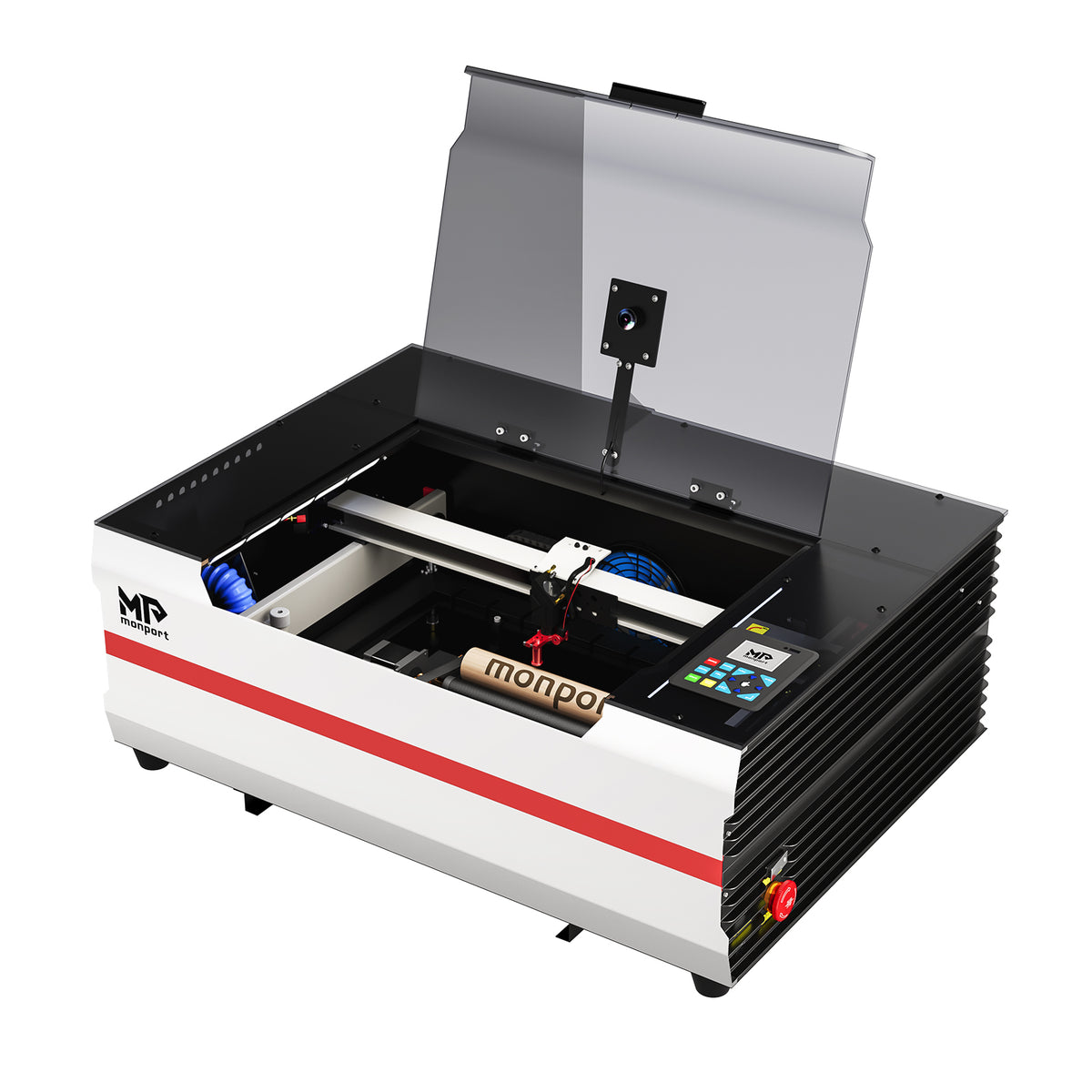

Monport Reno45 Pro Vision Upgraded 45W CO2 Laser Engraver & Cutter with Built-in Water Cooling & 8MP HD Camera

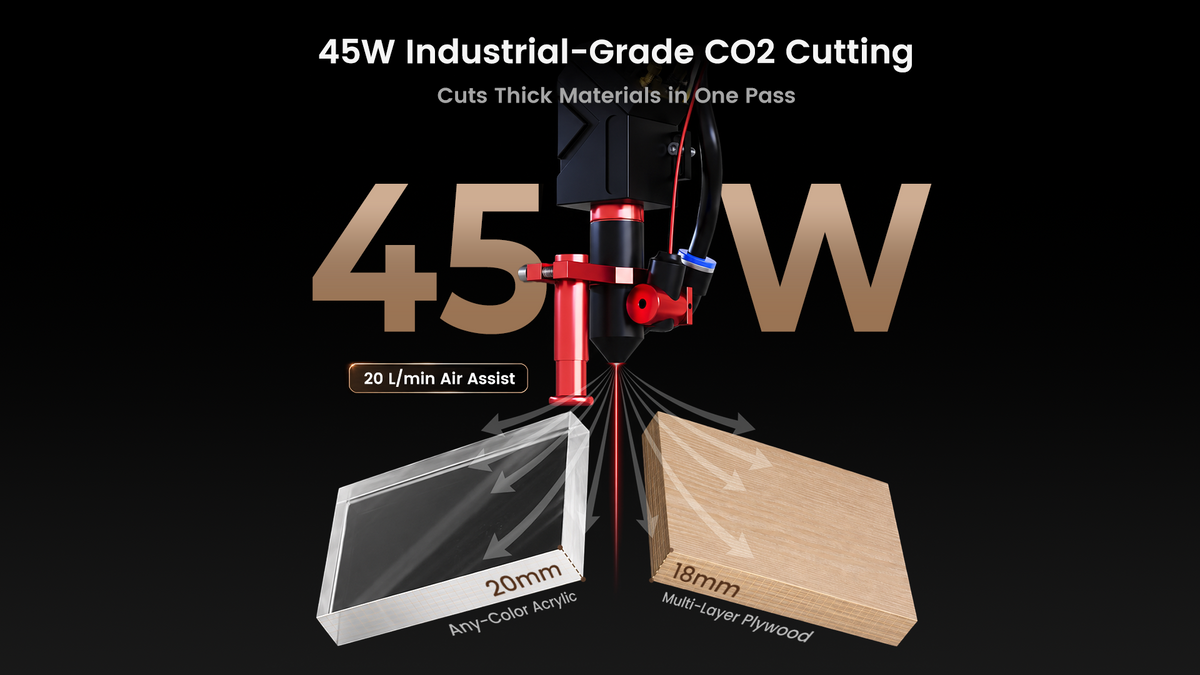

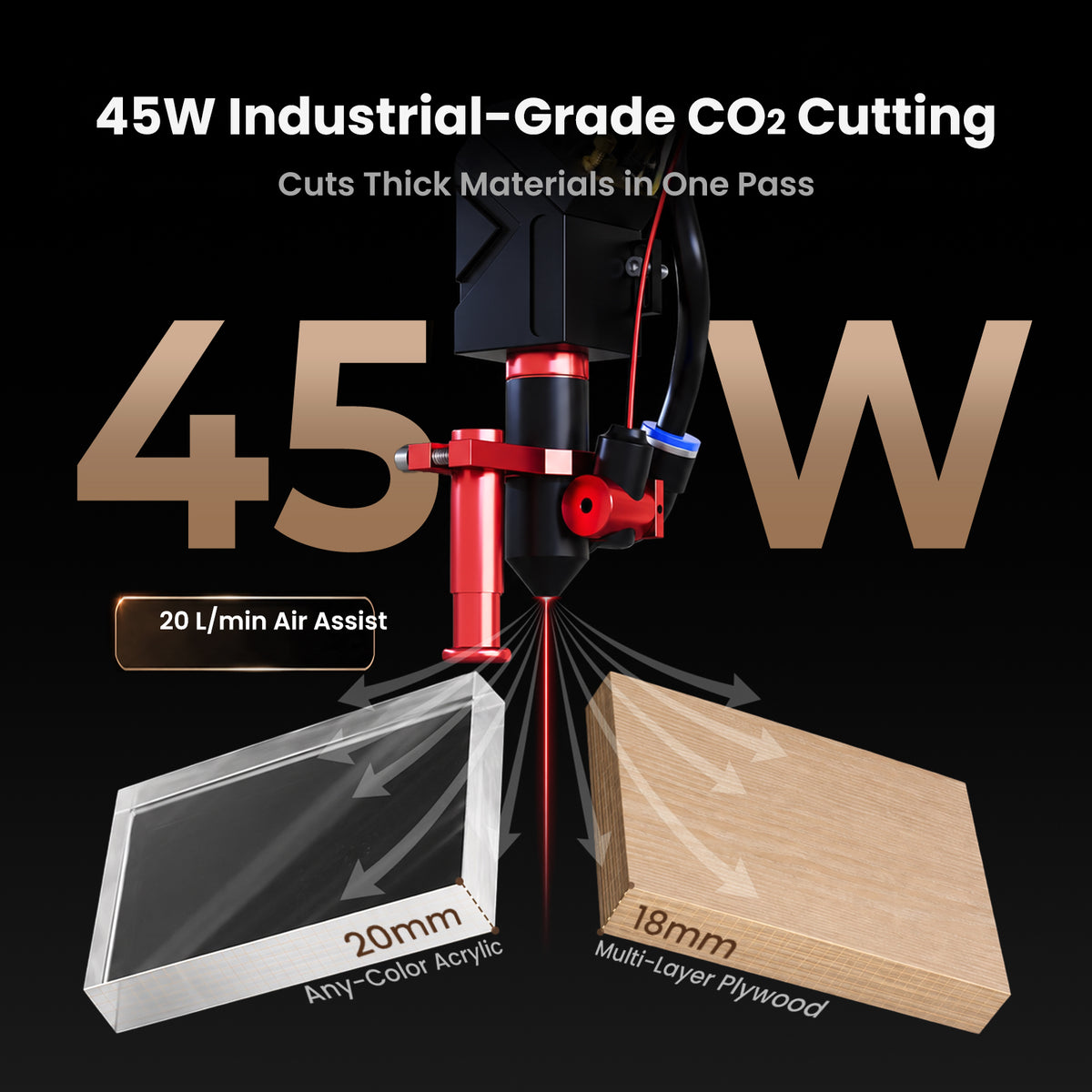

Rated Power:  45W

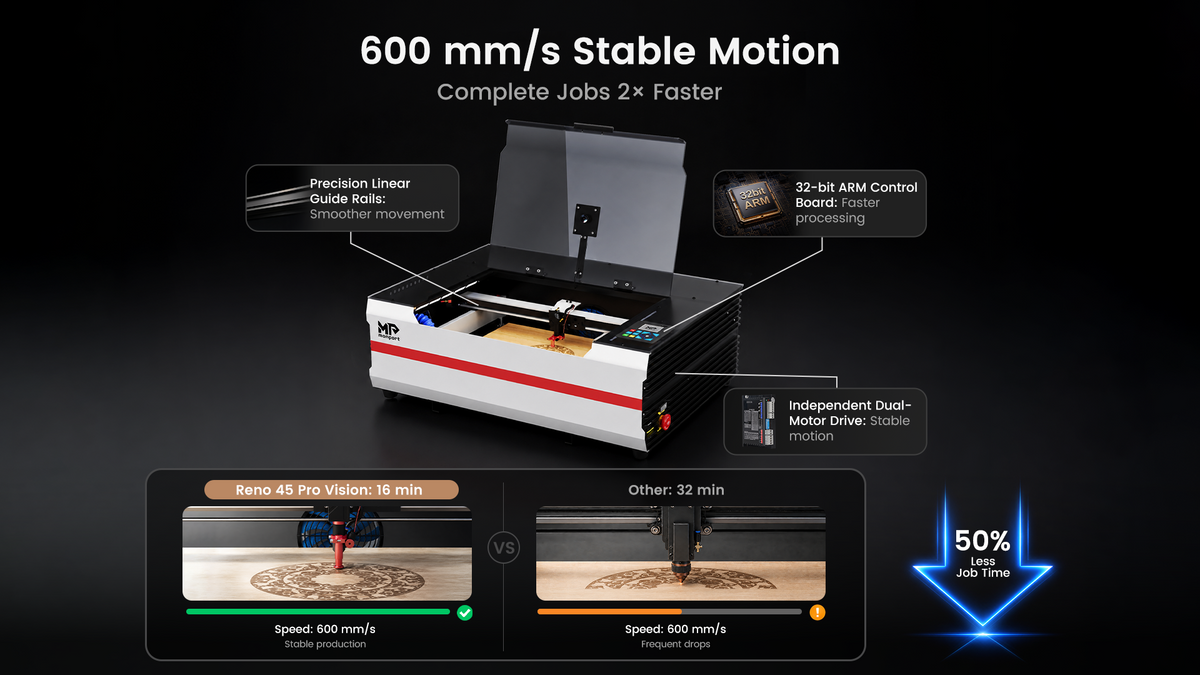

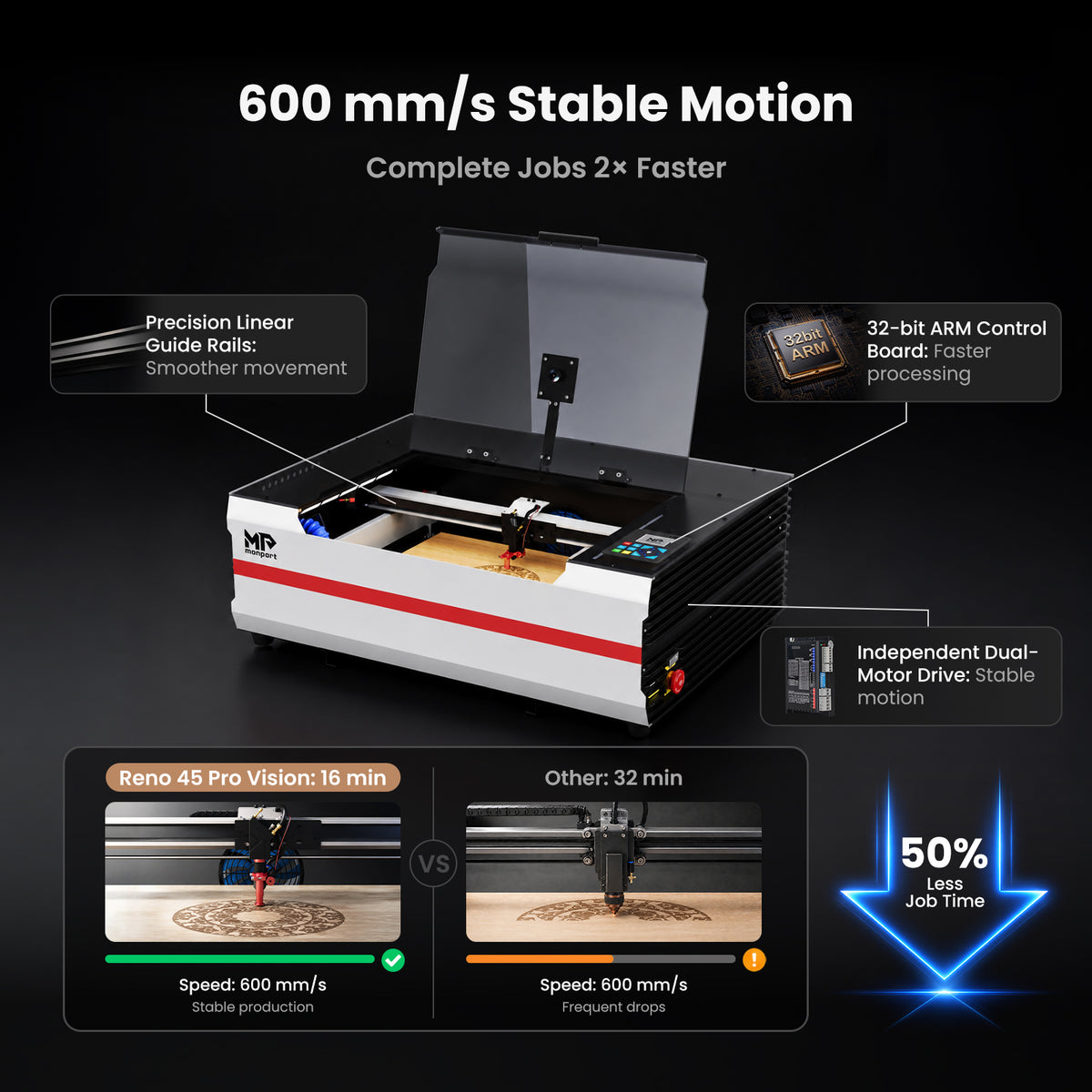

Max. Engraving Speed: 600mm/s(23.6ips)

Engraving Area: 16 x 12 in.(400x300mm)

Z-Axis Movement: 4 in.(100mm)

Front Pass-Through Size: 470 x 7mm

Focus Mode: Magnetic Assisted Focus
Est.

Laser Service Life: 3000 hr.

Max. Resolution: 1000 dpi

Camera: 8MP HD Camera

Cooling system: External Water Pump, Q-MAX: 800L/H

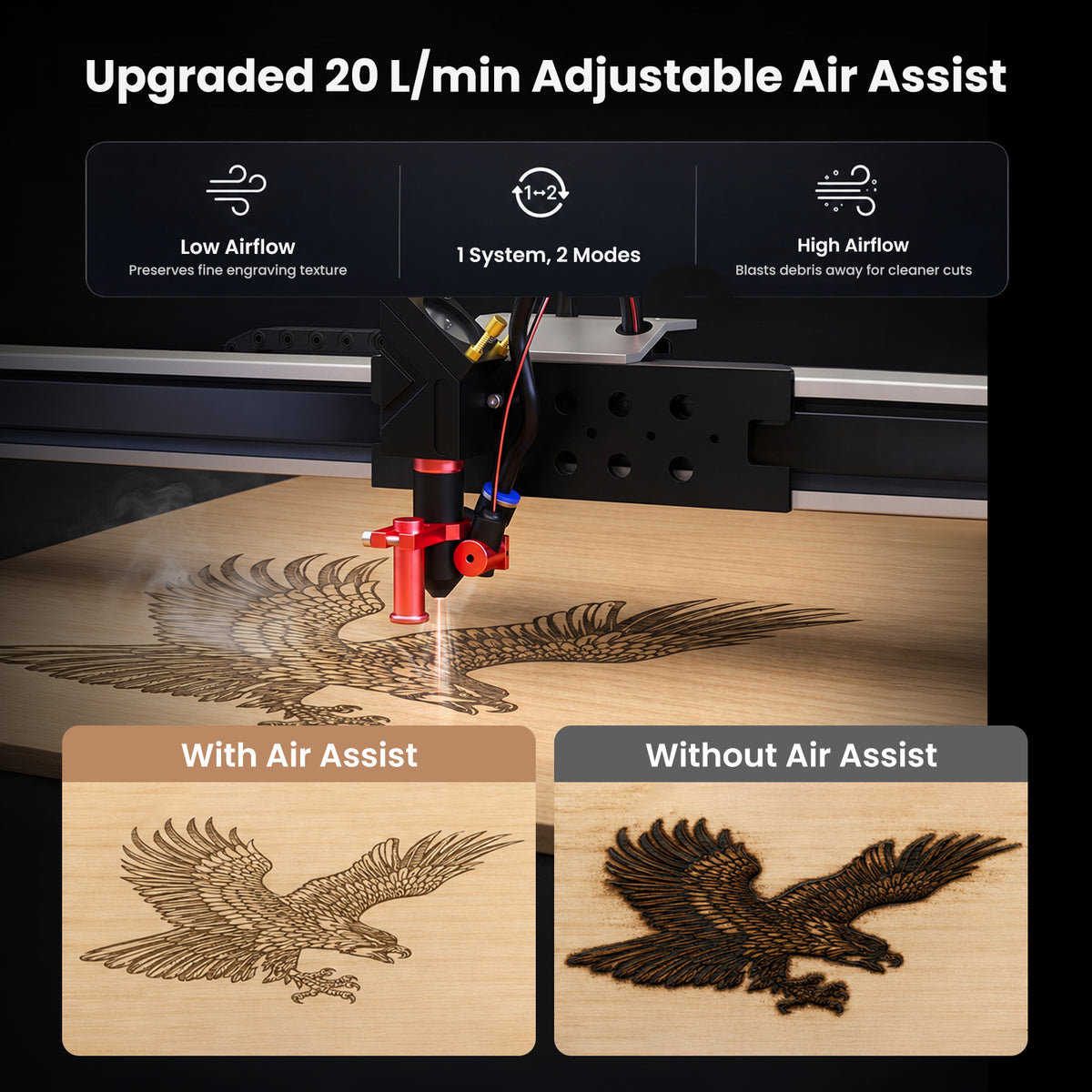

Air Assist: 18L/min(Adjustable Air Volume)

Working Table: Honeycomb Workbed：440*340mm, Blade Workbed：9pcs

Wavelength: 10600nm

Air Outlet Size: 100mm

Data Transmission: USB Cable, WiFi, U-DISK

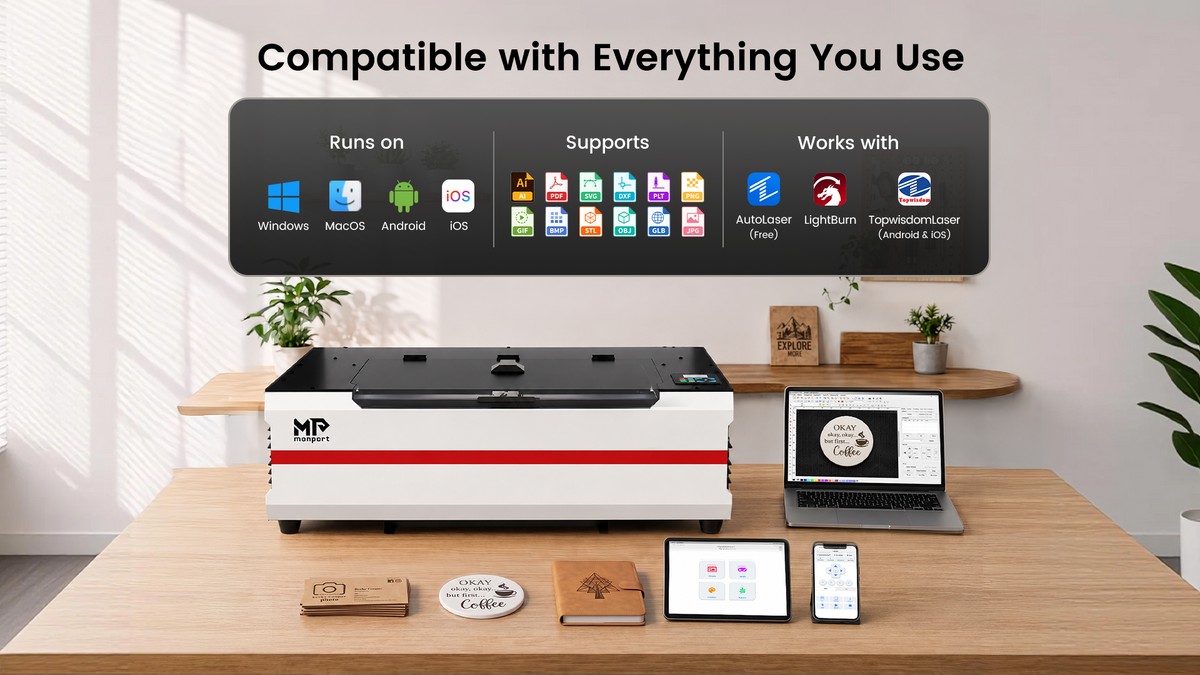

Compatible Software: LightBurn, Autolaser, TopwisdomLaser

Compatible Operating Systems: Windows, macOS, Linux, Android, iOS

Operating Ambient Temperature: 5-40°C (41-104℉)*If the temperature drops below 5°C (41℉), please add antifreeze.

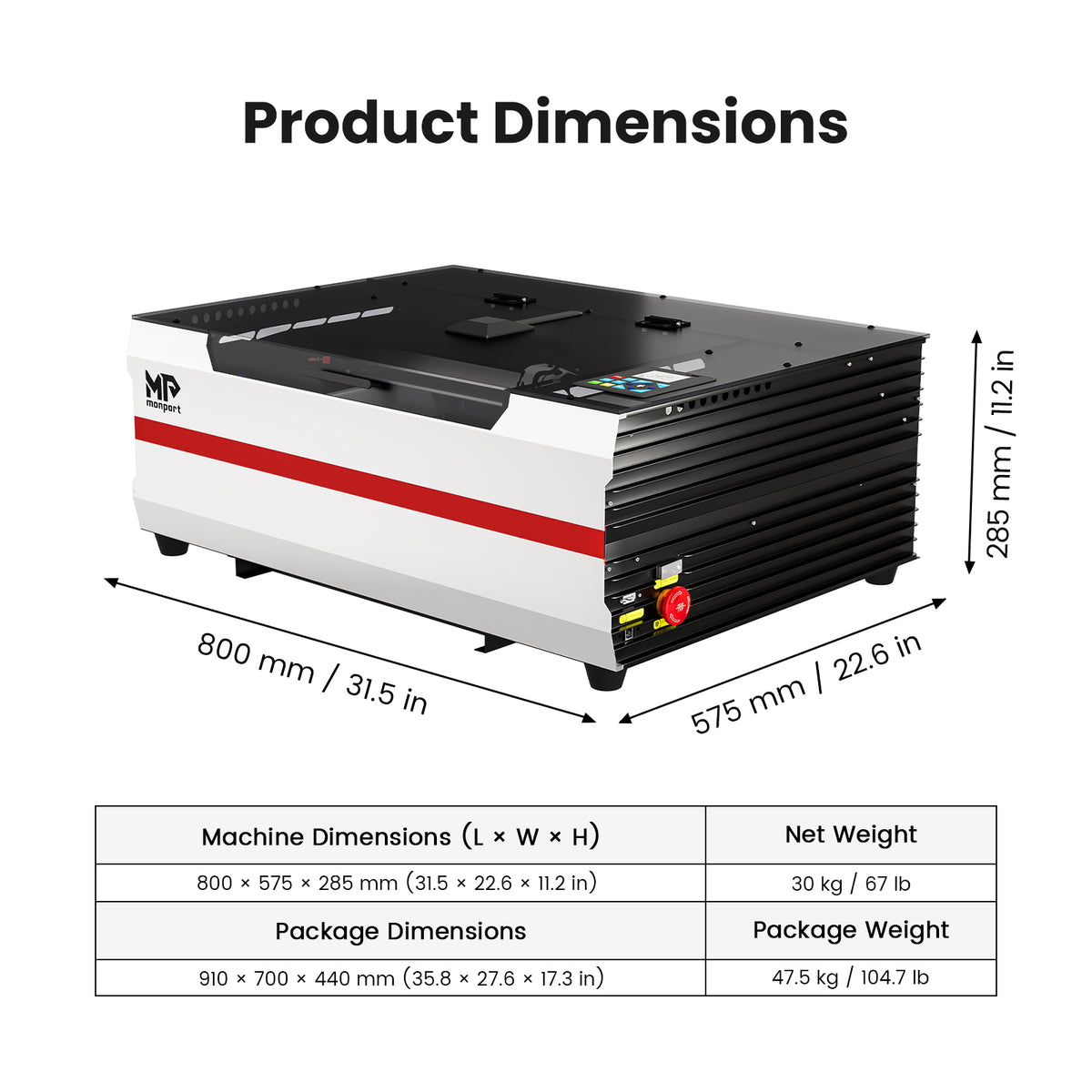

Product Dimensions: 800 x 575 x 285mm

Net Weight: 67 lb.(30kg)

Package Dimension: 91*70*44cm

Gross Weight: 105 lb.(47.5kg)

Certification: CE

Warranty: 2 Years (6 Months for Parts)

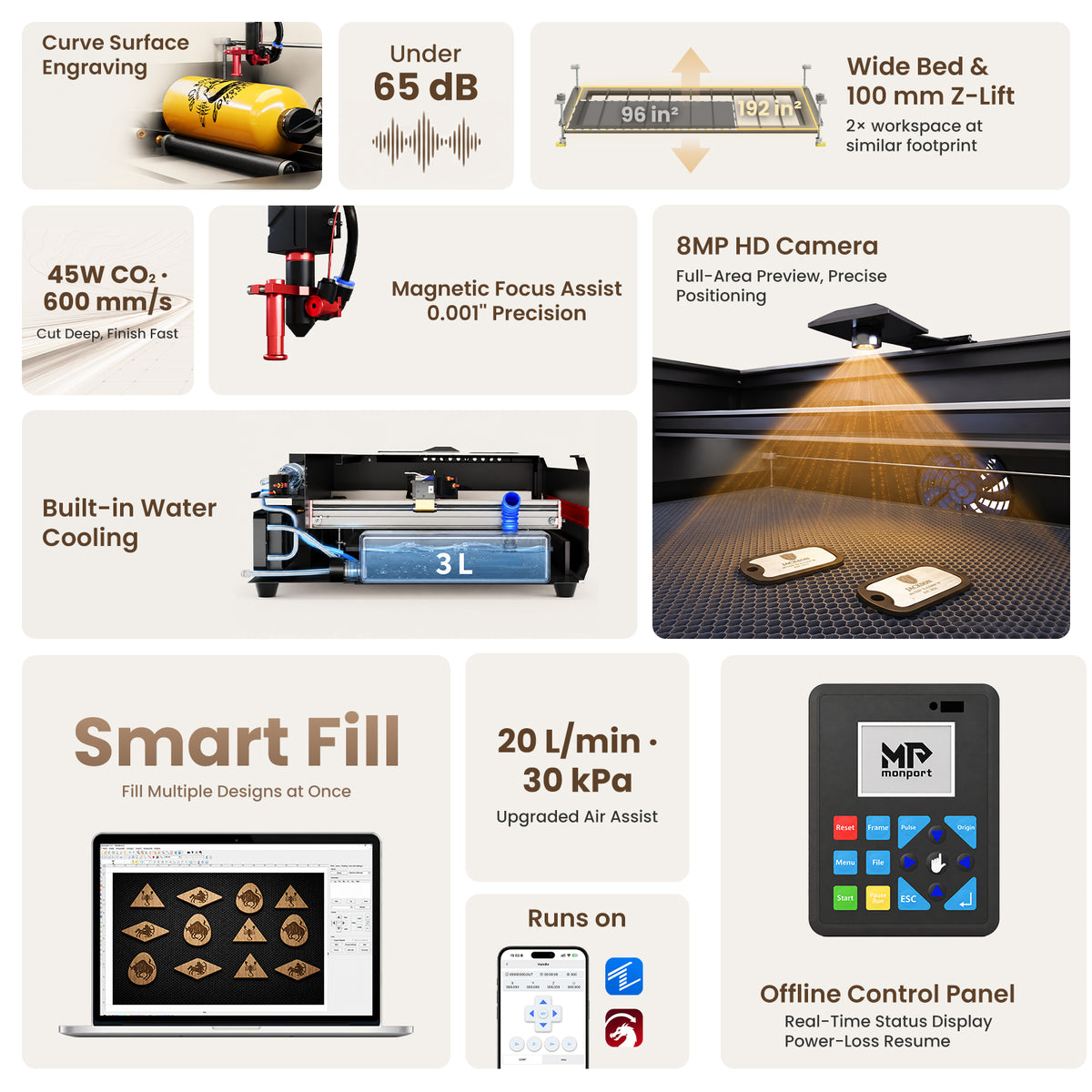

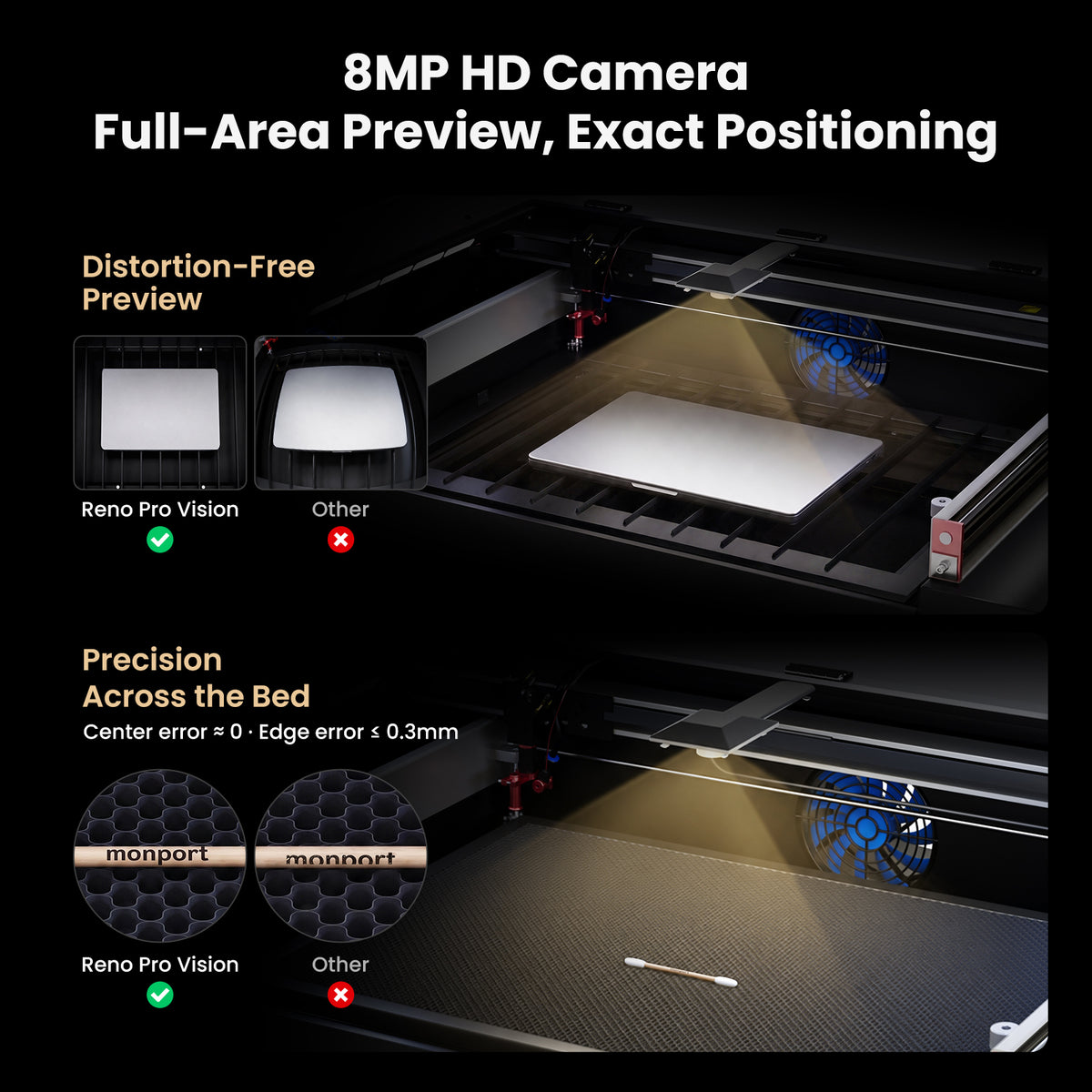

01｜8MP HD Camera Vision System
Capture your workspace in high definition, preview designs directly on materials, and achieve more accurate positioning before engraving.

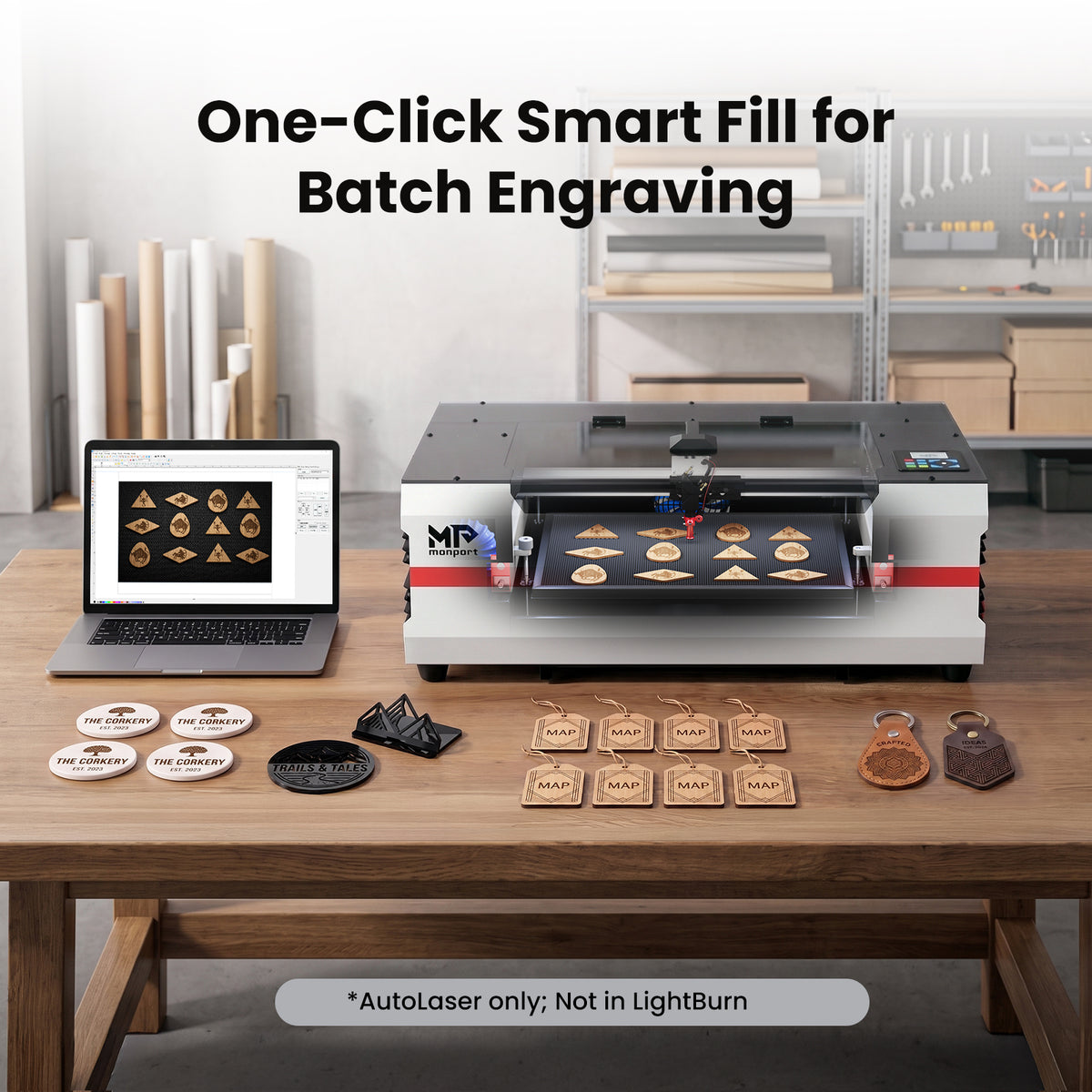

02｜Smart Filling for Efficient Batch Production
Automatically recognize layouts and fill multiple designs at once. Save templates for repeated jobs and improve production efficiency.

03｜Magnetic-Assisted Autofocus
Fast, simple and precise focusing with magnetic feedback and up to 0.001" focusing accuracy.

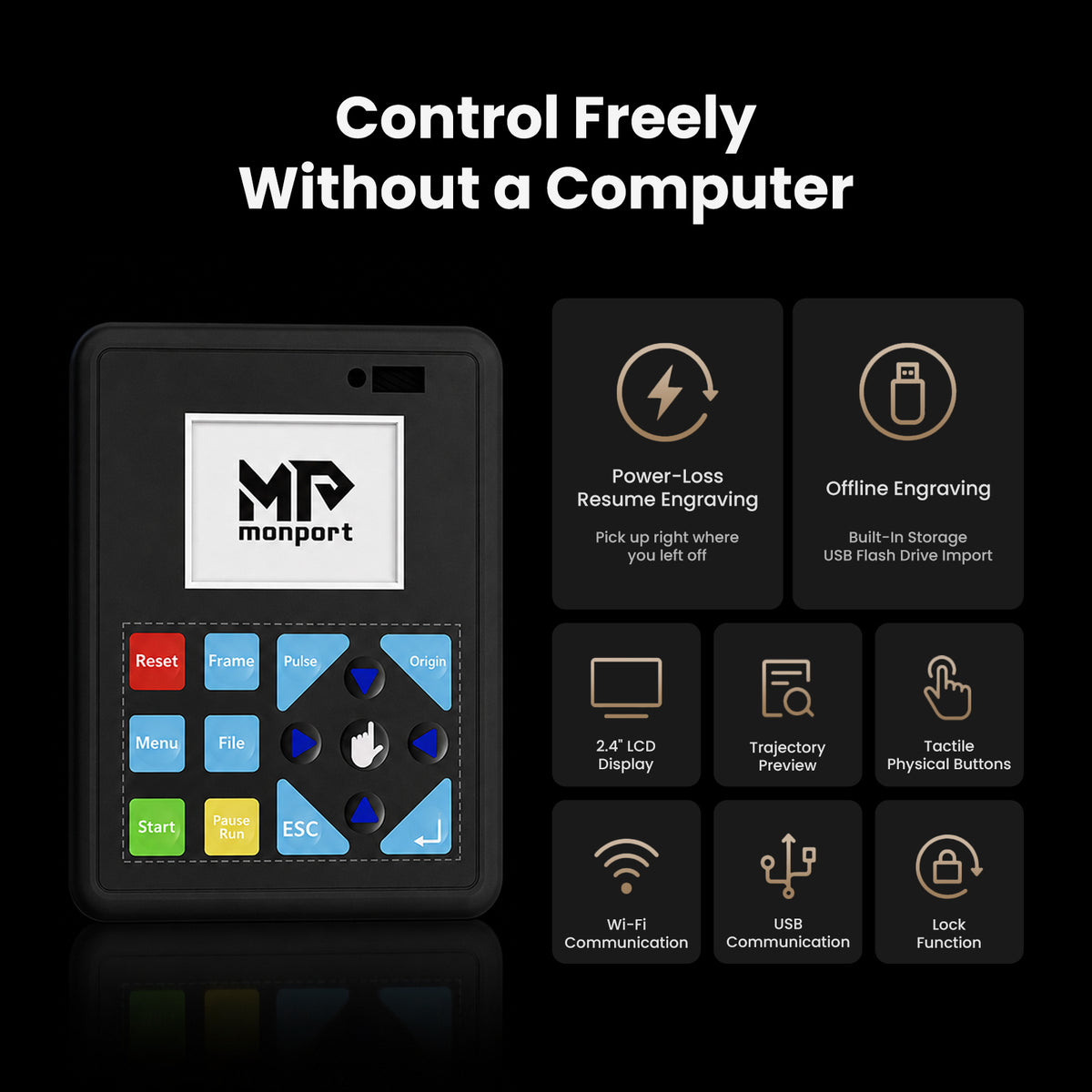

04｜Smart Control, No Computer Required
2.4" color display, 15 physical buttons, built-in storage and USB direct input enable convenient standalone operation.

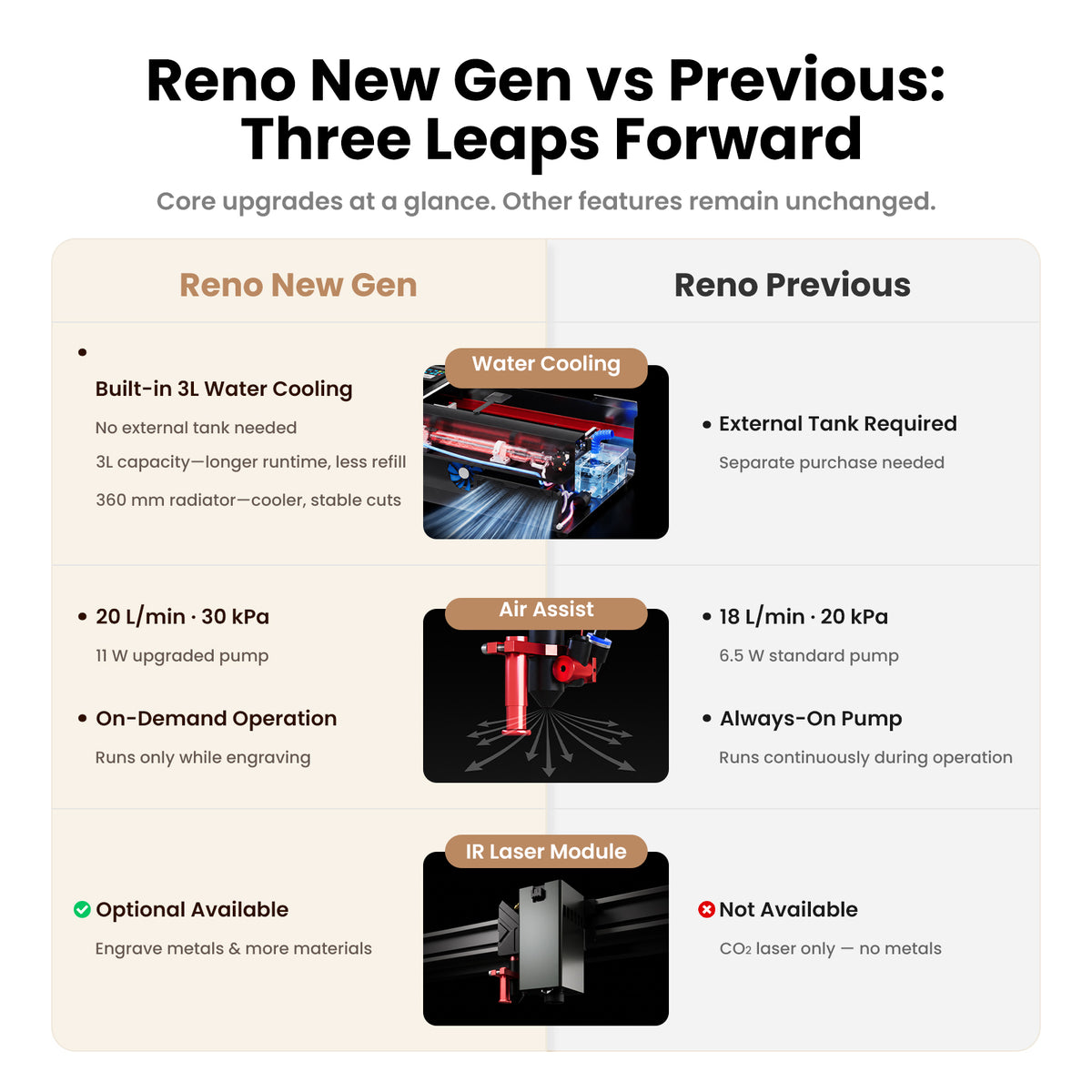

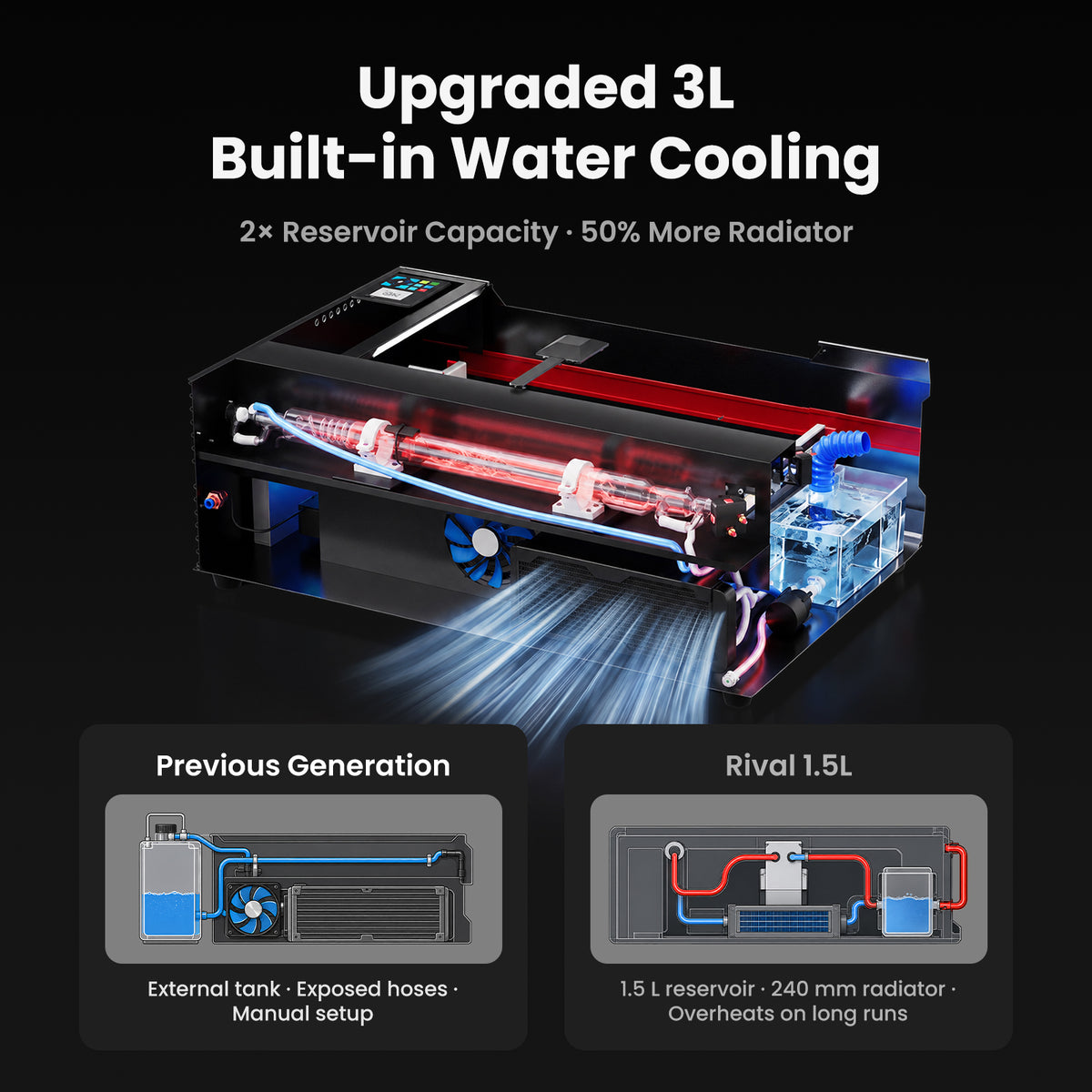

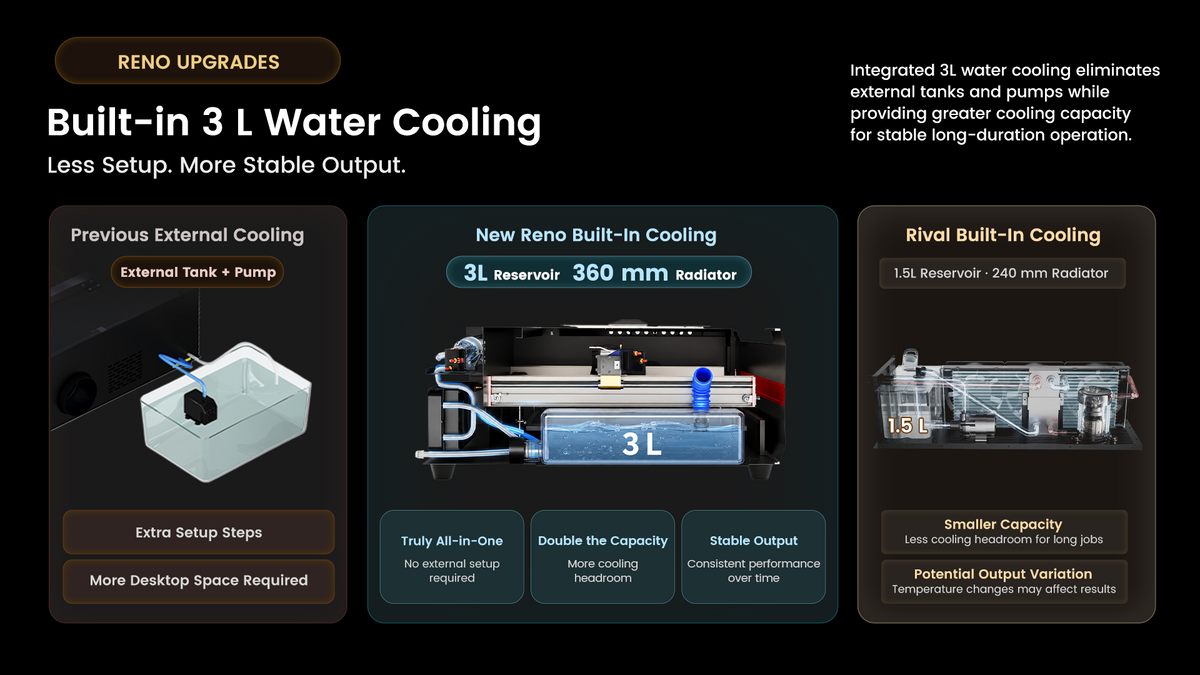

05｜Upgraded Built-in Water Cooling
Built-in 3L water cooling system provides stronger heat dissipation and more stable laser performance for longer, more reliable operation.

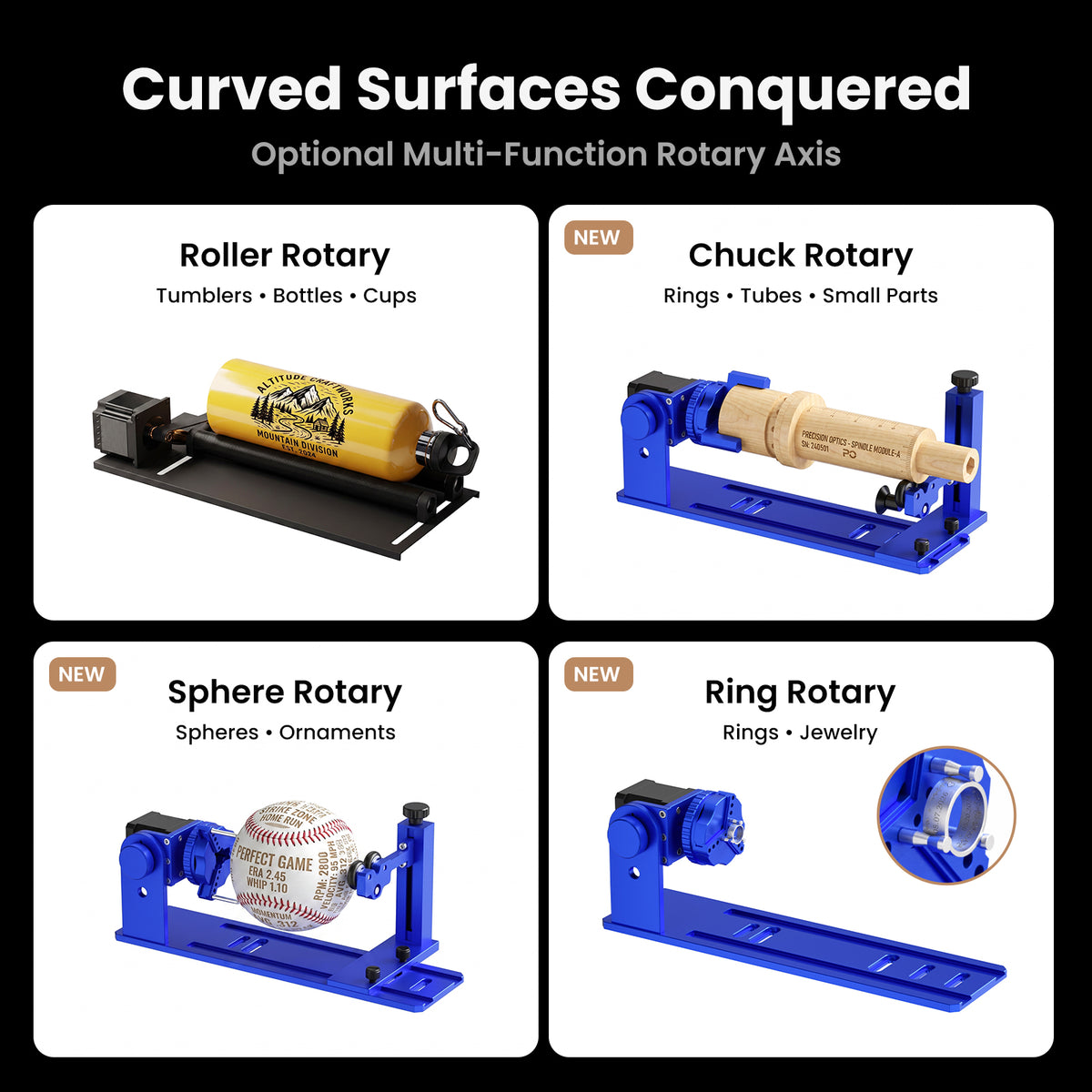

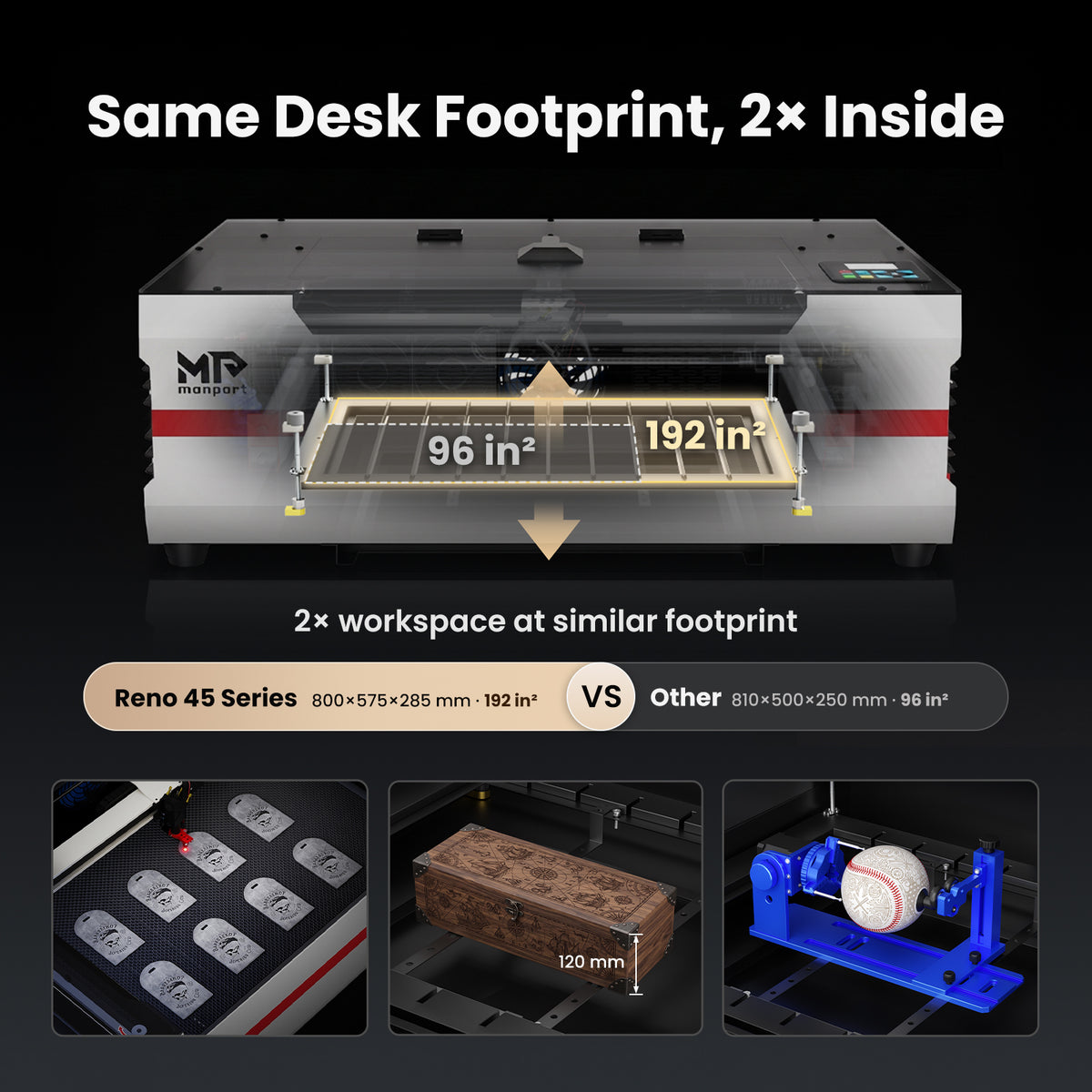

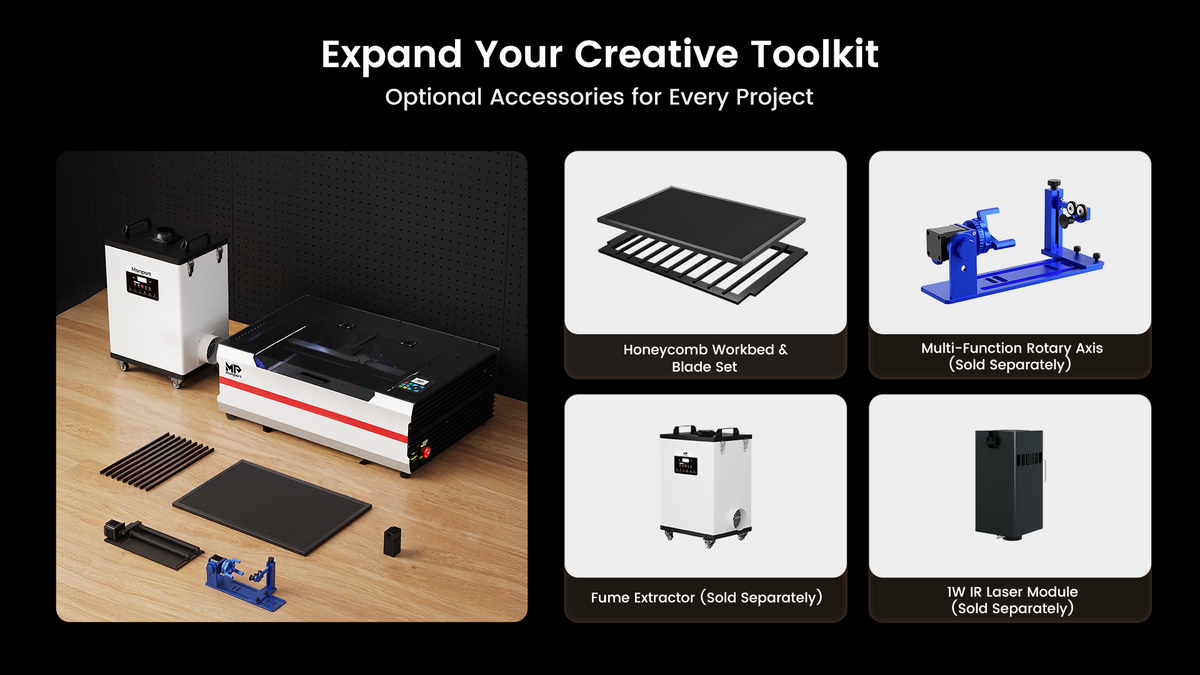

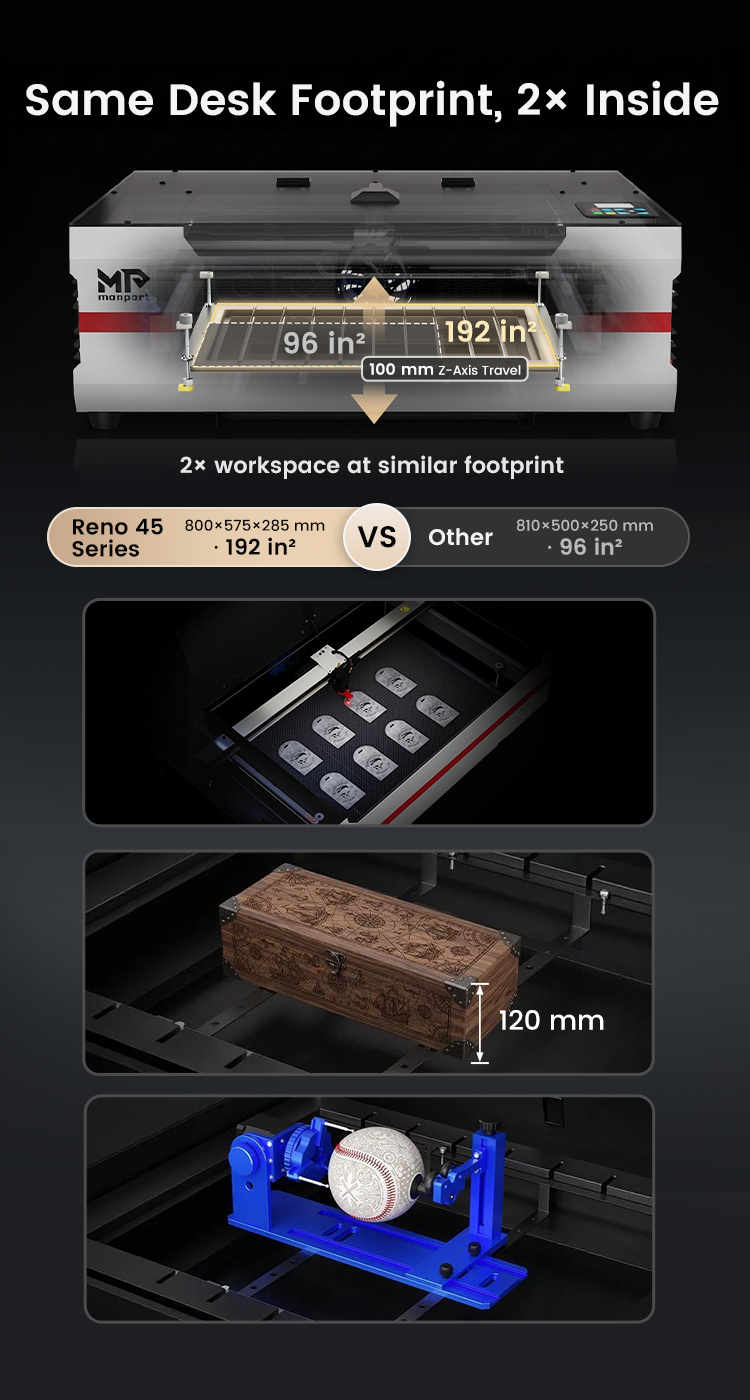

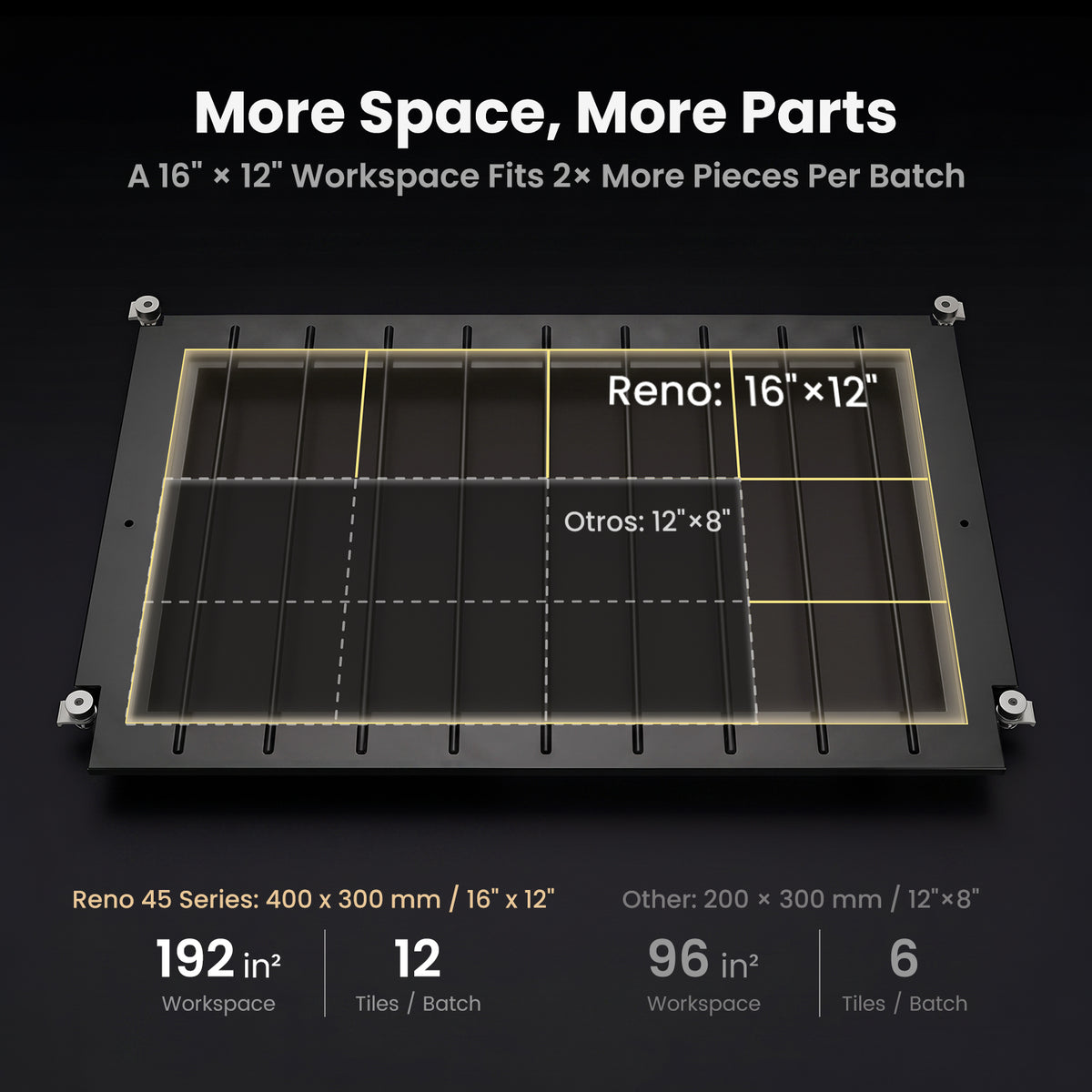

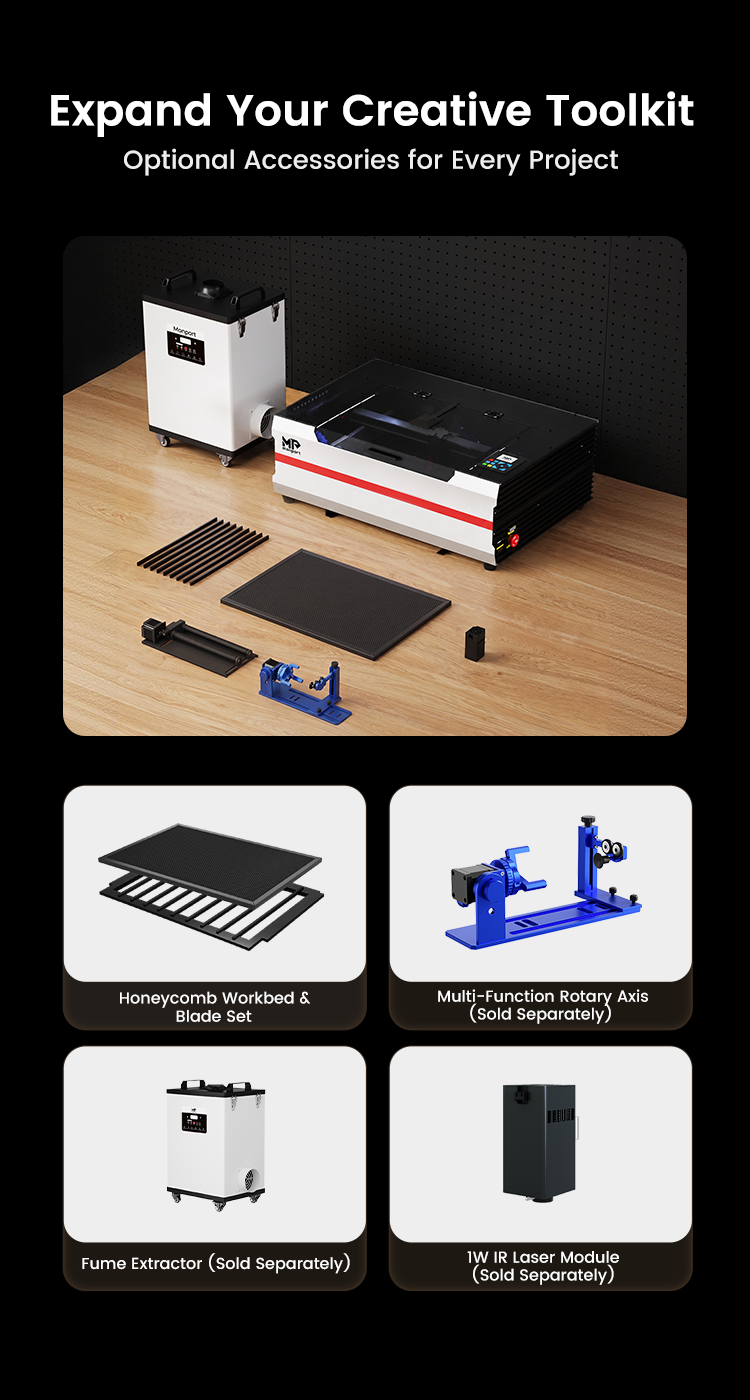

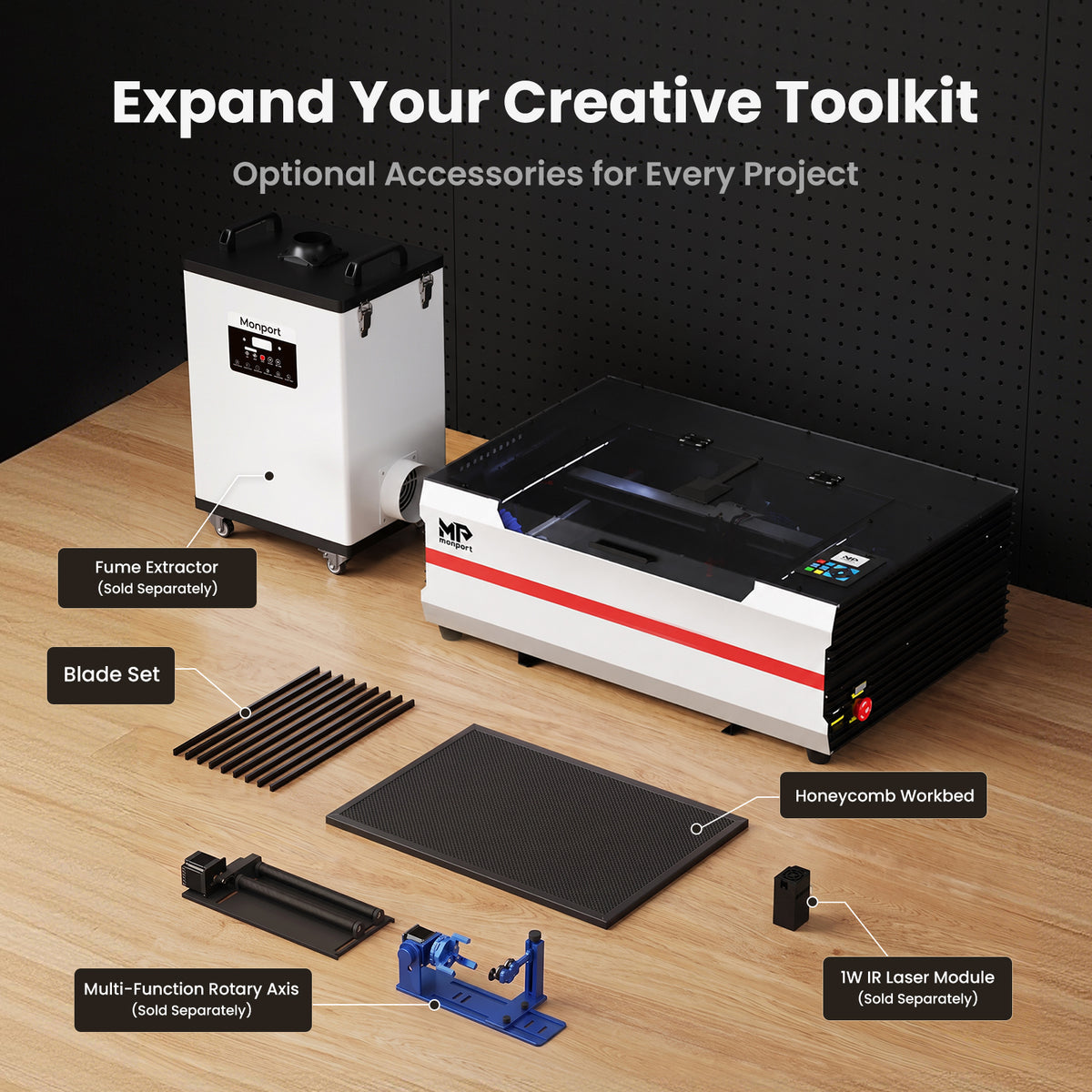

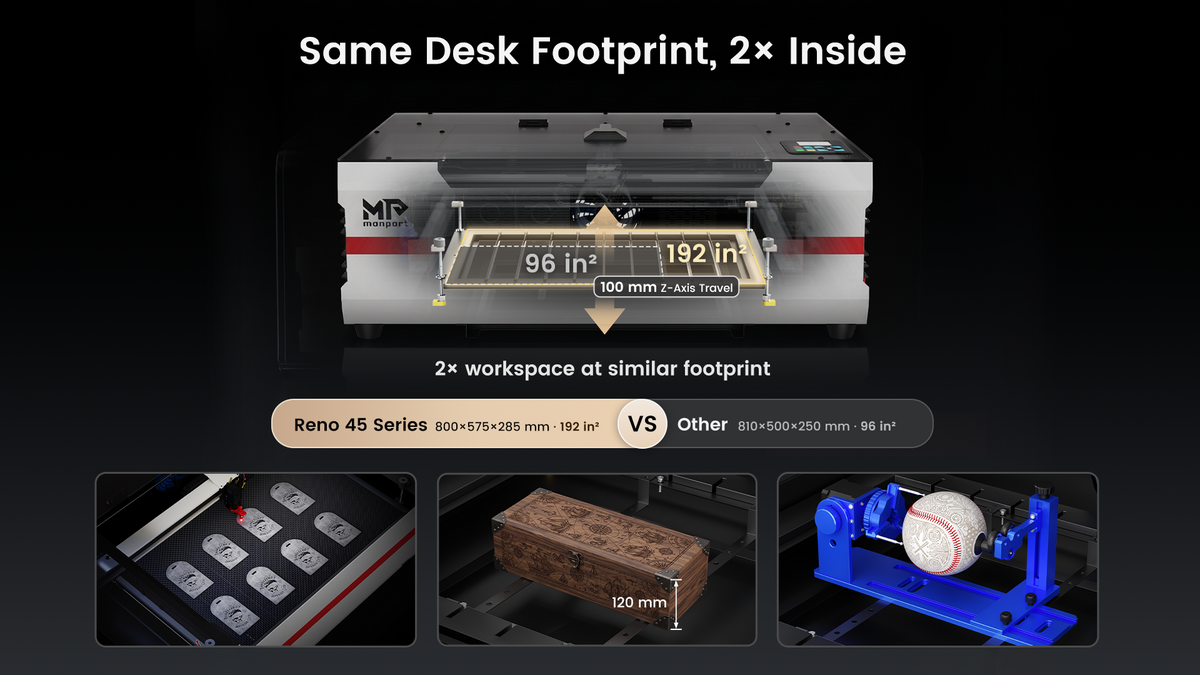

06｜Flexible Workspace & Expansion
With a 16" × 12" working area, 100mm Z-axis adjustment, dual work platforms and support for rotary, air assist and other accessories.
