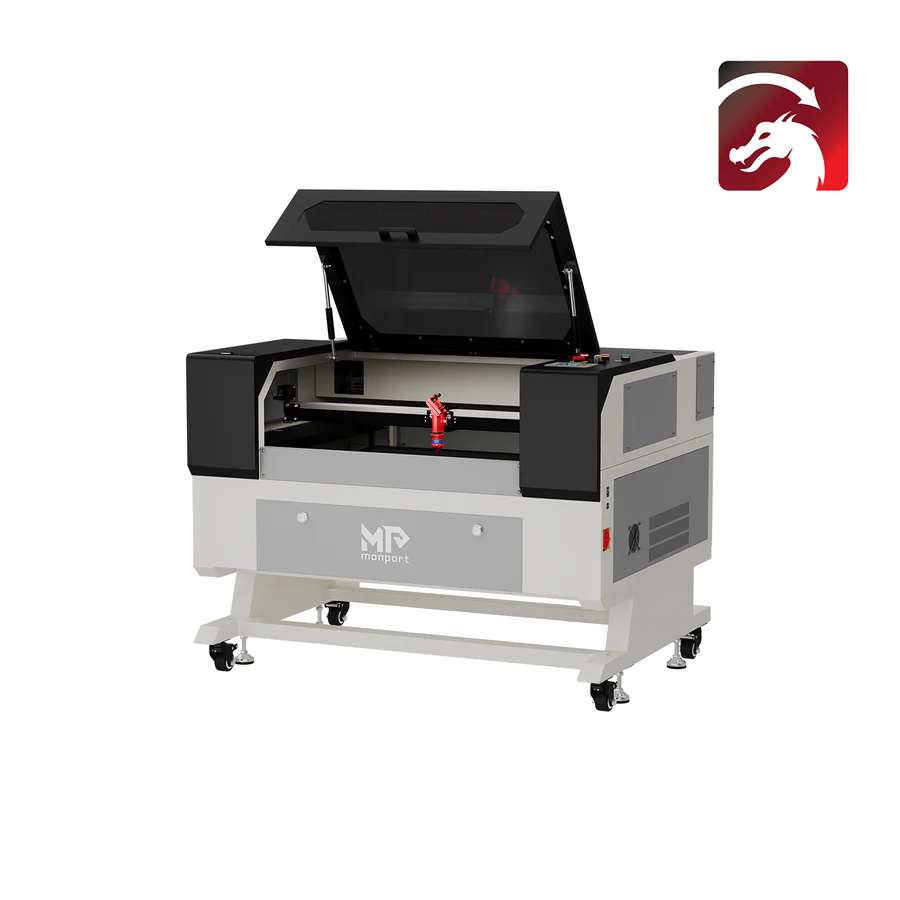

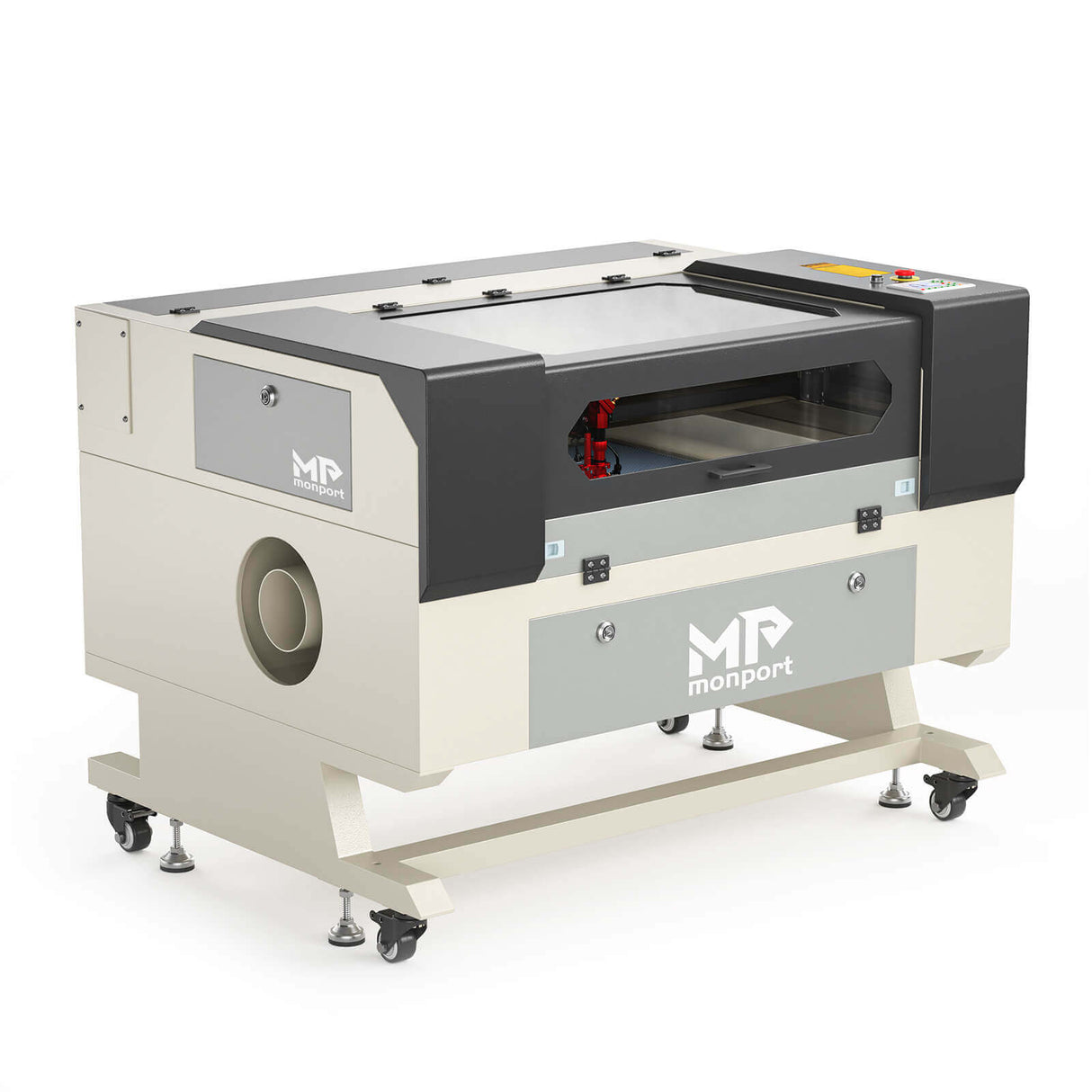

Monport 60W CO2 Laser Engraver & Cutter (28" x 20") with Autofocus

Power supply: 220-240 V; 50 Hz

Max. Engraving speed: 800 mm/s

Maximum cutting speed: 30 mm/s

Focus mode: Autofocus

Fire protection class of the PC cover: V-2

Certificates: CE&FDA

Product size(L×W×H): 49.2‘’ x 36‘’ x 36.2‘’(125cm x 91.5cm x 92cm）

Package size(L×W×H): 52.2‘ x 40.2’ x 45’ ( 135 cm x 102 cm x 114 cm )

Processing area(LxW):20‘’ x 28' ( 50 cm x 70 cm)

Pass-through dimension：27.5 ‘x3.7’(70cm x 9.5cm)

Max. Engraving depth: 10mm

Min. engraving depth: 0.01 mm

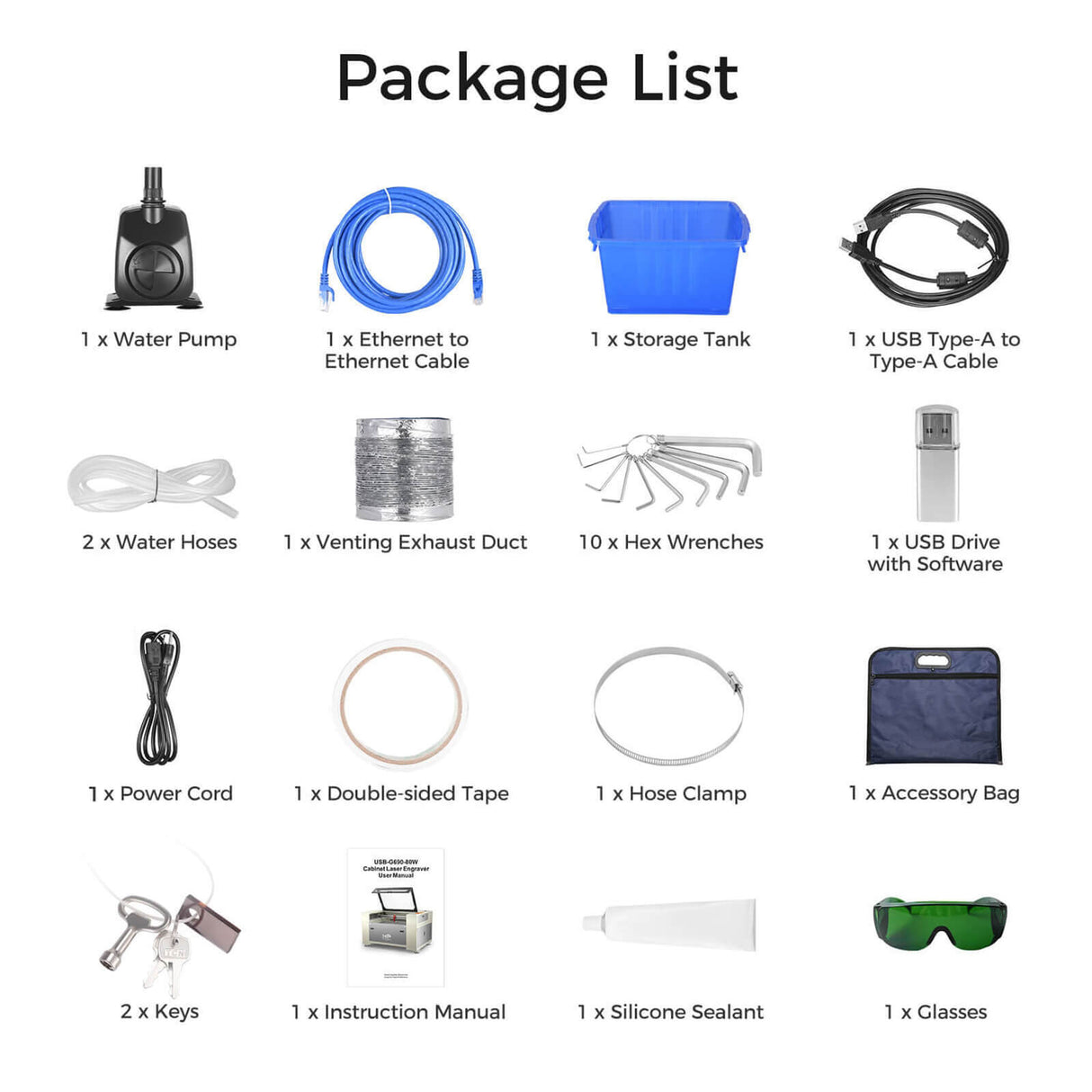

1 × 60W laser engraving machine
1 × water pump
2 × water pipes
1 × exhaust pipe
1 × USB stick
1 × USB cable
1 × Ethernet cable
2 × laser key
2 × Access key
1 × User manual
1×A pair of laser safety goggles
1×Accessory bag
1×hexagon spanner
1×Double-sided adhesive tape
2×Mains cable
1×Silicone sealant
1×stainless steel clamp

Fireproof viewing window

This viewing window is made of special fire-resistant polyester with an iron frame. The melting point of this polyester is between 432 °C and 488 °C and the ignition temperature is over 1000 °C, which can reduce the possibility of fire accidents caused by the laser burning of the materials.

Closed aviation aluminium rail

The rail is equipped with X and Y stepper motors, with efficient power transmission and high precision. The closed rail design avoids smoke and dirt and extends the service life of the rail unit.

Free laser safety goggles

Lasers emit radiation in the invisible form of light. These laser safety goggles are certified to protect your eyes from radiation damage if you look into a Class 4 laser in any way (directly, indirectly or even by looking at the laser dot on a surface can damage your eyes).

Ruida Digital Controller compatible with LightBurn

Powerful DSP and FPGA processors ensure precise and fast processing of complex details and files with a huge size of up to 256 MB.
Compatibility with the widely used LightBurn software (sold separately) and free RDWorks

High speed and resolution

The engraving speed is up to 600 mm/s;
The cutting speed is up to 400 mm/s;
The resolution is up to 4500 dpi;
3 LED light strips above the work table provide illumination and precision;
2.0’ focal length provides high resolution for engraving small lettering

Built-in Air Assist system

A built-in air assist system directs a stream of pressurised air through the laser head nozzles to remove contaminants, heat and flammable gases from the engraving surface and laser beam path for more precise engraving.

3 ways to connect to the PC

Two USB ports offer options such as flash drive connectivity and a USB-to-USB PC connection. An Ethernet port is also available for connectivity.

Red dot guide

The red dot indicates the position of the laser head, marks the working path and frames the project sizes to give you more comfort and orientation.

Automatic safety sensors

The safety shut-off sensor stops the machine even when the window cover is switched on. After closing, press the ‘Enter’ button to resume operation.

2 years parts warranty

12 months warranty on laser tube and power supply

CE Certified

Download user manual
