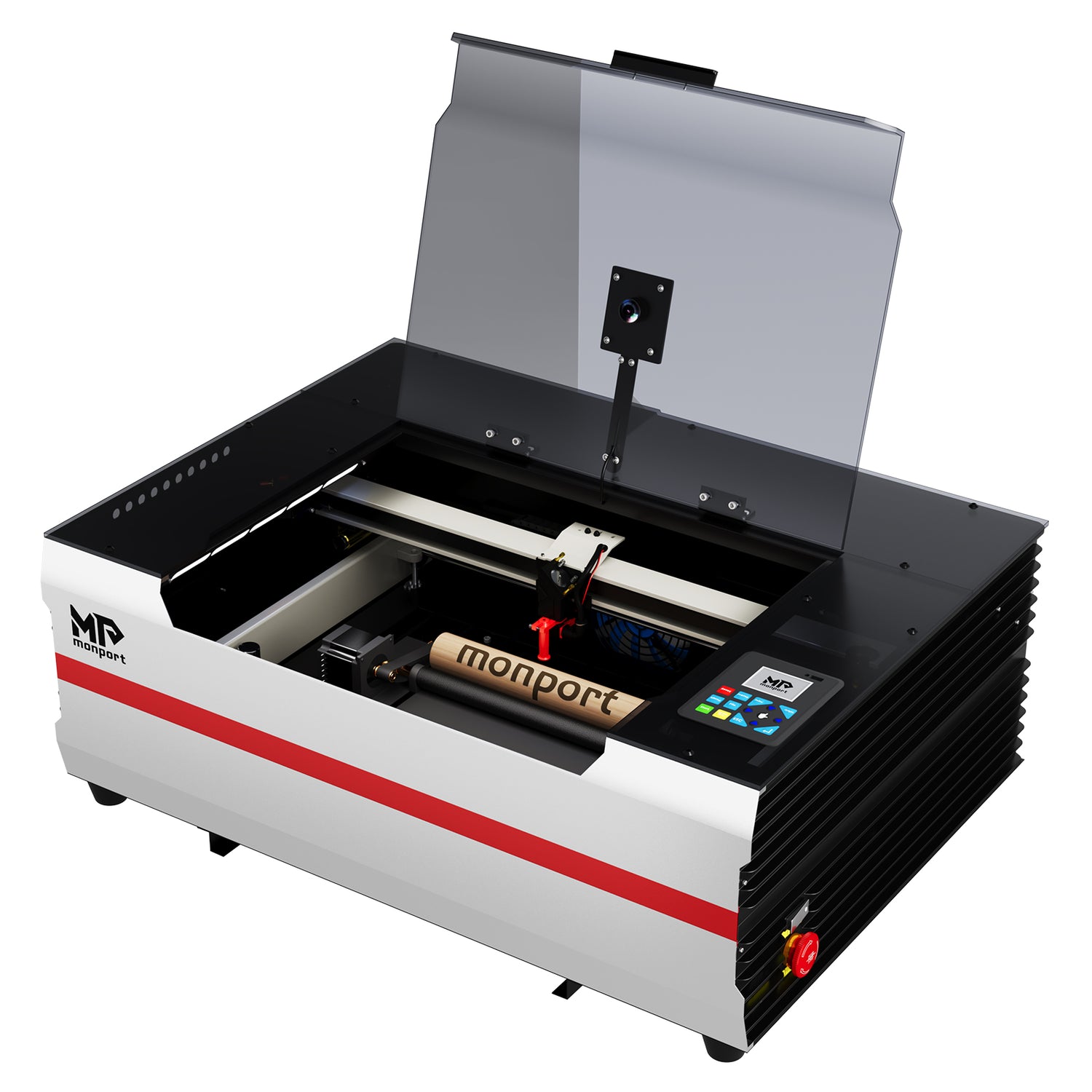

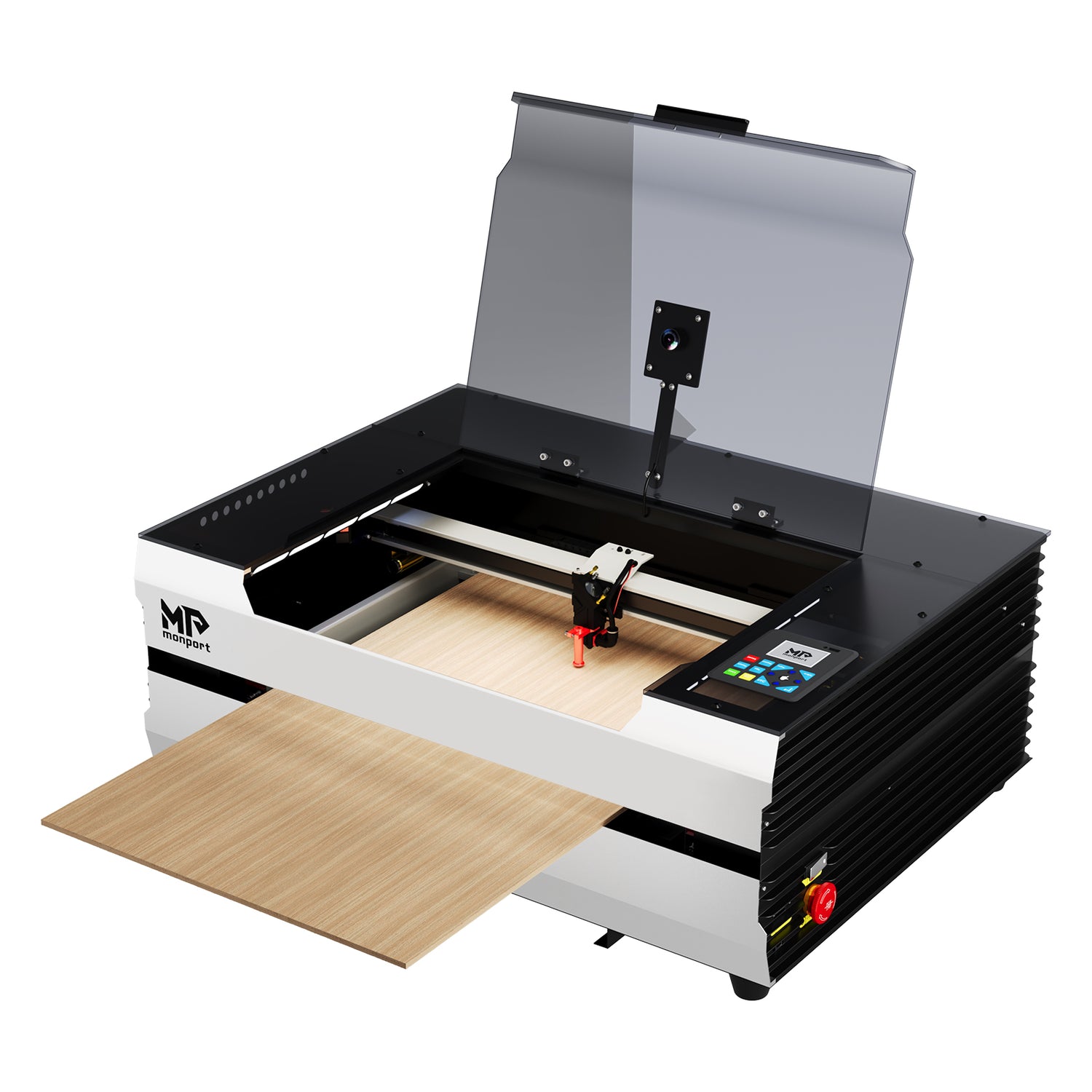

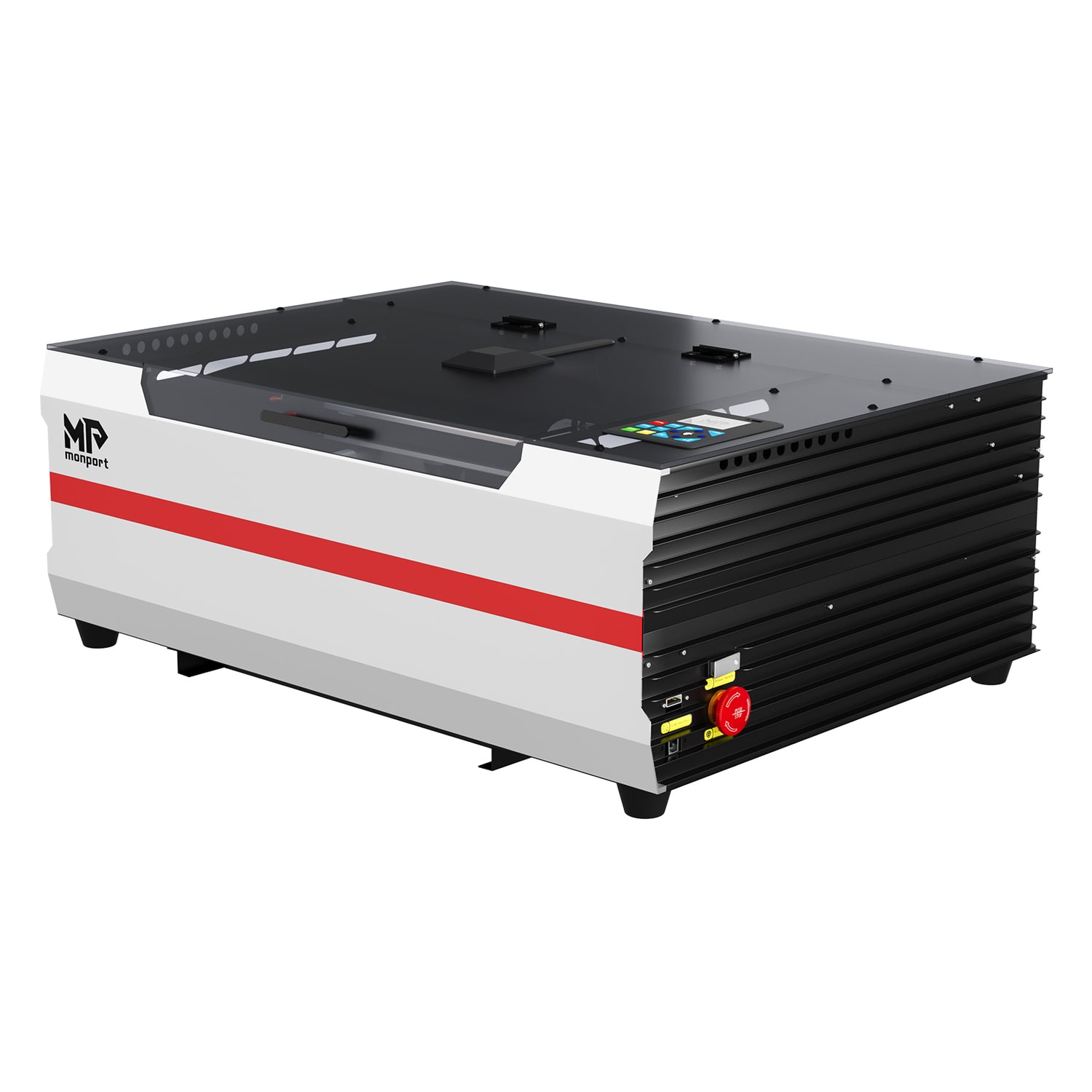

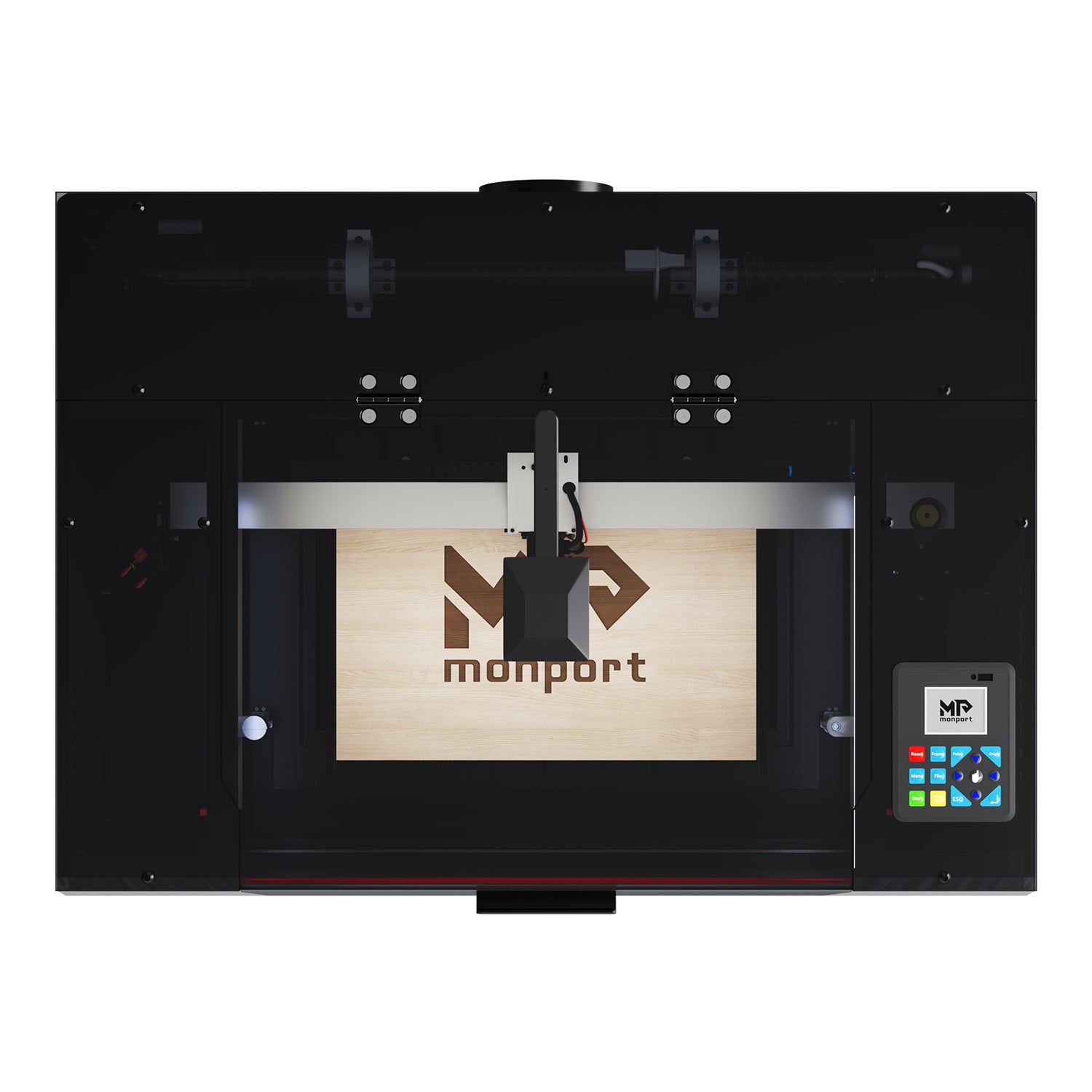

Monport Reno45 Pro Vision 45W Desktop CO2 Laser Engraver & Cutter (16" X 12") with 8MP HD Camera and Magnetic Assisted Autofocus
Monport Reno45 Pro Vision 45W Desktop CO2 Laser Engraver & Cutter (16" X 12") with 8MP HD Camera and Magnetic Assisted Autofocus is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

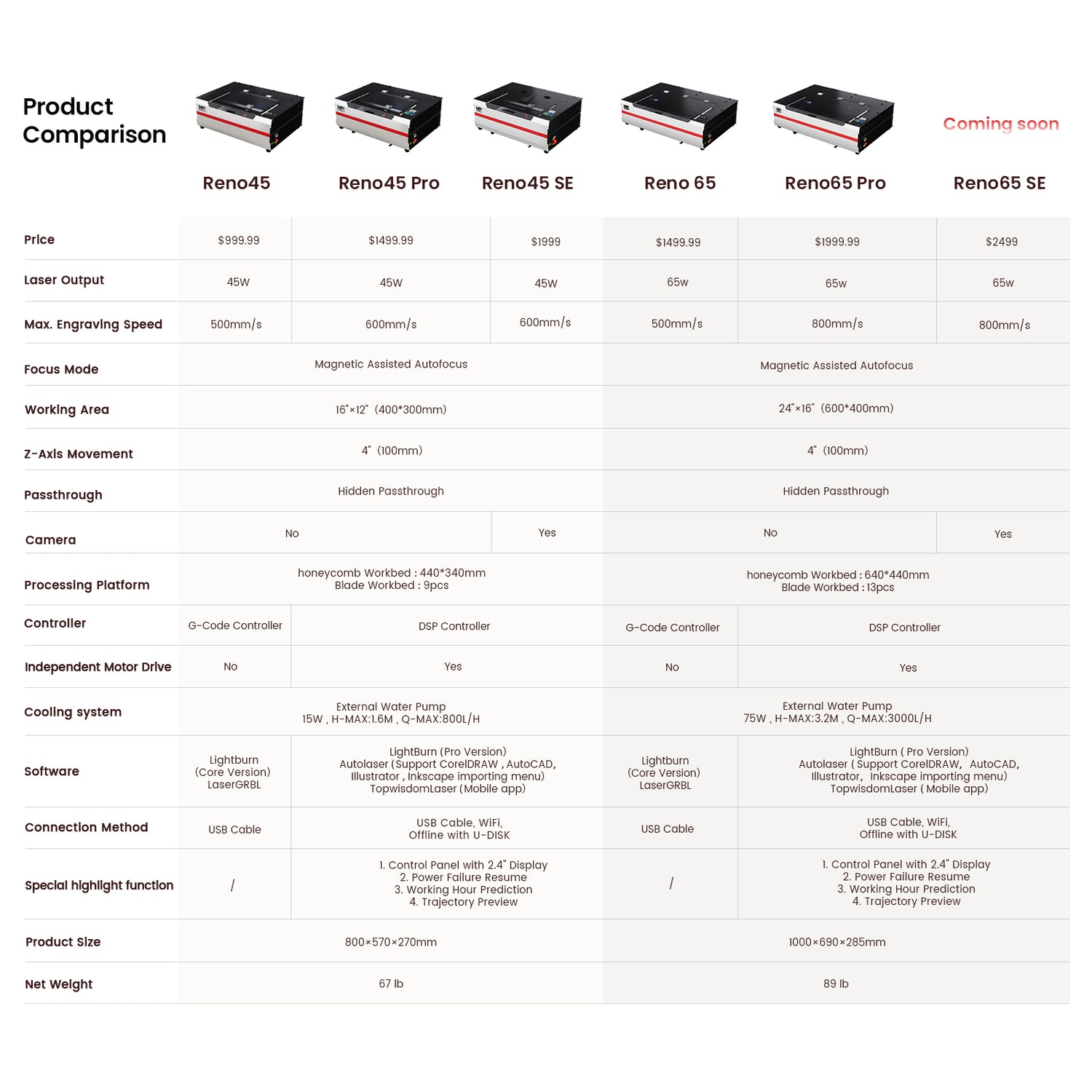

Specifications
Specifications
Rated Power: 45W
Max. Engraving Speed: 600mm/s(23.6ips)
Engraving Area: 16 x 12 in.(400x300mm)
Z-Axis Movement: 4 in.(100mm)
Front Pass-Through Size: 470 x 7mm
Focus Mode: Magnetic Assisted Focus
Est.
Laser Service Life: 3000 hr.
Max. Resolution: 1000 dpi
Camera: 8MP HD Camera
Cooling system: External Water Pump, Q-MAX: 800L/H
Air Assist: 18L/min(Adjustable Air Volume)
Working Table: Honeycomb Workbed：440*340mm, Blade Workbed：9pcs
Wavelength: 10600nm
Air Outlet Size: 100mm
Data Transmission: USB Cable, WiFi, U-DISK
Compatible Software: LightBurn, Autolaser, TopwisdomLaser
Compatible Operating Systems: Windows, macOS, Linux, Android, iOS
Operating Ambient Temperature: 5-30°C (41-86℉)
Product Dimensions: 800 x 575 x 285mm
Net Weight: 67 lb.(30kg)
Package Dimension: 91*70*44cm
Gross Weight: 105 lb.(47.5kg)
Certification: CE
Warranty: 2 Years (6 Months for Parts)
Features of the Reno 45W Pro Vision CO2 laser
Features of the Reno 45W Pro Vision CO2 laser
Revolutionary Brand-new Laser Cutter & Engraver
Monport's new Reno series products deliver the ideal desktop lasers for enthusiasts and professionals alike. After 18 months of painstaking research and innovation to eliminate the shortcomings in other companies' desktop lasers, Monport’s Reno series achieves the highest performance, easiest to use, and most reasonably priced desktop lasers available on the market today.
Truly Powerful

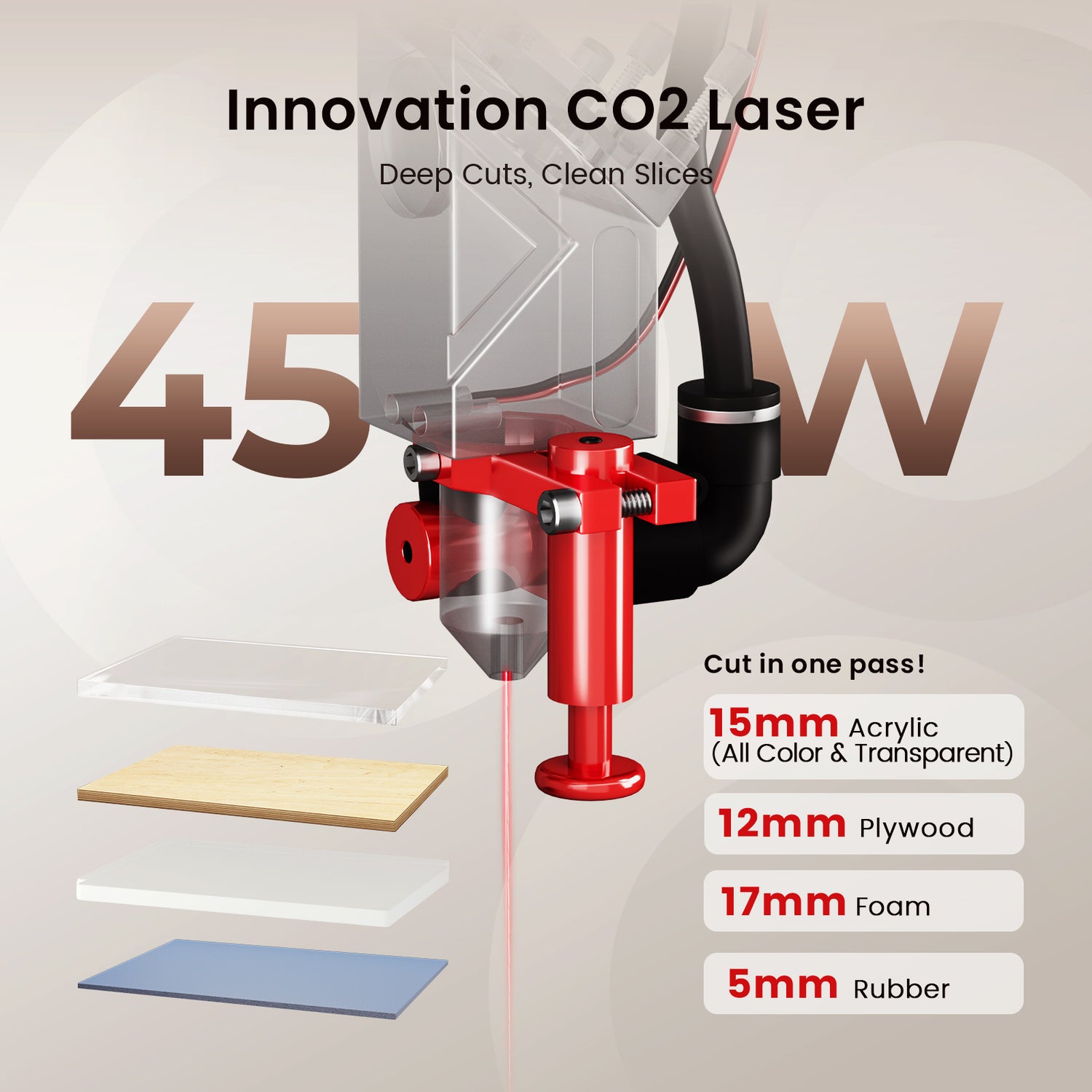

The Reno45 Pro Vision packs the power of a cabinet laser into a desktop body. The 45 watts laser, combined with top-tier reflective and focusing lenses, easily cuts through acrylic up to 15mm thick. At the same time, the compact Reno45 Pro Vision boasts an extra-large 16” x 12” working bed with both a honeycomb and flat blade platform. This makes the Reno45 SE powerful and spacious enough for large projects, yet precise enough to render fine details.
Truly Efficient
The Reno45 Pro Vision achieves an astonishing processing speed of 600mm/s (23.6ips). This is comparable to the best products in the industry. To do this, Monport utilizes a superior processing mechanism, added patent-pending, lighter-weight, more efficient laser transmission components, incorporated higher-precision slides, and customized motors and drives. Together, these innovations make the Reno45 Pro Vision extremely fast, effective and reliable.
Compact Yet Expansive

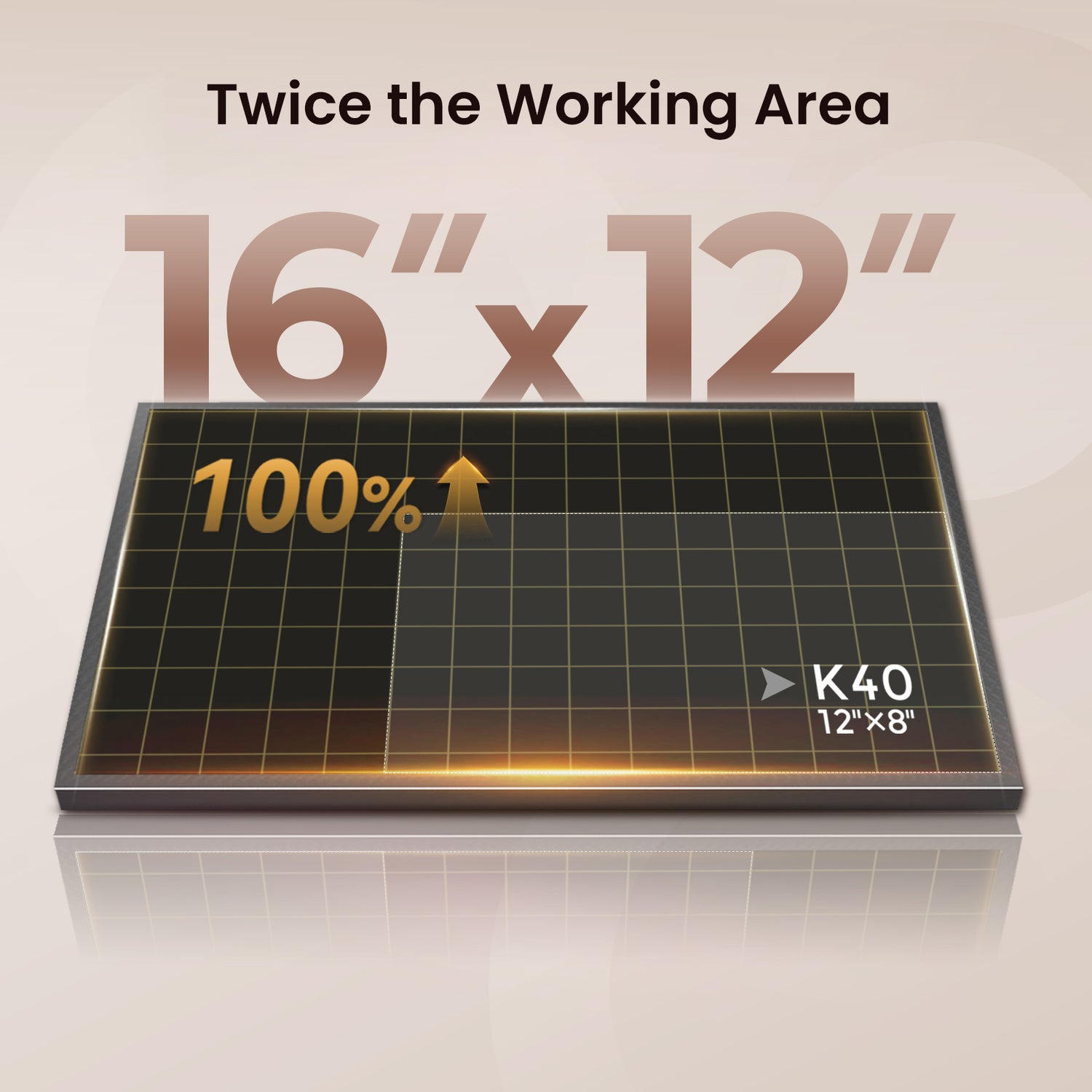

While compact, the Reno45 Pro Vision offers an impressive 400 x 300mm (16” x 12”) work area. This is twice the size of the K40’s. Unlike all other desktop lasers on the market, only the Reno series has an adjustable Z-axis -- a sea change in desktop laser technology. This means the bed height can be adjusted to a maximum of 4 inches, allowing you to work on materials with greater depth. For even greater length, the Reno45 Pro Vision has a hidden pass-through allowing longer pieces to be cut and carved. The Reno45 Pro Vision also supports rotational engraving. With Reno45 Pro Vision’s exceptionally large and deep adjustable work area, just think of all of the things you can make!
Industry Exclusive Magnetic Assisted Focus
Monport has designed an innovative, efficient, and easy to use magnetic focusing method that allows everyone from beginners to experts to focus the laser accurately in just a few seconds. It’s so simple you’ll love it from the start.
Adjustable air assist
When cutting and engraving, many materials require air assist to blow debris from the laser’s focal point. This keeps cuts clean and precise. While each material requires its own air pressure, most desktop lasers do not have an adjustable air flow. This causing yellow staining on the carving and cuts that do not fully penetrate the material. Only Monport’s Reno series desktop lasers have an adjustable air flow to optimize pristine cuts and engravings.
Extremely Easy To Operate
Thanks to Monport’s control panel with LCD display and computer interface, the Reno45 Pro Vision is one of the easiest desktop lasers to operate. It comes with user-friendly and feature-rich Autolaser software, allowing you to get started quickly, even if you have never used an engraving machine before. The Reno45 SE is also fully compatible with LightBurn* and supports USB 2.0 connectivity. You can even operate the Reno45 SE through our mobile app -- Topwisdom.
(*Suitable for LightBurn Pro)
Industry Exclusive Control Panel
● Multiple functions can be directly controlled through the control panel, such as movement, positioning, pointing, preview, start, pause, parameter settings, and more.
●Equipped with a 2.4-inch, 320 × 240 resolution LCD display screen.
●Supports WiFi communication, AP and STATION mode.
●Adopts a 7-segment S-shaped acceleration and deceleration curve and adaptive speed planning algorithm, while supporting one click setting of speed parameters and small circle speed limits, different cutting parameters can be selected for different shapes, and reverse clearance compensation is supported.
● Supports USB 2.0 interface, computer USB communication, and USB disk reading and writing files.
● Supports real-time clock and machine lock function.
● Supports trajectory preview, power-off engraving, real-time correction of light intensity and speed during work, rotation engraving, safety protection, firmware upgrade, processing information statistics and other functions.
● Supports multiple languages including English, Korean, Italian, Spanish, Portuguese, and more.
Advancing The Laser Industry
Because Monport firmly believes that technological advancements are only as valuable as their ability to serve the public, Monport discloses all Reno series patents to peers around the world, at no charge, to accelerate the progress of the laser industry and prevent the unreasonable proprietary premiums some laser manufacturers place on their products.
Package List
Package List
1x 45W CO2 Laser Engraver
1x Honeycomb Board
9x Aluminum Blade
1x Water Pump
1x Exhaust Pipe
2x Pipe Clamp
1x USB Cable
1x Power Cord
1x USB Flash Drive
1x Focus Strip
1x Hexagonal T-shaped Wrench
1x User Manual
1x Goggles
2x Roll of Dimming Paper
1x Wrench Set
1x Camera data cable
Delievery
Delievery
Free delivery within UK: It takes 15-25 days to arrive.
Monport Reno45 Pro Vision 45W Desktop CO2 Laser Engraver & Cutt...

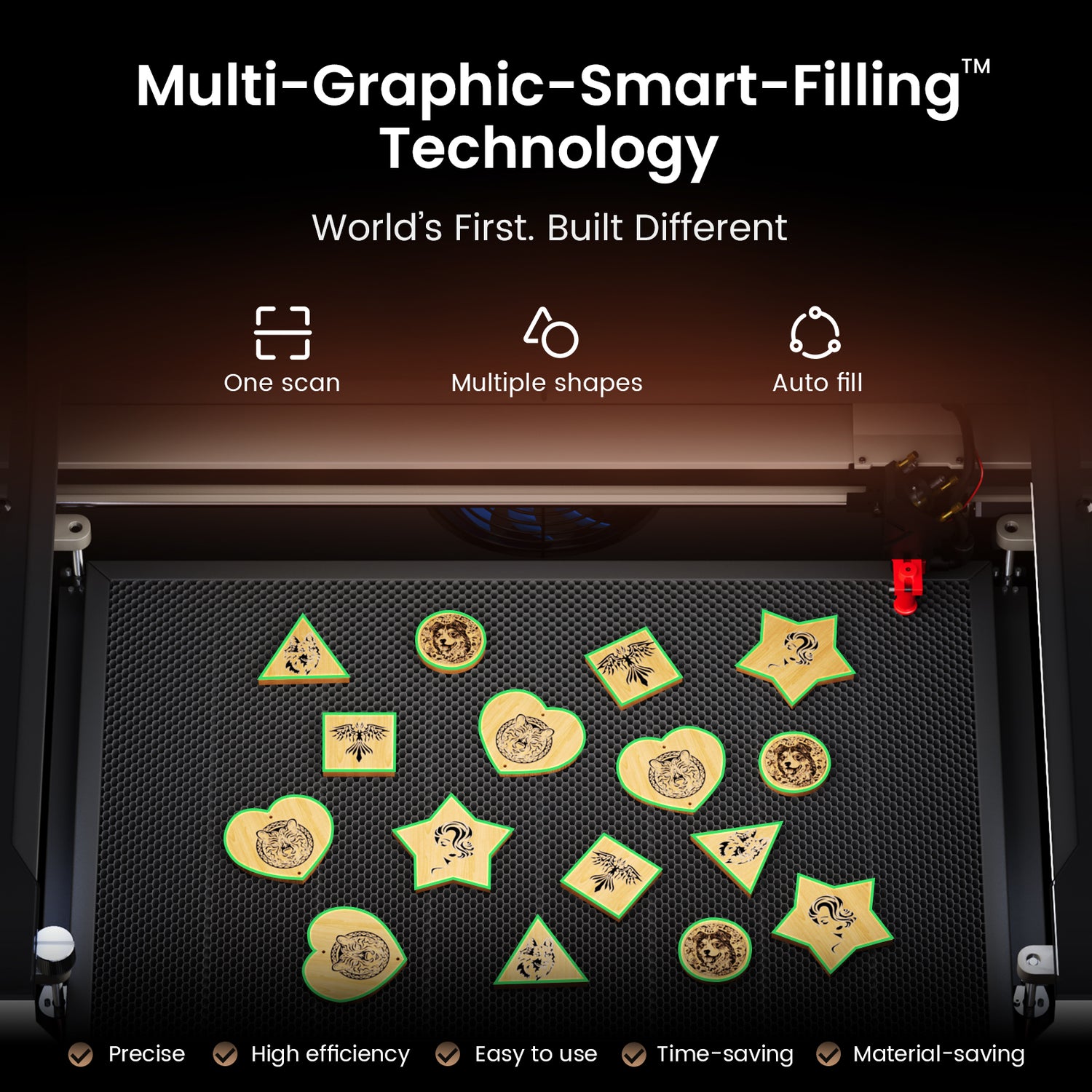

World's First. Multi-Graphic-Smart-FillingTM Technology
The camera quickly scans all materials within 3 seconds and can batch fill preset patterns for materials of different shapes simultaneously.
More conveniently, you can also save the batch processed cases as templates, which can be directly called for batch filling and carving in the future, truly improving productivity.

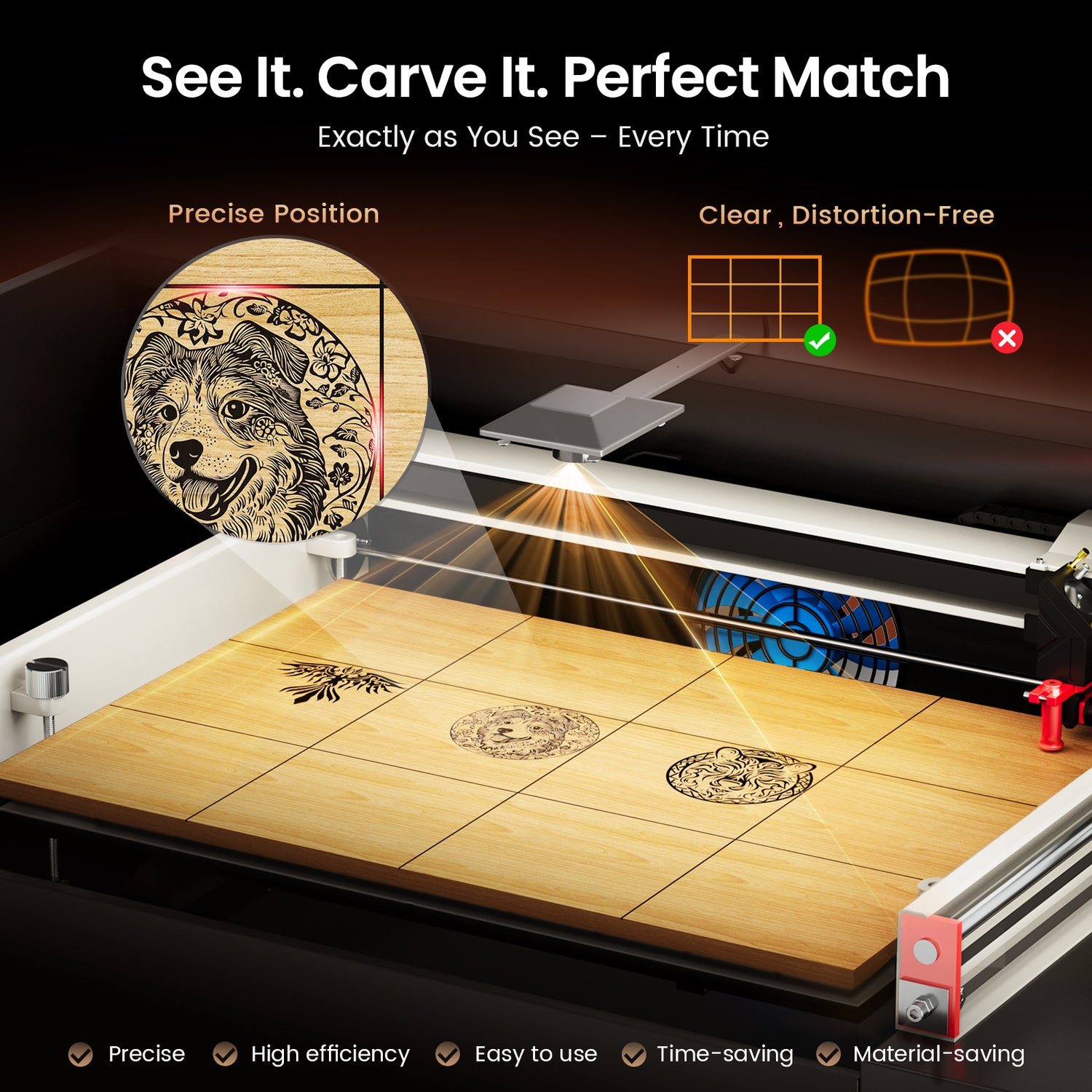

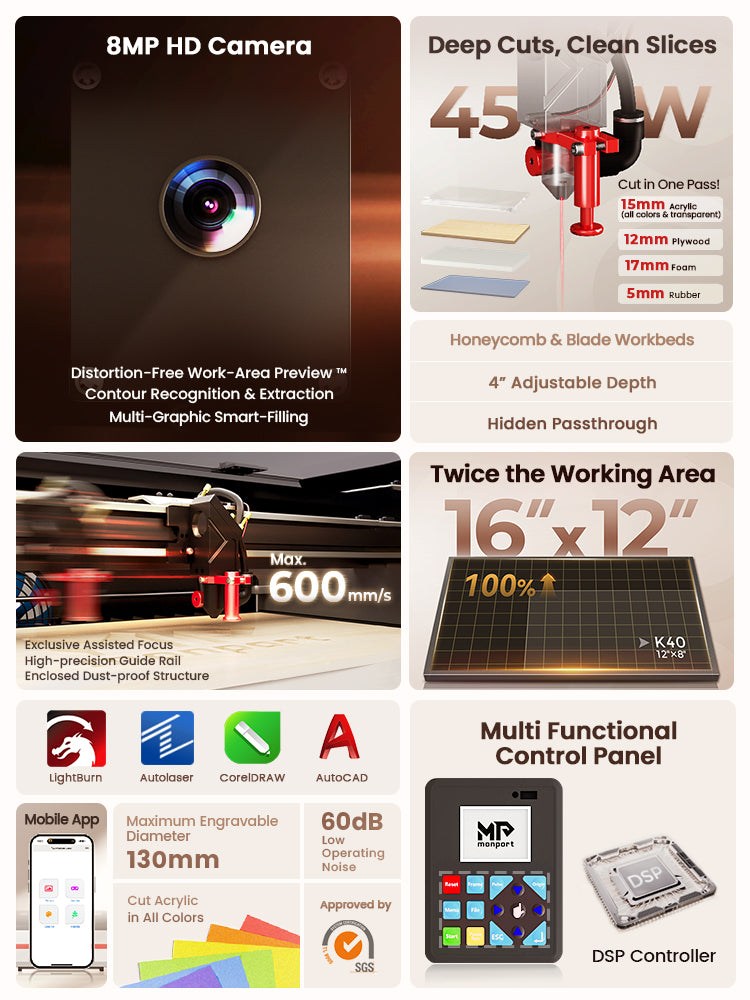

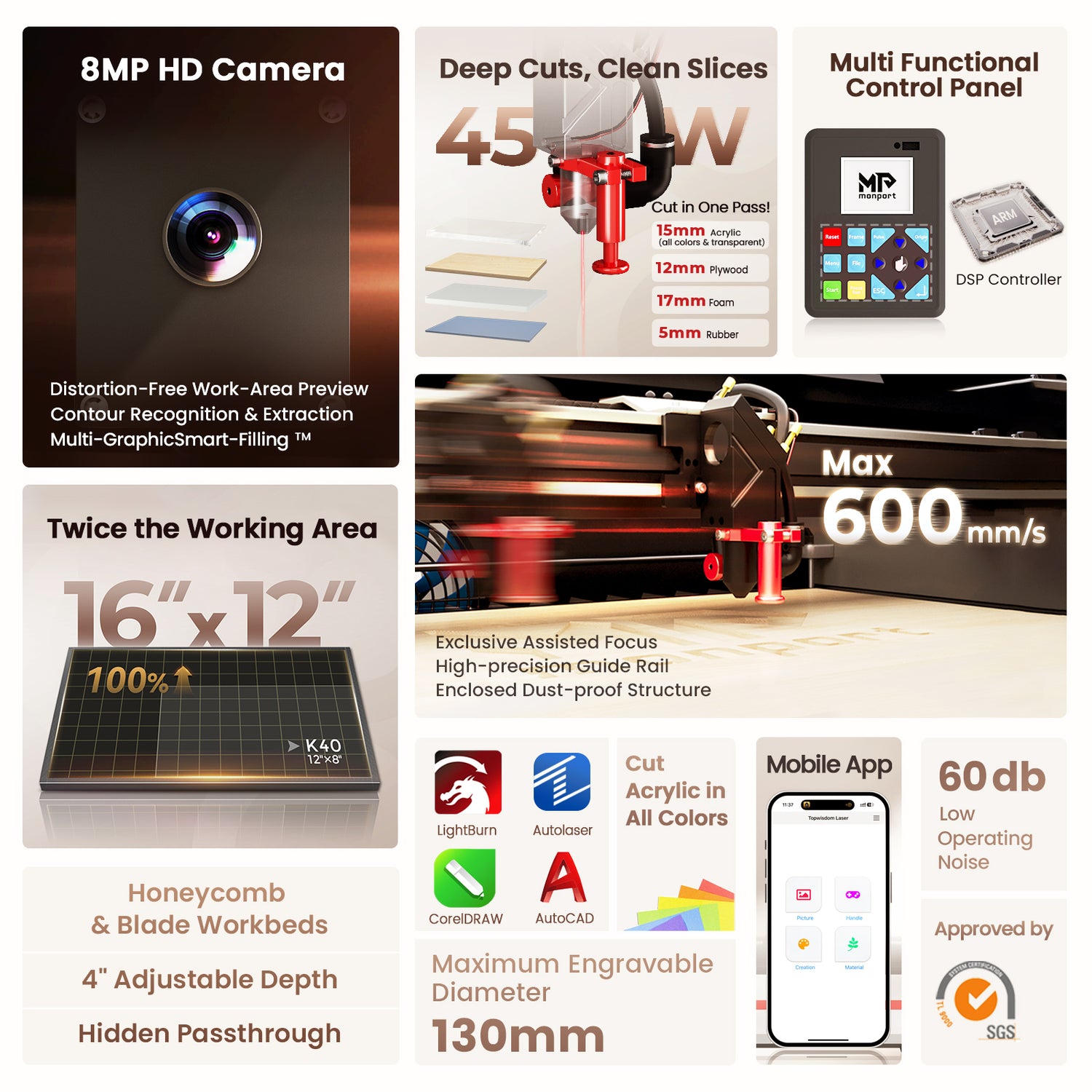

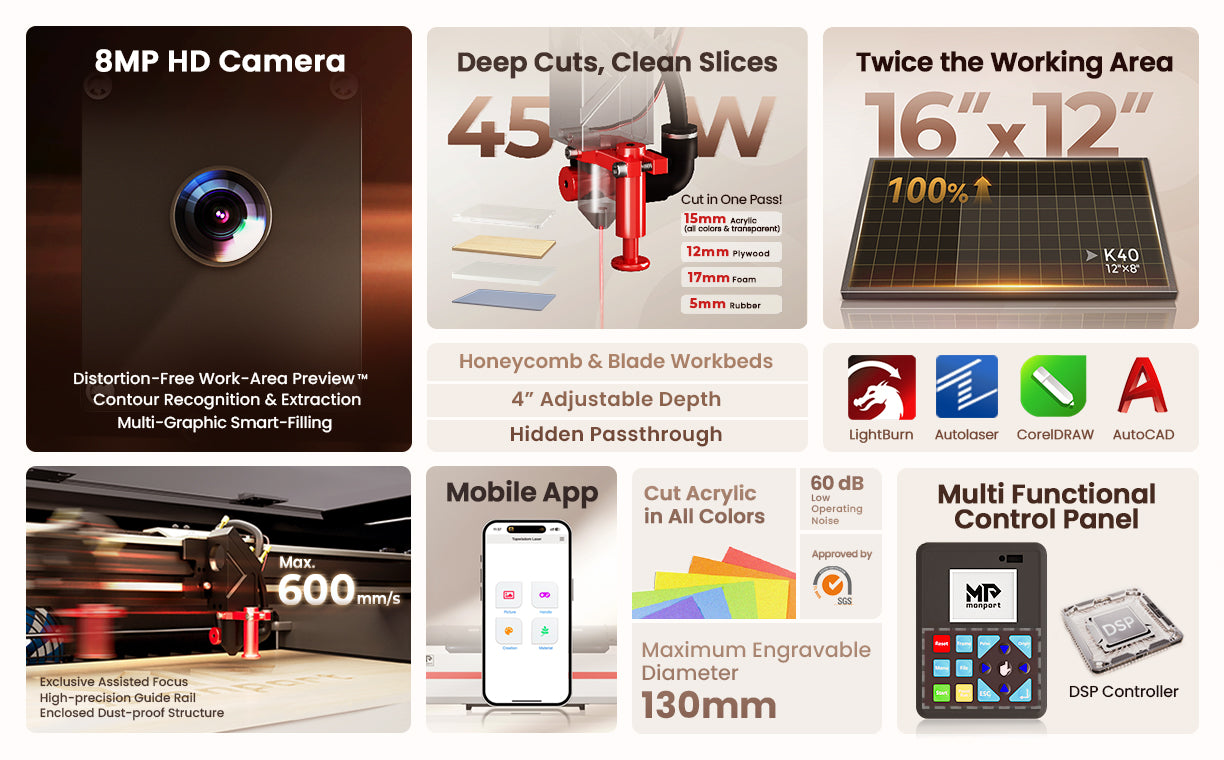

Distortion-Free Work-Area Preview and Precise Position
With Monport Reno’s 8MP camera, enjoy distortion-free work-area previews and precise,high-definition detail from the panoramic camera, enabling quick, precise positioning, reducing your valuable time.
Even complex shapes are clearly visible and easily positioned. So your scrap pieces are reused, maximizing material use.

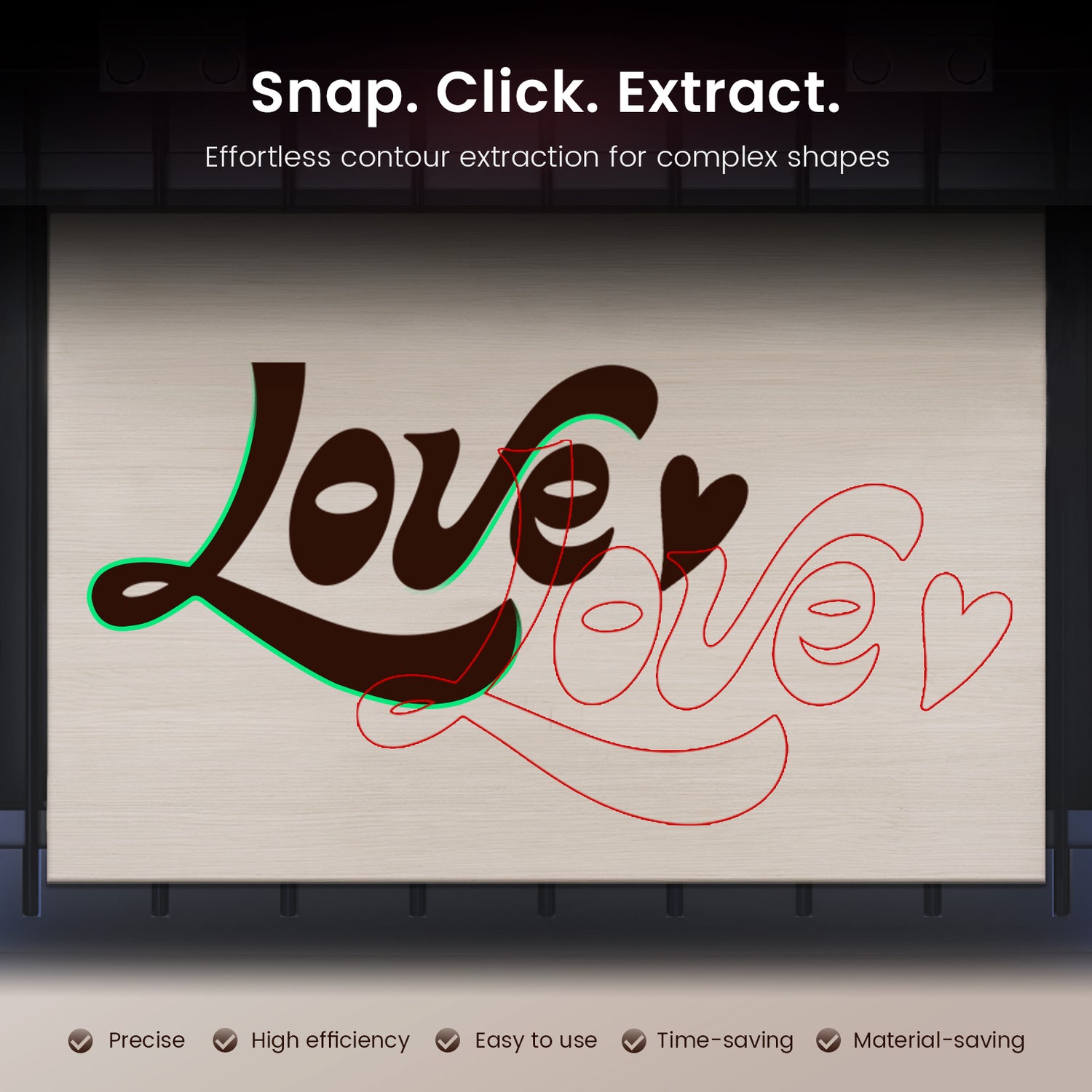

Contour Recognition & Extraction
The camera can automatically recognize the outline of patterns and generate borders, eliminating the need for manual strokes and significantly saving time and materials.

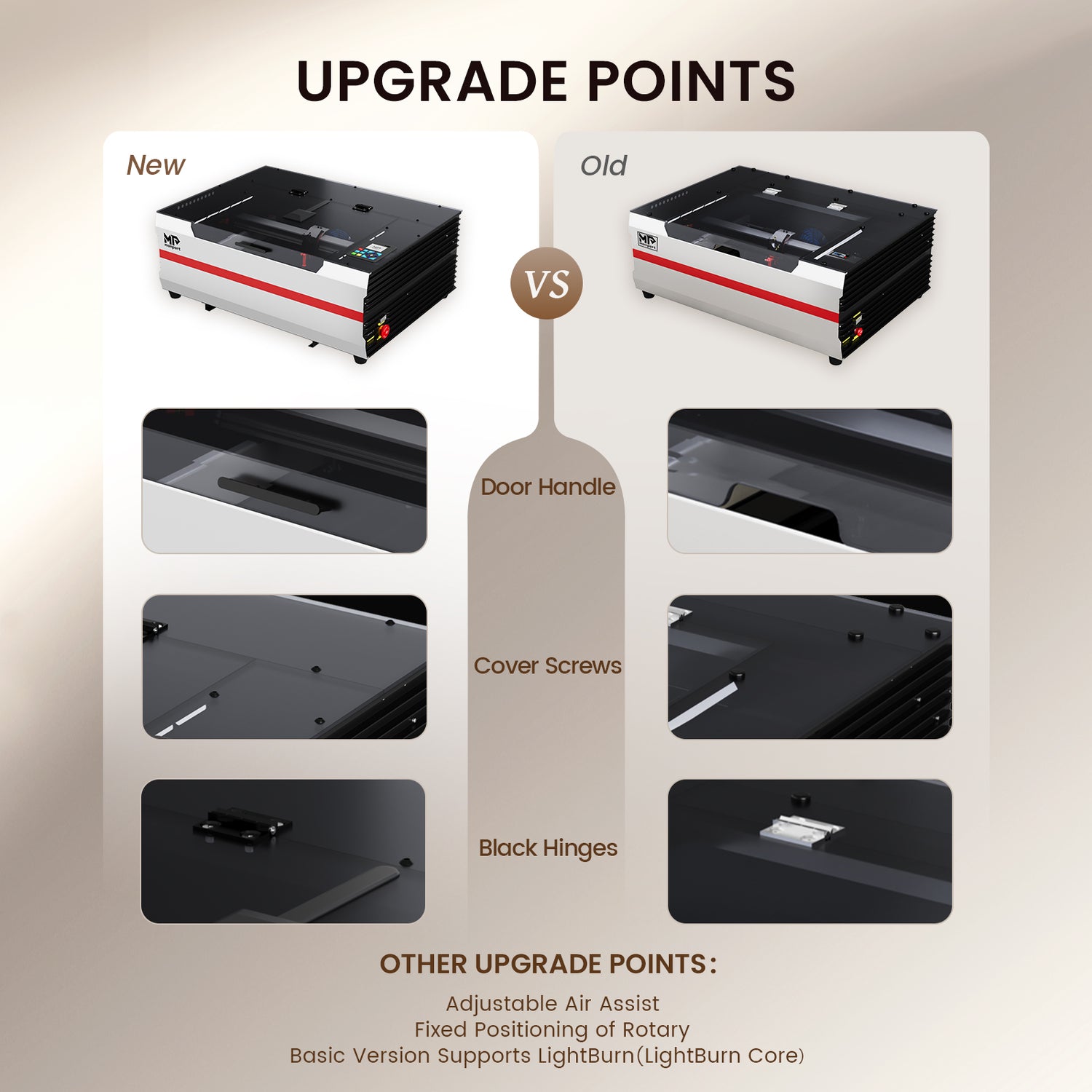

We Listened, We Upgraded
The all-new Reno series has been comprehensively optimized for both appearance and user experience：Cancel the gap design and add handles to eliminate the risk of light leakage and improve operational convenience;Add adjustable air assist device to adapt to various processing scenarios and ensure optimal processing results;Specially added rotating shaft fixed positioning effectively eliminates the risk of workpiece deviation and significantly reduces manual calibration time.

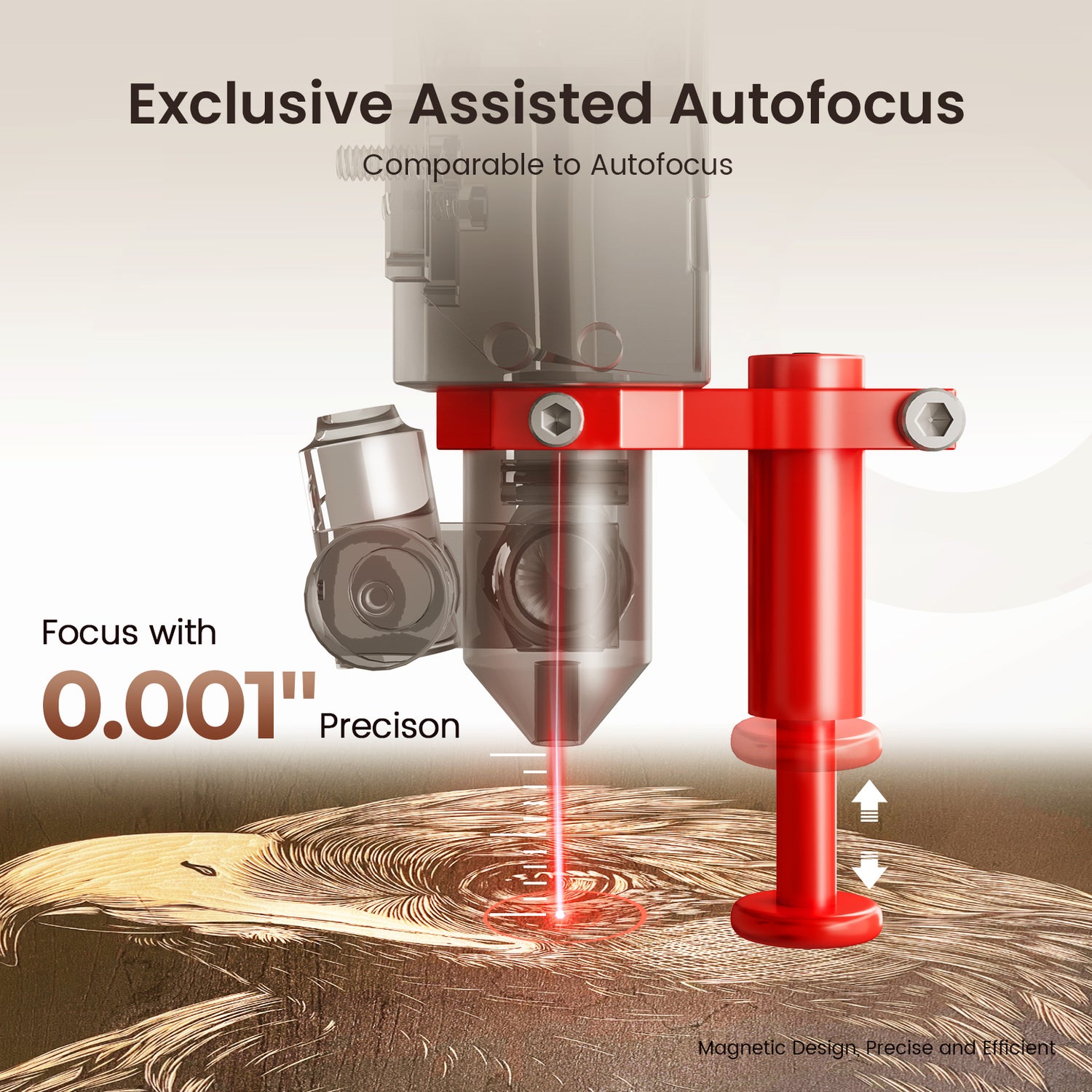

Industry Exclusive Magnetic Assisted Focus
Monport has designed an innovative, efficient, and easy to use magnetic focusing method that allows everyone from beginners to experts to focus the laser accurately in just a few seconds. It’s so simple you’ll love it from the start.

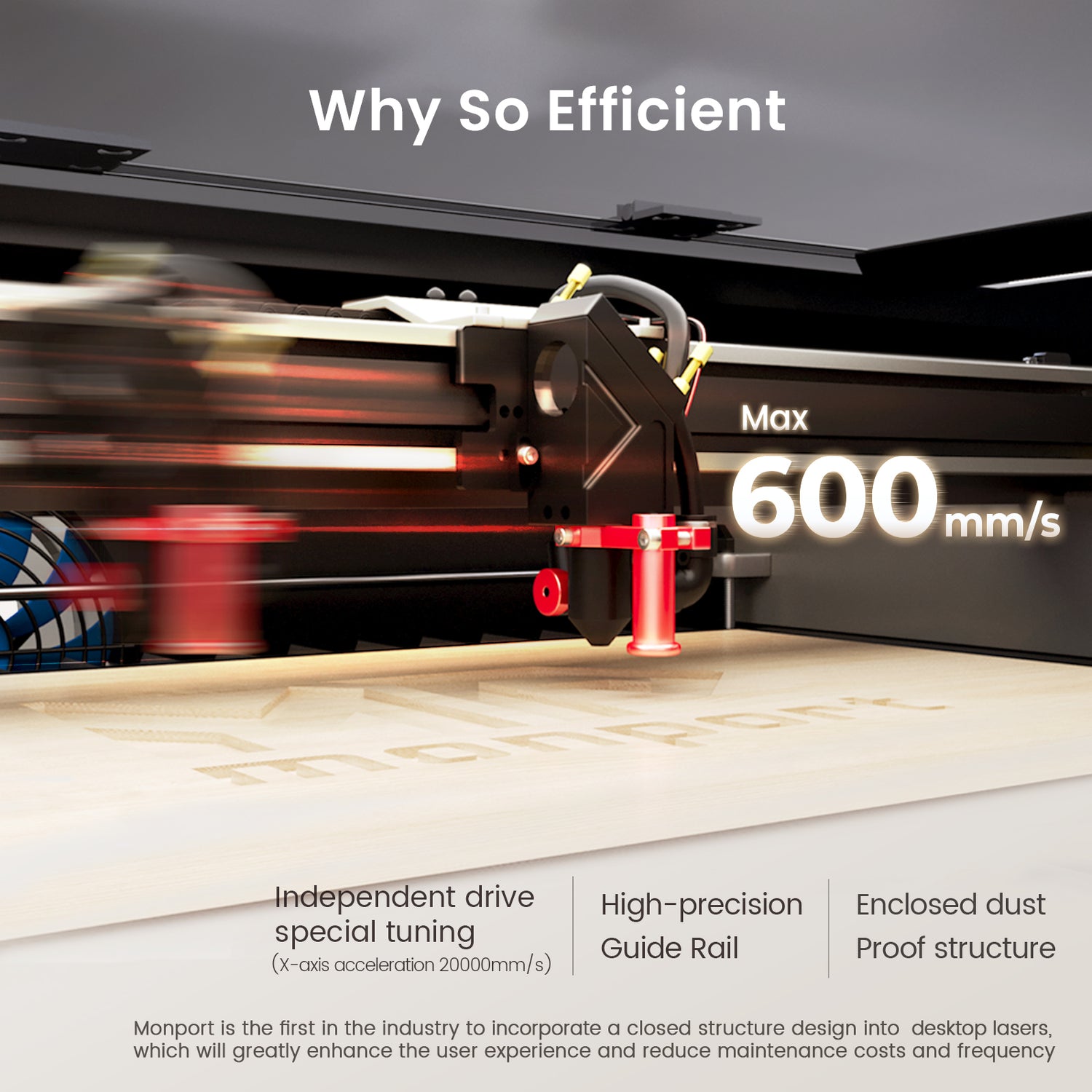

Fast, Efficient and High-Precision
Why can the Reno45 Pro Vision achieve a processing speed of 600mm/s, comparable to top products in the industry?
Because Monport has independently designed a brand new mechanism, including lightweight design, high-precision slides, customized motors and drives. This is what makes the Reno45 Pro Vision so efficient.
High-Quality Powerful Cutting Capabilities
Why is the cutting ability of Reno series several times that of K40?
This is thanks to Monport's independent participation in the research and development of laser tubes, as well as the use of high-quality reflective and focusing lenses. Monport also does not cut corners in unseen places, so Reno45 Pro Vision can cut acrylic up to 15mm thick.
