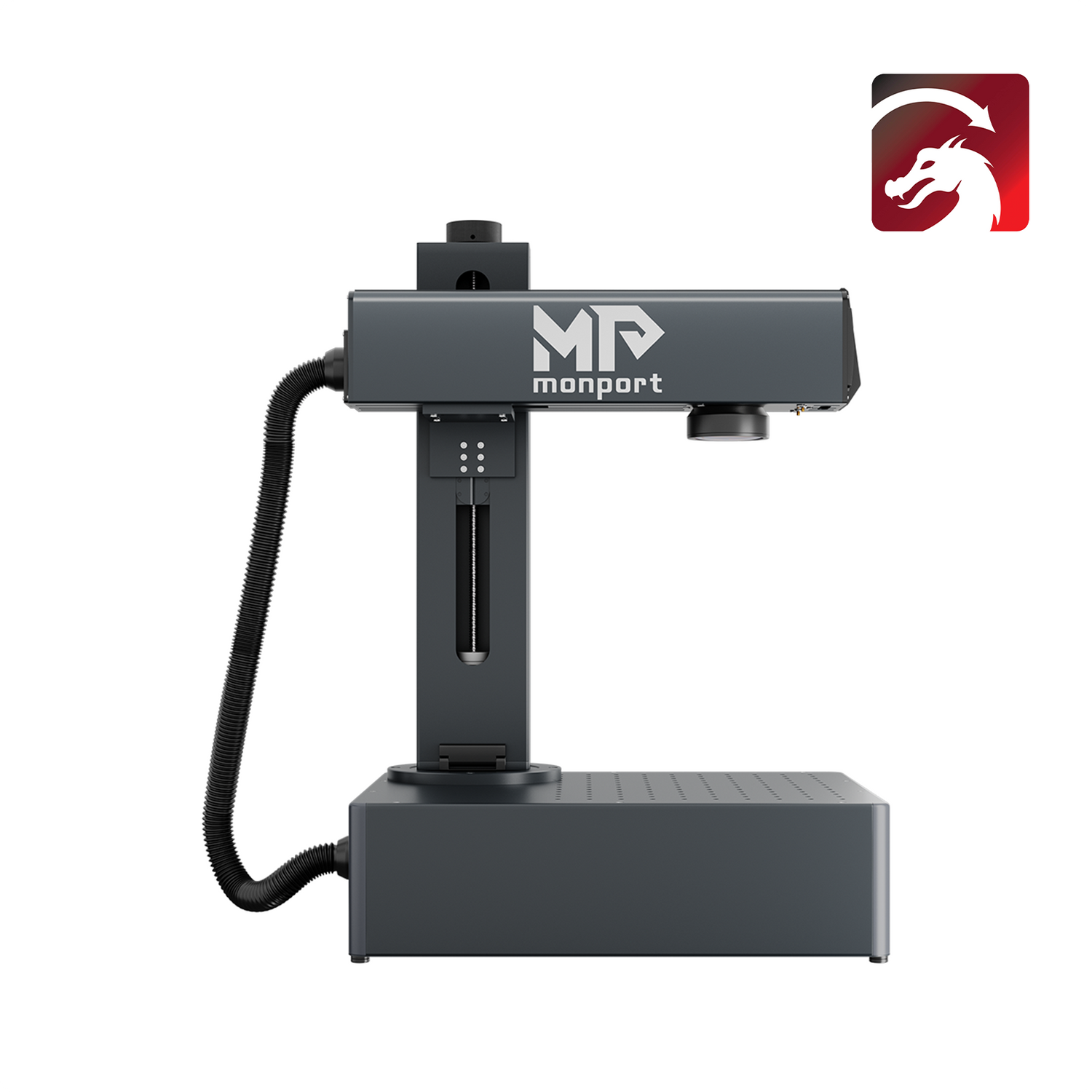

Monport GA 50W Integrated Fiber Laser Engraver & Marking Machines with Auto Focus
Monport GA 50W Integrated Fiber Laser Engraver & Marking Machines with Auto Focus is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Dimension
Dimension
Product name: GA50
Voltage: 220V 50Hz
Total rated power: 600W
Specification of field lens: 200*200mm
Marking accuracy: 0.01mm
Max. Marking speed: 393.7ips (10000 mm/s)
Min. marking depth: 0.0002in.(0.005mm)
Max. Marking depth: 1mm
(depending on the material)
Min. line width: 0.006in.(0.15mm)
Rated power: 50W
Expected lifetime: 100,000 hours
Central wavelength: 1064nm
Laser frequency: 50-100kHz
Pulse width: Not adjustable (fixed pulse width)
Beam diameter: 5.7-8mm
Beam quality M2: <1.6
Maximum pulse energy: 1mJ
Temp. range: 32-104°F(0 - 40°C)
Operating software supplied: EZCad
GA Fiber Laser Benefits
GA Fiber Laser Benefits

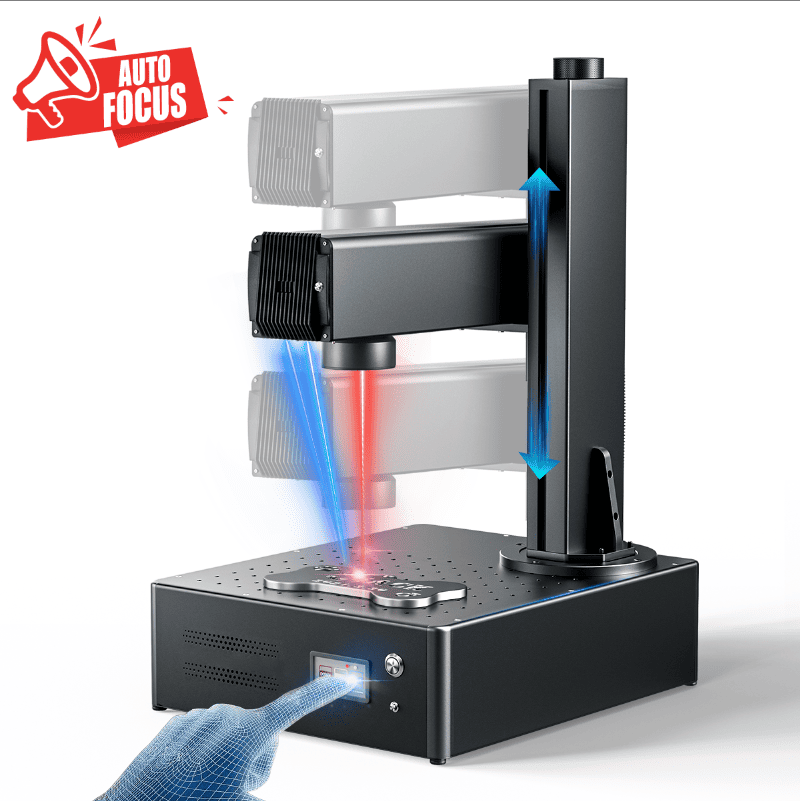

Auto-Focus Innovation
Monport introduces its proprietary auto-focus technology, achieving high precision (error < ±1mm) with a single click. For added flexibility, manual focusing can also be performed with the support of three red lights.
Enhanced Performance
Beyond its excellent design, Monport’s desktop marking machine outperforms competitors in terms of performance. Each component is rigorously tested, offering ultra-high stability, precise positioning, rapid marking speeds, and robust anti-interference capabilities.
Galvanometer Scanning Technology
The Monport GA fiber laser is equipped with an advanced Galvo-Tech drive and scanning system, achieving marking speeds of up to 10,000 mm/s. It consistently delivers superior precision along with stable and rapid marking performance.
±90° Vertical Arm Rotation
The vertical arm provides a continuously adjustable range of ±90°. Users can fix it at any angle within this range, allowing for unlimited creativity in marking applications. Adjustment is easy and only requires loosening the screw without completely unscrewing it.
Optimal Working Size
The Monport GA fiber laser marking machine features a working size of 200x200 mm making it ideal for precise marking and engraving. This size allows for optimal marking results on various materials, including metals like stainless steel and aluminum.
Sub-Micron Accuracy
The Monport GA fiber laser is equipped with a powerful 20W driver and JPT 20W laser source, enabling precise marking and engraving on stainless steel, aluminum, and other metals, all while maintaining sub-micron accuracy and zero-error precision.
Compatible with LightBurn Software
LightBurn software allows you to edit and arrange your designs. This powerful marking and cutting control software is designed for laser and CNC applications and supports a variety of file formats. Its intuitive interface and extensive features enable you to easily create and customize designs for precise marking and cutting.
