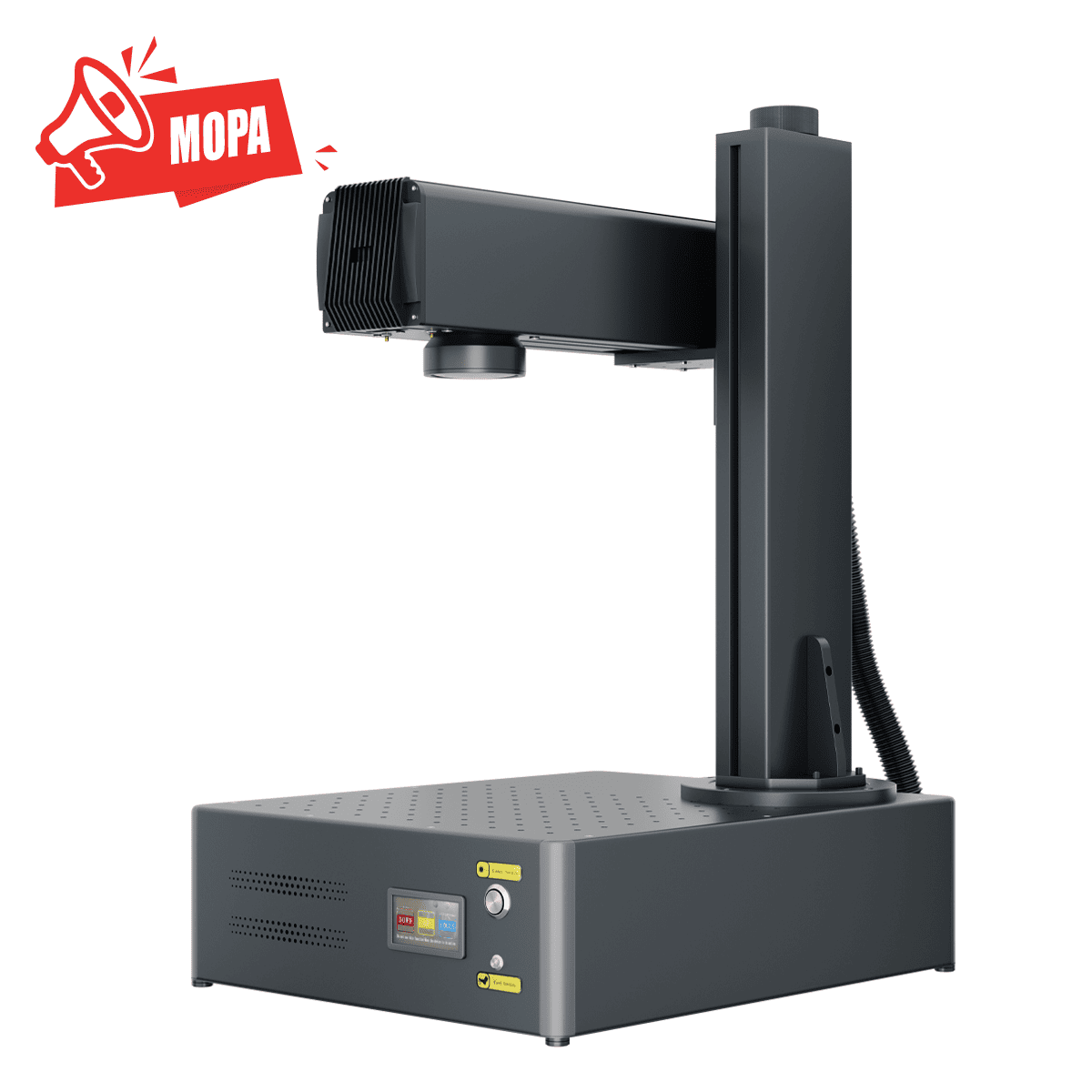

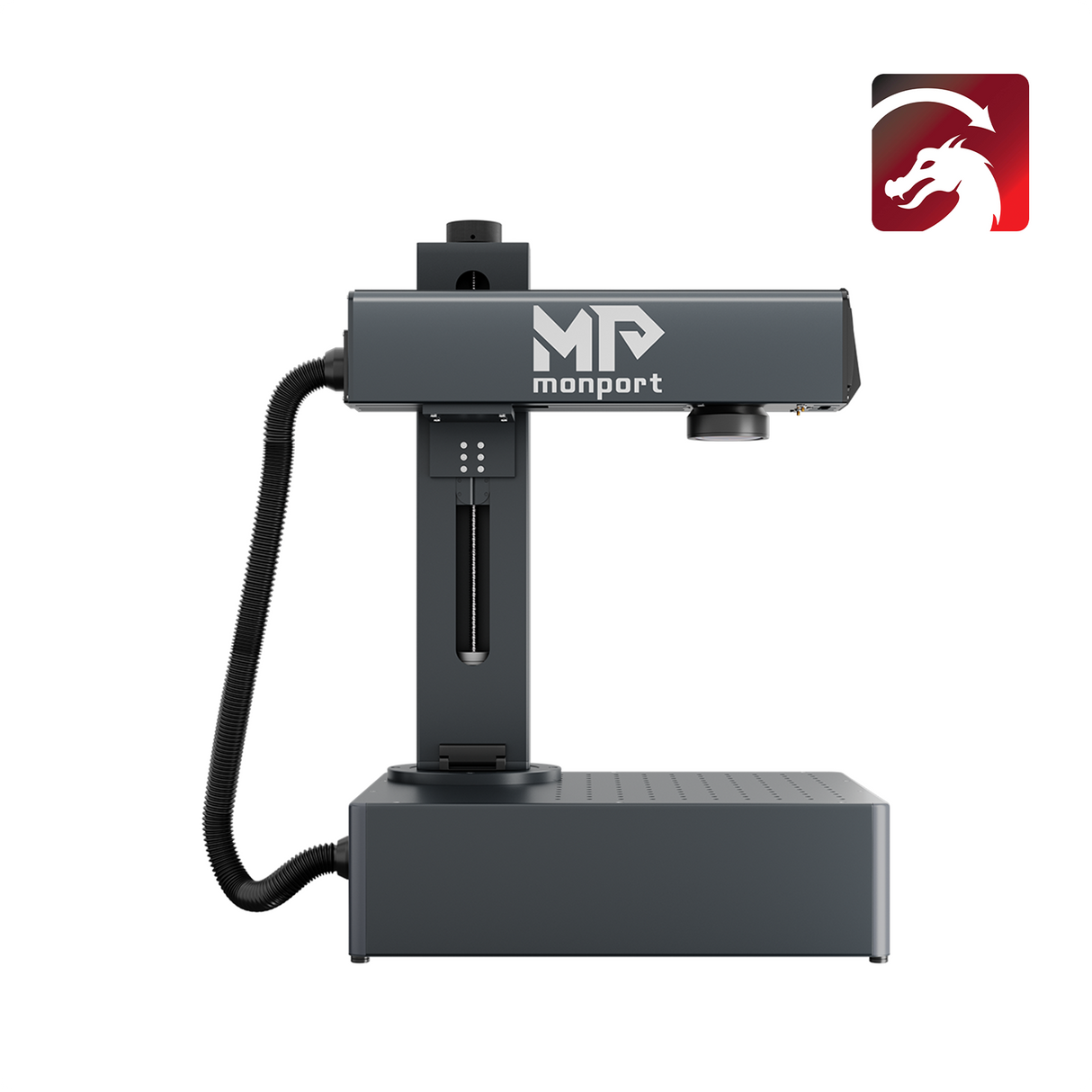

Monport GA 30W Upgraded Integrated MOPA Fiber Laser Engraver & Marking Machine with Auto Focus
Monport GA 30W Upgraded Integrated MOPA Fiber Laser Engraver & Marking Machine with Auto Focus - Machine is backordered and will ship as soon as it is back in stock.
-
11% off£159.99 -
10% offSold Out -
64% offSold Out -
£469.99
Couldn't load pickup availability
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Dimension & Specifications
Dimension & Specifications
Product name: GA MOPA 30W
Wavelength: 1064nm
Laser power: 30W
Rated voltage: 220V
Frequency range: 1-3000kHz
Compatible software: BslAppSimple
Lightburn
Supported image formats: BMP, GIF, JPG, JPEG, DXF, DST, Al.etc
Supported system: Windows xp/7/8/10/11 , MacOS 10.11 or above.
Engraving area: 6.9x6.9in.175×175 mm
Max. marking depth in one pass (depending on materials): 0.003in.(0.08mm)
Product dimensions: 13.8 x 16.5 x 24.4in (35x42x62cm)
Max. Z.Height (field lens to workbench): 410mm
Color engraving: YES
Engraving accuracy: 0.01mm
Positioning accuracy: ±0.1 µm
Pulse width: 2-500ns
Engraving speed: 10000 mm/s 393.7 ips
Beam quality M2:＜1.35
Beam diameter: 7±1mm
Maximum pulse energy: 0.8mJ
Field lens dimensions: M85
Galvanometer Thread Size: M68
Focusing Mode: Auto Focus
Cooling Type: Air Cooling
Materials Suitable for Engraving: Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc.
Expected Lifetime: 100,000 hrs
Laser Type: MOPA Fiber Laser
Electric Lifting: YES
Rotation Axis Function: YES
Foot Pedal Function: Built-in Foot Pedal Function
GA Fiber Laser Benefits
GA Fiber Laser Benefits
All-in-One Fiber Laser
Experience Monport's latest, independently developed autofocuslaser marking machine. Upgraded for enhanced performance and cost-effectiveness, users can enjoy advanced features without significant cost increase. The machine arrives ready-to-use with easy installation, quick setup, and user-friendly operation.
Aluminum Body with Integrated Optics
Monport combines functionality and aesthetics in industrial gradefiber laser engravers. The entire machine features a robust aluminum casing, with the auto-focus and galvanometer modules integrated into the optical path. This integration, paired with sleek exterior lines and a minimalist structure, positions it far ahead of industry competitors.
Auto-Focus Innovation
Monport introduces our proprietary auto-focus technology, achieving high precision with a single click (error＜±1mm). This streamlined process enhances work efficiency and focus accuracy compared to traditional manual methods. For added flexibility, manual focus is also possible, supported by three red lights.
Enhanced Performance
Beyond its outstanding design, Monport's desktop marking machine outperforms competitors also in performance. Every component has been rigorously tested for ultra-high stability, precision positioning, rapid marking speeds, and robust anti-interference capabilities (see detailed specifications for reference).
±90° Vertical Arm Rotation
The vertical arm offers an infinitely adjustable range of ±90°. Users can fix it at any angle within this range, promoting unlimited creativity in marking applications. Adjustments are convenient, requiring just the loosening of screws without the need for complete unscrewing.
Widely adjustable frequency and pulse width
Stainless steel colorful marking，including anodized aluminum black marking, precision cutting, drilling, conventional marking, plastic keystroke surface marking, etc.
（Note: Laser Frequency 1-4000kHz，Pulse Width 2-500ns）
One-Minute Installation
Installing this LightBurn compatible fiber laser marker is a breeze with its excellent foldable vertical arm design —just tighten two screws, and you're ready to go. Monport promises that even beginners can complete the setup within a minute after unboxing for a hassle-free experience.
To ensure optimum focus in the working area:
When using a enclosure: D70 rotary axis is recommended.
Without enclosure: 80MM rotary axis recommended.
Warranty & Certifications
Warranty & Certifications
2-year parts warranty on all GA fiber laser machines
1-year warranty on fiber laser source
FDA COMPLIANT
CE CERTIFICATION
User manual
User manual
Download user manual here
Free shipping within UK
Free shipping within UK
You will get the tracking number within 2 business days.
The delivery time varies from 3 to 7 business days.
If the arrived outer package is damaged, please refuse to sign for it and take a photo, then contact Monport via support@monportlaser.uk.
We are very glad to help you with the exchange process.
Simple and precise engraving on round surfaces
Engrave rings, bracelets and more – simply connect the rotary axis attachment (not included).
Red light preview for precise engravings
The Monport fiber laser engraver's red light preview function precisely frames the design position and displays a preview of the vector and text outlines. This ensures perfect alignment and effectively reduces errors, making engraving more efficient and precise.
Faserlaser-Positionierleiste
Unser Faserlaser ist mit Positionierleisten ausgestattet, um eine präzise Ausrichtung zu gewährleisten, was die Effizienz bei der Serienfertigung und für wiederholte Gravuren effektiv verbessert.
Quiet operation
Work quietly and stay focused with minimal noise
Pushing the boundaries of technology
We have optimized the size of our workspace to ensure that every detail is carved with precision, so that each carving is full of possibilities and surprises.
A long-lasting and stable working partner
Rigorously tested and inspected, this machine not only has a long service life but also stable operation under heavy workload, resulting in long-lasting productivity.
| Product name | GA MOPA 30W | GA MOPA 60W | GA MOPA 100W |
| Wavelength | 1064nm | 1064nm | 1064nm |
| Laser power | 30W | 60W | 100W |
| Rated voltage | 220V | 220V | 220V |
| Frequency range | 1-3000kHz | 1-3000kHz | 1-3000kHz |
| Compatible software | BslAppSimple Lightburn |
BslAppSimple Lightburn |
BslAppSimple Lightburn |
| Supported image formats | BMP, GIF, JPG, JPEG, DXF, DST, Al.etc | BMP, GIF, JPG, JPEG, DXF, DST, Al.etc | BMP, GIF, JPG, JPEG, DXF, DST, Al.etc |
| System supported | Windows，MacOS | Windows，MacOS | Windows，MacOS |
| Engraving range | 6.9x6.9 in. 175 × 175 mm |
6.9x6.9 in. 175 × 175 mm |
6.9x6.9 in. 175 × 175 mm |
| Max. Marking depth On a single pass (depending on materials) | 0.003 in. (0.08mm) |
0.004 in. (0.1mm) |
0.006 in. (0.15mm) |
| Product dimension | 13.8x16.5x24.4 in (35x42x62cm) |
14.8x19.7x25.6 in (37.5x50x65cm) |
14.8x19.7x25.6 in (37.5x50x65cm) |
| Max Z. height(field lens on workbench) | 410mm | 410mm | 410mm |
| Color engraving | Yes | Yes | Yes |
| Engraving accuracy | 0,01mm | 0,01mm | 0,01mm |
| Position ier Accuracy | ±0.1 µm | ±0.1 µm | ±0.1 µm |
| Pulse width | 2-500 ns | 2-500 ns | 2-500 ns |
| Max engraving speed | 10000 mm/s 393.7 ips |
10000 mm/s 393.7 ips |
10000 mm/s 393.7 ips |
| Beam quality M2 | <1.35 | <1.8 | <1.8 |
| Beam diameter | 7 ± 1mm | 7 ± 1mm | 7 ± 1mm |
| Maximum pulse energy | 0,8 mJ | 1.5mJ | 1.5mJ |
| Field lens dimension | M85 | M85 | M85 |
| Galvanometer Thread size | M68 | M68 | M68 |
| Focus mode | Autofokus | Autofokus | Autofokus |
| Cooling type | Air cooling | Air cooling | Air cooling |
| Materials suitable for engraving | Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc | Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc | Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc |
| Expected lifetime | 100.000 Std. | 100.000 Std. | 100.000 Std. |
| Warranty | 2-year （1 year for laser source) |
2-year （1 year for laser source) |
2-year （1 year for laser source) |
| Laser type | Faser laser MOPA | Faser laser MOPA | Faser laser MOPA |
| Electric lifting | Yes | Yes | Yes |
| Rotation axis function | Yes | Yes | Yes |
| Foot pedal function | Built-in foot pedal function | Built-in foot pedal function | Built-in foot pedal function |
| Product color | Dark grey | Dark grey | Dark grey |
