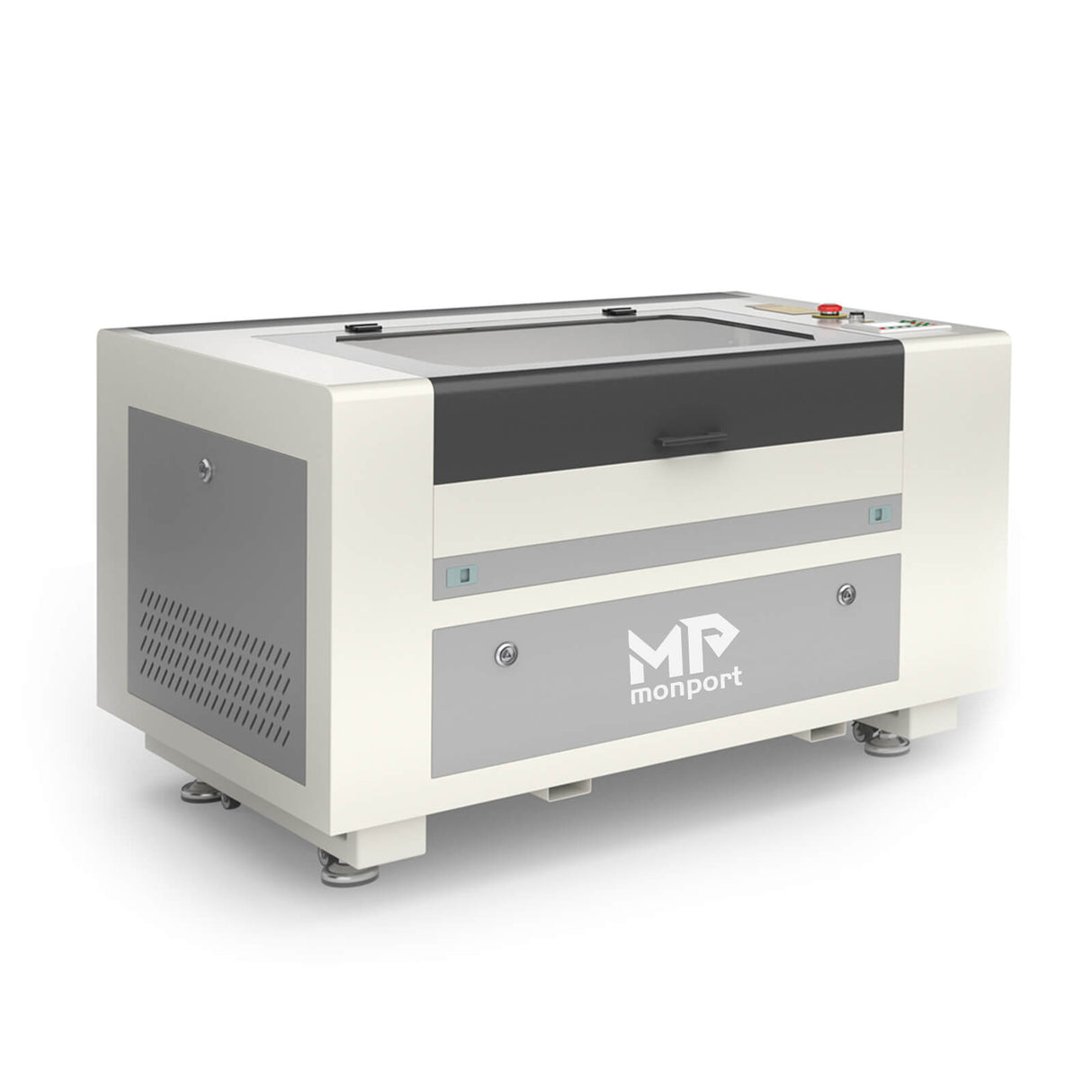

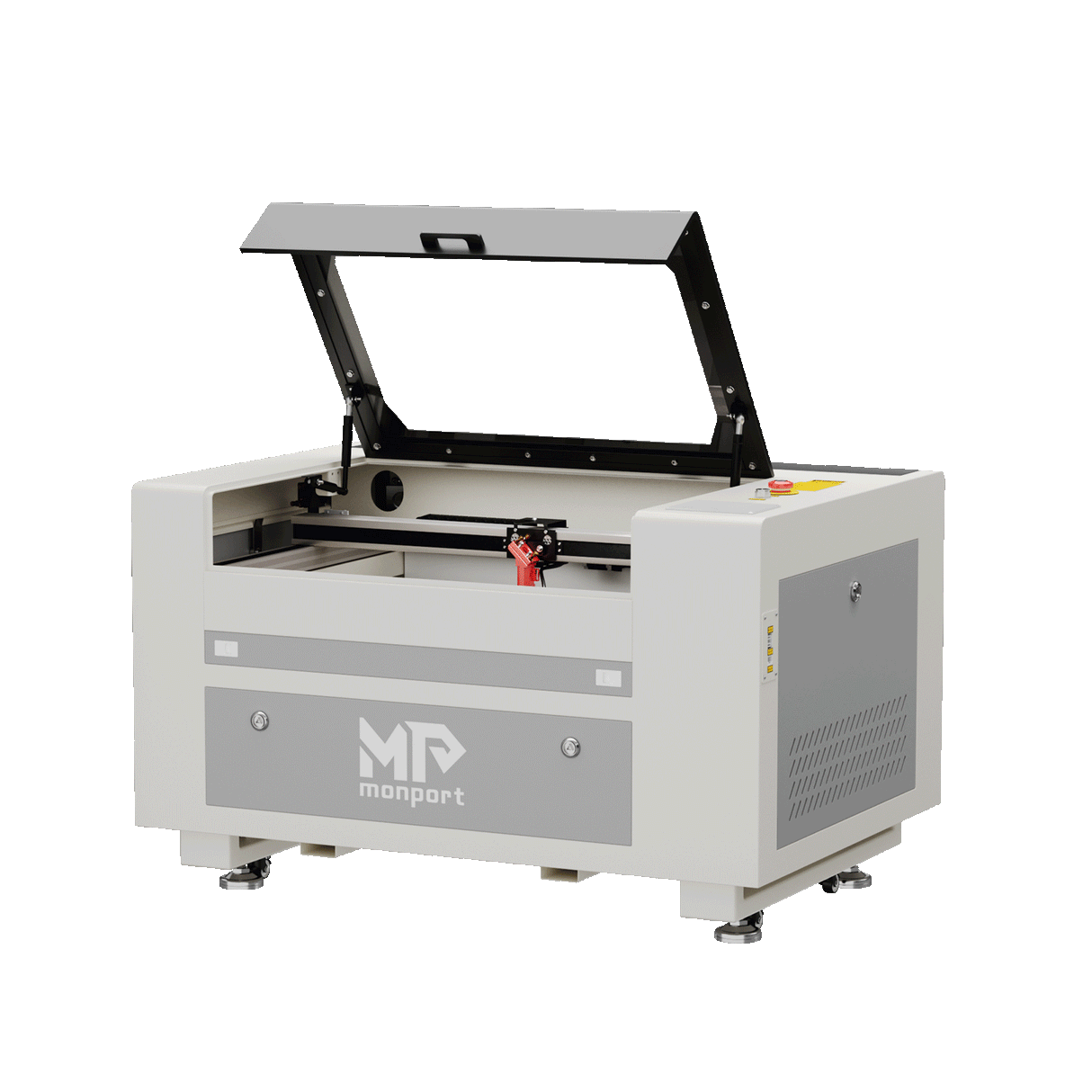

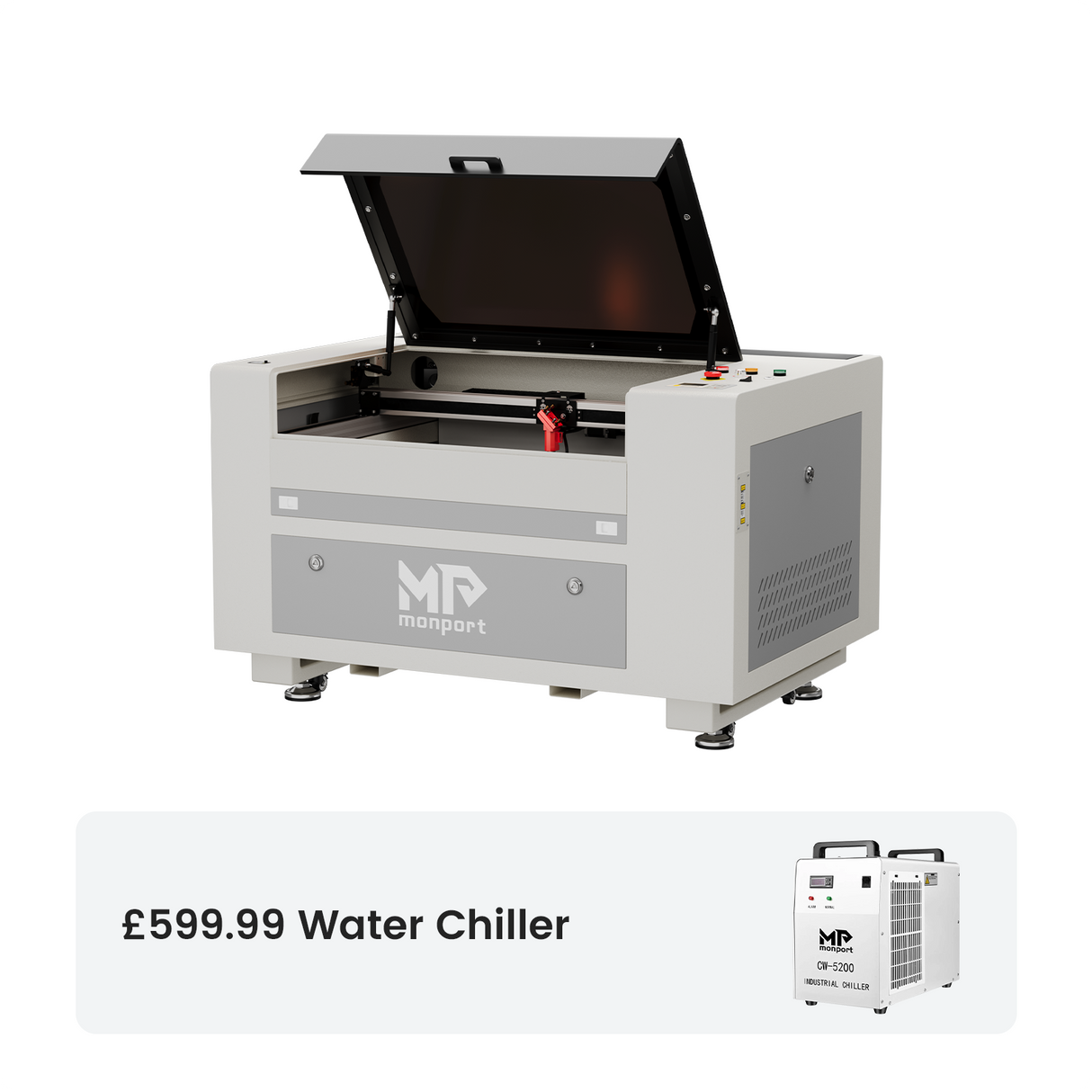

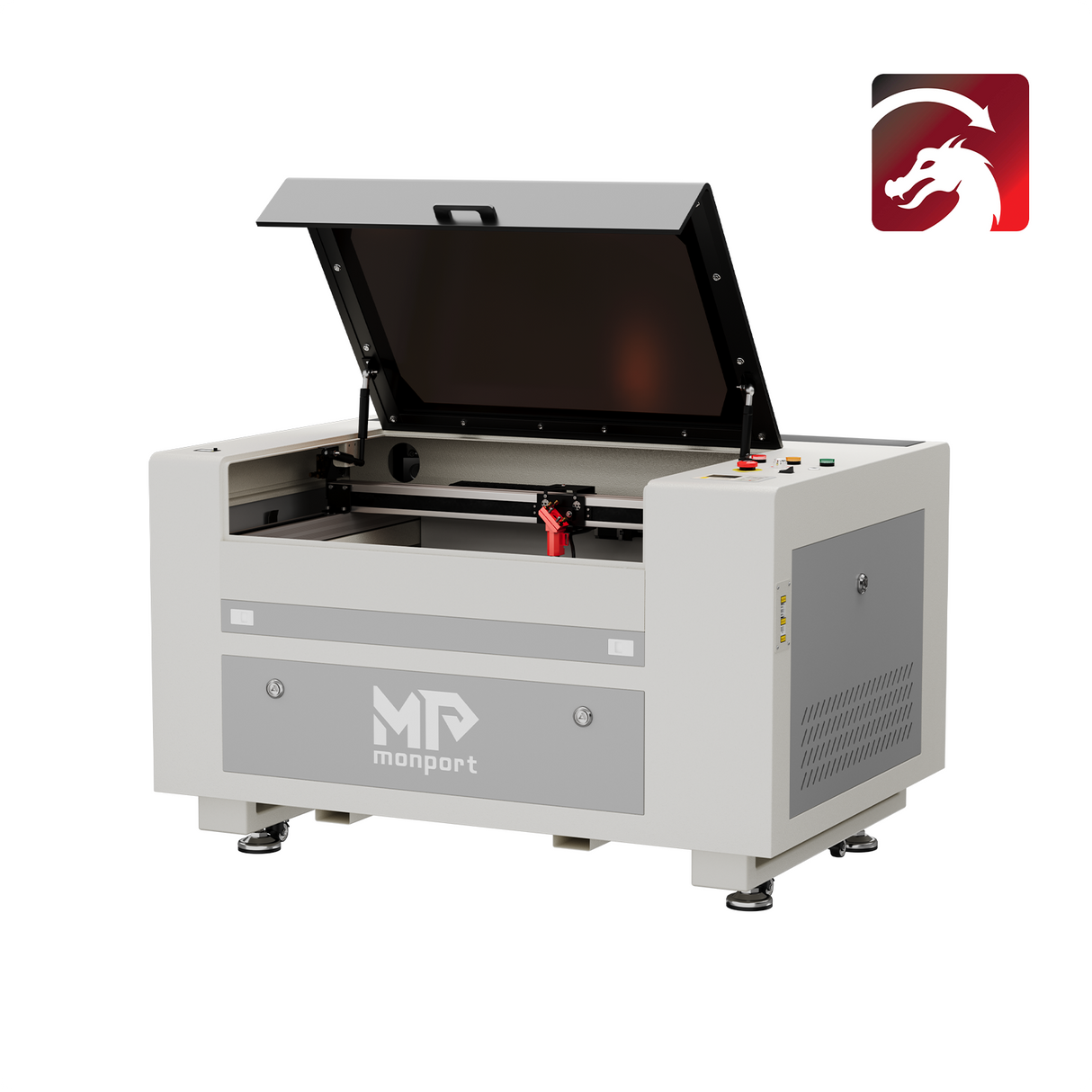

Monport 60W CO2 Laser Engraver & Cutter (24" x 16") with Autofocus
Monport 60W CO2 Laser Engraver & Cutter (24" x 16") with Autofocus is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Dimension
Dimension

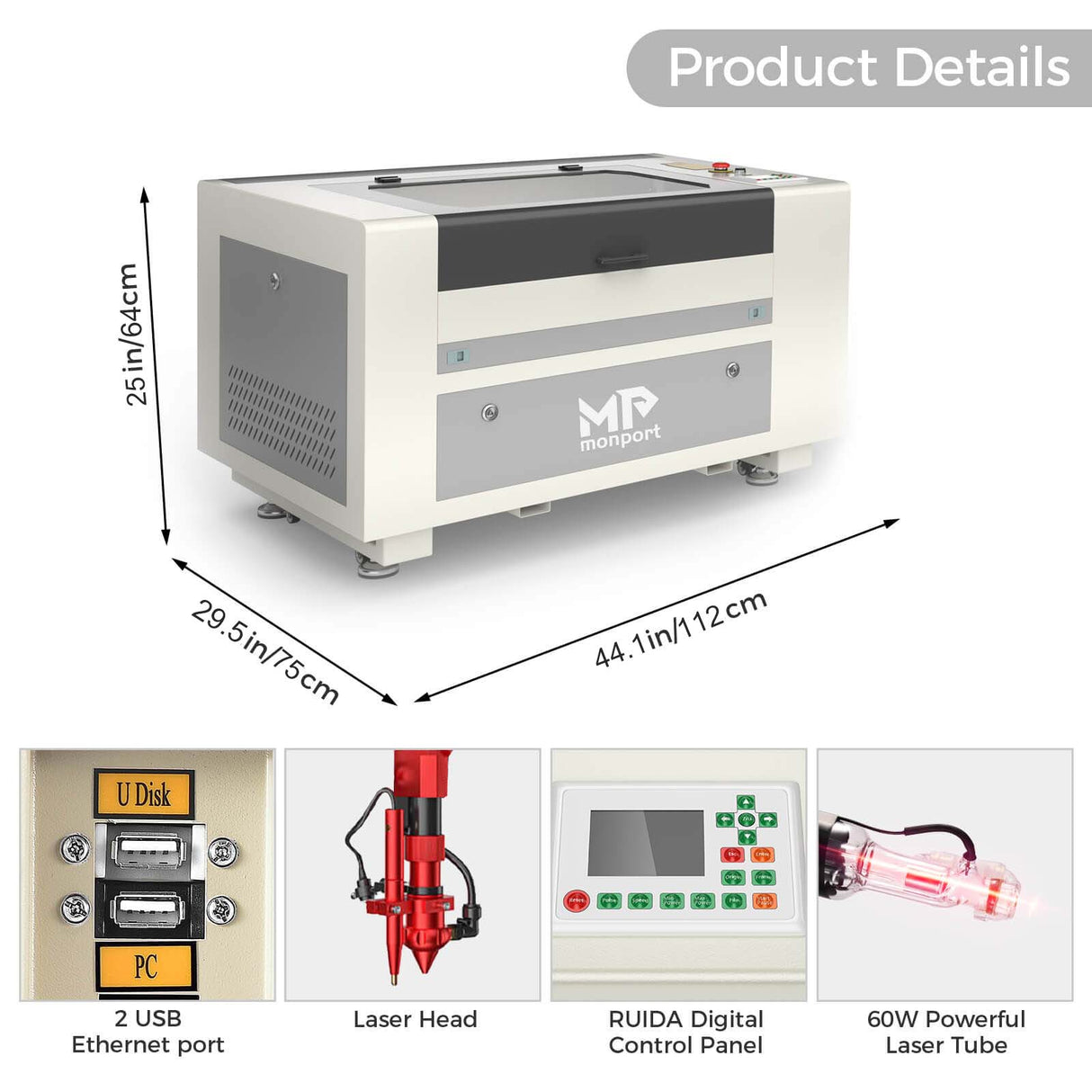

Machine Dimension: 44.1''x 29.5'' x 25'' (112cm x 75cm x 64cm)
Package Dimension: 48.8" x 34.6'' x 45.7'' ( 124 cm x 88 cm x 116 cm )

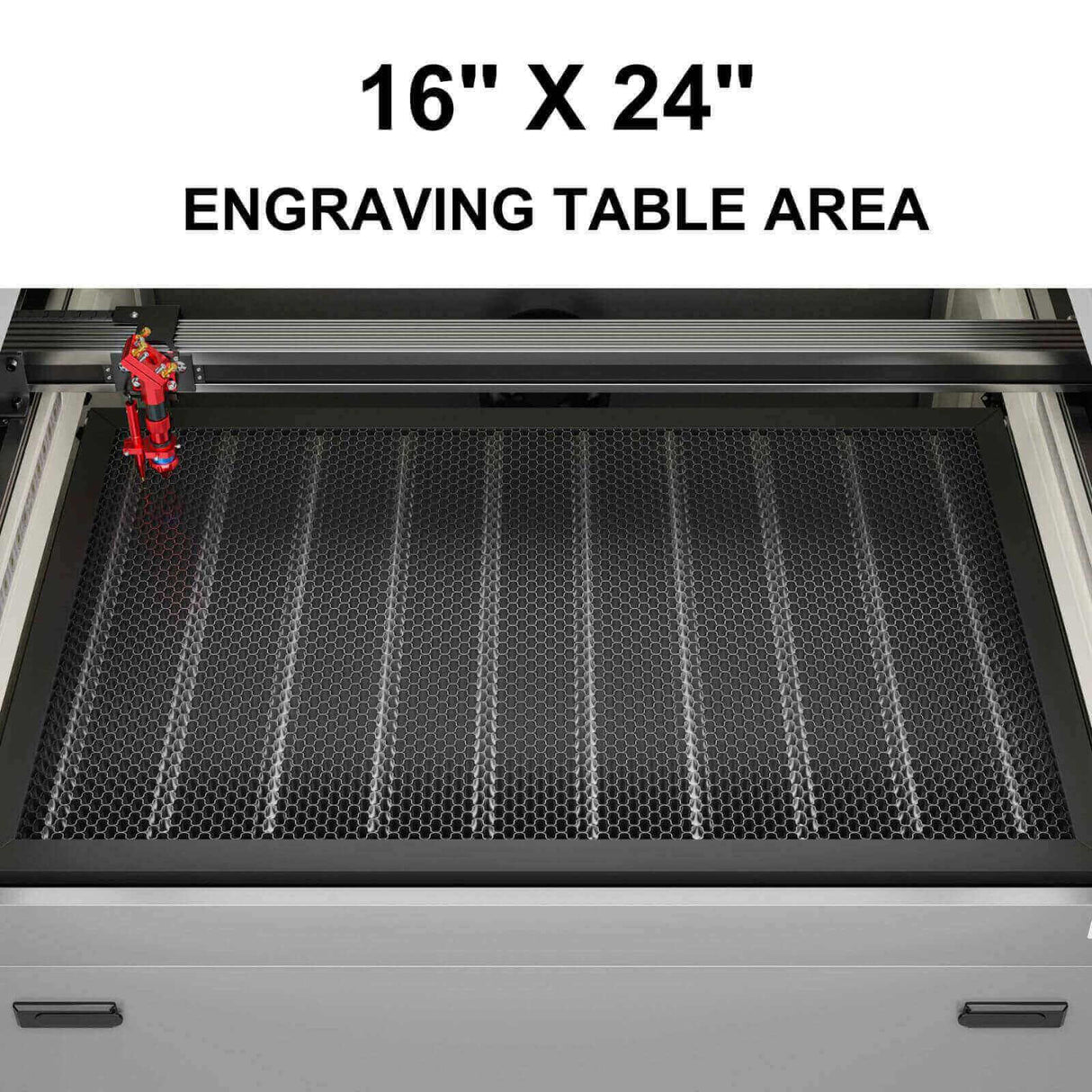

Working Dimension: 16" x 24" ( 40 cm x 60 cm )
Pass-through Dimension: 1.5'' x 28''(4cm x 73 cm )
Max Engraving Speed: 800mm/s
Focal Lens Diameter: 18mm
Mirror Diameter: 25mm
Max. Z-depth: 9.8”
Product Weight: 209 lbs

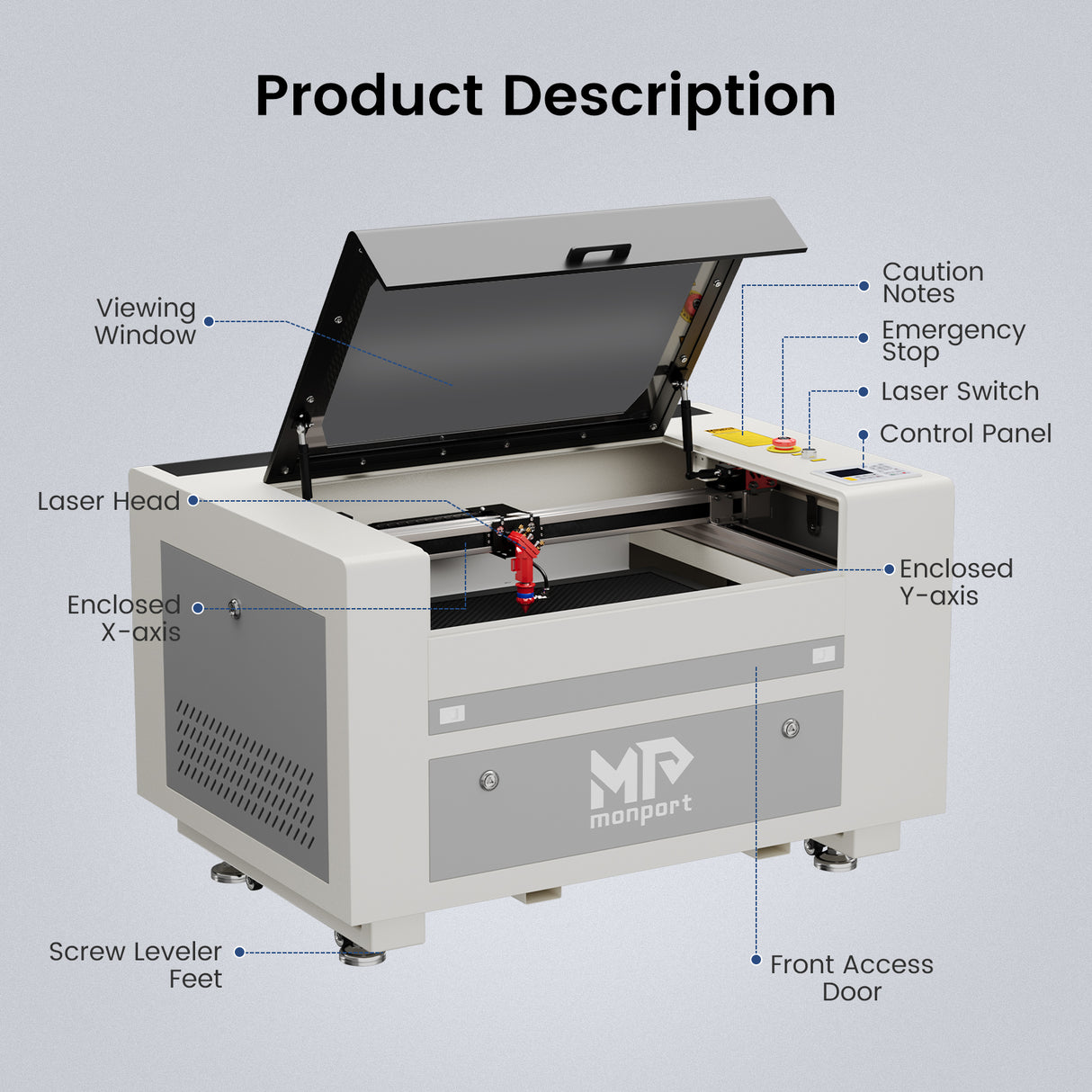

60W CO2 Engraver Features
60W CO2 Engraver Features

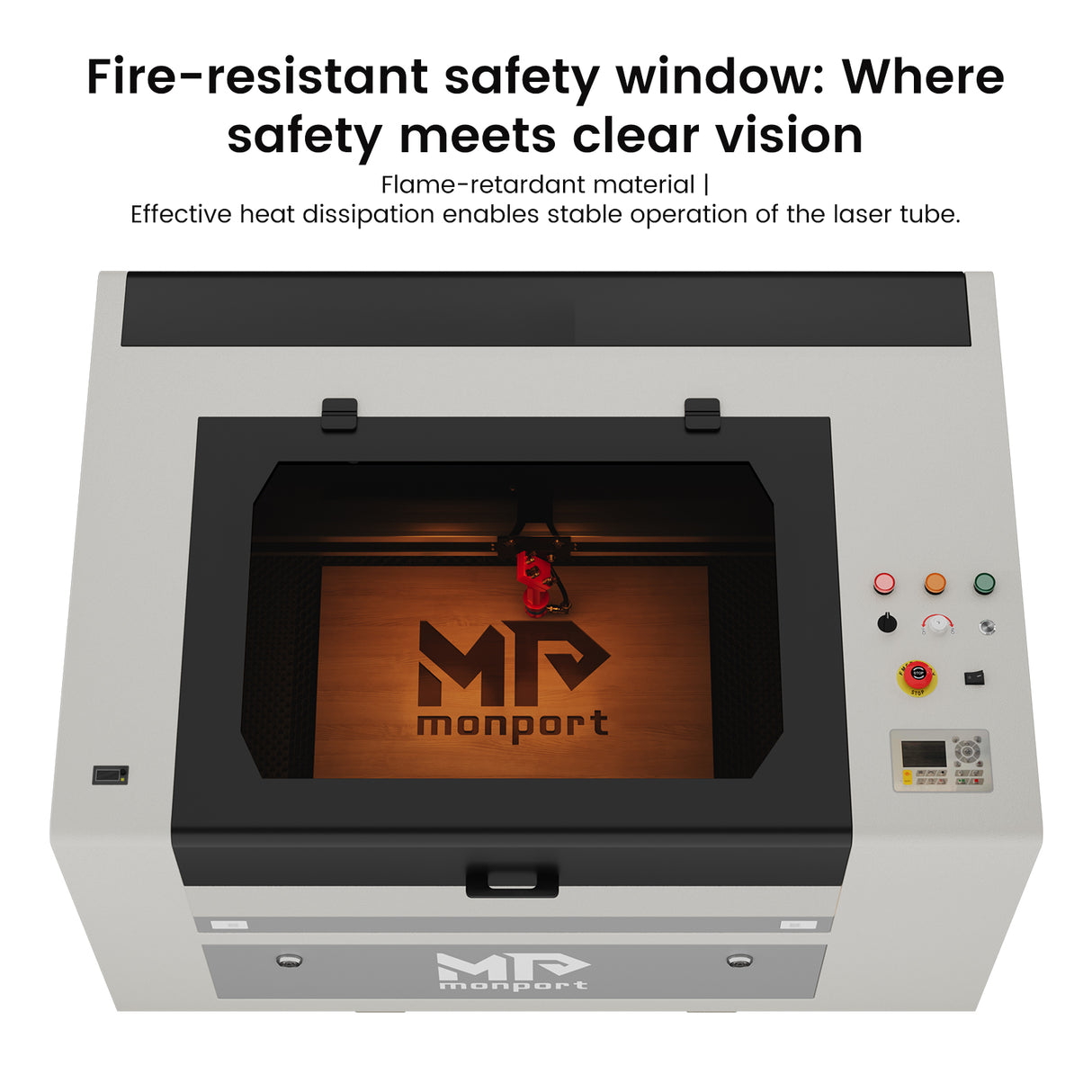

Fireproof Viewing Window
This viewing window is made from special fire-resistant polyester with iron frames. The melting point of this polyester ranges from 432° to 488° and the ignition temperature of it is over 1000°, which can dramatically decrease the possibility of fire accidents caused by the heat of laser burning the materials.
Enclosed Aeronautical Aluminum Rail
Equipped with X and Y stepper motors, this rail features efficient power transmission with high precision. The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units.
Laser Protective Glasses for Free
Lasers emit radiation in the invisible form of light. This pair of laser protective glasses is certified to protect your eyes against radiation damage by looking at the class 4 laser in any way (directly, indirectly, or even looking at the laser dot on a surface can damage your eyes).
Ruida Digital Controller
Whether your chosen software is LightBurn, RDworks, AutoCAD, or CorelDRAW, this Ruida digital controller can support the given platform. The Ruida Controller with a digital display can control the laser head, start or stop projects, adjust laser power and speed settings and so on.
High Speed and Resolution
The Engraving Speed is up to 800 mm/s;
The Cutting Speed is up to 400 mm/s;
The Resolution is up to 4500 dpi;
3 LED light strips above the work bed provide illumination for precision;
2.0" Focal distance provides high resolution and etching of tiny fonts
Autofocus
Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment.
Built-in Air Assist
A built-in air assist system guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping engravings more precise.
3-ways to Connect with PC End
Two USB ports provide options including flash drive connectivity and a USB-to-USB PC connection. In addition, one ethernet port is also available for connection.
Red Dot Guidance
The red dot shows the laser head position, marks the working path and frames the project sizes, assisting you with more convenience and guidance.
Automatic Safety Sensor
The safety shutdown sensor helps stopping the machine even if the window cover is on. Once closed, press the “Enter” button to continue operation.

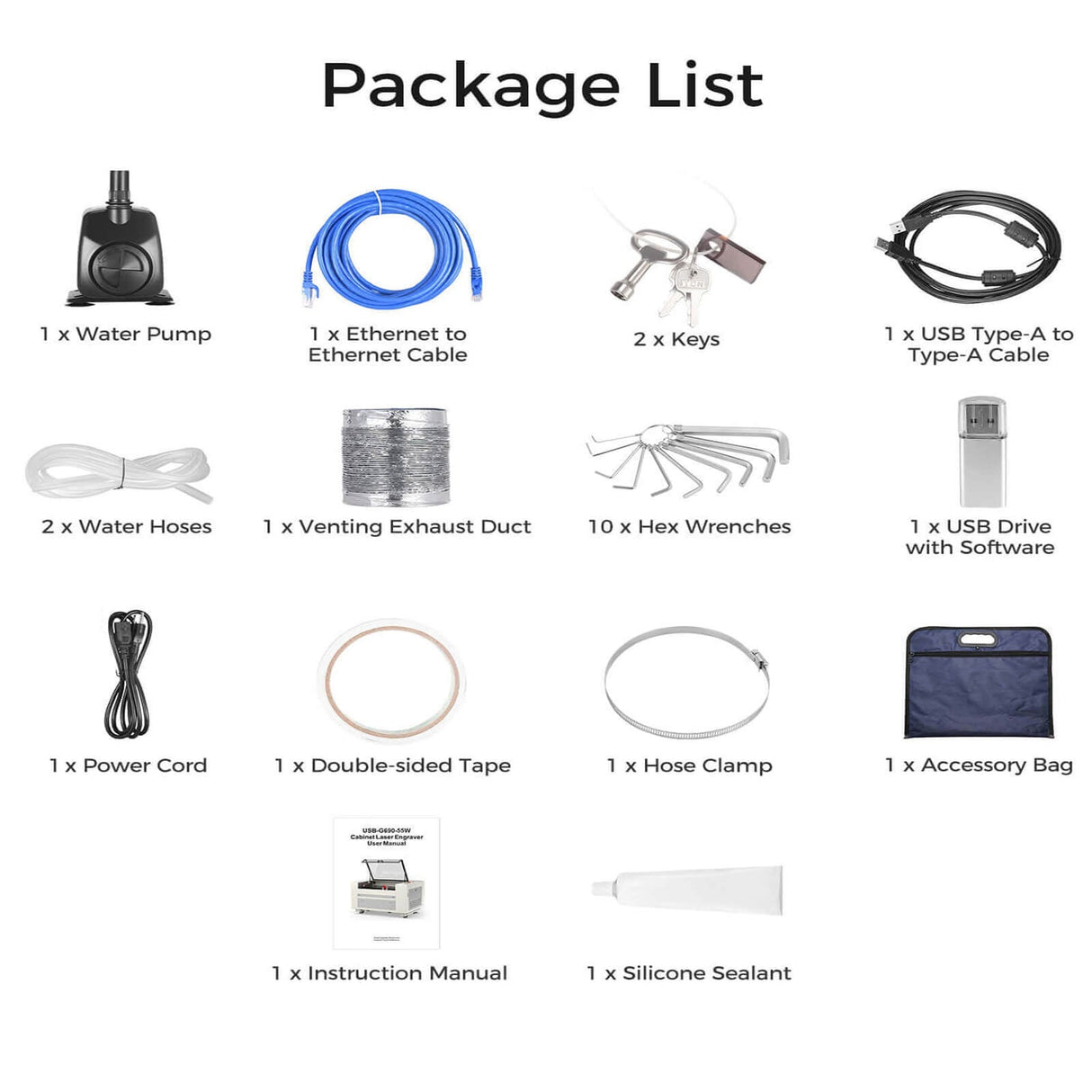

Package Contents
Package Contents
Laser Engraver Machine *1
A Pair of Laser Protective Glasses *1
Accessory Bag *1
Ethernet to Ethernet Cable *1
USB Type-A to Type-A Cable *1
Venting Exhaust Duct *1
USB Drive with Software (RDworks) *1
Hex Wrenches *10
Double-sided Tape *1
Power Cord *2
Keys *2
Silicone Sealant *1
Stainless Steel Clamp *1
Instruction Manual *1
Warranty & Certifications
Warranty & Certifications
2 year warranty on all 60W laser machines and parts
6 month warranty on 60W laser tubes
FDA Approved & CE Certified
Delivery and Shipping
Delivery and Shipping
You will get the tracking number within 2 business days.
The delivery time varies from 3 to 7 business days.
If the arrived outer package is damaged, please refuse to sign for it and take a photo, then contact Monport via support@monportlaser.uk.
We are very glad to help you with the exchange process.
Enclosed Aeronautical Aluminum Rail & Autofocus
The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units. Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment.
High Speed and Resolution
The Engraving Speed is up to 800 mm/s. The Resolution is up to 4500 dpi;

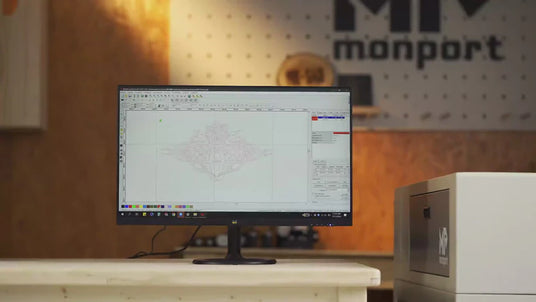

Compatible with Lightburn, RDWorks.
Excellent Cutting and Engraving Capabilities
Monport 60W CO2 Laser can cut different of wood, acrylic, stone and etc.
