Monport 60W CO2 Laser Engraver & Cutter (24" x 16") with Autofocus
Monport 60W CO2 Laser Engraver & Cutter (24" x 16") with Autofocus - Machine is backordered and will ship as soon as it is back in stock.
-
£469.99 -
64% offSold Out
Couldn't load pickup availability
Dimension
Dimension
Machine Dimension: 44.1''x 29.5'' x 25'' (112cm x 75cm x 64cm）
Package Dimension: 48.8" x 34.6'' x 45.7'' ( 124 cm x 88 cm x 116 cm )
Working Dimension: 16" x 24" ( 40 cm x 60 cm )
Pass-through Dimension: 1.5'' x 28''（4cm x 73 cm )
Max Engraving Speed: 800mm/s
Focal Lens Diameter: 18mm
Mirror Diameter: 25mm
Max. Z-depth: 9.8”
Product Weight: 209 lbs
60W CO2 Engraver Features
60W CO2 Engraver Features

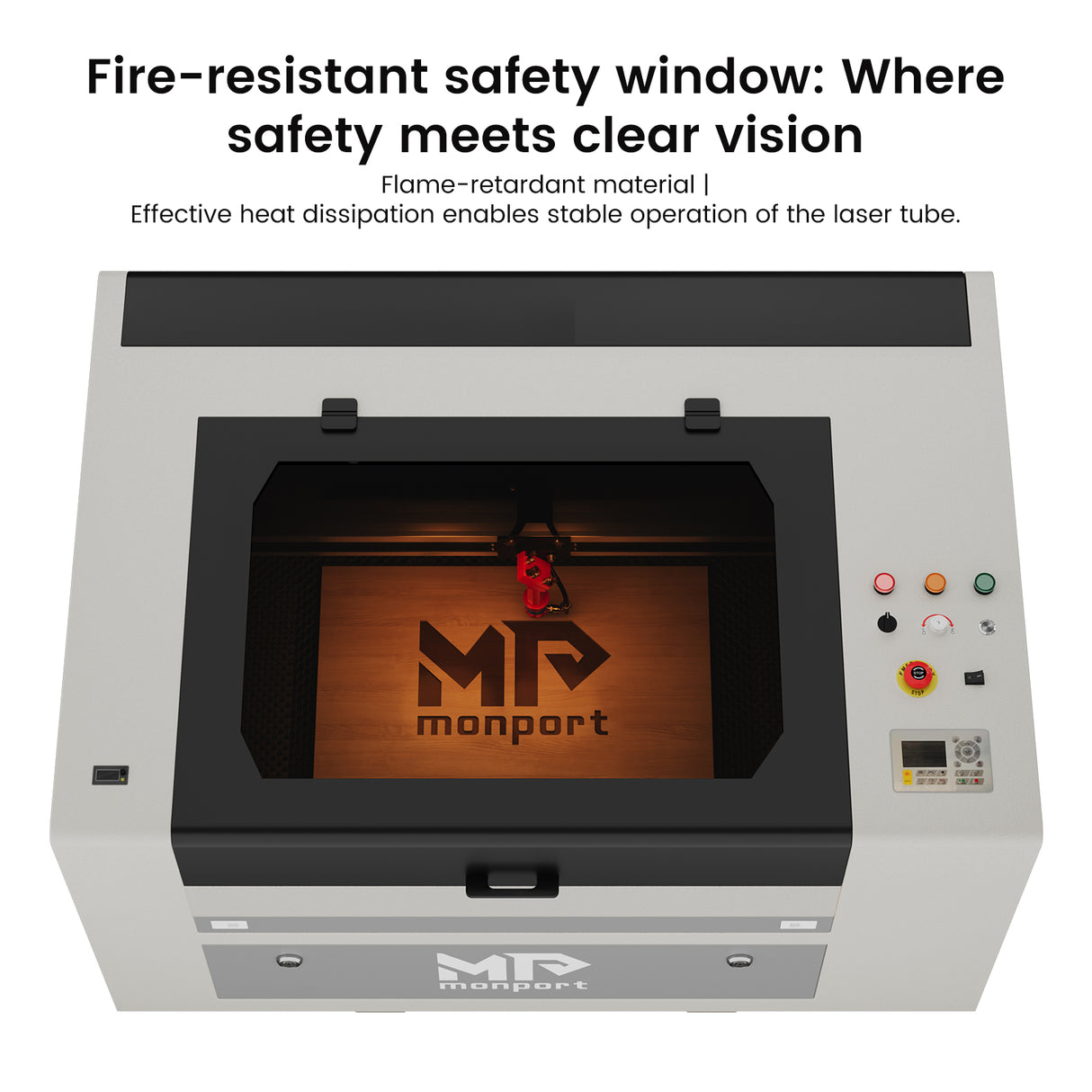

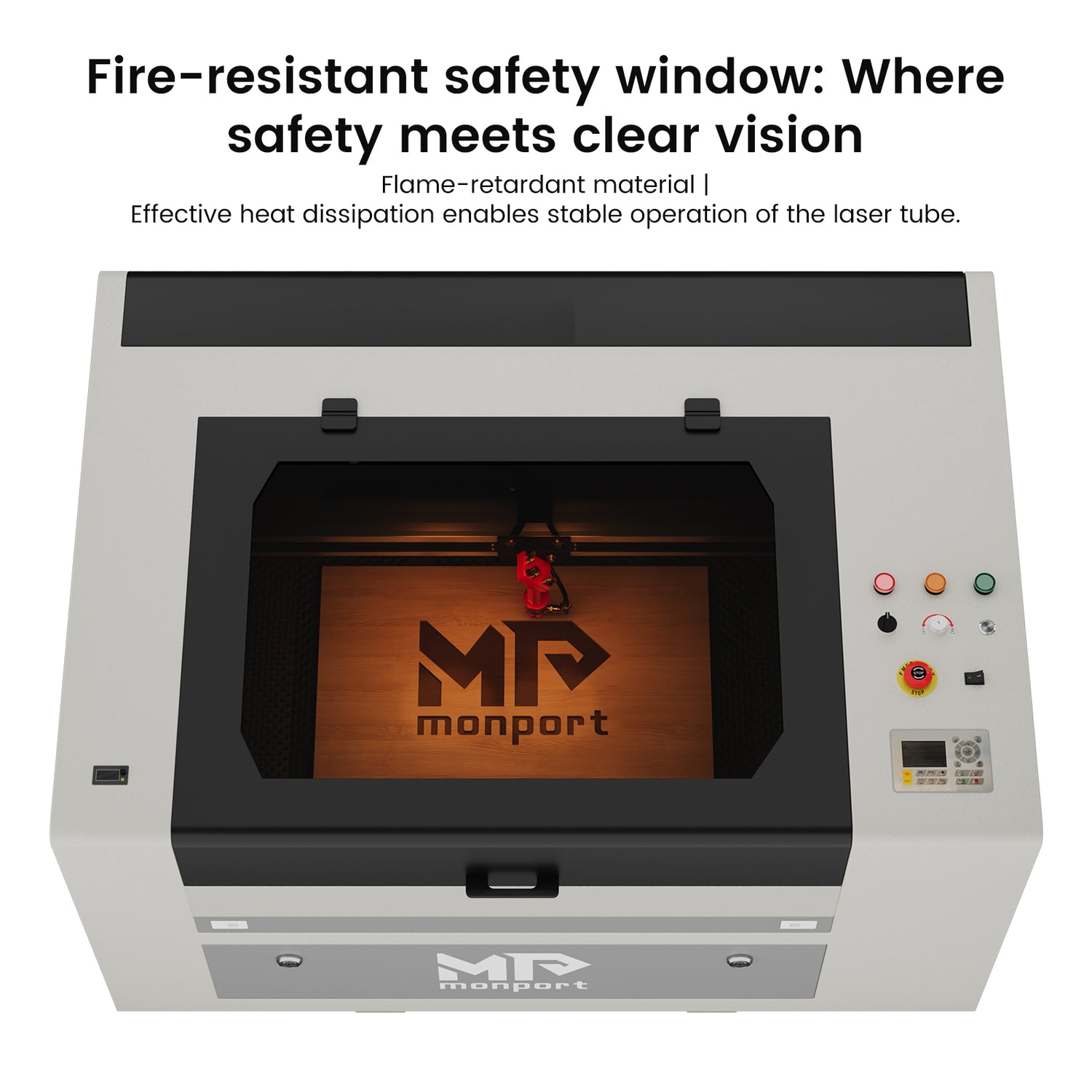

Fireproof Viewing Window
This viewing window is made from special fire-resistant polyester with iron frames. The melting point of this polyester ranges from 432° to 488° and the ignition temperature of it is over 1000°, which can dramatically decrease the possibility of fire accidents caused by the heat of laser burning the materials.
Enclosed Aeronautical Aluminum Rail
Equipped with X and Y stepper motors, this rail features efficient power transmission with high precision. The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units.
Laser Protective Glasses for Free
Lasers emit radiation in the invisible form of light. This pair of laser protective glasses is certified to protect your eyes against radiation damage by looking at the class 4 laser in any way (directly, indirectly, or even looking at the laser dot on a surface can damage your eyes).
Ruisin Digital Controller
Whether your chosen software is LightBurn, RDworks, AutoCAD, or CorelDRAW, this Ruisin digital controller can support the given platform. The Controller with a digital display can control the laser head, start or stop projects, adjust laser power and speed settings and so on.

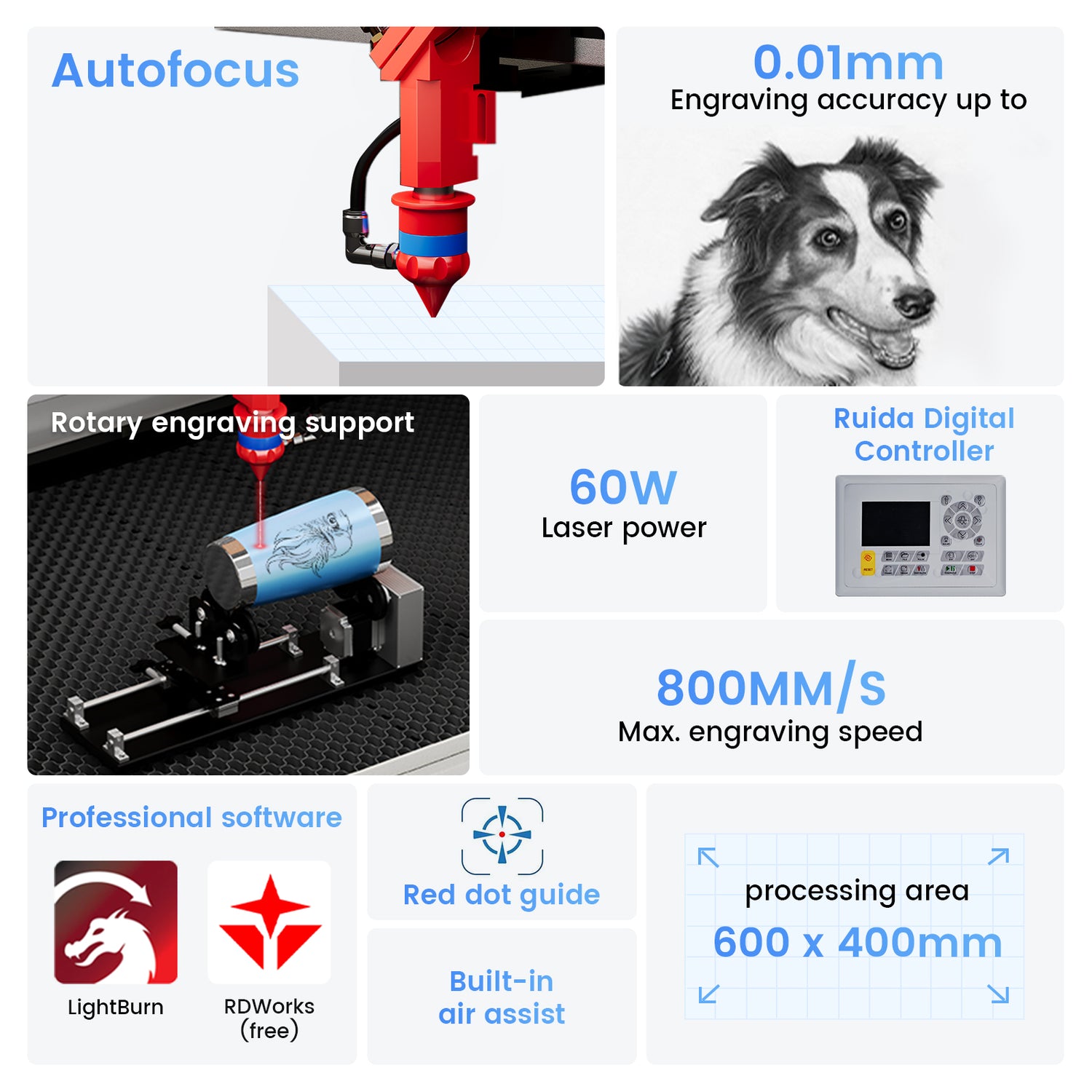

High Speed and Resolution
The Engraving Speed is up to 800 mm/s;
The Resolution is up to 4500 dpi;
3 LED light strips above the work bed provide illumination for precision;
2.0" Focal distance provides high resolution and etching of tiny fonts
Autofocus
Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment.

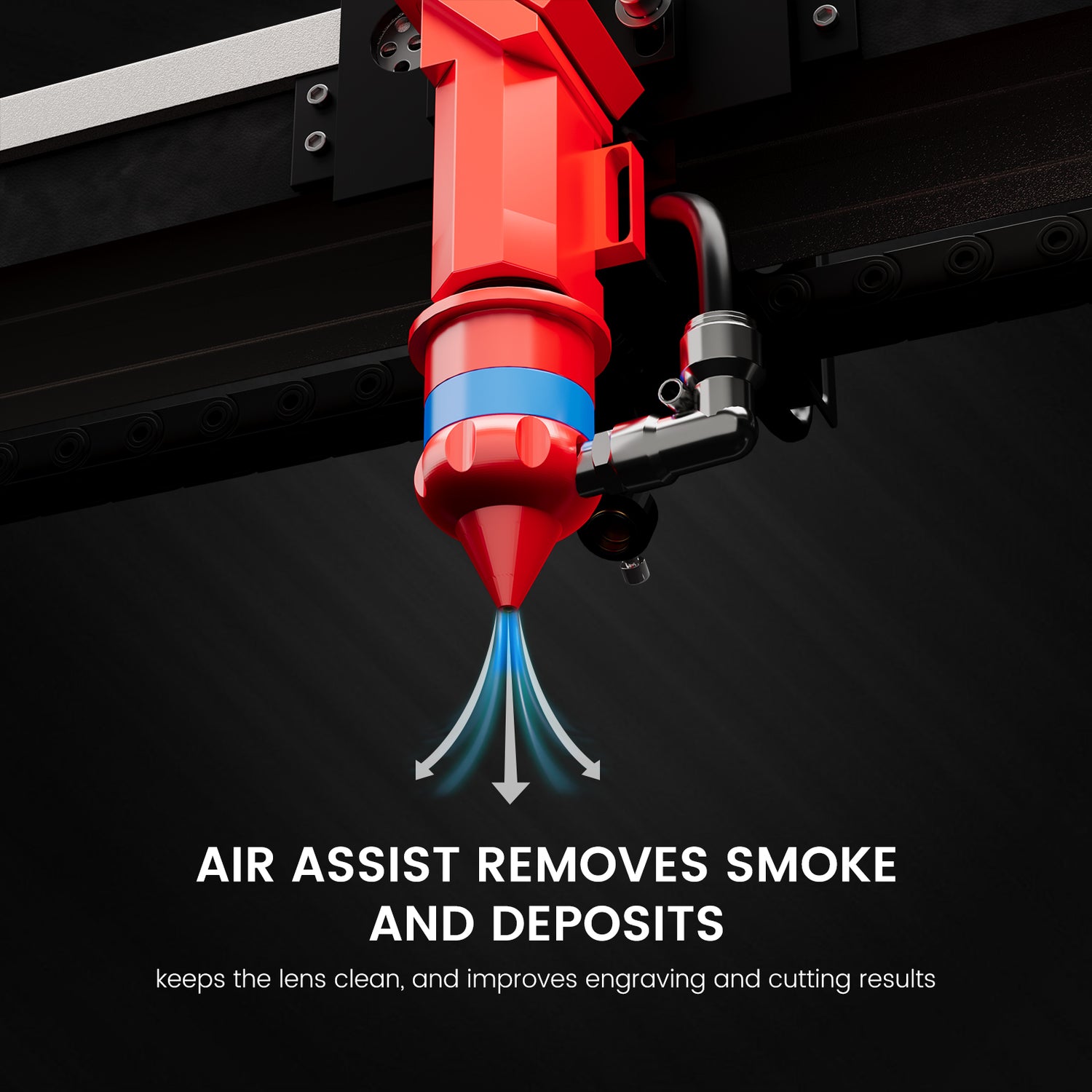

Built-in Air Assist
A built-in air assist system guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping engravings more precise.
3-ways to Connect with PC End
Two USB ports provide options including flash drive connectivity and a USB-to-USB PC connection. In addition, one ethernet port is also available for connection.
Red Dot Guidance
The red dot shows the laser head position, marks the working path and frames the project sizes, assisting you with more convenience and guidance.
Automatic Safety Sensor
The safety shutdown sensor helps stopping the machine even if the window cover is on. Once closed, press the “Enter” button to continue operation.
Package Contents
Package Contents
Laser Engraver Machine *1
A Pair of Laser Protective Glasses *1
Accessory Bag *1
Ethernet to Ethernet Cable *1
USB Type-A to Type-A Cable *1
Venting Exhaust Duct *1
USB Drive with Software (RDworks) *1
Hex Wrenches *10
Double-sided Tape *1
Power Cord *2
Keys *2
Silicone Sealant *1
Stainless Steel Clamp *1
Instruction Manual *1
Warranty&Certifications
Warranty&Certifications
2 years parts warranty
12 months warranty on laser tube and power supply
CE Certified
User manual
User manual
Download user manual
Free shipping within UK
Free shipping within UK
You will get the tracking number within 2 business days.
The delivery time varies from 3 to 7 business days.
If the arrived outer package is damaged, please refuse to sign for it and take a photo, then contact Monport via support@monportlaser.uk.
We are very glad to help you with the exchange process.

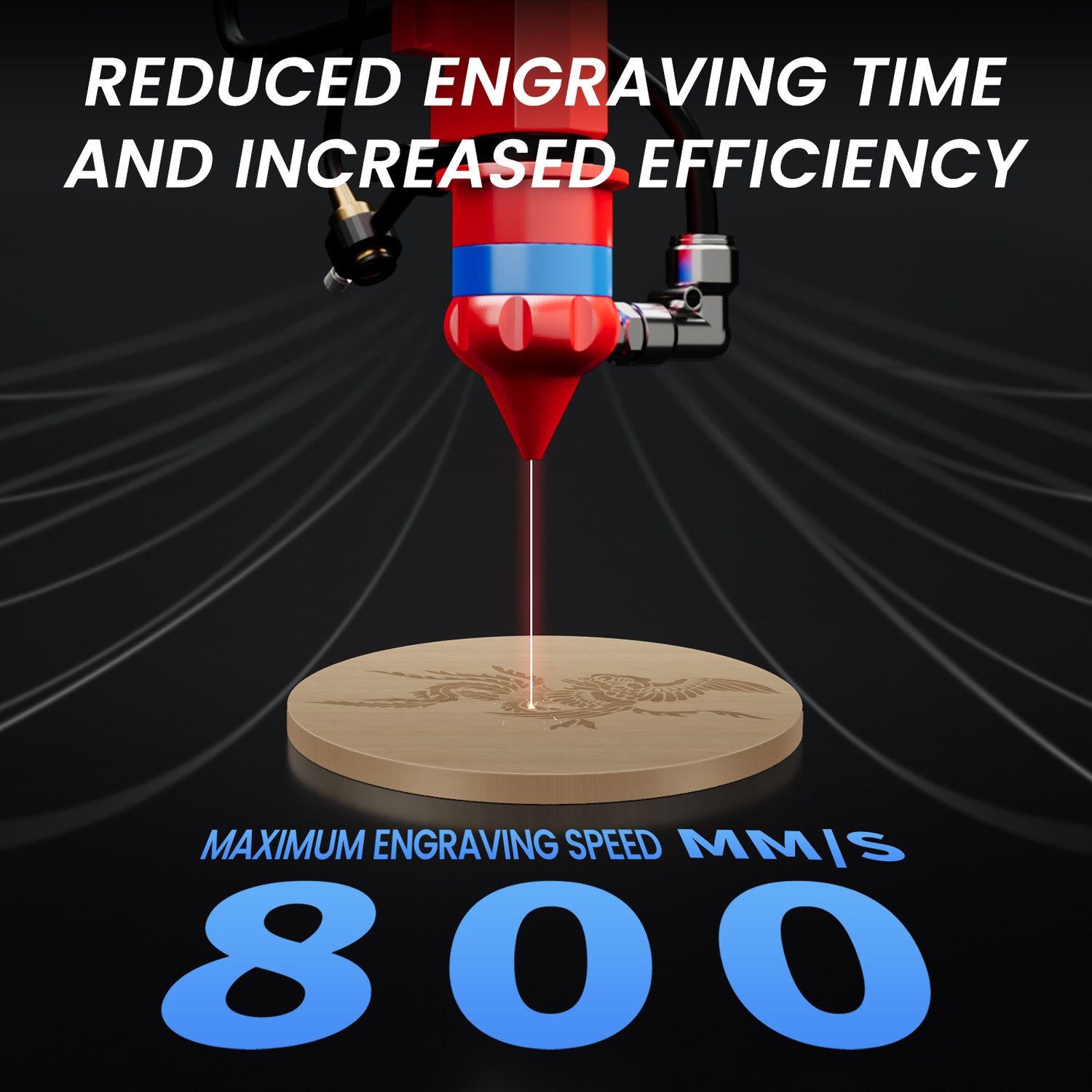

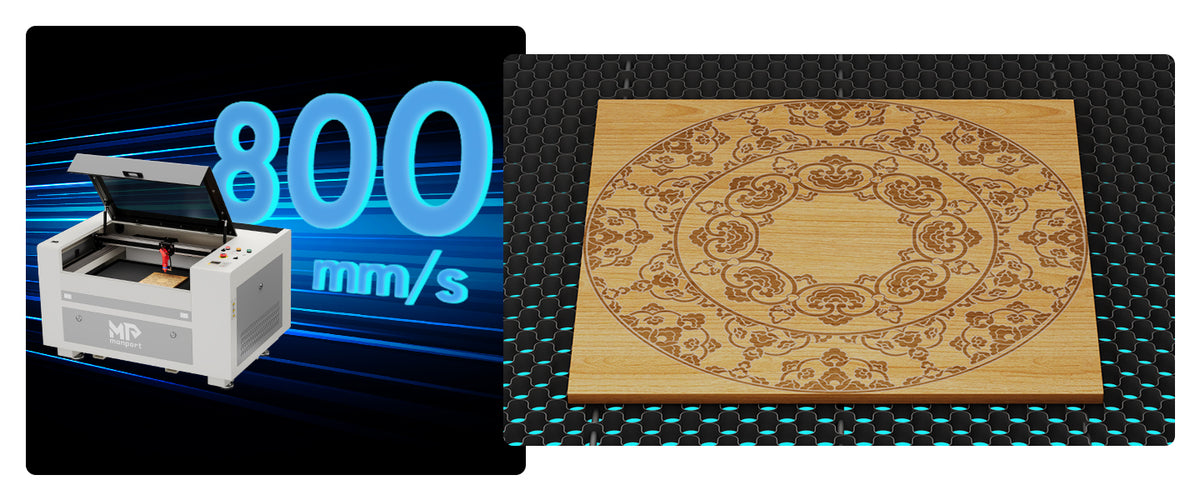

Boost Your Productivity
An engraving speed of up to 800 mm/s not only increases productivity but also enables optimized mass production.

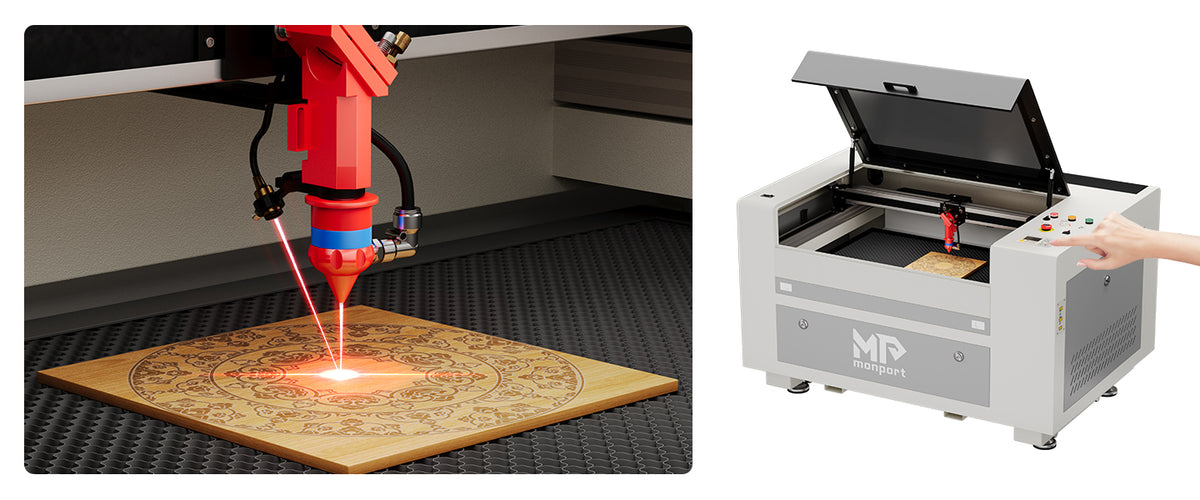

One-Touch-Autofokus
One-touch autofocus: Eliminates tedious manual adjustments and trial and error. Thanks to the motorized, height-adjustable work table, the laser can be effortlessly focused at the touch of a button.
Enclosed Aeronautical Aluminum Rail & Autofocus
The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units. Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment.

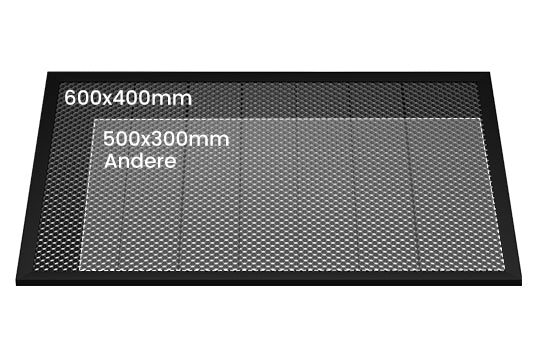

600mm x 400mm Processing Area
Our laser cutter allows you to process large-format objects as well as engrave and cut multiple workpieces simultaneously.
Dimensions (cm): L114 x W78 x H65
Working area (mm): 600 x 400
Pass-through Dimension: 1.5'' x 28''（4cm x 73 cm )

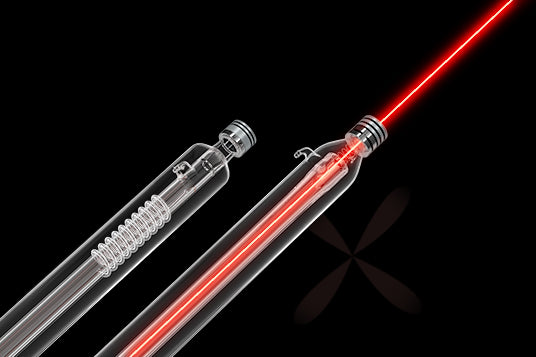

Powerful And Efficient Tubes
Our high-performance DC laser tubes deliver 60W of power with a lifetime of up to 1,000 hours, which can be doubled with continuous use at lower settings.

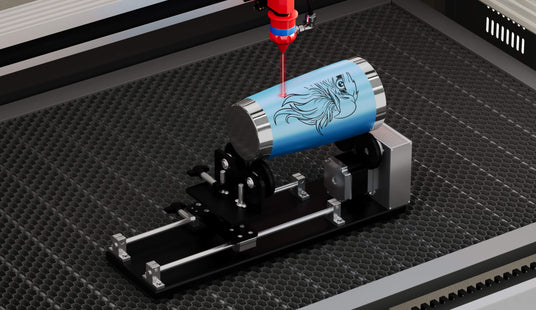

Compatible With Rotary Axis
This laser machine is compatible with any rotary axis available on the market and allows easy 360° engraving on cylindrical and round objects such as cups, bottles, flasks, tubes, pipes, bowls, bracelets and more!

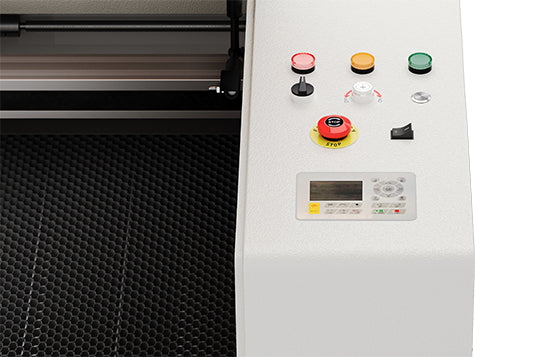

Digital Control Panel
The intuitive control center provides complete control of the laser head. You can easily pause or stop projects, adjust laser power and speed, and view production files.
Industrial-grade Processors And LightBurn Compatible
Powerful DSP and FPGA processors ensure precise and fast processing of complex details and files up to 256 MB in size.
Compatibility with the widely used LightBurn software (sold separately) and the free RDWorks
| Product Name | 60W CO2(400X600mm) | 60W CO2(500x700mm) |
| Wavelength | 10600nm | 10600nm |
| Laser Power | 60W | 60W |
| Rated voltage | 220V | 220V |
| compatible software | RDWorks,LightBurn | RDWorks,LightBurn |
| supported image formats | For RDWorks： *.ai *.pdf *.dxf *.nc *.plt *.svg *.rd *.cut *.dst *.dsb *.eps *.dat *.vd *.bmp *.rdb *.mng *.ico *.cur *.pcx *.wbmp *.wmf *.emf *.jbg *.j2c *.jpc *.pgx *.ras *.pnm *.pgm *.ppm *.ska *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga *.webp *.raw *.jpe *.jfif For LightBurn： Image files (*.bmp *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga *.webp) Vector files (*.ai *.pdf *.sc *.dxf *.gc *.gcode *.nc *.hpgl *.plt *.svg *.lbrn *.lbrn2 *.mage) |
For RDWorks： *.ai *.pdf *.dxf *.nc *.plt *.svg *.rd *.cut *.dst *.dsb *.eps *.dat *.vd *.bmp *.rdb *.mng *.ico *.cur *.pcx *.wbmp *.wmf *.emf *.jbg *.j2c *.jpc *.pgx *.ras *.pnm *.pgm *.ppm *.ska *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga *.webp *.raw *.jpe *.jfif For LightBurn： Image files (*.bmp *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga *.webp) Vector files (*.ai *.pdf *.sc *.dxf *.gc *.gcode *.nc *.hpgl *.plt *.svg *.lbrn *.lbrn2 *.mage) |
| System Supported | Windows / macOS | Windows / macOS |
| Engraving Area | 400x600mm | 500x700mm |
| Product Dimension | 112x75x64cm | 125x91.5x92cm |
| Z-Axis Movement | 150mm | 150mm |
| Net Weight | 95kg | 145kg |
| Max engraving speed | 800mm/s | 800mm/s |
| Focus mode | Autofocus | Autofocus |

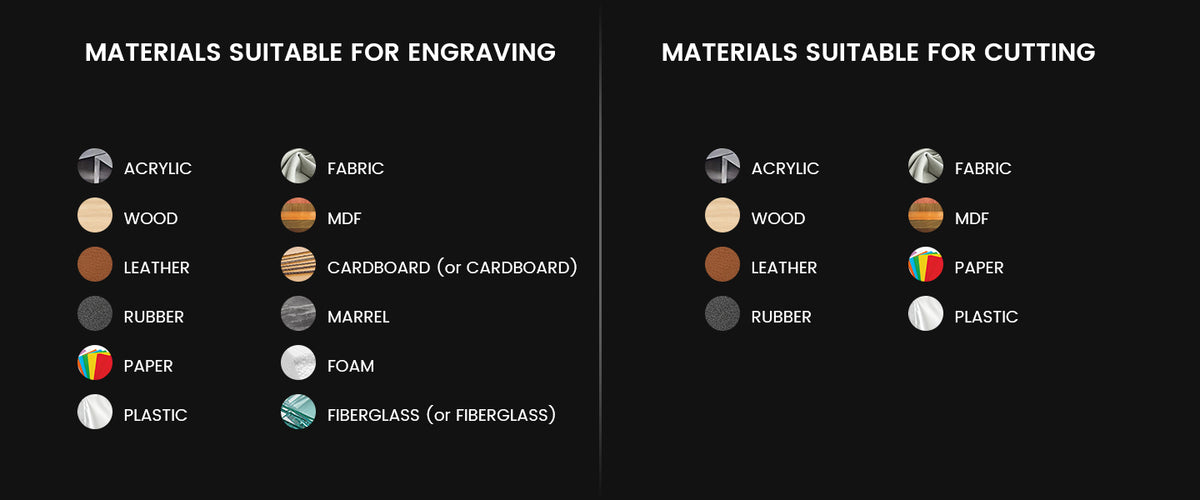

| Materials Suitable for Engraving | Wood, glass, acrylic, fabric, leather, paper, cardboard, rubber，etc | Wood, glass, acrylic, fabric, leather, paper, cardboard, rubber，etc |
| Expected Service Life | 2,000hrs | 2,000hrs |
| Warranty | 2Years | 2Years |
| Electric Lifting | YES | YES |
| Rotation Axis Function | YES | YES |
