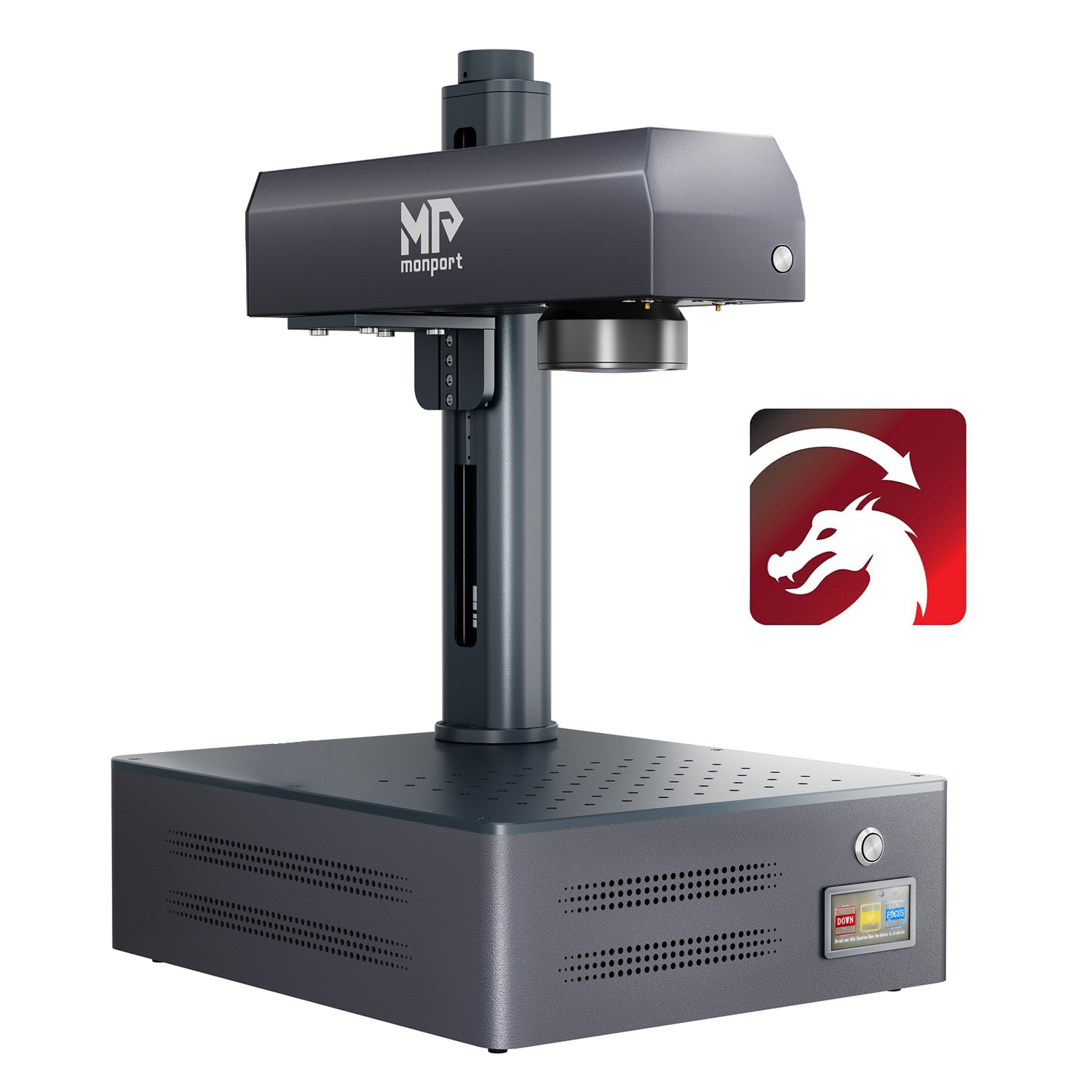

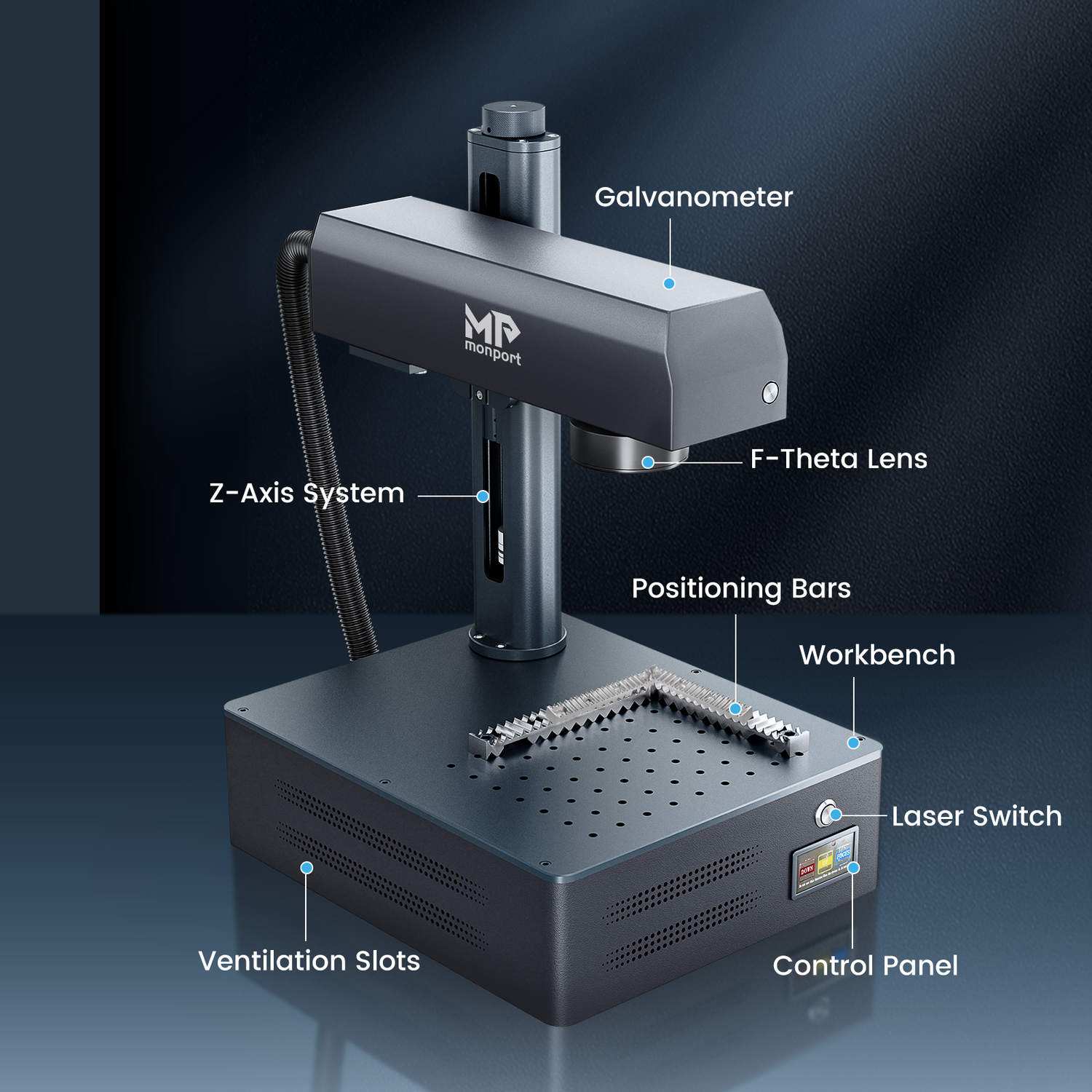

Monport GM 30W Pro Integrated Fiber Laser Engraver & Marking Machine with AutoFocus - Machine
Couldn't load pickup availability
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.

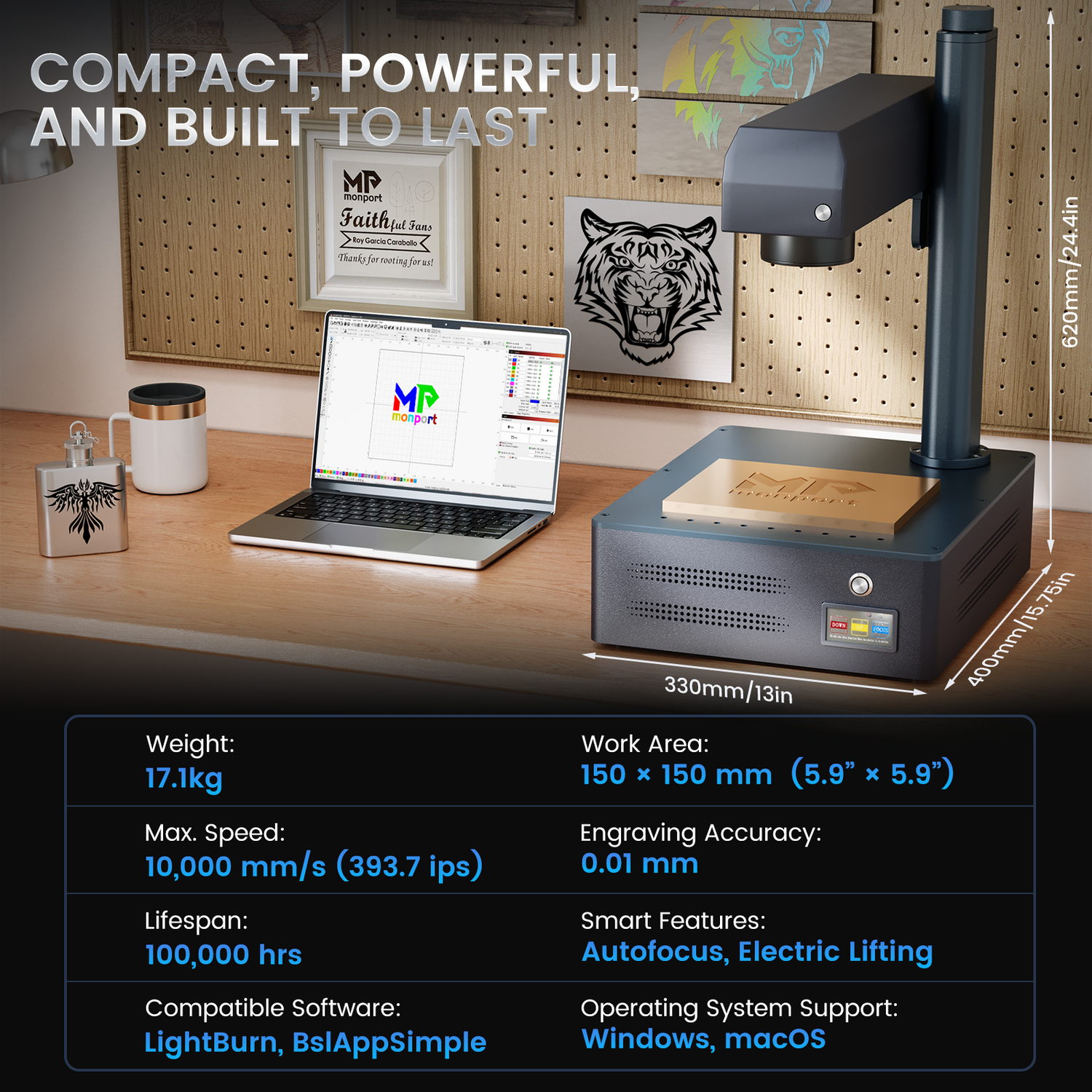

Dimension & Specifications
Dimension & Specifications
Rated Power:30W
Max. Engraving Speed:10000mm/s（393.7 ips）
Engraving Area:5.9 x 5.9 in.（150x150mm）
Focus Mode:Autofucus
Color Engraving:NO
Electric Lifting:YES
Expected Service Life:100,000 hr.
Wavelength:1064nm
Data Transmission:USB Cable
Compatible Software:BslAppSimple，Lightburn
Compatible Operating Systems:Windows / macOS
Product Dimensions:400 x 330 x 620mm
Net Weight:17.1kg
Package Dimension:590 x 440 x 390mm
Gross Weight:21kg
GM 30 Pro Fiber Laser Benefits
GM 30 Pro Fiber Laser Benefits

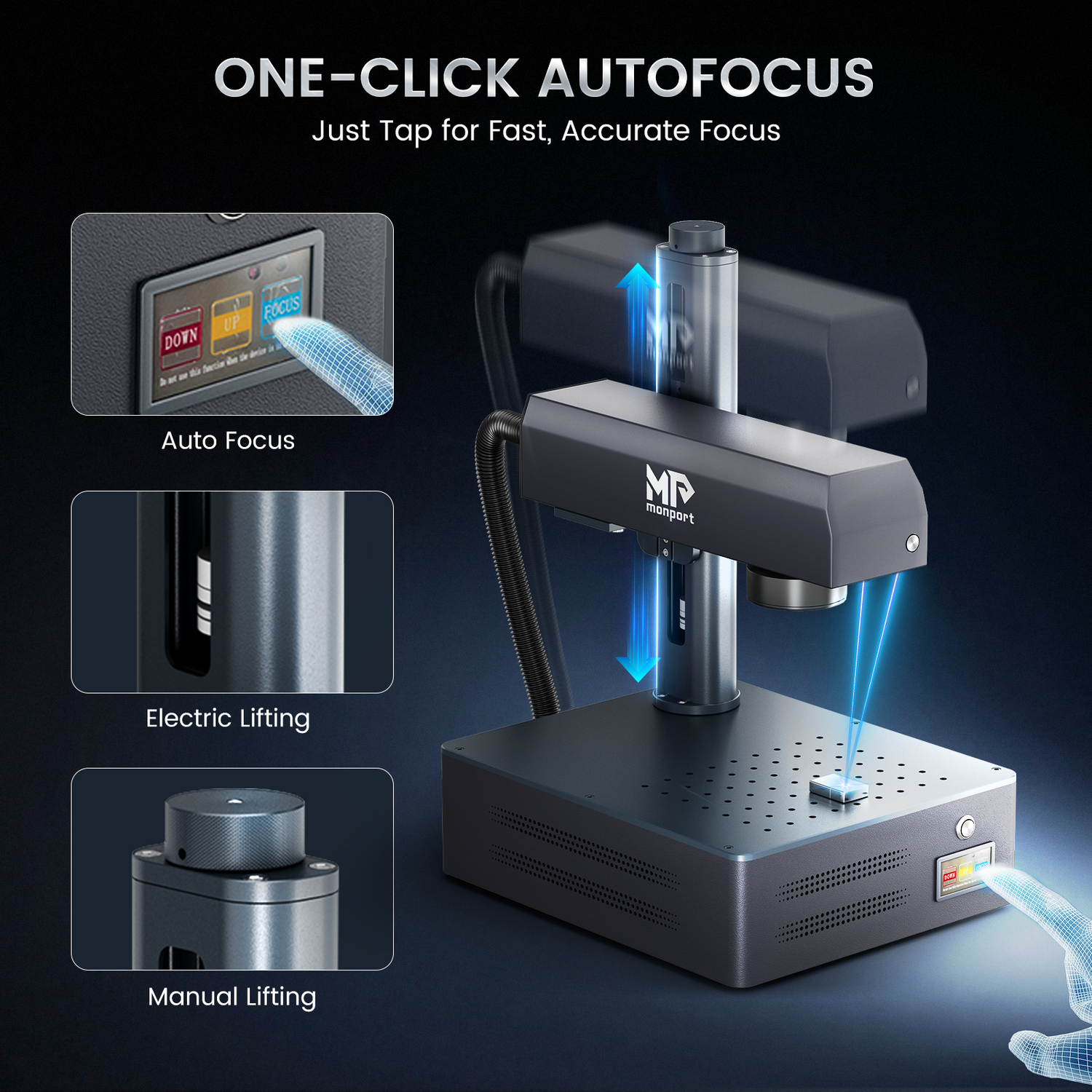

One-Touch Autofocus
The all-new GM Pro Series comes equipped with a cutting-edge one-touch auto-focus feature, enabling faster and more precise engraving results. Experience enhanced convenience and superior performance with every use."

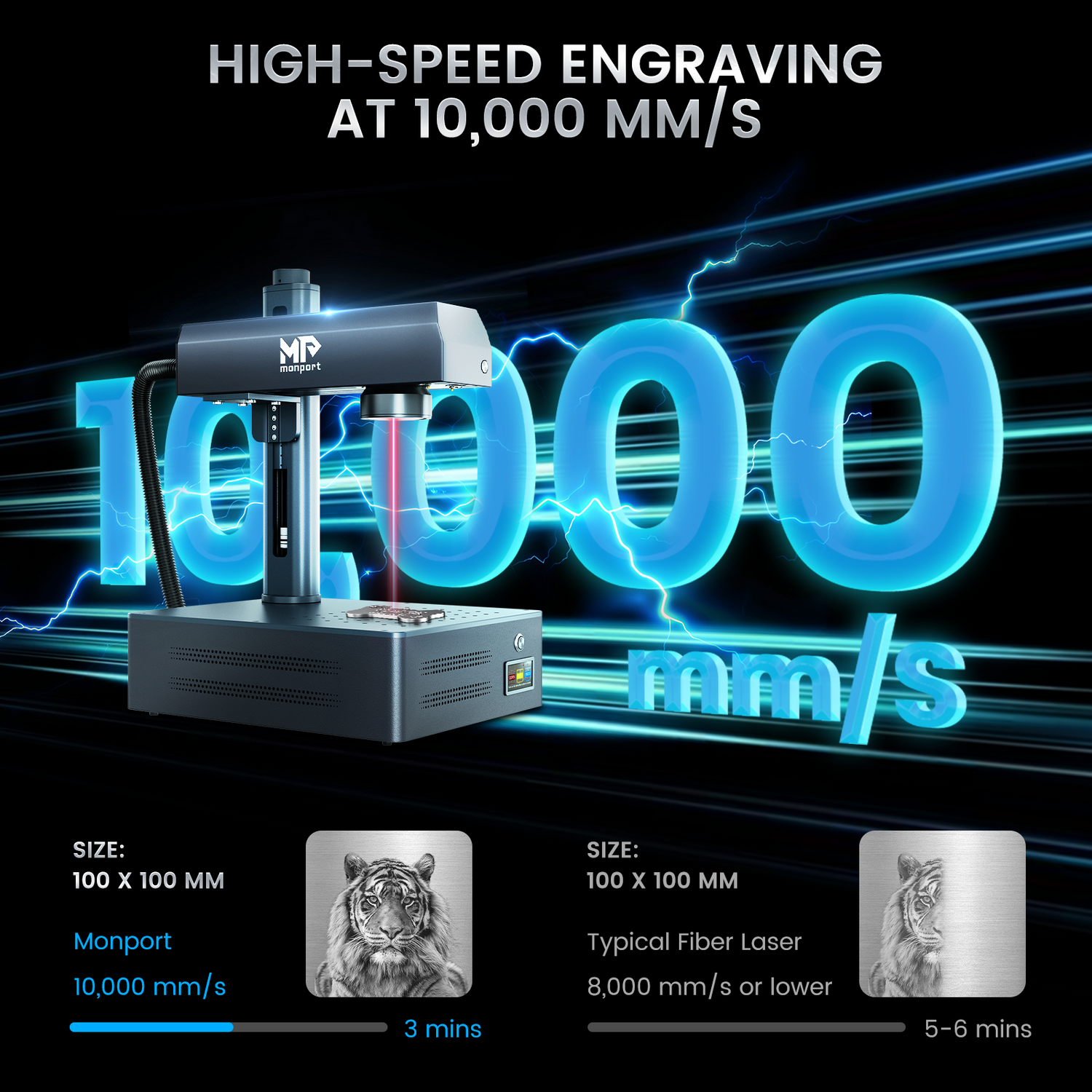

Faster, More Precise, Custom-Engineered Performance
The newly designed galvanometer system features high-quality silicon material reflectors, pushing the maximum speed to an impressive 10,000mm/s. Coupled with a custom F-theta field mirror, this advanced marking system ensures engraving accuracy down to 0.01mm, delivering exceptional precision and speed.

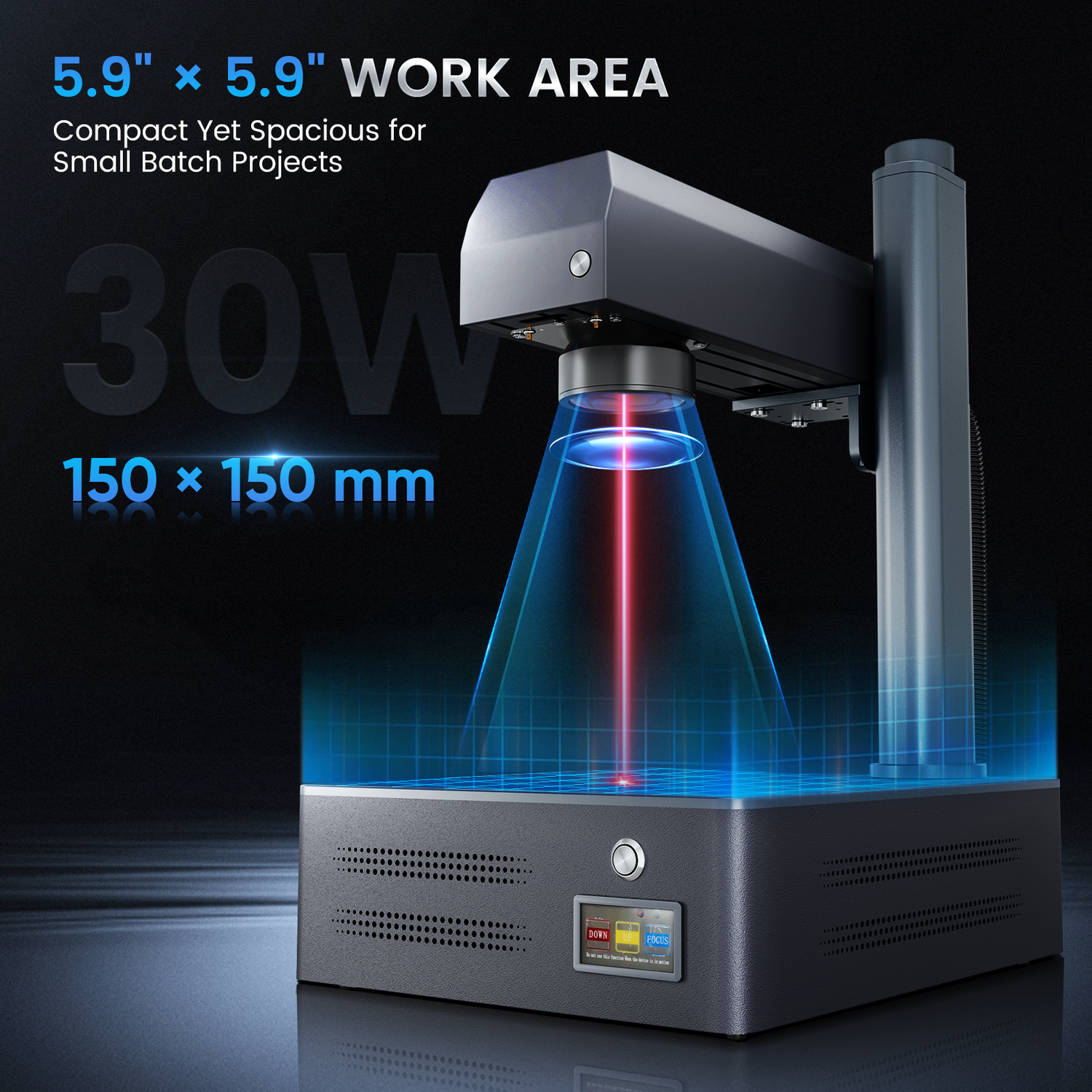

Perfectly Sized Working Area
For the 30W Mopa fiber laser, the optimal working area is 150*150mm. Going beyond this size may lead to subpar engraving results or even distortion. Thanks to Monport's precise tuning, you can engrave at the edges with consistent power, ensuring no weak spots or loss of intensity.

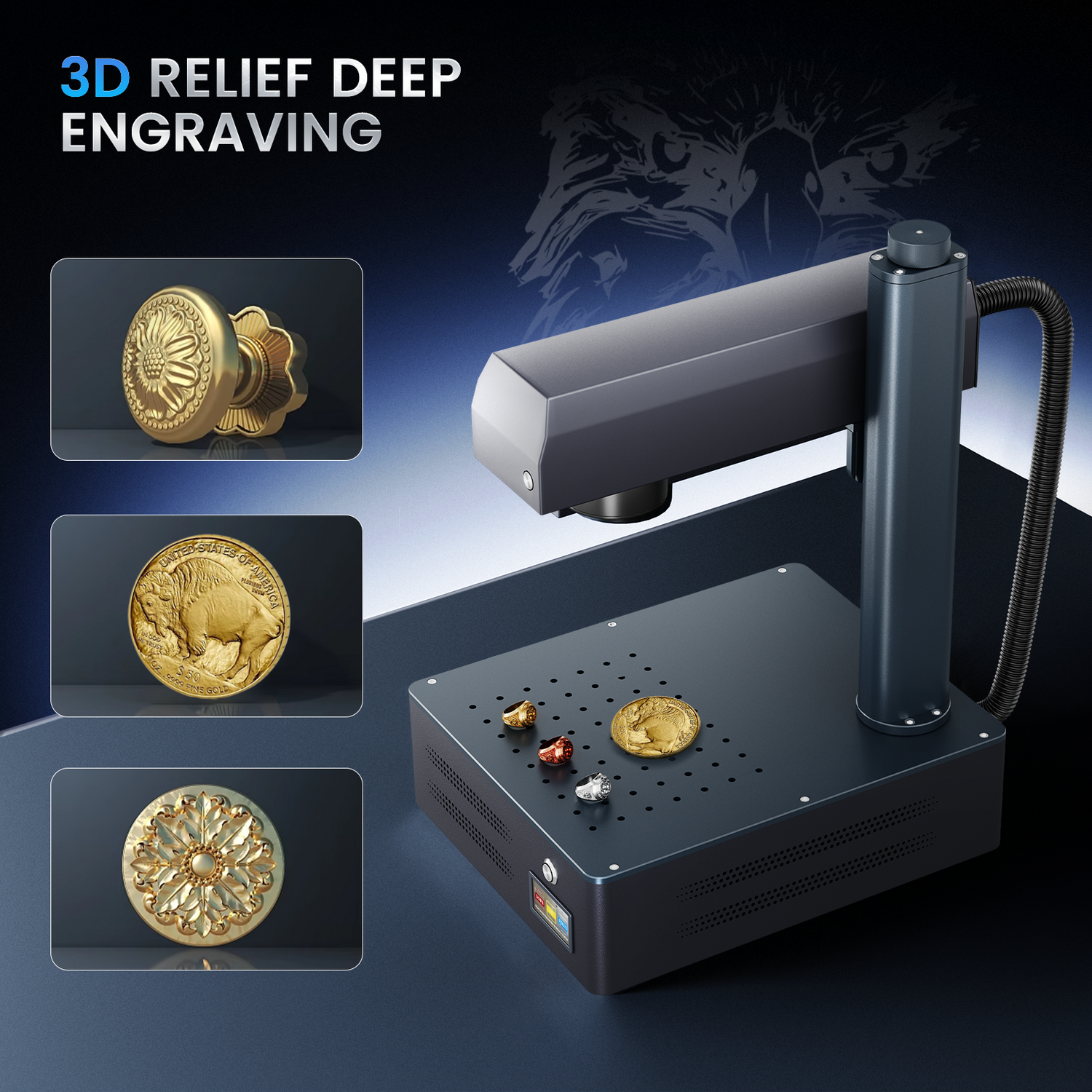

Deep Engraving and 3D Relief Engraving
The higher the power, the greater the depth and detail you can achieve in your engravings. With enhanced power, the machine delivers superior deep engraving and 3D relief results, providing unmatched precision and depth for intricate designs.
0.01mm Professional-Grade Accuracy
Engineered for precision, this machine delivers consistent, high-detail engraving with an accuracy of 0.01mm, ensuring flawless results with every use.

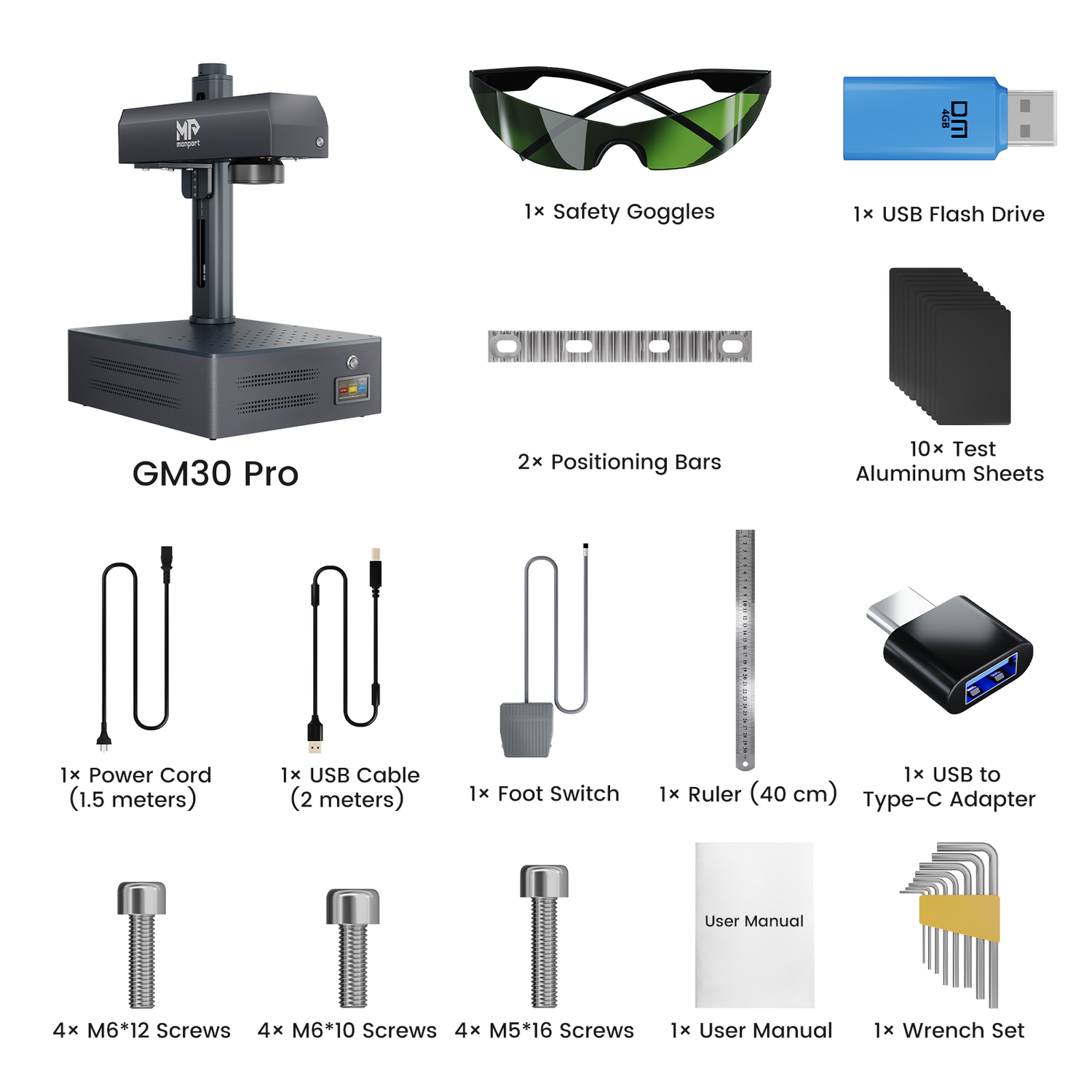

Package Contents
Package Contents
1x Fiber Laser Engraver
1x USB Cable(2 meters)
1x Power Cord(1.5 meters)
1x USB Flash Drive
1x User Manual
1xGoggles
1x Wrench Set
1x Ruler (30cm)
1x Foot Switch
2x Positioning Bars
4x Screws M6*12
4x Screws M6*10
4x Serews M5*16
1x Usb to TypeC Adapter
10x Test Aluminum Sheets
User manual
User manual
Warranty & Certifications
Warranty & Certifications
- 2-year parts warranty on all GM fiber laser machines
- 1-year warranty on fiber laser source
- CE CERTIFICATION
Free shipping within UK
Free shipping within UK
You will get the tracking number within 2 business days.
It takes 40-60 days to arrive..
If the arrived outer package is damaged, please refuse to sign for it and take a photo, then contact Monport via support@monportlaser.uk.
We are very glad to help you with the exchange process.
One-Touch Autofocus
The newly designed galvanometer system features high-quality silicon material reflectors, pushing the maximum speed to an impressive 10,000mm/s. Coupled with a custom F-theta field mirror, this advanced marking system ensures engraving accuracy down to 0.01mm, delivering exceptional precision and speed.
Faster, More Precise, Custom-Engineered Performance
The newly designed galvanometer system features high-quality silicon material reflectors, pushing the maximum speed to an impressive 10,000mm/s. Coupled with a custom F-theta field mirror, this advanced marking system ensures engraving accuracy down to 0.01mm, delivering exceptional precision and speed.
Perfectly Sized Working Area
For the 30W fiber laser, the optimal working area is 150*150mm. Going beyond this size may lead to subpar engraving results or even distortion. Thanks to Monport's precise tuning, you can engrave at the edges with consistent power, ensuring no weak spots or loss of intensity.
Deep Engraving and 3D Relief Engraving
The higher the power, the greater the depth and detail you can achieve in your engravings. With enhanced power, the machine delivers superior deep engraving and 3D relief results, providing unmatched precision and depth for intricate designs.
0.01mm Professional-Grade Accuracy
Engineered for precision, this machine delivers consistent, high-detail engraving with an accuracy of 0.01mm, ensuring flawless results with every use.
| Product | GM20 Pro | GM30 Pro | GM50 Pro | GM30 Pro MOPA | GM60 Pro MOPA | |
|---|---|---|---|---|---|---|
| Rated Power | 20W | 30W | 50W | 30W | 60W | |
| Processing Area | 4.3 x 4.3 in. (110x110mm) | 5.9 x 5.9 in. (150x150mm) | 5.9 x 5.9 in. (150x150mm) | 6.9 x 6.9 in. (175x175mm) | 6.9 x 6.9 in. (175x175mm) | |
| Laser Type | Q-switched fiber laser | MOPA Fiber Laser | ||||
| Color Engraving | NO | YES | ||||
| Max. Marking Speed | 10000mm/s (393.7 ips) | |||||
| Focus mode | Autofucus | |||||
| Electric Lifting | YES | |||||
| Beam Quality M2 | <1.5 | <1.5 | <1.6 | <1.4 | <1.5 | |
| Maximum Pulse Energy | 0.75 mJ | 0.75 mJ | 1.1 mJ | 1 mJ | 2 mJ | |
| Max. Marking Depth on a Single Pass | 0.002in (0.04mm) | 0.003in (0.08mm) | 0.004in (0.1mm) | 0.003in (0.08mm) | 0.004in (0.1mm) | |
| Expected Service Life | 100,000 hr. | |||||
| Rated voltage | 110V(US),220V(UK,EU) | |||||
| Wavelength | 1064 nm | |||||
| Frequency Range | 29~60kHz | 30~60kHz | 45~170kHz | 1-4000kHz | 1-4000kHz | |
| Pulse Width |
80-120 ns Unadjustable (Fixed pulse width) |
80-120 ns Unadjustable (Fixed pulse width) |
90-110 ns Unadjustable (Fixed pulse width) |
2-500 ns |
2-500 ns |
|
| Beam Diameter | 6-8 mm | 7±1mm | ||||
| Positioning Accuracy | ±0.1 μm | |||||
| Galvanometer Thread size | M68 | |||||
| Field lens dimension | M85 | |||||
| Cooling Type | Air Cooling | |||||
| Supported File | For BSLcad：JPG Files（*.jpg；*.jpeg）,BMP Files（*.bmp）,GIF Files（*.gif）,PNG Files（*.gif）,TIF Files（*.tif；*.tiff）,EMF Files（*.emf）,DXF Files（*.dxf）,AI Files（*.ai）,FPGL Files（*.plt）,Gerber Files（*.cs；*.gbr；etc）,Svg Files;
For LightBurn：,Image files (*.bmp *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga *.webp),Vector files (*.ai *.pdf *.sc *.dxf *.gc *.gcode *.nc *.hpgl *.plt *.svg *.lbrn *.lbrn2 *.mage) |
|||||

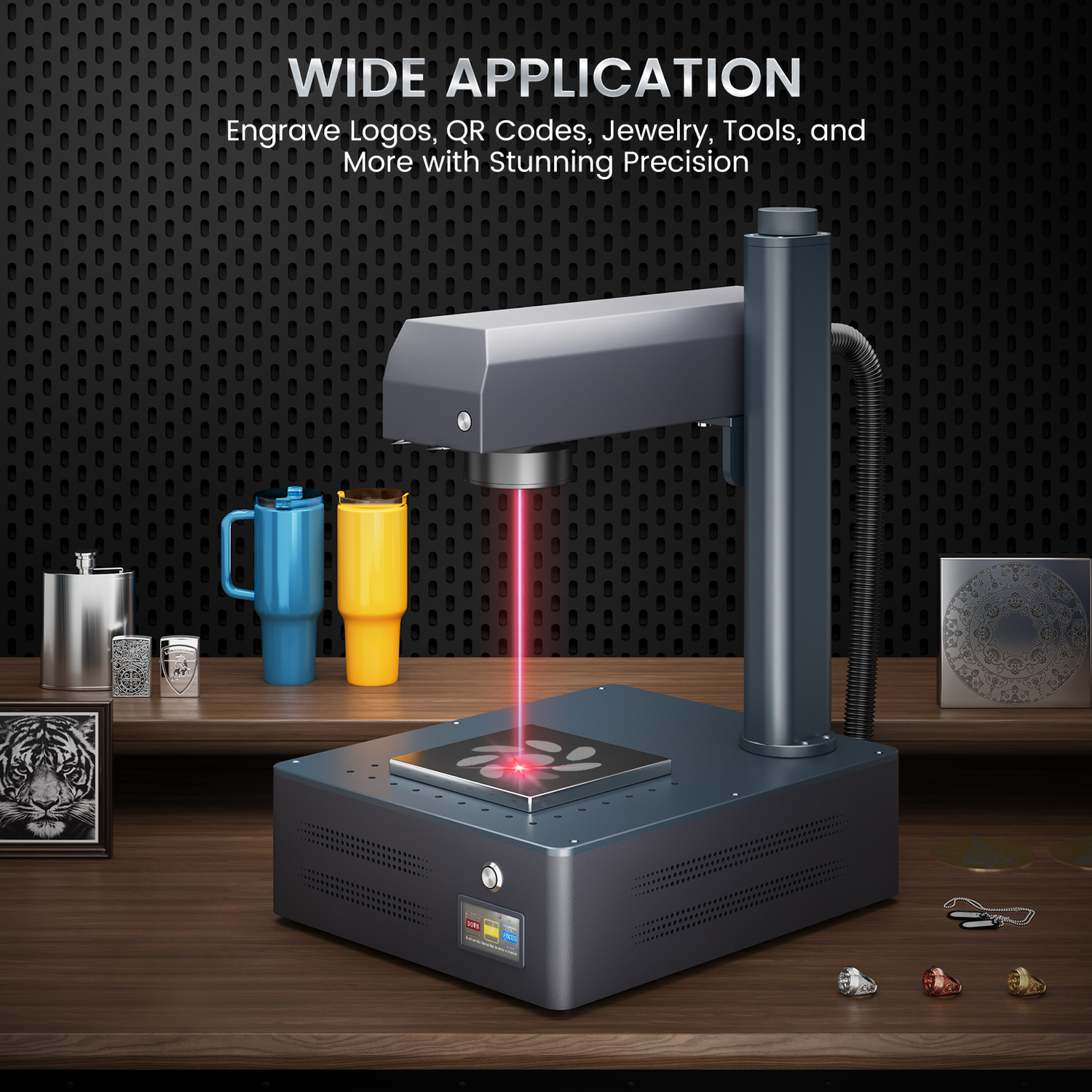

| Materials Suitable for Engraving | Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc | |||||
| Data Transmission | USB Cable | |||||
| Compatible Operating Systems | Windows / macOS | |||||
| Provided Operating Software | BslAppSimple，Lightburn | |||||
| Warranty | 2-year(1 year for laser source) | |||||
