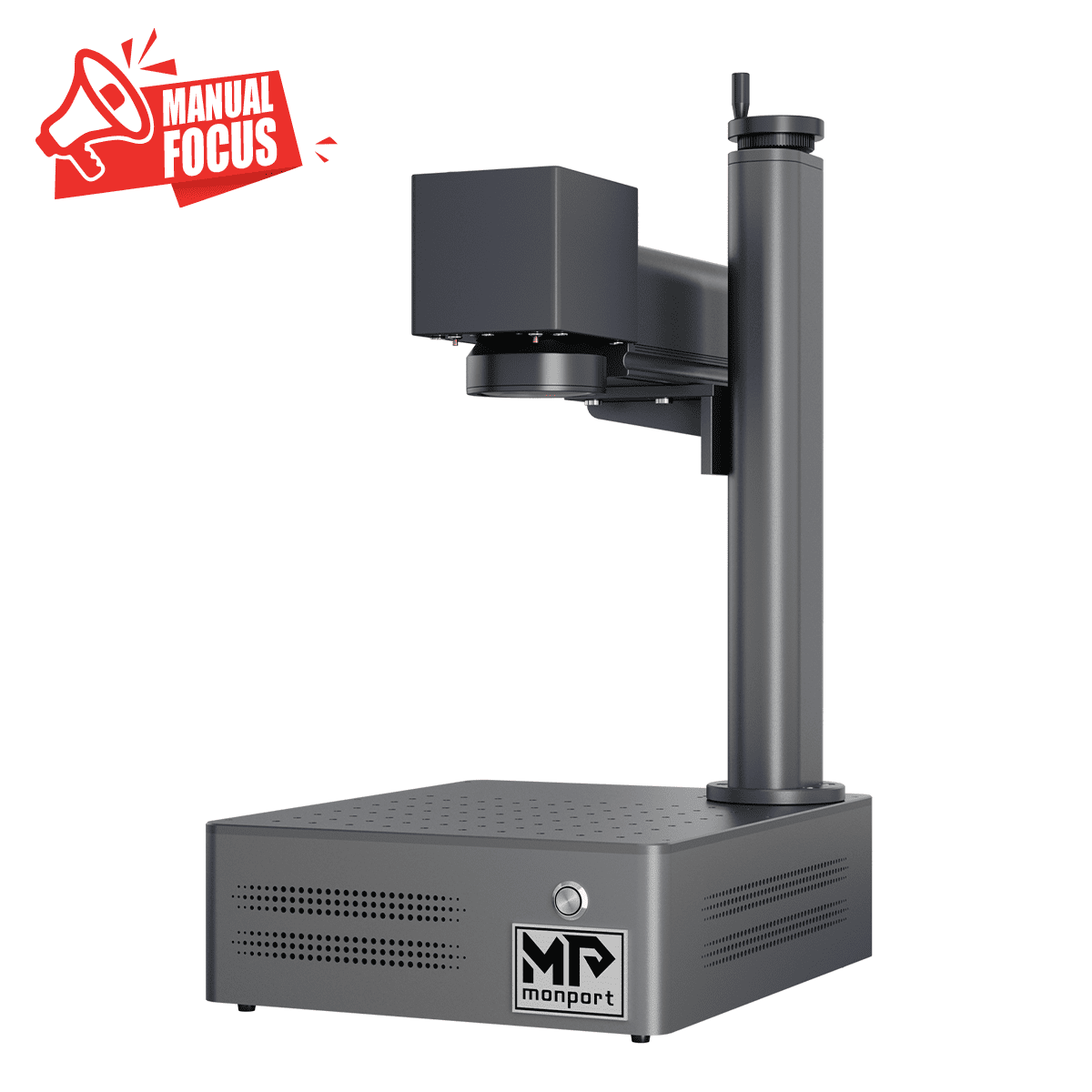

Monport GM 20W Integrated Fiber Laser Engraver & Marking Machine

Laser Power: 20W

Working Area: 4.3 x 4.3 in.

Wavelength: 1064nm

Machine Dimension: 370 x 300 x 550mm

Package Dimension: 545 x 390 x 350mm

Marking Speed: Up to 10000mm/s

Expected Service Life (MTTF): 100,000 hr.

Brand new integrated mini fibre laser

The brand new Monport fibre marking machine has a smaller size and lighter weight while maintaining the original high performance and a lifespan of up to 100,000 hours. The fibre laser can engrave all metals (gold, silver, copper, stainless steel, brass, titanium, etc.).

Faster and more accurate

The newly adapted galvanometer system is equipped with more expensive silicone material reflectors that allow a maximum speed of 10,000 mm/s. Monport has also adapted an F-Theta objective mirror which, together with the entire marking system, can achieve an engraving accuracy of 0.01 mm.

Optimum working range

For a 20W fibre laser, a working area of 110 * 110 mm is optimal, as too large an engraving area can lead to a poor engraving effect or even distortion. After special fine-tuning by Monport, there will be no weak light output even at the edges.

Deep engraving and cutting capabilities

With this 20W fibre laser marking machine, you can do 2.5D metal engraving, deep metal engraving and even some metal cutting work (normally, the higher the power, the stronger the deep engraving and cutting ability and the higher the efficiency. If you want stronger and faster results, Monport recommends purchasing a 50W or stronger machine).

Lightburn compatible

All Monport fibre marking machines can be operated with Lightburn, but if you don't want to use Lightburn, we also offer free and easy-to-use software (free software and backup parameters are stored on a USB stick and are included in the package).

Rich compatibility with accessories

You can combine it with a Rotary (to mark round objects), a smoke cleaner (to absorb smoke and dust), a protective cover (noise reduction, safety), all of which are available in Monport stores.

1x Fiber Laser Engraver
1x USB Cable(2 meters)
1x Power Cord(1.5 meters)
1x USB Flash Drive
1x User Manual
1xGoggles
1x Wrench Set
1x Ruler (30cm)
1x Foot Switch
2x Positioning Bars
4x Screws M6*12
4x Screws M6*10
4x Serews M5*16
1x Usb to TypeC Adapter
10x Test Aluminum Sheets

Download user manual

• 2-year parts warranty on all GM fiber laser machines
• 1-year warranty on fiber laser source
• CE CERTIFICATION
